Why Choose a Mini Crawler Dumper Over Wheeled Equipment
Traditional wheeled dump trucks and manual wheelbarrows have long been the default choice for small scale material handling. However on soft ground in tight passages or on finished surfaces wheeled machines often cause turf damage get stuck in mud or simply cannot enter the workspace. A mini crawler dump truck also called a tracked dumper solves these problems with its continuous rubber track undercarriage which spreads machine weight over a larger contact area. This reduces ground pressure prevents sinking on wet soil and minimizes lawn compaction. For contractors who regularly work in residential gardens utility corridors and interior renovation sites the crawler dumper is a purpose built solution that improves productivity while protecting the site.
Application in Landscaping and Garden Projects
Landscaping is one of the most common and valuable use cases for the mini crawler dumper. Garden renovation planting bed preparation and hardscape installation all require moving significant volumes of topsoil mulch gravel sand or decorative stone. A tracked dumper can:
Enter through standard garden gates as narrow as 700 to 800 millimeters depending on model width
Travel across established lawns without tearing grass or creating deep ruts thanks to wide rubber tracks
Carry heavy loads up gentle slopes that would cause wheeled carts to slip
Reduce reliance on manual wheelbarrow crews which lowers labor cost and operator fatigue
Whether the project involves installing a new lawn laying pavers or transporting green waste from pruning the crawler dumper allows landscapers to complete material handling in fewer trips and with less site restoration work afterward.
Application in Trench Backfilling and Utility Works
Utility contractors laying water gas or fiber optic lines must frequently move excavated spoil away from the trench and later bring backfill sand or aggregate for reinstatement. The mini crawler dumper is particularly effective in this scenario because:
It can follow the trench line along sidewalks driveways or fenced property boundaries
Its low profile and short turning radius allow operation in the limited space between the trench and existing structures
The hydraulic dump system enables quick unloading of spoil into a waiting skip or directly back into the trench in controlled amounts
On wet clay or recently excavated soil the rubber tracks maintain traction where wheeled vehicles would spin or bog down
By integrating a crawler dumper into the utility crew workflow supervisors can shorten cycle times reduce manual shoveling and keep the work face clear of loose material which also improves jobsite safety.
Application in Narrow Access Construction and Indoor Sites
Many urban renovation basements tunnel approaches and historic building restorations have severely restricted access. Full size dump trucks cannot pass through doorways or down stairwells and even compact wheeled loaders may be too wide or damage finished floors. The mini crawler dumper is designed for exactly these conditions:
Overall width can be as low as 700 millimeters allowing passage through standard doorways and elevator cabs in some cases
The tracked chassis absorbs minor irregularities in unfinished floors or basement slabs
Quiet gasoline or diesel power units are suitable for semi enclosed environments with adequate ventilation
Detachable dump bodies simplify cleaning when switching between debris soil and aggregate
Contractors who specialize in basement dig outs narrow lot foundation work or interior demolition often find that a single crawler dumper can replace four to six laborers with wheelbarrows increasing daily moved volume while reducing injury risk.
Key Challenges Solved by the Crawler Configuration
Beyond the three main applications the crawler dumper addresses several recurring pain points on small projects:
Mud and rain no longer stop work because the machine resists sinking even on saturated subgrade
Finished paving brick or turf is preserved which reduces dispute with clients over restoration cost
Steep driveway approaches or embankments become accessible for material delivery
One operator can manage loading hauling and unloading when paired with a mini excavator or skid steer
These advantages explain why rental fleets in Europe Australia and North America increasingly stock 1 ton class crawler dumpers as standard equipment for landscape and utility crews.

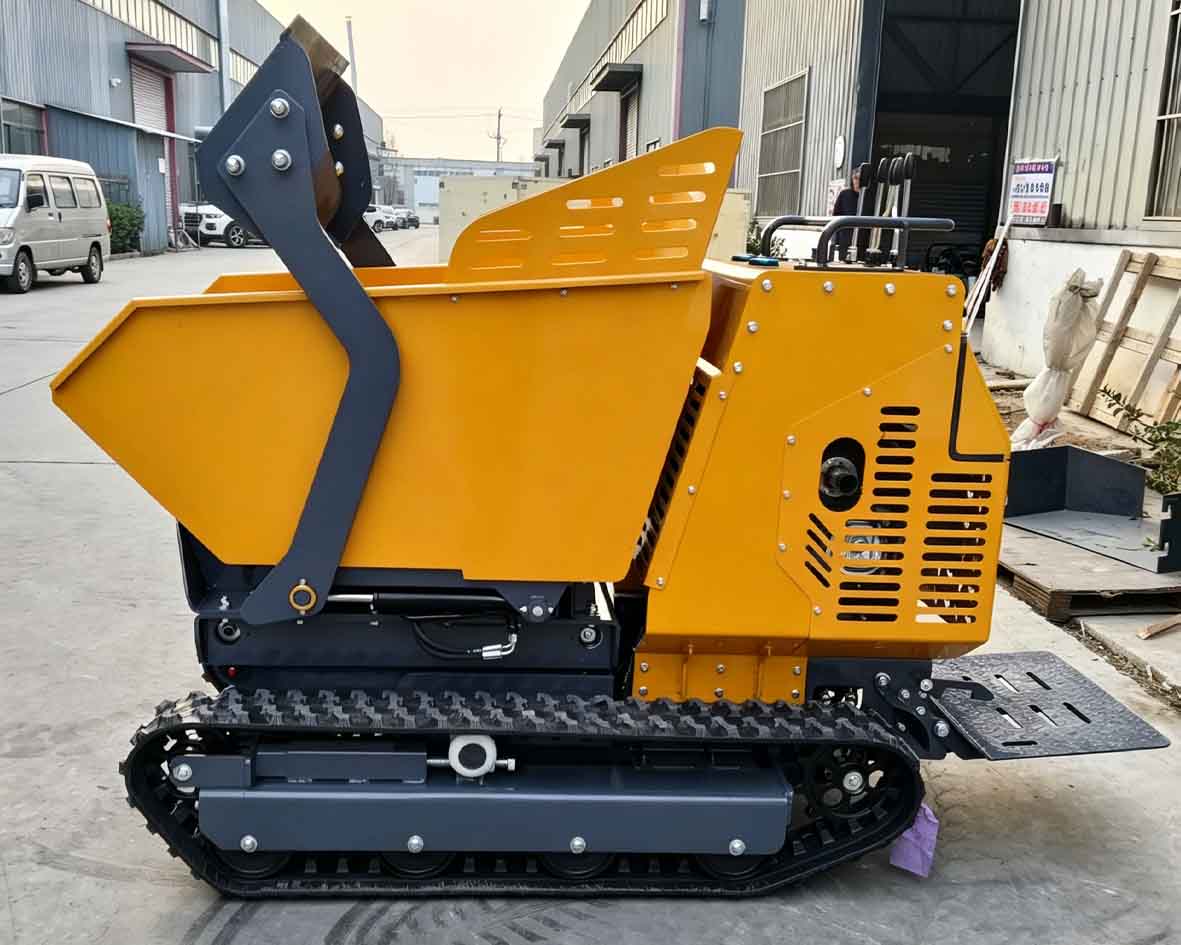

Xinghang XHT1000 Mini Crawler Dump Truck Product Features
The Xinghang XHT1000 is a 1000 kg rated mini crawler dump truck developed for professional contractors who need a balance of payload compactness and durability. Key features include:
Rated load capacity of 1000 kg with a reinforced steel dump body that resists deformation when carrying sharp edged rubble or wet heavy aggregate
Overall machine width of approximately 850 to 900 mm depending on track option allowing access through garden gates and narrow alleys
Rubber track undercarriage with ample ground contact length to lower ground pressure and protect lawns turf and interlocking pavers
Hydraulic self tipping system with a large dump angle that ensures fast complete unloading and minimal material residue in the skip
Adjustable dump height on selected variants to align with standard truck beds waste skips or conveyor hoppers
Centralized control console fabricated from high hardness pressed steel for impact resistance and intuitive operation of drive and dump functions
Heavy duty steel chassis with reinforced mounting points for the lifting cylinder and track frames to withstand shock loads on rough terrain
Optional gasoline engine such as 13 HP or diesel power unit to meet different emission and torque requirements in domestic or export markets
Detachable skip design for easy cleaning and quick changeover between material types
Parking brake and engine shutdown protection to enhance safety during loading and unloading
The XHT1000 is engineered to replace intensive manual handling on sites where larger vehicles cannot go. Its combination of 1 ton payload compact width and turf friendly rubber tracks makes it particularly suitable for landscaping firms utility contractors and rental companies serving the residential and light commercial market.
Maintenance Tips for Long Service Life
To keep a mini crawler dumper such as the XHT1000 operating reliably owners should:
Check track tension weekly and adjust according to manufacturer specification to avoid premature wear or de tracking
Clean mud and debris from between track pads sprockets and idlers after each day of use especially in clay or sticky soil
Monitor hydraulic oil level and inspect cylinders hoses and fittings for signs of leakage
Change engine oil and filter at intervals recommended by the engine supplier typically every 50 to 100 operating hours
Grease pivot points and dump hinge pins regularly to prevent seizing and uneven wear
Store the machine under cover when possible to protect rubber tracks from prolonged UV exposure
Following these basic practices extends undercarriage life preserves hydraulic performance and reduces unexpected downtime on critical project dates.
Conclusion
The mini crawler dump truck has become an essential piece of equipment for landscaping trench backfill and narrow access material handling. Its ability to protect sensitive surfaces climb moderate grades and fit where wheeled machines cannot enter delivers measurable time and labor savings. The Xinghang XHT1000 embodies these benefits in a 1 ton class package with a robust steel frame hydraulic self dump and compact rubber track undercarriage. For contractors rental houses and municipal crews who routinely face soft ground confined passages or finished surface protection requirements the XHT1000 offers a practical durable and cost effective hauling solution.
