Introduction: The Foundation of Everything
In construction, what you don’t see is often more important than what you do. A beautiful asphalt surface, a sturdy concrete slab, or a massive solar panel array is only as good as the ground beneath it. If the subgrade—the native soil or imported fill—is not properly compacted, the entire structure is destined to fail. Cracks will appear, slabs will sink, and drainage will fail.
This is where the Single Drum Soil Compactor earns its keep. Unlike double drum rollers designed for the finish touches on asphalt, single drum rollers are the workhorses of the earth. They are built to bite deep into granular materials, to crush air pockets out of thick lifts of soil, and to create a stable platform that can bear immense loads.
At Xinghang Machinery, our XHR Series—spanning the 3.5-ton XHR3500, the 4-ton XHR4000, and the 6-ton XHR6000—represents our commitment to the toughest jobs on earth. These are not machines for parking lot overlays; these are machines for building the future from the ground up.
1. Why Single Drum? The Physics of Deep Compaction
To compact soil effectively, you need two things: Weight and Vibration.
Double drum rollers are limited in how much weight they can put on a single point because they have two drums sharing the load. Single drum rollers concentrate their mass. The XHR6000, for example, places nearly its entire 6,000 kg operating weight onto one large diameter, wide-width steel drum.
More importantly, single drum rollers generate massive Centrifugal Force (Exciting Force). While a 3-ton double drum roller might offer 30–45 kN of vibration, the XHR6000 delivers a staggering 75 kN. This force is transmitted deep into the soil profile, shaking loose particles and allowing them to settle into a dense, interlocked state.
Think of it like a hammer versus a rubber mallet. A double drum roller is the mallet—great for smoothing. A single drum roller is the hammer—essential for driving the foundation home.
2. Anatomy of the Xinghang XHR Series
What makes an XHR roller tough enough for a mining haul road or a rural highway embankment? It comes down to three core engineering principles:
2.1 The Powertrain: Constant Power, Low RPM
Soil compaction is a marathon, not a sprint. The engine must run at high loads for hours on end without overheating. The XHR series is powered by the Changchai 4G33TC or 4JR3ABZ series diesel engines. These are renowned in China’s construction sector for their robustness and fuel efficiency. They provide constant power output even at low RPMs, ensuring that the vibration frequency remains stable even as the drum meets resistance in hard soil.
2.2 The Hydraulic System: Smooth Travel, Strong Vibration
Unlike cheaper mechanical-drive compactors that use belts and clutches (which slip and wear out quickly), the XHR series utilizes a Full Hydraulic Transmission System.
Travel: Hydraulic piston motors drive the rear wheels, providing infinite speed control and eliminating the need for a gearbox. This allows for incredibly smooth starts and stops, preventing ripples in the freshly compacted soil.
Vibration: A dedicated hydraulic pump drives the eccentric weights inside the drum. The vibration amplitude is optimized for deep penetration. The system is cooled and filtered, ensuring longevity even in dusty environments.
2.3 Structural Integrity: Built to Take a Beating
The chassis of the XHR series is a welded monocoque structure designed to absorb vibration, not transmit it to the operator. The articulated steering joint is oversized and greased, allowing for tight turning radii (≤6,000mm) even under heavy side loads. The ROPS/FOPS certified canopy protects the operator, while the spacious engine bay allows for easy daily maintenance checks.
3. Application Scenarios: Where the XHR Series Dominates
3.1 Rural Road Construction (The Last Mile)
In developing regions across Southeast Asia, Africa, and South America, the push for "Last Mile Connectivity" is creating massive demand for road base preparation. Rural roads are often built on soft subgrades. The XHR4000 or XHR6000 is the ideal machine here. Its high ground clearance allows it to navigate uneven terrain, while its 55–75 kN vibration force ensures that the laterite or gravel base is compacted to a density that prevents premature rutting during the rainy season.
3.2 Large-Scale Earthworks & Embankments
Building highways or railway embankments involves placing soil in thick "lifts" (layers), often 300mm to 500mm thick. Light rollers cannot penetrate this depth. The XHR series, with its high amplitude vibration, is designed specifically for this. It ensures that every lift, from the bottom of the fill to the top, meets the required Proctor Density standards. This is critical for preventing differential settlement that can crack bridges or pavements later.
3.3 Solar Farms & Wind Farms
The renewable energy boom requires thousands of acres of land to be graded and compacted. While the loads are relatively light compared to mining, the scale is enormous. The XHR3500 offers a perfect balance of compaction performance and transportability. It can be easily moved between sections of a solar farm via lowboy trailer, ensuring that the pads for the racking systems are set on solid, unyielding ground.
3.4 Mining & Quarry Access Roads
Haul roads in mines endure the punishment of 100-ton trucks. These roads must be built on compacted rock and maintained constantly. The heavy weight and aggressive vibration of the XHR6000 make it the perfect tool for both initial construction and ongoing maintenance of these critical arteries. Its robust construction resists the dust and impact inherent in mining environments.
4. The Importance of "Static Linear Pressure"
When experts evaluate a soil compactor, they look at Static Linear Pressure (N/cm). This metric tells you how much weight is pressing down on every centimeter of the drum’s width.

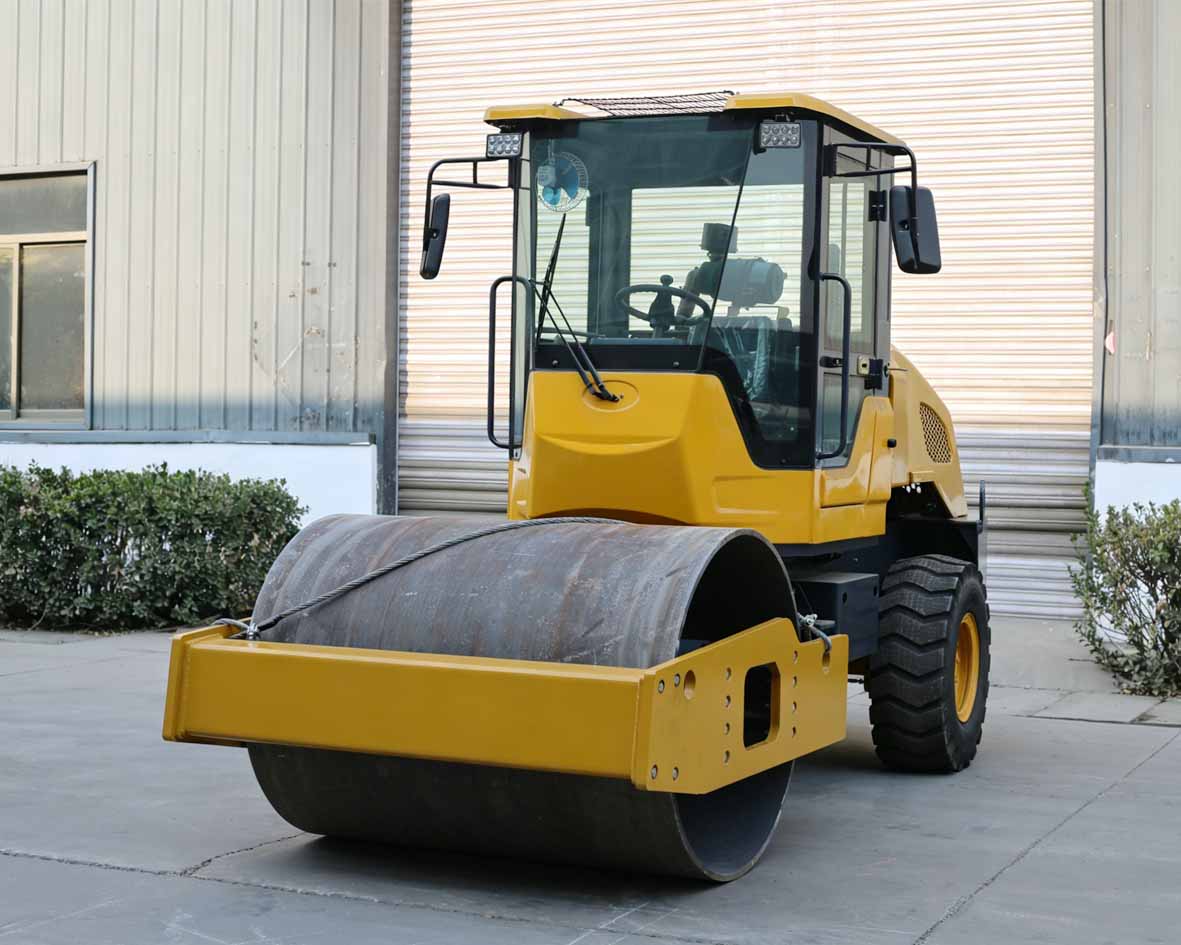

The Xinghang XHR6000 boasts a front linear pressure of 615 N/cm. To put that in perspective, that is significantly higher than many 8-ton or even 10-ton class rollers from other budget manufacturers. This high linear pressure ensures that the drum "sinks" into the soil to the optimal depth, allowing the vibration to work most effectively. It is the difference between "riding on top" of the soil and "compacting through" the soil.
5. Operational Efficiency & Operator Comfort
A machine is only as good as the person running it. Long hours on a dusty, vibrating jobsite are taxing. The XHR series is designed with the operator in mind:
Ergonomic Seat: A suspension seat absorbs shocks, reducing operator fatigue.
Intuitive Controls: Joystick or pilot controls make operation intuitive, even for less experienced drivers.
Visibility: The hood is sloped to provide excellent visibility to the drum edge and the front tires, crucial for working near embankment edges or obstacles.
Safety: A dead-man’s switch and ROPS/FOPS protection are standard, meeting international safety norms.
6. Why Choose Xinghang for Your Heavy Compaction Needs?
The market is flooded with cheap rollers that look the part but fail under pressure. Xinghang differentiates itself through:
Proven Components: We use brand-name engines (Changchai), reputable hydraulic pumps, and Japanese NSK bearings in the drum hubs. This ensures reliability.
Rigid Quality Control: Every XHR roller undergoes a 48-hour non-stop load test before leaving the factory. We check for oil leaks, hydraulic overheating, and vibration consistency.
Global Support: We maintain a stock of critical spare parts (filters, seals, vibration bearings) and provide detailed English manuals to support your operation anywhere in the world.
Conclusion: Build It Right from the Ground Up
You cannot fix a bad foundation with a pretty surface. Whether you are paving a rural road, building a solar farm, or constructing a mine haul road, the quality of your subgrade compaction dictates the lifespan of your entire project.
The Xinghang XHR Series—the XHR3500, XHR4000, and XHR6000—offers the power, reliability, and deep-compaction performance you need to get the job done right. Don't compromise on your foundation. Choose the roller that is built to handle the earth.
?? Contact Xinghang Machinery today to discuss your soil compaction requirements and get a quotation for the XHR series. Let us help you build a future that lasts.
Small Machine, Giant Power — For the Foundations of Tomorrow.
