Section 1: The Philosophy of Compact Electric Power and Company Profile
Jining Xinghang Machinery operates on the belief that true strength lies in capability rather than size. Their mission focuses on replacing roaring diesel engines with silent zero emission electric power. The product manualhighlights their two modern production bases and complete industrial supply chain which enable the transformation of heavy duty power into agile efficient and eco friendly solutions. The company holds ISO 9001 quality management certification CE certification and Euro V emission compliance ensuring global trust. This section delves into how the Xinghang product lineup including electric mini loaders skid steer loaders compact excavators and road rollers addresses the pain points of narrow space operations such as greenhouses basements and urban renovation sites.
Section 2: Entry Level Precision The 0.4 Ton Series XHD400 XHD400A XHD04 and XHDL Variants
The XHD400 and XHD400A series represent the ultra narrow design philosophy with widths as slim as 1060 mm. These machines are constructed from high strength manganese steel ensuring durability despite their compact footprint.
Motor Configuration: The XHD400 utilizes a single 4KW flat wire motor for full time four wheel drive while the XHD400A upgrades to dual 2.5KW flat wire motors for enhanced torque distribution. The lifting system consistently employs a 3KW flat wire motor paired with a low noise gear pump.
Axle Technology: A critical feature across these models is the fully suspended reinforced axle design. This balances ride comfort with high load bearing capacity which is crucial when navigating uneven terrain in confined spaces.
Battery Options: Users can select 64V 180Ah or 64V 150Ah Lithium Iron Phosphate batteries or 60V 160Ah lead acid batteries providing 4 to 8 hours of continuous operation.
Control Systems: The integration of CAN bus communication with digital LCD instrument panels provides real time data on voltage battery level speed and fault codes. The electronically controlled integrated handle combines movement speed shifting and lifting into one intuitive unit.
This section will elaborate on the advantages of flat wire motors over traditional round wire motors including higher slot fill factor better heat dissipation and lower noise levels which are vital for indoor environments like warehouses and workshops.
Section 3: Scaling Capacity The 0.5 Ton and 0.8 Ton Series XHD500 XHD500A XHD08
As operational demands increase the 0.5 ton and 0.8 ton series offer greater lifting heights and discharge capacities.
XHD500 Series: Maintains the 1060 mm width but increases loaded weight capacity to 500kg with a lifting height of 2580 mm and discharge height of 1900 mm. The structural integrity remains reliant on manganese steel and reinforced full floating axles.
XHD08 Series: This 0.8 ton class machine grows to 1160 mm in width and 3840 mm in length with a net weight of 1980 kg. It features a 72V system with a 5KW hydraulic motor and 26x1200-12 tires. The rated load reaches 800kg with a max excavation force of 1000KN. The swinging degree of the rear axle is optimized at 7 degrees for better stability on rough terrain.
Telescopic Options: The XHD08T and XHD04T introduce telescopic booms allowing lifting heights up to 3310 mm and dumping reaches up to 700 mm. This expands the operational coverage for high stacking in barns or loading trucks from a distance.
Discussion here will focus on how the fully suspended axle design prevents structural fatigue in these heavier compact classes and the role of fluid link steering versus full hydraulic steering in maneuverability.
Section 4: Heavy Duty Compact The 1 Ton 1.5 Ton and 2 Ton Series XHD10 XHD15 XHD20
Moving into the 1 ton to 2 ton category the machines adopt larger frames and higher voltage systems.
XHD10: Rated at 1000kg with overall width 1260 to 1300 mm and 72V 5000W hydraulic motors. Tire options expand to 265/75-15.3 or 29x12.50-15 for better ground traction.

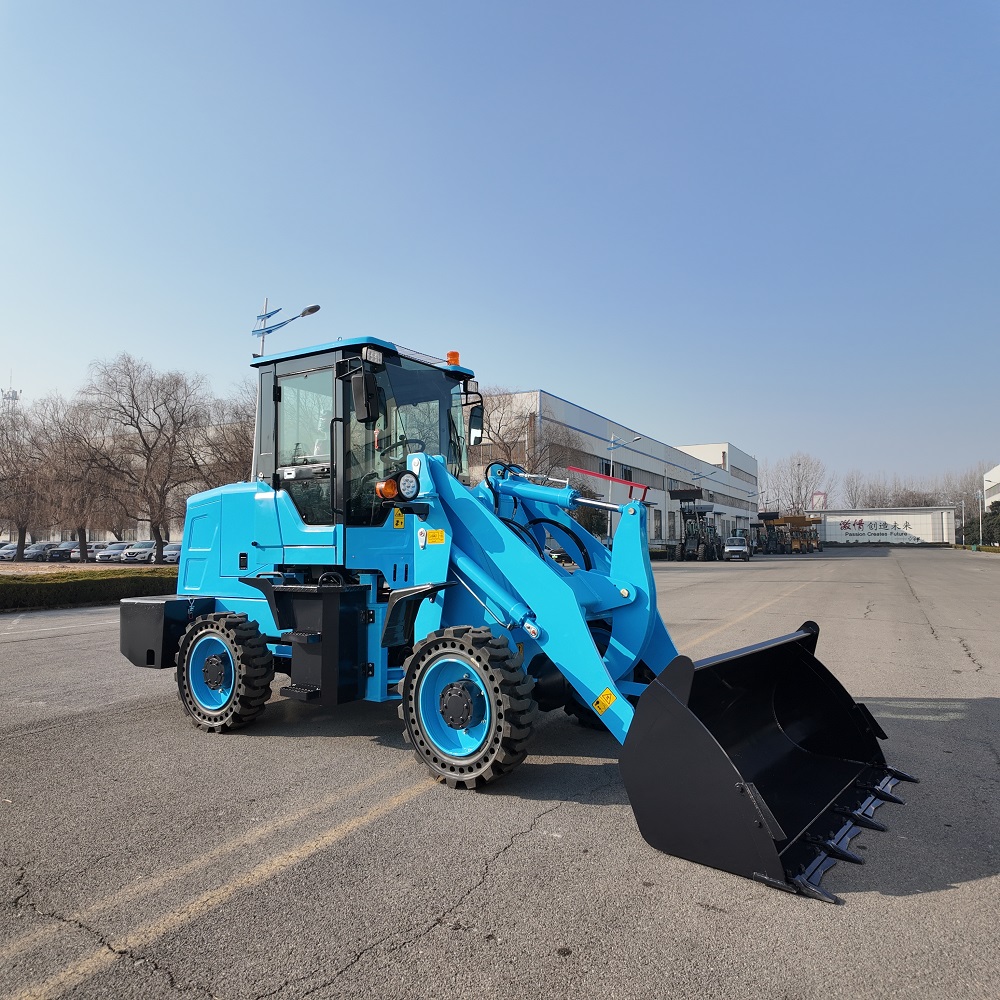

XHD15: A 1.5 ton loader with 153.6V 20KW travel motor and 12KW working motor. It introduces a panoramic view cab for safety and a hydraulically driven quick change device for multi functional attachments. The bucket capacity reaches 0.8 cubic meters.
XHD20: A 2 ton machine weighing 6500kg with a 153.6V 460AH 70KW battery. It uses a DE20 high and low speed transmission and 16/70-20 tires. The minimum turning radius is 5000 mm and max speed reaches 32 km/h.
This section analyzes the transition from lead acid to high capacity lithium systems and the importance of automatic temperature controlled cooling in controllers for these high power machines.
Section 5: The Telescopic Frontier XHD04T XHD10T and XHD25
The XHD25 is a 2.5 ton telescopic loader designed for urban construction and logistics. With a retracted arm load of 2200kg and extended dumping height of 3800 mm it bridges the gap between mini loaders and standard machinery. It features 153.6V systems and a theoretical gradeability of 15 degrees. The article will discuss how Jining Xinghang Machinery integrates full hydraulic steering with 30 degree angles and 16MPa system pressure across these telescopic models to maintain precision despite the extended boom reach.
Section 6: Universal Features Across the Series
Across all series Jining Xinghang Machinery emphasizes zero emissions low noise compact flexibility easy operation and low maintenance. The elimination of engines transmissions and drive shafts reduces failure points. The use of drum brakes for service and parking and the availability of multi functional tool switching such as grippers and forks cater to diverse scenarios from landscaping to municipal works. This section consolidates the comparative advantages using data from the product manual such as lifting times 5.5s discharge times 3s and climbing capabilities.
Conclusion
Jining Xinghang Machinery has built a product matrix that scales from 0.4 tons to 2.5 tons without compromising the core benefits of electric drive compact design and reinforced structural components. The consistent application of fully suspended reinforced axles and flat wire motor technology demonstrates a commitment to durability and efficiency. For global buyers the XHD and XHDL series represent a reliable pathway to sustainable construction in space constrained environments.
