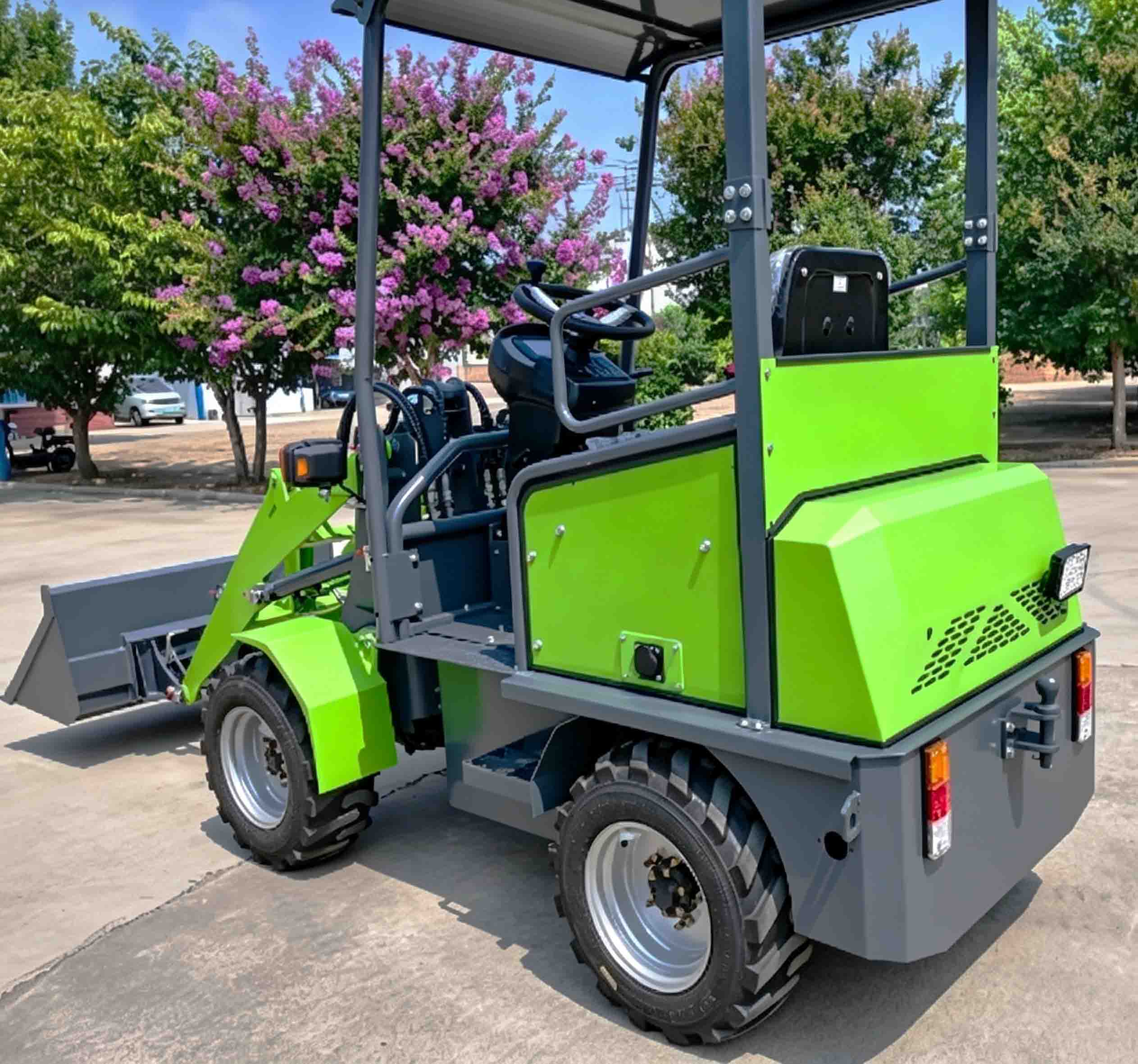

In construction equipment, spec sheets often look identical, yet real-world performance varies wildly. This gap usually stems from core technological disparities. The Jining Xinghang XHD500 excels in confined spaces not just due to its size, but because it houses two "smart hearts": Flat-Wire Motor technology and a CAN-Bus control system. This article peels back the layers to show how these innovations translate into tangible productivity.
Flat-Wire Motor – Big Power in a Small Package
Traditional electric tools often use "Round-Wire Motors," where circular copper wires leave gaps in the stator slots. The XHD500 employs the advanced "Flat-Wire Motor."
Slot Fill Factor Revolution: Flattening the copper wire is like swapping loosely stacked logs for tightly packed planks—void space drops drastically. The XHD500 achieves a 20-30% higher slot fill factor. More copper in the same volume means lower resistance and higher torque (4KW drive + 3KW hydraulic).
Thermal Breakthrough: Copper windings are the heat source. Flat wire offers greater surface area for heat dissipation. Under heavy load (steep grades or continuous lifting), the XHD500's motor runs 15-20°C cooler than round-wire equivalents. This prevents thermal throttling or shutdowns, ensuring uninterrupted operation.
NVH Improvements: Flat-wire windings exhibit higher stiffness, reducing electromagnetic noise. Combined with the XHD500's silent design, overall noise levels are industry-leading—ideal for hospital or school zones.
Power Density: Smaller size and lighter weight contribute to the machine's lightweight design, indirectly boosting payload efficiency and range.
CAN-Bus – The Machine’s Nervous System
If motors are muscles, CAN-Bus is the nervous system. Legacy machines use complex point-to-point wiring; troubleshooting is a nightmare. The XHD500 uses automotive-grade CAN-Bus.
Digital Control: All commands (throttle, brake, lift, steer) become digital signals traveling at high speed over twisted-pair wires. Immunity to interference ensures accuracy.
Intelligent Dashboard: The display isn't just gauges; it's an integrated LCD screen showing voltage, current, State of Charge (SOC), speed, pump RPM, and more.
Expert Diagnostics: The system's greatest value. Upon detecting anomalies (undervoltage, overcurrent, overheating), the dash triggers alerts and specific Diagnostic Trouble Codes (DTCs, e.g., Err-05). Technicians locate faults instantly without dismantling harnesses, slashing Mean Time To Repair (MTTR) by 80%.
Software-Defined Machine: Future-proof via OTA (Over-The-Air) updates or PC connections. Controller logic can be re-flashed for different modes (Snow Mode, Heavy-Lift Mode), adapting hardware to diverse scenarios.
Integrated Control Joystick – Man-Machine Fusion
Built on the CAN-Bus backbone, the XHD500 achieves control integration.
Single-Hand Command: Legacy loaders require hands/feet coordination (steering wheel, gear lever, linkage, pedals). The XHD500 consolidates F/R, Hi/Lo, lift, and tilt into one electro-hydraulic joystick.
Precision Micro-Control: Electronic signaling captures minute stick movements. This precision is impossible with mechanical linkages, crucial for edge-work or fine stacking.
Lower Barrier to Entry: Operator training shrinks from weeks to a day. Eliminating complex linkages reduces misuse, enhancing site safety.
LiFePO4 Battery – Safe and Durable Foundation
Thermal Stability: Unlike NMC batteries, Lithium Iron Phosphate (LiFePO4) remains stable up to 500°C, resisting thermal runaway. Vital for high-current draw equipment.
Cycle Life: The XHD500's 180Ah battery endures 2000+ cycles. At one cycle per day, that's 5-7 years of service with minimal degradation.
BMS Integration: Paired with CAN-Bus, the Battery Management System monitors every cell's voltage, temp, and resistance. Abnormalities trigger immediate circuit interruption, preventing fires.
Tangible Benefits of Technology
Higher Uptime: Fewer failures, faster fixes, and no overheating equal more productive hours.
Enhanced Safety: Multi-layer electrical protection (over-voltage, current, temp, short-circuit) prevents damage and accidents.
Stronger Resale: High-tech features like "Flat-Wire" and "CAN-Bus" command premiums in the used equipment market.
Technology is the Primary Driver
The Xinghang XHD500 isn't merely a "diesel swapped for electric" conversion; it's a ground-up EV platform. The flat-wire motor provides brawn, while CAN-Bus provides brains. For users valuing technological leadership and long-term ROI, the XHD500 represents the future of compact equipment. Contact us to delve deeper into the specs and experience the revolution.
