Introduction: When Diesel is Banned at the Door
Walk into a basement renovation in London, a food processing plant in Munich, or a 200-year-old heritage building in Boston, and you will notice one thing missing: the smell and roar of a diesel engine. In an increasing number of municipalities and private facilities, internal combustion is either prohibited or practically unusable due to ventilation limits, indoor air quality laws, and noise ordinances.
Contractors who built their businesses on compact diesel loaders face a painful gap. You cannot send a diesel machine where it is forbidden, yet you still need mechanical help to move tons of debris, pallets, and spoil in tight, enclosed spaces. The Xinghang XHD500A Electric Articulated Mini Loader was engineered specifically to fill that gap. It is not a compromised "golf cart" conversion; it is a purpose-built, 1240kg class professional machine with a 500kg rated operating load, 2600mm pivot pin lift height, and a chassis width of just 1050–1060mm.
In this article, we will explore why the XHD500A—powered by 4 kW or 2.5 kW×2 flat-wire permanent magnet synchronous motors (PMSM) and managed by a CAN-bus digital LCD cluster—is becoming the standard for sensitive environments where diesel simply cannot go.
1. The 1060mm Advantage: Fitting Where Others Cannot

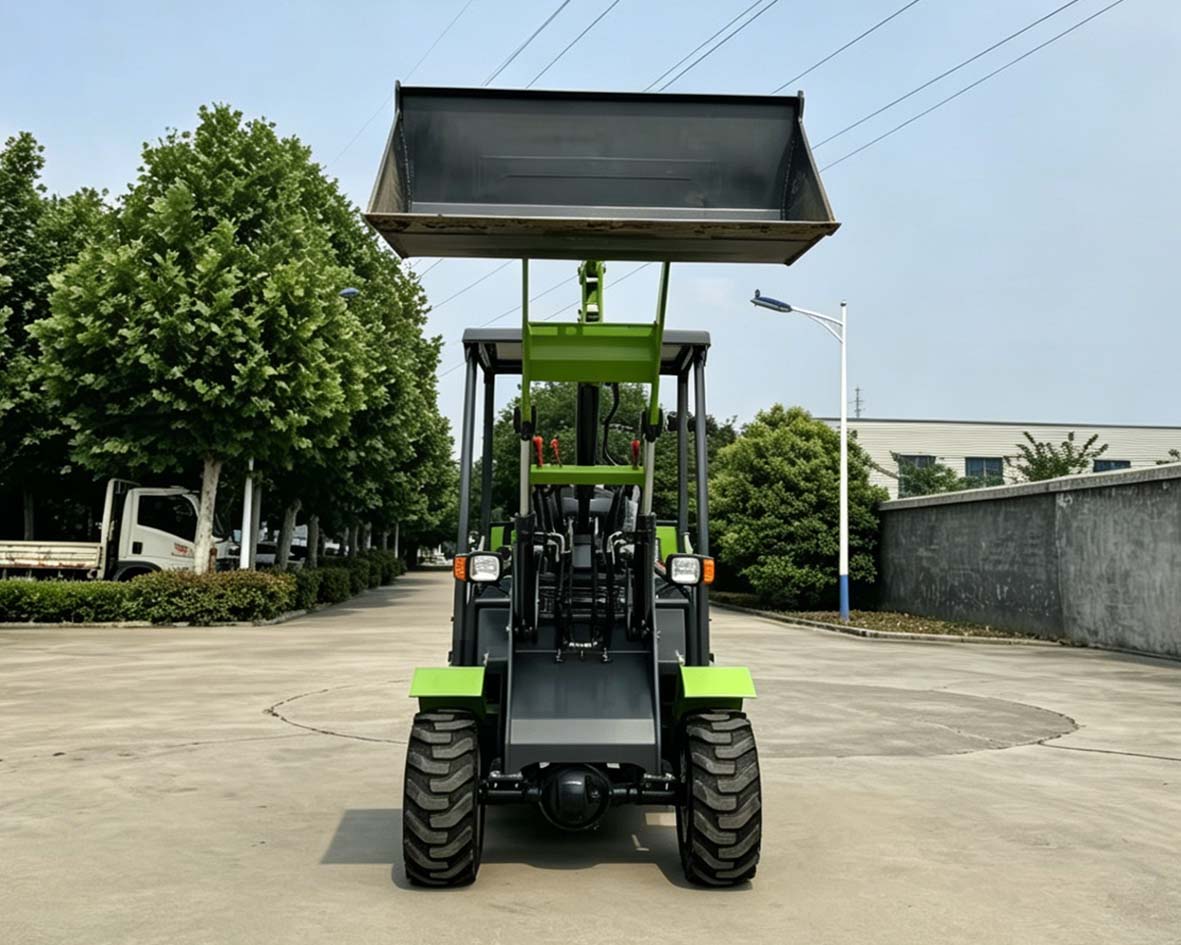

The defining physical attribute of the XHD500A (and its sibling XHD500) is its overall width of approximately 1050mm to 1060mm. In the world of compact equipment, those few centimeters are the difference between "accepted" and "rejected."
Standard Doorways: Most interior commercial and residential doorways are 900mm to 1000mm clear width. A 1200mm+ wide skid steer cannot pass without removing the bucket or risking frame damage. The XHD500A passes through with the bucket attached. Its foldable ROPS/FOPS canopy (meeting ISO standards) can be lowered for low door headers or container loading.
Freight Elevators: Basement or multi-story interior work requires vertical transport. The XHD500A’s 1240kg operating weight is within the capacity of standard elevators. Its 23×8.5?12 pneumatic tires (non-marking optional) protect elevator flooring.
Greenhouse & Nursery Aisles: Modern bench rows are often spaced 1000–1200mm. The 1060mm width allows operation between rows without crushing irrigation lines or compacting soil, a task impossible for wider wheel loaders.
This narrow-body design is not achieved by weakening the structure. The entire vehicle is fabricated from high-strength manganese steel, ensuring that despite its slim profile, it carries 500kg without chassis flex.
2. Flat-Wire Motor Technology: Efficiency in Copper
A common skepticism about electric construction equipment is power delivery and thermal endurance. The XHD500A dispels this with its flat-wire (rectangular copper winding) PMSM technology.
Traditional round-wire motors leave air gaps in the stator slots. The XHD500A uses rectangular-section copper conductors achieving a slot fill factor exceeding 70%. This is not just a manufacturing detail; it translates to tangible jobsite benefits:
Instant Torque at 0 RPM: Unlike induction motors that need speed to build torque, the flat-wire PMSM delivers 100% rated torque from zero rotation. This is critical when inching a 500kg load on a slope or through a narrow doorway without wheel spin.
Thermal Management: More copper and less air means heat dissipates efficiently through the motor housing. The 3 kW hydraulic motor and 4 kW (or 2.5 kW×2) drive motors sustain continuous lifting cycles without thermal derating—vital for demolition where the machine cycles every 30 seconds.
Acoustic Signature: Combined with a low-noise gear pump, the powertrain contributes to the machine’s ≤50 dB(A) operation, quieter than normal conversation, allowing work in hospitals or hotels without noise complaints.
The controller features automatic temperature-controlled cooling, monitored via the onboard ECU to prevent overheating without operator intervention.
3. CAN-Bus Digital Instrumentation: The Machine Talks to You
The XHD500A moves away from analog gauges and blinking LEDs. It utilizes a CAN-bus (Controller Area Network) digital LCD instrument cluster, the same communication standard used in modern automotive EVs.
Real-Time Telemetry: The dashboard displays battery voltage (60V/64V systems), State of Charge (SoC), travel speed, hydraulic pump RPM (indicating load stress), and hour meter.
Diagnostic Transparency: Instead of a generic fault light, the screen displays text-based error codes (e.g., "Low Battery Voltage," "Park Brake Engaged"). This reduces downtime; a mechanic or operator knows exactly what is wrong without guesswork.
Misoperation Protection: If the operator attempts to drive with the park brake engaged or an attachment not locked, the system issues an audible/visual alert before damage occurs.
This digital integration extends to the integrated electro-hydraulic joystick. One multifunction handle controls forward/reverse, high/low speed (0–8 km/h low, 0–14.5 km/h high), boom lift, and bucket tilt. The learning curve is measured in minutes, not hours.
4. Battery Architecture: LiFePO? vs. Lead-Acid
Xinghang offers flexibility to match budget and duty cycles, managed by a sophisticated BMS (Battery Management System):
64V LiFePO? (Lithium Iron Phosphate) — 150Ah / 180Ah:
Chosen for thermal stability (>250°C decomposition), 2,000–3,000 cycle life (5–7 years typical), and minimal voltage sag under load. The 180Ah option integrates as a structural counterweight low in the chassis, enhancing stability.
60V Lead-Acid — 160Ah (Economy Option):
Lower upfront cost, familiar technology for some developing markets, though with shorter cycle life (500–800 cycles) and maintenance requirements (distilled water).
Both systems communicate with the CAN-bus dashboard to provide proactive low-voltage warnings, protecting battery health. The auto-temperature cooling system ensures the powertrain operates within safe thermal limits during heavy cyclic work.
5. Application Scenarios for the 500kg Class
Indoor Demolition: Removing drywall, tile, and light concrete from multi-story buildings. No CO alarms triggered; no ventilation ducts required.
Food & Pharma: Zero emissions prevent contamination. Enclosed electric drivetrain means no oil drips on sanitized floors.
LEED / BREEAM Projects: Documented use of zero-emission equipment contributes to sustainability credits.
Warehousing: The 1060mm width accesses aisles a standard forklift cannot. The 500kg payload handles typical palletized inventory via the fork attachment.
Conclusion: Precision Over Brute Force
The XHD500A is not trying to be a 2-ton loader. It is engineered for the spaces that 2-ton loaders cannot reach and the environments where diesel is a liability. With its manganese steel construction, flat-wire motor efficiency, CAN-bus diagnostics, and 1060mm narrow body, it represents a shift from brute force to precision in compact equipment.
For contractors pursuing green certifications, facility managers in sensitive industries, and rental houses building a future-ready fleet, the XHD500A is both a tool and a competitive advantage.
?? Contact Xinghang Machinery for the XHD500A specification sheet, FOB quotation, and 20GP container load plan (approx. 6–8 units). Let clean power access the places diesel cannot.
Small Machine, Giant Power — Engineered for the Spaces Diesel Can't Reach.
