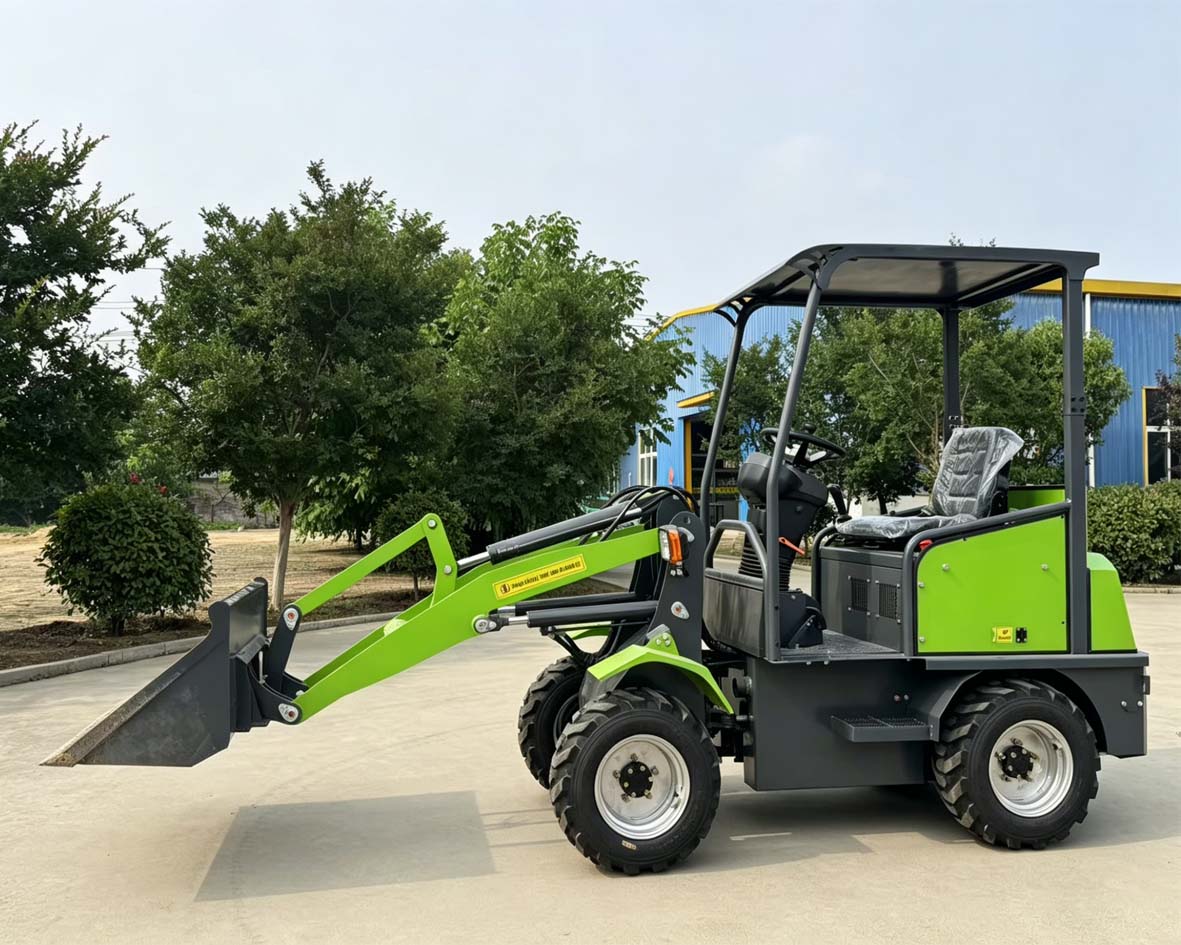

XINGHANG XHDL500 / XHDL500A Technical Deep Dive: Flat-Wire Motors, LFP Batteries & 4WD Architecture

1. Powertrain: Why Insist on “Dual Flat-Wire Motors” Instead of Round-Wire?

In the micro electric loader segment, many low-cost competitors use ordinary round-wire motors—or even outdated series-wound motors—to cut costs. The XINGHANG XHDL500 series comes standard with Flat Wire Motors, a high-spec choice for the 0.5T class.

• Travel Motor: 4kW flat-wire PMSM drives the front and rear axles. Flat-wire windings achieve a slot fill factor above 70% (vs. 40–50% for round wire), lowering resistance, heat generation and raising efficiency. During continuous climbing or mud recovery, temperature rise is slow, avoiding thermal shutdown.

• Hydraulic Motor: A dedicated 3kW flat-wire motor drives the gear pump. Many budget designs share one motor for travel and hydraulics, causing severe power starvation during combined operations. The XHDL500 series adopts independent dual-motor drive, ensuring lifting and driving do not compete for power, delivering smooth compound movements.

For overseas rental fleets, this means: No matter how aggressively renters operate, the motors survive; returned units stay in good condition.

2. Battery System: Lead-Acid Is Entry-Level, LFP Is the Workhorse

The XHDL500 series offers three battery configurations tailored to budget and duty cycles:

1. 60V/160Ah Lead-Acid (Entry)

• Use Case: Light-duty tasks—residential cleaning, short-distance waste hauling, intermittent work.

• Runtime: Approx. 3–4 hours of continuous operation per full charge.

• Traits: Low upfront cost, easy replacement, but bulky, heavy, with noticeable cold-weather degradation.

2. 64V/150Ah LiFePO4 (Mainstream)

• Use Case: Standard single-shift work—daily farm transport, routine municipal maintenance.

• Runtime: Approx. 4–5 hours of medium-intensity work per charge.

• Traits: Higher energy density, ~30% smaller footprint than lead-acid, 2000+ cycle life, supports opportunity charging.

3. 64V/280Ah LiFePO4 (Extended Range)

• Use Case: Heavy single-shift or multi-shift operations—indoor demolition debris haul, continuous winter snow removal.

• Runtime: Up to 6–8 hours of heavy loading per charge.

• Traits: Intelligent BMS covering overcharge, over-discharge, over-current, short-circuit and thermal protection; retains >85% capacity from -20℃ to 50℃ ambient.

XHDL500A Battery Enhancements:

• Battery compartment pre-wired for pad heater interface (optional for extreme cold).

• Slide-out battery pack design allows one-person replacement, simplifying service.

• Supports 220V industrial outlet charging (~8h full), compatible with most global grids.

 3. Chassis & Dimensions: How a 1060mm Narrow Body Handles 500kg Load

A common question from overseas buyers: “Will such a narrow machine tip over easily?”

The XHDL500 series answers with “Low CG + Wide Track + Articulated Steering”:

• Dimensions: 3500×1060×1500mm, wheelbase 1150mm, track width 850mm.

• Frame: Thick manganese-steel welded frame with reinforced boom cross-section for torsional rigidity.

• Tires: Standard 23×8.5-12 wide low-pressure tires maximize contact patch and minimize ground pressure—grippy yet floor-friendly.

• Steering: Articulated center-pivot steering, turning radius as low as 3.5m, enabling pivot turns in tight alleys.

Result: Despite being only 1.06m wide, with optimized counterweight placement, it safely holds 500kg at a 15° lateral slope without rollover risk.

 4. Hydraulics & Cycle Times: The Efficiency Logic Behind 5.5s Lift

In loading operations, every second saved equals another cycle. The XHDL500 hydraulic system focuses on “fast, stable, precise”:

• Lift Time: Full loaded lift to max height (2950mm) in just 5.5 seconds.

• Dump Time: Bucket rollback for unloading in 3 seconds.

• Lower Time: Boom return in 3 seconds, minimizing wait.

• Total Cycle: Lift + dump + lower ≈ 11.5 seconds—close to some 1T diesel compacts.

XHDL500A Hydraulic Refinements:

• Increased gear pump displacement for higher flow.

• Optimized spool valve internal flow paths to reduce throttling losses.

• Lift cylinder cushion valves added to prevent hard-stop shock at full extension.

 5. Controls: From “Operable” to “Operator-Friendly”

The base XHDL500 already features single-lever integrated control, but the XHDL500A refines the experience further:

• Joystick Feel: Added force-feedback zones to prevent accidental activation; improved damping in fine-control zone for precision grading.

• Instrumentation: CAN-bus LCD displays not just SOC, voltage and speed, but also hydraulic oil temp, motor temp, total hours and fault codes.

• Lighting: High-output LED work lights extend visibility for night shifts.

• Seat & Damping: Thickened cushion seat paired with chassis isolation bushings reduces fatigue on long shifts.




 6. Specification Comparison: XHDL500 vs XHDL500A

 7. Technical Takeaway: Not a “Compromise Machine”

In summary, the XHDL500 series follows a clear technical roadmap: flat-wire motors solve efficiency and lifespan; LFP batteries solve range and safety; narrow body solves access; dual-motor drive solves compound duty. It is not a compromised product built for low price, but a new technical benchmark for the 0.5T electric loader market.

For overseas buyers, this spec sheet matters because: You can calculate the exact ROI based on local electricity rates, duty cycles and incentive policies—rather than buying on gut feeling.
