How to Choose the Right Mini Crawler Dumper for Your Jobsite? – Xinghang XHT Series Buyer's Guide

Introduction: The "Last Mile" Hauling Challenge

In palm plantations, remote African sites, or old European city renovations, full-size dump trucks are too bulky, while manual labor is slow and costly. Jining Xinghang's XHT Series Mini Crawler & Ride-On Dumpers (500kg–3000kg) solve this "last mile" problem with compact dimensions, crawler traction, and hydraulic dump options.

Selection by Application

• Confined Civil Works / Rural Roads (XHT500 / XHT500S): Only 700mm wide—fits through doorways and alleys. XHT500S adds 1200mm lift height for feeding crushers or high-sided trucks.

• Orchards& Fertilizing (XHT750 Mixing Dumper): 750kg payload + 300dm3 mixing tank with paddles. Mixes slurry/enriched manure en route, preventing sedimentation. 300×150mm controllable discharge gate.

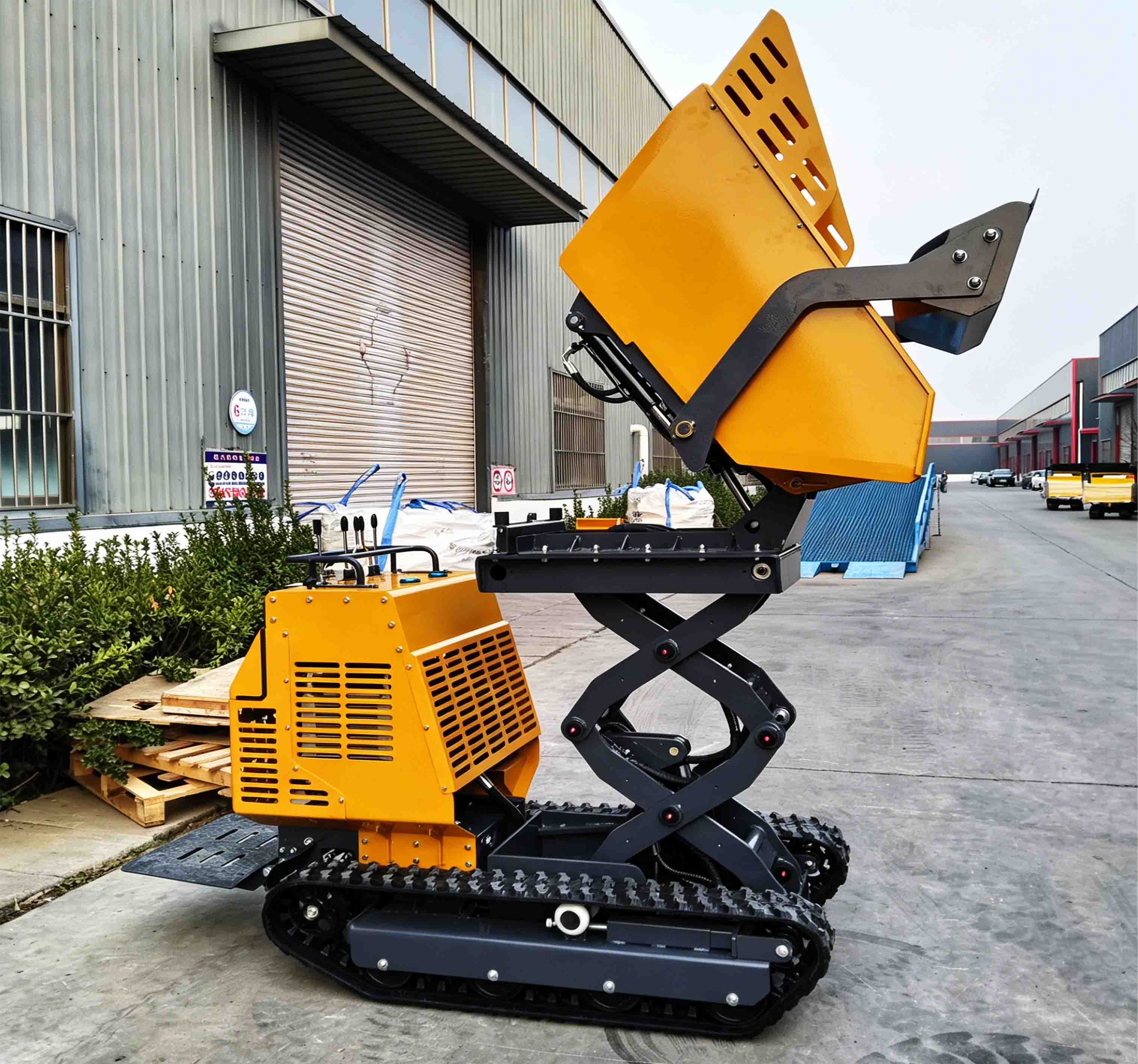

• Sand/Gravel & Demolition Debris (XHT1000 / XHT1200): XHT1000 lifts to 1500mm for easy truck loading; XHT1200 features 180° hydraulic swivel dump—ideal beside walls or in dead-end alleys.

• Quarry Short-Haul & Rental Fleet (XHT3000): 3-ton payload, KubotaD1105 25HP diesel, 30° gradeability, 12km/h speed. Built for high-utilization fleets.




Key Selection Criteria

1. Payload: XHT500(500kg), XHT750(750kg), XHT1000(1000kg), XHT1200(1200kg), XHT3000(3000kg).

2. Power: Briggs & Stratton25T2 (13.5HP/EPA), HondaGX390, Koop192, Rato420cc; XHT3000 with Kubota D1105 (Tier 4/Euro V optional).

3. Undercarriage: Rubber track (180mm wide, 900–1000mm contact length) on mini models for low ground pressure; 12-16.5 pneumatic tires on XHT3000.

4. Dump Type: Standard hydraulic tip (500/750/1000), lift dump (500S/1000), 180° rotating dump (1200/XHT3000).

5. Gradeability: 20° (tracked models), 30° (XHT3000).

Maintenance & Export Details

• Grease nipples on all pivots; simple daily lubrication extends pin/bushing life.

• Universal hydraulic & engine filters available worldwide.

• Export packing: fumigation-free wooden crate or stackable steel frame (e.g., XHT500 frame 1570×980×2480mm) to optimize container load & freight cost.

• Mn-steel plate construction with anti-corrosion spray coating for humid/salty environments.

FAQ

Q: What is the typical service life?

A: With proper maintenance, gasoline-tracked models last 8–10 years; diesel XHT3000 often exceeds 10–15 years.

Q: Can specifications be customized?

A: Yes—ROPS/FOPS, left/right hand drive, body height, paint, engine branding.

Conclusion

The Xinghang XHT Series is engineered for real jobsite constraints—narrow access, mud, steep grades, and varied materials. Contact us for detailed specs, operation videos, and FOB/CIF quotations.
