Need more height? Discover the Xinghang telescopic electric loader series. With lift heights up to 4350mm (XHD10T) and 3310mm (XHD04T), these extendable boom loaders reach where standard mini loaders cannot. CE Certified.
Introduction: Breaking the Height Barrier
In the world of compact equipment, height is often the most frustrating limitation. You have a standard mini loader that performs beautifully on flat ground, but suddenly you need to load a high-sided truck, stack hay bales on a second-tier rack, or feed a mixer at chest height. Your standard loader’s pivot pin tops out at 2200mm or 2600mm, leaving you short—literally.
For decades, the solution was to bring in a bulky telehandler or a massive crane. But what if you are working inside a barn with low ceilings, or in a narrow urban courtyard where a 3-meter wide telehandler cannot turn around? This is the gap the Xinghang Telescopic Electric Loader Series was born to fill.
Models like the XHD04T, XHD08T, and XHD10T feature an extendable boom (telescopic arm) that dramatically increases lift height without increasing the machine’s transport length. They combine the maneuverability of a mini loader with the reach of a telehandler, all while maintaining zero-emission electric operation.
1. The Mechanics of Reach: How Telescopic Booms Work
A telescopic boom is essentially a hydraulic sliding arm. Unlike a fixed articulating arm that moves in a sweeping arc, the telescopic arm extends linearly forward and upward.
1.1 The Trade-Off: Height vs. Capacity
Physics dictates a simple rule: the farther the load is from the machine’s center of gravity, the less weight it can safely carry. This is why telescopic loaders have two ratings:
Retracted (Short Arm): Maximum stability and capacity.
Extended (Long Arm): Reduced capacity due to increased leverage.
For example, the XHD10T boasts a massive 4350mm lift height when extended, but its safe working load drops from 1000kg (retracted) to 500kg (extended). This is not a flaw; it is a fundamental engineering principle to prevent tipping. Understanding this trade-off is crucial for safe operation.
1.2 Stability Features
To counteract the leverage of an extended boom, these machines are built heavy and low:
Ballasted Chassis: The XHD10T weighs 2840kg, providing a massive counterweight.
Wide Stance: An overall width of 1300mm (at the bucket) and a wheelbase of 1580mm ensures a stable platform.
Rear Axle Oscillation: The rear axle can pivot (swing), keeping all four wheels on the ground even on uneven terrain, which is vital when a load is extended high.

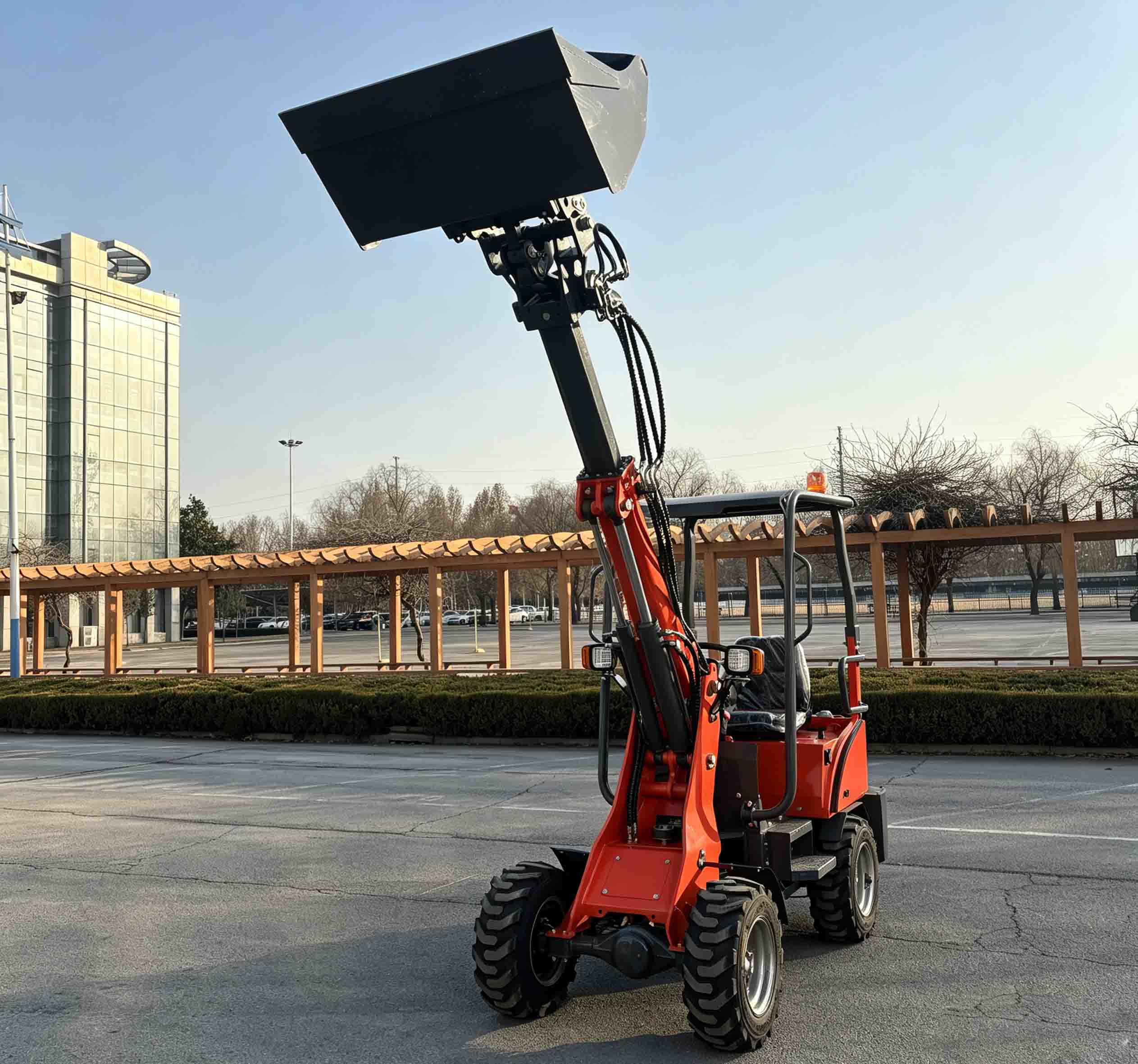

2. Model Deep Dive: The 0.4T Class Specialist (XHD04T)
The XHD04T is the most compact telescopic loader in the lineup, yet it offers surprising height.
Weight: 1250kg.
Lift Height: 2630mm (retracted) / 3310mm (extended).
Reach: 380mm (retracted) / 700mm (extended).
Capacity: 400kg (retracted) / 400kg (extended - note: specific design retains capacity in this small class).
Power: 60V system; 3kW hydraulic motor; 2.5kW×2 drive motors.
Footprint: 3460mm long × 1040mm wide × 2150mm high.
Why choose the XHD04T?
It is the "stealth" height solution. While it only carries 400kg, its 3310mm extended height is taller than many 1-ton standard loaders. It is perfect for:
Poultry Farms: Feeding birds at chest height without bending.
Small Workshops: Stacking inventory on high shelves in narrow aisles.
Orchard Work: Reaching into the canopy for pruning or harvesting without a ladder.
3. Model Deep Dive: The 1.0T Class Workhorse (XHD10T)
The XHD10T is the flagship of the compact telescopic line—a true heavy hitter.
Weight: 2840kg.
Lift Height: 3680mm (retracted) / 4350mm (extended).
Reach: 800mm (retracted) / 1200mm (extended).
Capacity: 1000kg (retracted) / 500kg (extended).
Power: 72V system; 5kW hydraulic motor; 4kW×2 drive motors.
Footprint: 4580mm long × 1300mm wide × 2450mm high.
Tires: Massive 29×12.50?15 tires for flotation and stability.
Why choose the XHD10T?
It is the ultimate "one-machine" solution for farms and construction sites. The 4350mm lift height is high enough to load over the sides of many 6-yard dumpsters or into the back of high-bed trucks. The 1200mm forward reach allows you to place a pallet deep into a truck bed or over a low wall.
4. The Middle Ground: XHD08T
The XHD08T bridges the gap between the 04T and 10T.
Weight: 1980kg.
Lift Height: Approx. 3140mm (retracted/extended variations typical for this class).
Capacity: 800kg class.
Power: 72V system; 5kW hydraulic motor; robust drive system.
Advantage: It offers more lift capacity than the 04T but remains lighter and more compact than the 10T, making it ideal for general construction sites with moderate height requirements.
5. Application Scenarios: Where Telescopic Arms Win
5.1 Agriculture & Livestock
Feeding: Loading mixer wagons or hay racks at specific heights. The XHD10T can lift a full 1000kg bale to chest height when retracted.
Manure Management: Stacking manure into high piles for easier removal.
Orchard/Vineyard: Pruning and harvesting at height without ladders.
5.2 Construction & Masonry
Block Laying: Lifting pallets of bricks or blocks directly to masons working on the second or third course of a wall.
Roofing: Passing bundles of shingles or tiles up to roof level.
Truss Setting: Positioning small roof trusses into place.
5.3 Warehousing & Logistics
Double-Stacking: In warehouses with low ceilings (under 3.5m), the XHD04T or XHD08T can double-stack pallets to maximize floor space.
Truck Loading: The XHD10T can load a truck from ground level without needing a loading dock.
6. Integration with Attachments
Like their non-telescopic siblings, these machines feature a universal quick-attach plate.
Forks: Essential for pallet work. The telescopic function allows you to lift a pallet high and then extend it forward to place it on a high shelf or deep into a truck.
Bucket: Used for general loading. Note: When using a bucket with the boom extended, caution is advised regarding load center and capacity.
Work Platform: (Optional, with proper guarding). The extendable boom allows workers to access high areas for maintenance or painting safely.
Conclusion: Don't Let Low Ceilings Limit High Ambitions
The Xinghang Telescopic Electric Loader series proves that you don't need a massive, diesel-burning telehandler to achieve impressive lift heights. Whether you need the compact reach of the XHD04T for a poultry barn, the balanced performance of the XHD08T for a construction site, or the brute strength and towering height of the XHD10T for heavy lifting, there is a model designed for your specific challenge.
By combining zero-emission electric power with hydraulic reach, these machines redefine what is possible in confined spaces.
?? Contact Xinghang Machinery today for the full telescopic series specification sheets. Reach higher, work cleaner, and lift smarter.
Small Machine, Giant Power — Extending Your Reach.
