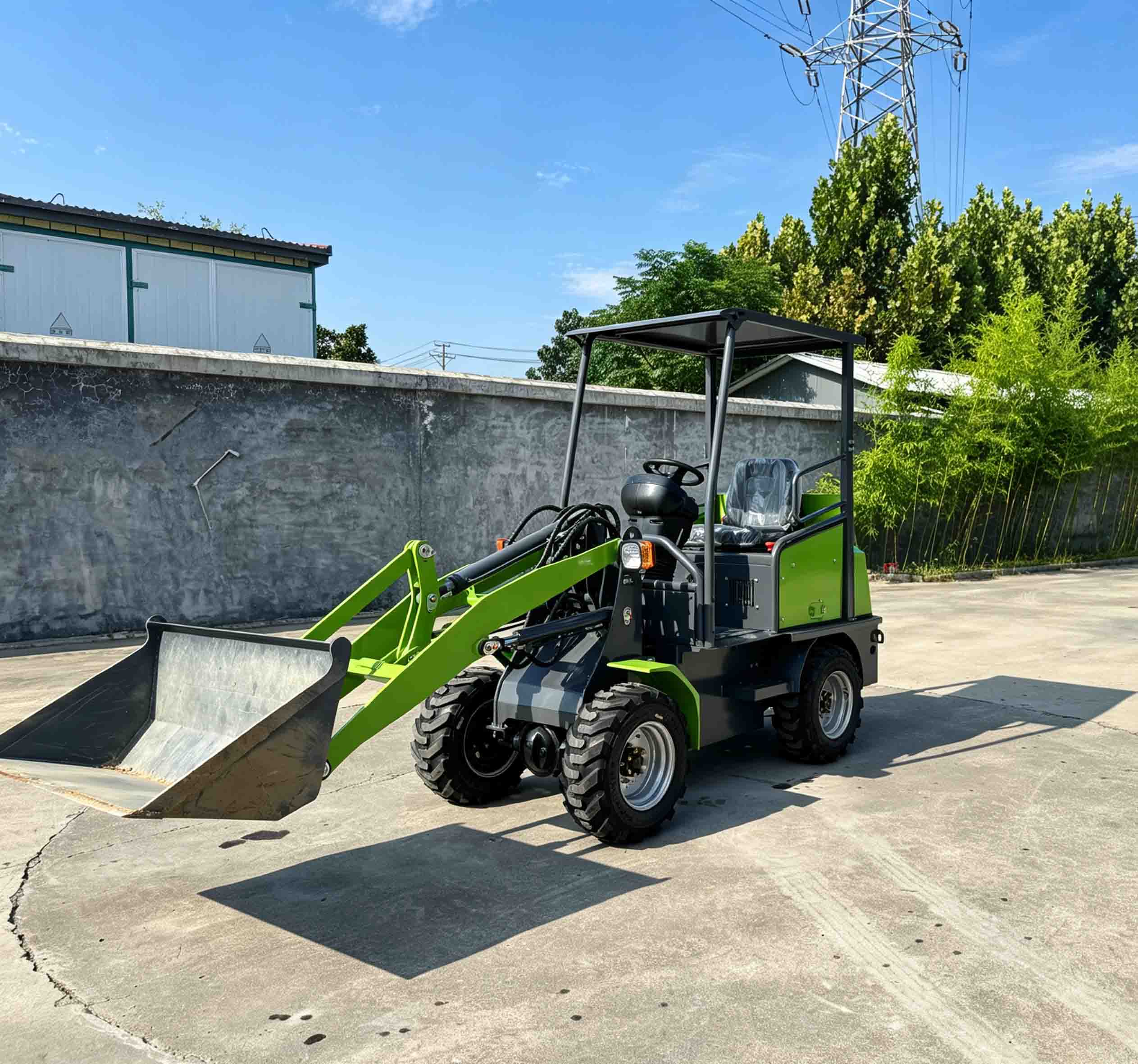

The Xinghang XHD500 is a 0.5-ton compact electric wheel loader built by Jining Xinghang Machinery Manufacturing Co., Ltd. in Yanzhou, Jining, Shandong. Designed for narrow aisles, livestock barns, indoor demolition, orchards, and urban backyards, it replaces 0.5-ton diesel micro loaders with zero exhaust, low noise, and 6–8 hours of lithium runtime on one charge.
1. Why XHD500 for Overseas Small Job Sites
Diesel micro loaders face bans in EU low-emission zones, poultry farms, and enclosed warehouses. The XHD500 runs on a 64V lithium iron phosphate (LFP) pack or a 60V lead-acid option, producing no fumes and keeping operational noise low enough for daytime indoor work and night yard cleanup. At 1060 mm machine width and 500 kg rated load, it passes through greenhouse doors, stable corridors, and container ramps where 1-ton loaders cannot turn.
2. Powertrain and Performance
The standard XHD500 uses a 4 kW walking motor plus a 3 kW hydraulic lift motor. The reinforced XHD500A uses twin 2.5 kW walking motors plus 3 kW hydraulics for full-time four-wheel drive. Both share a flat-wire motor option with higher slot fill, better cooling, and stable power under summer heat. A CAN-bus LCD dashboard shows voltage, battery level, speed, and fault codes; an integrated electro-hydraulic joystick handles drive, shift, and boom control.
Key specs:
Rated load: 500 kg
Bucket: 1050 × 680 mm manganese steel
Max lift height: 2950 mm
Dump height: 2200 mm
Lift time: ~5.5 s
Width: 1060 mm
Lithium runtime: 6–8 h; charge 6–8 h (220V)
Drive: full-time 4WD, full hydraulic steering
3. Attachments and Quick Coupler
A hydraulic quick-coupler interface lets operators swap tools in seconds without leaving the cab. Approved attachments include forks, grass grab, log grapple, 4-in-1 bucket, angle broom, auger, and hydraulic breaker. A Spanish poultry farm runs one XHD500 with bucket, fork, and broom across manure clearing, feed pallet moving, and yard sweeping, hitting 80%+ weekly utilization.
4. TCO and Maintenance
Against a 0.5-ton diesel loader, the XHD500 cuts energy cost by roughly 70% (home/industrial 220V charging) and removes engine oil, fuel filter, and DPF expenses. Annual maintenance drops about 40%. Lead-acid version fits ultra-low budgets; LFP version fits daily multi-shift users. Overnight charging needs no site generator.
5. Compliance and Export Package
XHD500/XHDL500 ships with CE documentation under Machinery Directive 2006/42/EC, LVD, and EMC (EN 61000-6-2 / 6-4). Lithium version uses Grade-A LFP cells with BMS, UN38.3, MSDS, and IEC 62619 support files. Xinghang provides DoC, IQC records, English manual, hydraulic schematic, and desensitized customs proofs from past EU/UK/LatAm shipments. ISO 9001 and CE are held at factory level.
6. Who Buys It
Livestock and poultry farms (no exhaust poisoning risk)
Orchards and nurseries (narrow rows, low ground pressure)
Indoor demolition and renovation crews
Municipal backyard and park teams
Rental fleets needing a light, trailer-able unit (pickup towable)
7. Dealer and OEM Support
Jining Xinghang runs an integrated plant in Jining’s machinery cluster, offering 0.4T–2.5T electric loaders, skid steers, mini excavators, and rollers. XHD500 supports private-label badges, voltage customization (60V/64V), and attachment kits. Global shipping, 1-year warranty with spare-part support, and video pre-inspection are standard.
