The XHD04T mini electric telescopic wheel loader manufactured by Jining Xinghang Machinery Manufacturing Co Ltd is a compact battery powered machine designed for narrow workspaces and light duty material handling. With a rated load of 400 kg a telescopic boom offering extended lift heights and a zero emission electric drivetrain this machine is purpose built for indoor warehouses greenhouses small workshops livestock barns and confined construction sites where diesel equipment cannot operate safely or legally. In this article we will take a close look at the design philosophy core advantages technical specifications and competitive strengths of the XHD04T to help international buyers and equipment dealers understand why this small but capable machine is becoming a popular choice across Europe North America and Southeast Asia.
About Jining Xinghang Machinery
Jining Xinghang Machinery is based in Jining City Shandong Province which is known as one of Chinas six major construction machinery manufacturing clusters. The company specializes in small sized wheel loaders mini excavators road rollers and electric compact equipment. Its products are manufactured under ISO 9001 quality management systems and many models including the XHD04T series have CE certification and comply with Euro V emission related requirements for export markets. Xinghang places strong emphasis on compact green machinery that replaces traditional diesel units in enclosed or noise sensitive environments.
What Is the XHD04T Electric Telescopic Loader

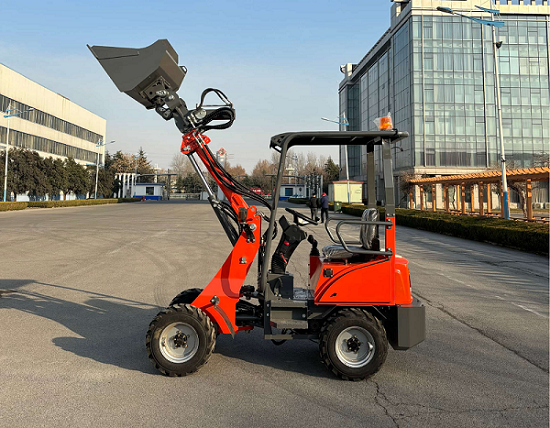

The XHD04T is a 0.4 ton mini wheel loader equipped with a hydraulically operated telescopic boom. Unlike standard mini loaders with a fixed hinge pin height the XHD04T can extend its arm to reach higher stacking positions or stretch forward to place materials over obstacles or into the back of a truck. The machine is driven by an electric motor powered by a 60 volt battery system available in lead acid or lithium iron phosphate configurations depending on customer preference. It uses a full hydraulic steering system drum service brakes and a park brake as well as a compact chassis only 3460 mm long and 1040 mm wide which allows it to pass through standard doorways and narrow aisles.
Core Advantages of the XHD04T
The first and most important benefit is zero exhaust emission. Because the XHD04T runs entirely on electricity it produces no carbon monoxide nitrogen oxides or particulate matter during operation. This makes it legal and safe to use inside enclosed buildings such as food processing plants indoor storage warehouses underground parking structures and climate controlled greenhouses where fresh air exchange may be limited.
The second advantage is low noise operation. The electric drive motor and hydraulic pump generate significantly less sound than a diesel engine especially at idle or low speed travel. Operators experience reduced fatigue and site owners can schedule work in noise restricted areas or early morning evening shifts without violating local ordinances.
The third advantage is energy cost savings. Electric motors convert a higher percentage of input energy into usable work compared to internal combustion engines. Field feedback and comparable product analysis suggest that operating cost per hour for a mini electric loader of this class can be more than sixty percent lower than an equivalent small diesel loader when factoring in fuel versus electricity and eliminated engine oil filter coolant and injector maintenance. There is also no idle fuel burn which further improves efficiency during standby periods.
The fourth advantage is compact size with telescopic reach. The XHD04T is only 3460 mm in length and 1040 mm in height yet it offers a lift height of up to 3310 mm and a dump height of up to 2450 mm with the boom extended. Maximum forward reach at full lift is approximately 700 mm. This combination of small footprint and extended vertical horizontal reach is rare in machines of this size class and gives the XHD04T an edge when loading high sided trailers stacking pallets on upper shelves or placing materials over short walls or fence lines.
The fifth advantage is simplified maintenance. Without a diesel engine there is no requirement for engine oil changes fuel filters air filters glow plugs injectors or exhaust aftertreatment. The main components requiring periodic inspection are the battery hydraulic oil and grease points on the articulation pins and boom slides. Brake adjustment and tire pressure checks are also simplified. This reduces scheduled downtime and lowers the total cost of ownership over the machines life cycle.
Safety features include dual drum service brakes and a separate park brake a robust manganese steel frame that resists torsion on uneven floors and a full hydraulic steering circuit that provides predictable control even on slick concrete or tile surfaces. The low center of gravity combined with a wide wheel track improves stability when lifting near the rated 400 kg capacity.
Technical Specifications Summary XHD04T
Rated load capacity 400 kg
Machine length 3460 mm
Machine width 1040 mm
Machine height 2100 mm
Wheelbase 1490 mm
Track width 860 mm
Minimum ground clearance 200 mm
Lift height boom retracted 2630 mm optional 3310 mm
Dump height boom extended 1750 mm or 2450 mm
Maximum forward reach 700 mm
Turning angle 35 degrees plus minus 1 degree
Maximum gradeability 15 degrees
Travel speed low gear 0 to 8 km per hour high gear 0 to 14 km per hour depending on motor configuration
Drive system 60V 2500W x 2 flat wire DC motors full time four wheel drive
Hydraulic system 60V 3000W hydraulic pump motor system pressure 16 MPa
Battery options 60V lead acid 5 x 12V groups or 60V 150Ah to 180Ah LiFePO4 pack
Tires 23 x 8.5 to 12
Brakes drum type service and park brakes
Hydraulic tank capacity approx 38 L
Operating weight approx 1250 kg
Please note that exact specifications may vary slightly depending on battery choice tire brand and optional attachments. Buyers should confirm final specification with the supplier before ordering.
Attachment Compatibility and Versatility
The XHD04T comes with a hydraulic quick coupler that allows fast change between the standard 0.22 cubic meter general purpose bucket and other implements such as pallet forks hay bale grapple snow blade auger drive or sweep broom. When equipped with forks the telescopic boom enables the operator to lift palletized goods to second or third tier racking which is difficult for non telescopic mini loaders of the same width. This one machine many jobs approach helps small businesses avoid purchasing separate forklifts or manual stackers.
Comparison With Non Telescopic 0.4 Ton Electric Loaders
Compared to the XHD400 or XHD04 fixed boom models also made by Xinghang the XHD04T adds roughly 150 to 160 mm of width and about 160 kg of additional weight due to the telescopic boom cylinders and extended chassis reinforcement. In exchange the user gains 600 to 700 mm of forward reach and an extra 700 mm or more of lift height. For customers whose primary work involves floor level loading only the non telescopic version may be preferred for slightly lower cost and tighter width. For anyone needing to load a pickup truck bed stack above 2 meters or reach over a short barrier the XHD04T is the correct choice.
Certifications and Export Readiness
The XHD04T platform is available with CE marking and can be supplied with user manuals in English Spanish French German or Russian upon request. Xinghang provides spare parts lists exploded view drawings and video guidance for common maintenance procedures. Container loading is typically two units per 20 foot container with disassembly of the canopy or boom tip protection depending on destination port regulations.
Who Should Consider the XHD04T
Ideal users include greenhouse and nursery operators who need to move potting mix seedlings and stacked trays inside narrow aisles livestock barn managers who must clean pens and move feed without diesel fumes small scale logistics warehouses that want an indoor safe alternative to propane forklifts municipal crews performing park or sidewalk maintenance in noise sensitive zones and rental fleets serving urban job sites where access is restricted. The machine is also popular with contractors who transport equipment in a small box trailer thanks to its modest dimensions and electric only startup requirements.
Summary
The Jining Xinghang XHD04T 0.4 ton mini electric telescopic wheel loader combines zero emission electric drive compact dimensions and a functional telescopic boom to solve material handling problems in places where larger equipment cannot go. With proven flat wire drive motors lead acid or lithium battery options CE certification and a growing international user base it represents a practical step toward cleaner quieter and more cost effective compact equipment. In the next article we will explore real world application scenarios maintenance best practices and a buyer checklist to help you decide if the XHD04T matches your operational needs.
