As global demand for environmental protection, low noise, and narrow-space operations continues to rise in construction, agriculture, warehousing, and municipal engineering, traditional diesel-powered small loaders are facing unprecedented pressure to upgrade. Located at No. 3 Ziwei Road, Yanzhou District, Jining City—one of China's six major engineering machinery hubs—Jining Xinghang Machinery Manufacturing Co., Ltd. specializes in the research, development, and manufacturing of small new energy electric construction machinery. Relying on modern production bases and a complete industrial supply chain, the company is
1. Corporate Strength and Product Philosophy
Jining Xinghang Machinery operates two modern production bases. The company has passed the ISO 9001 quality management system certification, obtained CE certification, and complies with Euro V emission standards. It has been recognized as a Top 10 Brand in the construction machinery sector and an AAA Credit Enterprise.
The company focuses on replacing roaring diesel engines with silent, zero-emission electric power. Its small electric loaders are constructed with high-strength manganese steel frames, feature flat-wire motor technology, offer Lithium Iron Phosphate (LiFePO4) or high-performance lead-acid battery options, utilize full-time four-wheel drive, and are equipped with CAN-bus LCD digital instrument panels. All models come standard with multi-functional quick-coupler systems compatible with various attachments such as grippers, forks, augers, and breakers, ensuring versatility and high utilization rates.
2. Overview of Xinghang Small Electric Loader Series
The product lineup is categorized by rated load capacity as follows:
0.4 Ton Mini Electric Wheel Loaders: Models XHD400, XHDL400, XHD400A, XHDL400A, XHD04, XHDL04
0.4 Ton Mini Telescopic Electric Loader: Models XHD04T, XHDL04T
0.5 Ton Mini Electric Wheel Loaders: Models XHD500, XHDL500, XHD500A, XHDL500A
0.8 Ton Electric Wheel Loaders: Models XHD08, XHDL08
0.8 Ton Telescopic Electric Loader: Models XHD08T, XHDL08T
1 Ton Electric Wheel Loaders: Models XHD10, XHDL10
1 Ton Telescopic Electric Loader: Models XHD10T, XHDL10T
1.5 Ton Electric Wheel Loader: Models XHD15, XHDL15
2 Ton Electric Wheel Loader: Models XHD20, XHDL20
2.5 Ton Telescopic Electric Loader: Models XHD25, XHDL25
3. 0.4 Ton Mini Electric Wheel Loader Series
This is Xinghang’s most compact series, with an overall width of only 1060 mm, making it ideal for indoor corridors, basements, small livestock sheds, and job sites accessible by elevators.
The XHD400/XHDL400 is equipped with a 4 kW flat-wire drive motor and a 3 kW hydraulic pump motor. Battery options include 60V 160Ah lead-acid or 64V 150Ah–180Ah LiFePO4. The operating weight is approximately 1090 kg, with a rated load of 400 kg, a discharge height of 1900 mm, and a maximum lift height of 2580 mm. Travel speed ranges from 0–8 km/h in low gear to 0–14.5 km/h in high gear.
The XHD400A/XHDL400A upgrades to dual 2.5 kW flat-wire motors (one per axle) for enhanced traction and climbing performance. Other specifications remain consistent with the XHD400.
The XHD04/XHDL04 is an alternative configuration with a total length of 3280 mm and a height of 2100 mm, suitable for sites with stricter dimensional restrictions.
Common advantages across the series include zero exhaust emissions, low noise, no need for engine oil or filter changes, temperature-controlled cooling for motors and controllers, and an integrated electro-hydraulic control handle that manages forward/reverse, high/low speed, and boom/bucket functions. The digital LCD instrument cluster displays real-time voltage, battery level, speed, and hydraulic pump RPM, while also providing error alerts and diagnostic codes.

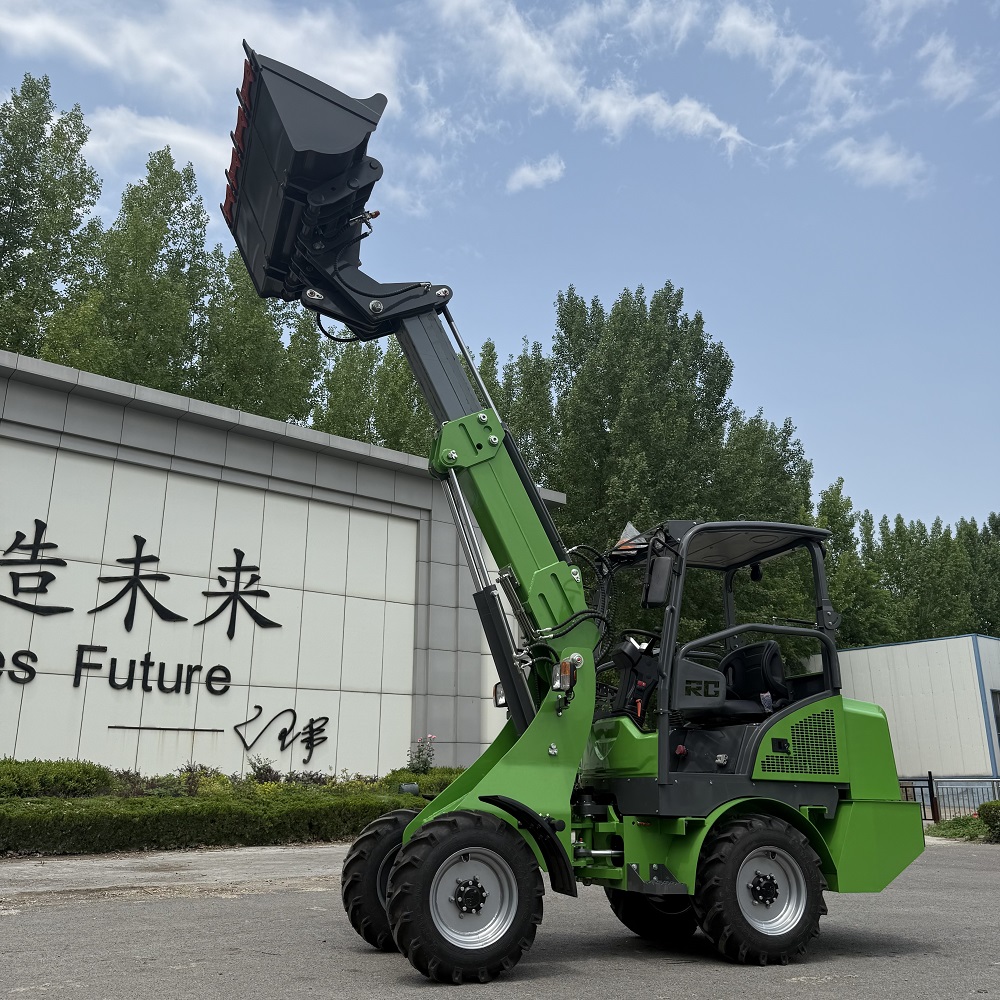

4. 0.4 Ton Mini Telescopic Electric Loader Series (XHD04T/XHDL04T)
Based on the 0.4-ton platform, the XHD04T adds a telescopic boom structure. With an overall length of 3460 mm, width of 1040 mm, and height of approximately 2100 mm, the net weight is about 1250 kg. The boom offers optional lift heights of 2630 mm or 3310 mm, corresponding to discharge heights of 1750 mm or 2450 mm, with a maximum dump reach of 700 mm. This design significantly expands vertical and horizontal operating ranges.
The power system consists of a 60V 2500W x 2 drive motor and a 3000W hydraulic motor, supported by five battery packs. It features full hydraulic steering, a 16 MPa hydraulic system, and drum service and parking brakes. This model is highly suitable for landscaping, greenhouse aisles, warehouse stacking, and small-scale material transfer where high lift is required in tight spaces.
5. 0.5 Ton Mini Electric Wheel Loader Series (XHD500/XHDL500/XHD500A/XHDL500A)
The 0.5-ton series increases the rated load to 500 kg while maintaining similar external dimensions to the 0.4-ton series (3500 mm long, 1060 mm wide, 1500 mm high). Discharge height remains at 1900 mm with a lift height of 2580 mm. Drive motor configurations are consistent with the 0.4-ton series (single 4 kW or dual 2.5 kW x 2 for the A version), and hydraulic power is provided by a 3 kW motor. The battery system supports 60V lead-acid or 64V lithium options.
This series is ideal for handling heavier bulk materials such as sand, feed, and wood chips in environments like livestock farms, breweries, and small batching plants where a 1060 mm passage width is acceptable.
6. 0.8 Ton Electric Wheel Loader Series (XHD08/XHDL08 & XHD08T/XHDL08T)
The 0.8-ton class represents a significant specification increase. The XHD08/XHDL08 offers a rated load of 800 kg and an operating weight of approximately 1980 kg. Dimensions are 3840 mm long, 1160 mm wide, and 2330 mm high, with a discharge height of 1780 mm and a maximum lift height of 3140 mm. The electrical system upgrades to a 72V platform, typically consisting of twelve 200Ah batteries or a lithium alternative. The hydraulic motor is upgraded to 5 kW, with dual 4 kW drive motors available. Tires are规格 26 * 12-12.
Maximum gradeability reaches 30 degrees, with a turning angle of 30 degrees plus/minus 1 degree and a 7-degree rear axle oscillation for uneven terrain. Standard features include full hydraulic steering, drum brakes, a DL10 triple spool valve, and a 30-liter hydraulic tank.
The XHD08T/XHDL08T is the telescopic variant, retaining the 0.8-ton rating and 72V power system while adding boom extension for higher reach, suitable for loading high-sided trucks or reaching over obstacles.
7. 1 Ton Electric Wheel Loader Series (XHD10/XHDL10 & XHD10T/XHDL10T)
The XHD10/XHDL10 has a rated load of 1000 kg, dimensions of 4450 mm long, 1260/1300 mm wide, and 2450 mm high, with a discharge height of 2300 mm and lift height of 3380 mm. Operating weight is approximately 2340 kg. The 72V architecture supports dual 4000W drive motors and a 5000W hydraulic pump motor. Tire options include 265/75-15.3 or 29 * 12.50-15. Ground clearance is 215 mm, wheelbase is 1580 mm, and maximum gradeability is 18 degrees.
The telescopic version, XHD10T/XHDL10T, offers discharge heights of 2450 mm or 3150 mm and lift heights of 3680 mm or 4350 mm, with a dump reach of 800 mm or 1200 mm. Operating weight is approximately 2840 kg. This model is ideal for agricultural supply warehouses and building material distribution centers requiring high-level loading
8. 1.5 Ton Electric Wheel Loader Series (XHD15/XHDL15)
The XHD15 bridges the gap between compact and medium-sized loaders. It offers a rated load of 1500 kg, with dimensions of 5240 mm long, 1850 mm wide, and 2600 mm high. Discharge height ranges from 2700 mm to 3000 mm, with a no-load lift time of less than 4.8 seconds. It utilizes a 153.6V high-voltage lithium system, typically with a 300Ah (45 kWh) battery. The drive motor is 20 kW and the working motor is 12 kW, managed by 350A controllers. A DE20 single-speed or high-low transmission is optional, with 23.5/70-16 tires.
Features include a panoramic cab, multifunction joystick, hydraulic quick-coupling system, and an optimized counterweight layout for stability. The hydraulic tank capacity is 68.5 liters. This model suits large grain depots, industrial bulk material handling, precast concrete plants, and recycling centers.
9. 2 Ton Electric Wheel Loader Series (XHD20/XHDL20)
The XHD20 has a rated load of 2200 kg. Dimensions are 6000 mm long, 2080 mm wide, and 2890 mm high, with a discharge height of up to 3550 mm and a wheelbase of 2380 mm. The minimum turning radius is 5000 mm. It is powered by a 35 kW travel motor and dual 25 kW hydraulic motors, controlled by a 450A travel controller and dual 350A working controllers. The DE20 high-low transmission provides two forward and two reverse gears. Tires are 16/70-20.
The battery is a 153.6V 460Ah (70 kWh) lithium pack, supporting fast charging from 20% to 100% in approximately 1 hour and 50 minutes using a high-amperage charger. The hydraulic system uses dual 32 ml displacement gear pumps and includes a hydraulic oil cooler. This model delivers performance comparable to traditional diesel loaders but with full electrification, suitable for open-pit mining, large batching plants, and construction waste processing.
10. 2.5 Ton Telescopic Electric Loader Series (XHD25/XHDL25)
The XHD25 is the flagship telescopic handler. It offers a rated load of 2200 kg (boom retracted) or 1000 kg (outriggers extended). Dimensions are 5800 mm long, 2100 mm wide, and 2850 mm high, with a minimum turning radius of 5600 mm. Discharge height is 2800 mm (retracted) or 3800 mm (extended), with a dump reach of 1150 mm and a bucket capacity of 1.3 cubic meters.
The powertrain mirrors the XHD20 (153.6V 460Ah lithium, 35 kW drive motor, dual 25 kW working motors), with a top speed of 30 km/h and gradeability of 15 degrees. It features electric-specific axles and 16/70-20 tires. This machine combines the mobility of a small loader with the reach of a telehandler, making it unique for urban renovation projects, scenic area maintenance, and high-platform loading.
