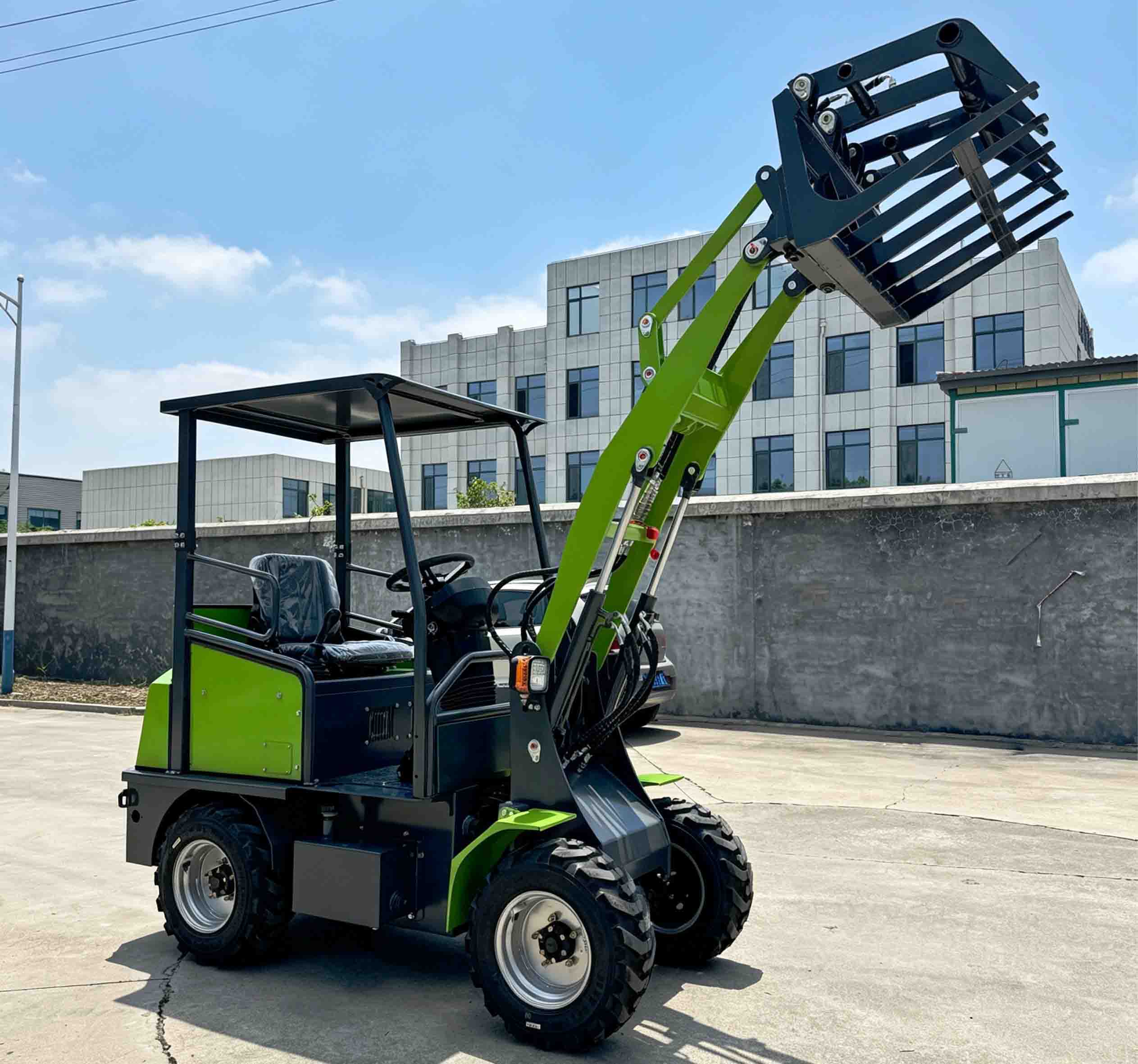

Xinghang XHD500A Electric Articulated Mini Loader

The Machine for the Places Diesel Can't Go

　　Walk into a sealed basement, a food-processing plant, or a historic building renovation, and you'll notice something missing: the roar and fumes of a diesel engine. In a growing number of municipalities and private facilities, internal combustion engines are either prohibited or effectively unusable due to ventilation limits and noise ordinances.

　　For contractors who built their businesses on compact diesel loaders, this creates a painful gap. You can't send a diesel machine where it's forbidden, yet you still need mechanical help to move tons of debris, pallets of materials, and excavation spoils in tight, enclosed spaces.

　　The Xinghang XHD500A Electric Articulated Mini Loader was engineered specifically to fill that gap. It is not a "compromise" machine—it is a purpose-built solution that combines the lifting capacity of a conventional mini loader with the clean, silent operation of an electric vehicle. With a machine width of just 1,050 mm, a 500 kg rated operating load, a 2,580 mm pivot pin lift height, and a powertrain built around flat-wire permanent magnet motors and a choice of 64V 180Ah LiFePO? or 60V 160Ah lead-acid batteries, the XHD500A lets you accept jobs that diesel machines simply cannot touch.

　　1. Core Specifications (XHD500A)

　　The XHD500A is engineered around a rigid performance envelope derived from real job-site demands:

　　Model: XHD500A (Electric Articulated Mini Loader)

　　Operating Weight: 1,090 kg—heavy enough for stability when carrying a 500 kg load, light enough for elevator transport.

　　Rated Load / Bucket Capacity: 500 kg / 0.25 m3 general-purpose bucket (1,200 mm bucket width on Li version; 1,100 mm on Pb version).

　　Lift Height (Pivot Pin): 2,950 mm—allows loading into high-sided skips or hoppers.

　　Dump Height (at 45°): 2200 mm—sufficient for most truck beds and conveyor hoppers.

　　Raise Time: ≈5.5 s (full stroke, no load); Dump Time: ≈3 s.

　　Dimensions (L×W×H): 3,350 × 1,050 × 1,500 mm—low-profile canopy clears standard door headers.

　　Wheelbase: 1,320 mm—contributes to smooth ride and stable articulation.

　　Tires: 23×8.5?12 pneumatic (non-marking optional)—low ground pressure, turf-friendly.

　　Drive: 4WD via two 2.5 kW flat-wire PMSM motors (rear + front axle).

　　Hydraulic System: 3 kW pump motor; dual-function joystick controls lift and tilt.

　　Travel Speed: Two-range: 0–9 km/h (low gear for precise positioning); 0–17 km/h (high gear for transit).

　　Steering: Articulated steering via central pivot—rear wheels track front wheels exactly.

　　Every dimension and rating has been validated through a 48-hour non-stop load test before leaving the factory.

　　2. The Powertrain: Flat-Wire Motors & Battery Options

　　2.1 Flat-Wire Permanent Magnet Synchronous Motors (PMSM)

　　Unlike economy electric vehicles that use round-wire wound DC or AC induction motors, the XHD500A employs rectangular-section copper windings in both its 2×2.5 kW drive motors and 3 kW hydraulic motor.

　　Slot Fill Factor >70%: More copper in the same stator volume → lower resistive loss, less waste heat.

　　High Starting Torque: 100% torque available from 0 rpm—critical when inching a 500 kg load on a slope or through a narrow doorway.

　　Thermal Endurance: Improved heat dissipation allows sustained heavy-cycle operation (e.g., repeated lifting of spoil) without thermal derating.

　　Quietness: Contributes to the overall ≤50 dB(A) acoustic signature.

　　2.2 Battery Choices

　　Two energy storage options are offered to match budget and duty cycle:

　　A) 64V LiFePO? (Lithium Iron Phosphate) — 180 Ah

　　Cycle Life: Rated 2,000–3,000 full cycles (≈5–7 years typical use).

　　Safety: Thermally stable chemistry; decomposition temperature >250 °C.

　　Performance: Minimal voltage sag under load; hydraulic functions maintain full speed even as State of Charge (SoC) drops.

　　Weight Distribution: The battery pack is integrated into the chassis as a structural, weighted component, improving stability.

　　B) 60V Lead-Acid — 160 Ah (Economy Option)

　　Lower upfront cost.

　　Familiar technology; easy to source locally in some developing markets.

　　Shorter cycle life (500–800 cycles) and higher maintenance (topping up distilled water).

　　Suitable for operations with limited budgets or lower daily utilization.

　　Both systems are managed by a Battery Management System (BMS) that monitors cell balance, temperature, and SoC. The digital dashboard displays remaining runtime and alerts the operator to charging needs before the pack is deeply discharged—protecting battery health and extending service life.

　　3. Articulated Steering & Narrow-Body Design

　　The XHD500A pivots around a heavy-duty central articulation joint. Benefits over a skid-steer design include:

　　No Turf Damage: Wheels roll freely through turns; no scrubbing action that tears grass or polished floors.

　　Tight Access: With an overall width of 1,050 mm (chassis often narrower), it passes through standard doorways, freight elevators, and greenhouse bench rows that would stop a 1,200 mm+ skid steer.

　　Stability: The articulated design, combined with a low-mounted heavy battery pack, gives the machine a low center of gravity. It resists tipping on side slopes better than many upright-frame mini loaders.

　　The hydraulic steering system is pilot-assisted, requiring minimal effort from the operator while providing precise directional control—even at creep speeds needed for fine positioning next to walls or delicate installations. A foldable ROPS/FOPS canopy (height retractable for low-clearance doors / container loading) comes standard, meeting ISO 3471.

　　4. Control System & Instrumentation

　　The XHD500A uses a CAN-bus digital LCD instrument cluster linked to the motor controller and BMS:

　　Displays: battery voltage & %, travel speed, hydraulic pump RPM (indicating load), fault codes with descriptive text, misoperation warnings (e.g., park brake engaged, attachment not locked).

　　Language: English default; other languages configurable upon request.

　　The integrated control handle puts all driving and loading functions under the operator's right hand, minimizing training time. A suspended seat (select versions) dampens vibration from rough concrete or compacted gravel.

　　5. Attachment Interface & Versatility

　　A quick-attach coupling (standard mini-loader pattern) is mounted as standard:

　　General Purpose Bucket (0.25 m3): 1,200 mm (Li version) / 1,100 mm (Pb version) wide; reinforced manganese steel cutting edge.

　　Pallet Forks: 500 kg WLL; adjustable tines; ideal for moving bagged cement, sod pallets, or warehouse stock.

　　4-in-1 / Grapple Bucket (optional): Clamshell action for brush, logs, or irregular scrap.

　　Light-Duty Auger / Broom (optional auxiliary hydraulics): For specialty site prep or cleanup.

　　Switching attachments takes under a minute. The auxiliary hydraulic circuit (optional on some markets) supplies the flow/pressure needed for rotating brushes or light augers.

　　6. Where the XHD500A Excels — Application Scenarios

　　6.1 Indoor / Basement Demolition

　　Remove drywall, ceramic tile, and light concrete without CO alarms or ventilation ducts. The 1,050 mm width passes through standard interior doorways; the electric powertrain produces no fumes—workers and adjacent occupants stay safe.

　　6.2 Food, Beverage & Pharmaceutical Plants

　　Internal combustion engines are prohibited due to exhaust contaminants. The XHD500A's zero-emission operation and smooth, non-marking tires make it plant-compliant. No oil drips thanks to enclosed electric drivetrain.

　　6.3 Greenhouses, Nurseries & Equestrian Centers

　　Diesel exhaust contains sulfur compounds that can stress plants and animals. The XHD500A's clean operation and narrow 1,050 mm width allow it to work between standard 1.2 m bench rows without crop damage.

　　6.4 LEED / BREEAM / Municipal Green Projects

　　Documented use of zero-emission equipment can contribute to sustainability credits. Municipalities with Low Emission Zones (LEZ/ULEZ) increasingly favour contractors deploying machines like the XHD500A.

　　6.5 Warehousing & Logistics

　　The machine fits into aisles a forklift cannot (narrow doorways, freight elevators). Electric operation permits indoor travel; the 500 kg fork capacity handles typical palletized loads.

　　 Professional Electric Performance in a Compact Frame

　　The Xinghang XHD500A is not a converted golf cart. It is a structurally engineered, 1,090 kg class articulated loader with a 500 kg lift capacity, 2,580 mm lift height, and a mature EV powertrain. It is built for contractors who need to work where diesel cannot—basements, food plants, historic sites, greenhouses—and for rental houses that want a differentiated, premium-rate machine.

　　With its combination of narrow width, flat-wire motor torque, selectable 64V 180Ah LiFePO? or 60V 160Ah lead-acid power, and universal attachment compatibility, the XHD500A expands what a "mini loader" can do and where it can go.

　　?? Contact Xinghang Machinery for the XHD500A datasheet, FOB quote, and container-load plan. Put clean, quiet power to work on your most sensitive job sites.

　　Small Machine, Giant Power — Engineered for the Spaces Diesel Can't Reach.
