When a Wheelbarrow Costs You Money
Every contractor who has stripped a basement, landscaped a walled garden, or worked a trench-line knows the bottleneck. Your mini excavator or mini loader digs and loads fast—but then the spoil has to move 20 to 100 meters across a finished lawn, through a 1,000 mm garden gate, or along a narrow trench top.
If the dump site is inaccessible to a full-size truck, your crew defaults to wheelbarrows. The loader waits. The excavator idles. And your margin disappears into slow, back-breaking manual handling.
The Xinghang XHT500 Tracked Mini Dumper was built to eliminate exactly this problem. With a 500 kg (1,100 lb) rated payload, a 700 mm (27.6 in) overall chassis width, a hydraulic self-dumping skip (200 dm3), and 180 mm wide rubber crawler tracks, it follows trenches, crosses lawns without rutting, and passes through standard garden gates—carrying ten times what a wheelbarrow holds.
1. XHT500 Key Specifications (Per Xinghang Production Brochure)
Model: XHT500 Tracked Mini Dumper
Rated Payload: 500 kg
Skip (Hopper) Capacity: 200 dm3 — 1,050 × 730 × 730 mm (L×W×H)
Chassis Width: 700 mm (tracks included)
Track Width: 180 mm — wide, low-pressure rubber track for low ground pressure
Track Ground Contact Length: 900 mm
Track Center Distance: 520 mm
Dump Type: Hydraulic self-dump, max dump angle 90°
Discharge Height (under lip of tilted skip): 260 mm
Travel Speed: Approx. 2.88 km/h (forward); multi-position handlebar control
Minimum Turning Radius: 1.15 m
Ground Clearance: 110 mm
Max Gradeability: 20° (approx. 36%)
Engine Options:
Briggs & Stratton 203 cc / 6.5 HP (model 12V3 series) — standard
Koop 173 cc / 7 HP (optional)
Rato / Lifan 196–212 cc / 6.5–13.5 HP (optional, EPA/CARB available)
Fuel Tank: 3.6 L (gasoline)
Machine Net Weight: 414 kg
Overall Dimensions (L×W×H): 2,050 × 880 × 1,300 mm
Packing: 1,630 × 940 × 1,450 mm (wooden crate); stackable frame option available
Each unit is factory-tested for hydraulic function, track tension, and engine performance before shipment.
2. Why Tracked? Why 700 mm Wide?
2.1 The Advantage of Crawler Tracks
Unlike wheeled mini dumpers, the XHT500 uses rubber crawler tracks:
Low Ground Pressure: The 180 mm wide track spreads the machine's weight (414 kg + 500 kg load = 914 kg total) over a large contact patch. Even on saturated soil or established turf, it leaves only a faint impression—often invisible after rain or a light rake.
Soft-Terrain Traction: Mud, sand, loose gravel, and wet clay that would bog a wheeled machine are no problem for the tracked XHT500.
Side-Slope Stability: The wide track stance and low center of gravity give confidence on embankments and uneven paths.
Climbing Ability: Up to 20° incline capability allows access to hillside lots, retaining-wall construction sites, and sunken basement exits.
2.2 The 700 mm Width—Why It Matters
Many UK/EU/US garden gates, side passages, and heritage-site doorways are 900–1,000 mm clear width. A 700 mm wide machine with its 180 mm tracks still fits comfortably, even accounting for hinge protrusion and operator clearance. This allows the XHT500 to:
Follow a 600 mm wide trench top (common in utility trenching) to collect and remove spoil.
Pass through standard garden gates without removing the skip.
Work inside walled courtyards, basement ramps, and narrow alleyways where a 1,200 mm wide dumper cannot go.
3. Hydraulic Self-Dumping: Less Fatigue, Faster Cycles

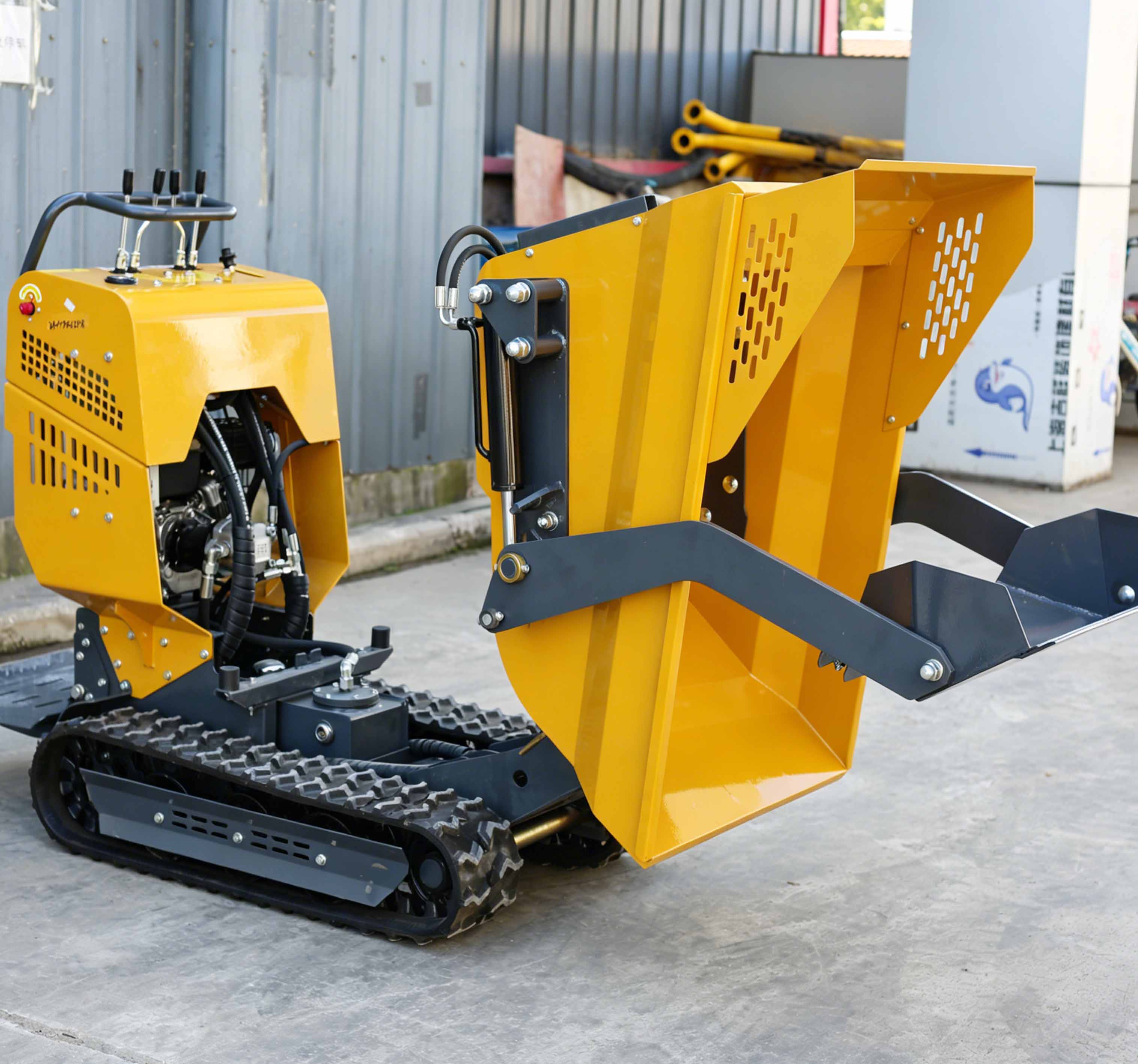

The XHT500's skip is hinged at the front and raised by a hydraulic cylinder actuated from the handlebar control panel.
One-Lever Operation: Pull the dump lever; the skip rises to a max 90° tilt and empties in seconds.
No Manual Lifting: Unlike a wheelbarrow or a non-dumping buggy, there is zero lifting strain on the operator.
Controlled Lowering: The hydraulic circuit includes a flow control valve for smooth, jerk-free return—important when dumping fragile materials or working near finished surfaces.
The skip itself is fabricated from high-strength pressed steel with reinforced edges, designed to withstand rock, broken concrete, and abrasive aggregate without deformation.
4. Typical Application Scenarios
4.1 Trench Spoil Removal (Utility / Plumbing / Irrigation)
Open-cut trenching leaves long windrows of excavated soil. The XHT500 (700 mm wide) can follow directly alongside the trench, load spoil from the excavator bucket, and deposit it at the designated stockpile—often 30–50 m away or on the opposite side of the street. A wheelbarrow would be too slow; a full-size dump truck couldn't access the trench line.
4.2 Landscaping & Garden Renovation
Clients prize undamaged lawns. The XHT500's wide rubber tracks distribute weight to avoid deep rutting. Landscapers use it to:
Remove excavated soil from pond or terrace excavations.
Bring in topsoil, bark mulch, or decorative stone.
Transport green waste to a chipper or skip.
Its narrow width lets it pass through standard 1,000 mm garden gates, then work on the lawn without leaving lasting marks.
4.3 Basement / Interior Strip-Out (Exterior Transfer)
While the electric XHD500A mini loader works insidethe basement, the XHT500 waits at the exterior access point. The loader fills the dumper; the dumper carries debris to a roll-off container on the street. This "loader–dumper relay" eliminates hand-barrowing entirely.
4.4 Remote / Rough Terrain Sites
Solar farms, hillside cabins, and vineyard access tracks often lack vehicle-width roads. The XHT500 can be winched up a steep track or driven through a narrow gateway, delivering gravel, blocks, or tools to the exact point of use.
5. Pairing with Xinghang Loaders: The Compact Site System
The XHT500 is the natural material-handling partner to the Xinghang XHD500A Electric Mini Loader and XHS25 Compact Skid Steer:
XHD500A or XHS25 loads the dumper in a confined area (basement, courtyard, trench head).
XHT500 exits to the street / stockpile and hydraulically dumps—no manual handling.
Result: Continuous material flow, higher daily productivity per crew member, and reduced labor cost.
For rental houses, the XHT500 appeals to landscapers, utility contractors, and heritage-property caretakers—niche segments that command premium rates and show strong repeat utilization.
Stop Pushing Spoil in a Wheelbarrow
You wouldn't dig a trench by hand in 2026. So why still move the spoil with a barrow?
The Xinghang XHT500 Tracked Mini Dumper closes the loop between excavation and disposal. Compact (700 mm wide), turf-safe (180 mm rubber tracks), and strong (500 kg payload / 200 dm3 skip), it is purpose-built for the spaces your truck can't reach and your barrow slows you down. Whether you are a contractor tired of watching laborers shuffle back and forth, a rental yard seeking a differentiated niche machine, or a landscaper who protects every lawn—you've found the missing piece.
?? Contact Xinghang Machinery today for the XHT500 specification sheet, FOB quotation, and container-load plan (typically 12–16 units per 20GP). Turn the "long walk with a barrow" into a two-minute cycle.
Small Machine, Giant Power — Moving What Matters.
