Tracked vs. Wheeled: Choosing the Right Xinghang Mini Dumper for Your Job Site

  One Size Does Not Fit All in Material Handling

　　If you type "mini dumper for sale" into a search engine, you'll see two distinct species of machines staring back at you: the tracked dumper and the wheeled dumper. To the untrained eye, they seem interchangeable—both haul dirt, both tip hydraulically. But on a real job site, choosing the wrong one can cost you thousands in turf repair, lost productivity, or even stuck equipment.

　　At Xinghang, we manufacture both. We produce the XHT500 Tracked Mini Dumper for soft, sensitive, and narrow-access terrain, and the XHT3000 Ride-On Wheeled Dumper for high-speed, high-volume transport on firm ground.

　　Understanding the physics of how these machines interact with the earth beneath them is the key to buying the right tool for the job. In this article, we’ll break down the fundamental differences between the XHT500 and XHT3000, helping you determine which machine belongs in your fleet—or whether you need both.

　　1. The Physics of Ground Pressure: Why Tracks Win on Soft Soil

　　The most significant difference between the XHT500 and a wheeled dumper is Ground Pressure—the amount of downward force distributed over the contact area with the ground.

　　1.1 XHT500: The Low-Pressure Specialist

　　The XHT500 features 180 mm wide rubber crawler tracks with a 900 mm ground contact length.

　　Total Weight (Loaded): Approx. 914 kg (414 kg machine + 500 kg payload).

　　Contact Area: Approx. 3240 cm2 (180mm x 900mm x 2 tracks).

　　Ground Pressure: Extremely low.

　　Because the weight is spread over such a large footprint, the XHT500 "floats" over soft surfaces. It is the preferred choice for:

　　Wet Lawns: It won't sink into saturated soil.

　　Fresh Turf: It leaves only a faint impression, avoiding costly lawn restoration.

　　Mud and Sand: The tracks provide superior traction where wheels would spin and dig in.

　　1.2 XHT3000: The High-Speed Transporter

　　The XHT3000 is a robust, ride-on wheeled dumper featuring 12-16.5 industrial tires.

　　Total Weight (Loaded): Approx. 5150 kg (2150 kg machine + 3000 kg payload).

　　Contact Area: Small (tires create concentrated pressure points).

　　Ground Pressure: Significantly higher than the XHT500.

　　The XHT3000 trades low ground pressure for speed and load capacity. It is designed for:

　　Hard Surfaces: Concrete, asphalt, gravel roads, and compacted sub-base.

　　High-Speed Transit: Traveling at speeds up to 12 km/h between loading and dumping points.

　　Heavy Loads: Moving 3,000 kg of material in a single trip.

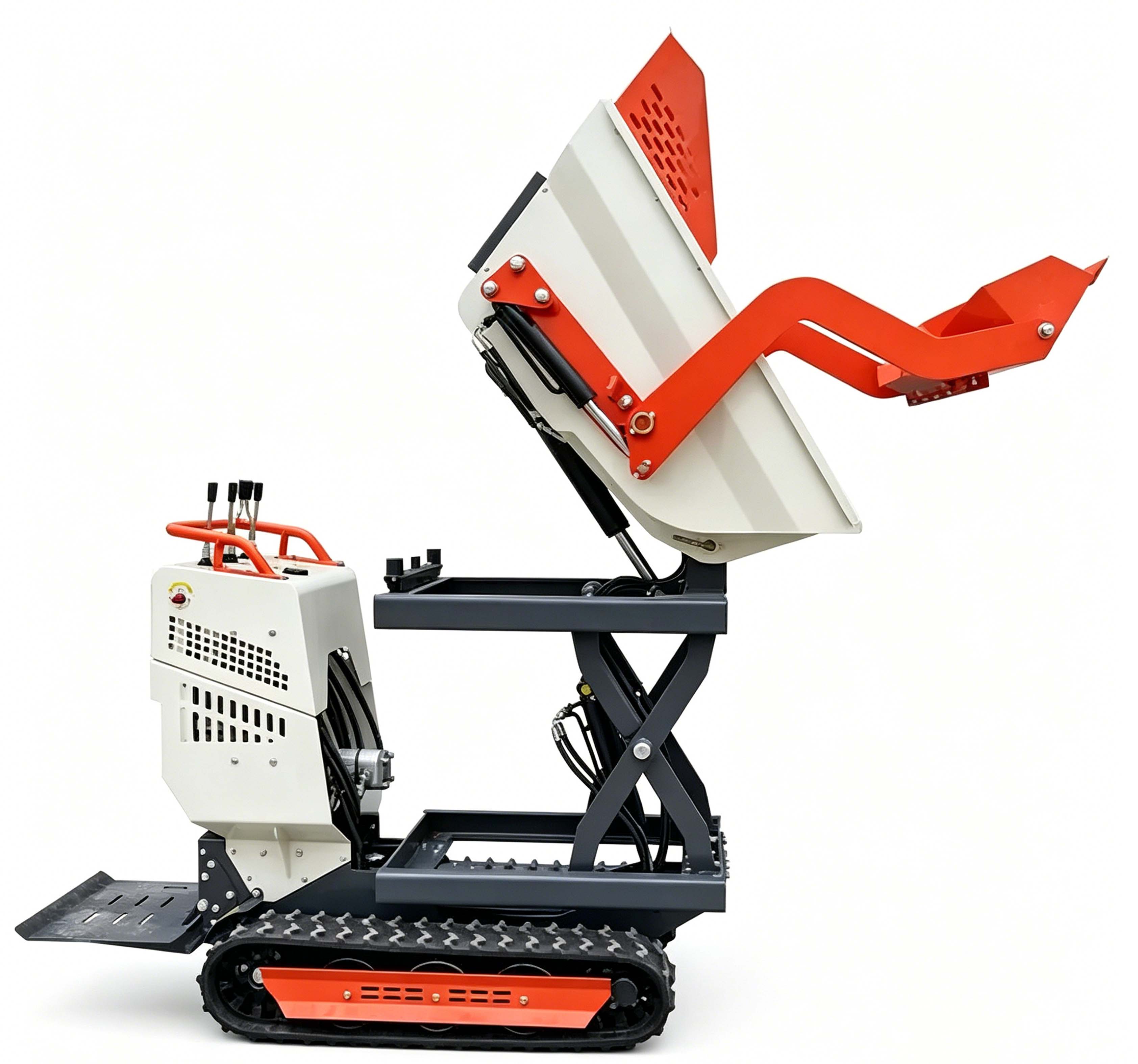

　　2. The XHT500 (500kg Tracked): The "Turf-Safe" Solution

　　Operator Experience

　　The XHT500 is primarily a walk-behind or power-barrow style machine. The operator walks behind the unit, using the multi-position handlebars to steer and control speed. This offers a significant advantage in tight spaces: the operator has a ground-level view of the tracks, ensuring they avoid sprinkler heads, delicate edging, or freshly laid sod. The hydraulic dump lever is conveniently located on the handlebar, allowing the operator to dump the 200 dm3 skip and return to the loading point without ever leaving the control station.

　　The Economic Argument

　　While a wheeled dumper might be faster on a straight, flat path, the XHT500 saves money by preventing damage. A single incident of tearing up a client’s prized lawn with a wheeled machine can result in a repair bill exceeding the rental cost of the XHT500 for an entire week. For landscapers and high-end property maintenance crews, the XHT500 isn’t just a machine—it’s an insurance policy for the turf.

　　3. The XHT3000 (3-Ton Ride-On): The High-Volume Workhorse

　　In contrast to the XHT500, the XHT3000 is built for a completely different mission profile. With a 1,500 mm overall width, a 3,000 kg payload capacity, and a top speed of 12 km/h, it is essentially a compact, highly maneuverable dump truck.

　　Best Suited For:

　　Large-Scale Earth Moving: Moving massive amounts of soil, gravel, or demolition debris across a construction site.

　　Road and Driveway Work: Transporting aggregate on compacted gravel or asphalt surfaces where its 12 km/h speed dramatically improves cycle times.

　　Agricultural Operations: Hauling feed, manure, or harvested crops around a farm where the terrain is firm.

　　Equipment Yards: Shuttling heavy materials (pallets of bricks, bags of cement) across a large yard.

　　Limitations:

　　Gate Access: At 1,500 mm wide, it cannot fit through standard 1,000 mm garden gates or narrow side passages.

　　Ground Sensitivity: The 12-16.5 tires will tear up a finished lawn or leave deep ruts in soft, wet soil.

　　Turning Radius: With a turning radius of 5,000 mm, it requires significantly more room to maneuver than the XHT500.

　　Operator Experience:

　　The XHT3000 features a ride-on platform with an adjustable suspension leather seat. The operator sits high, enjoying excellent visibility over the 1.28 m3 skippable bed. Controls are intuitive: a multifunction handle for steering, hydraulic dumping, and forward/reverse direction. The 180° swivel skip allows the operator to dump material precisely to the left or right without needing to reposition the entire machine—a huge time-saver on busy sites.

　　4. Feature-by-Feature Comparison: XHT500 vs. XHT3000

　　To visualize the differences, consider these key metrics pulled directly from the Xinghang production brochure:

    5. The Decision Matrix: Which One Do You Need?

　　Ask yourself these four questions to determine the right machine for your next project:

　　Where am I driving?

　　Through a garden gate or across a lawn?→ XHT500.

　　On a road, driveway, or compacted gravel pad?→ XHT3000.

　　How much material am I moving?

　　A few cubic meters of topsoil or trench spoil?→ XHT500.

　　Dozens of cubic meters of aggregate or demolition waste?→ XHT3000.

　　How far is the haul?

　　Short distances (under 100m) with frequent turns?→ XHT500.

　　Long distances (100m+) across an open site?→ XHT3000.

　　What is my priority?

　　Protecting the ground and fitting into tight spots?→ XHT500.

　　Moving the maximum amount of material in the minimum amount of time?→ XHT3000.

　　6. The "System" Approach: Using Both Machines

　　For large contractors, rental houses, or municipalities, the XHT500 and XHT3000 are not competitors—they are partners in a material handling system.

　　The Workflow:

　　An XHD500A Electric Mini Loader or XHS25 Skid Steer loads material.

　　The XHT500 transports the material across the lawn or through the gate to a staging area near the road.

　　The XHT3000 takes over, moving the staged material rapidly across the hard surface to the final dump site or truck.

　　This "light-duty to heavy-duty handoff" maximizes efficiency, protects the landscape, and ensures you always have the right tool for the specific segment of the transport route.

　 Match the Machine to the Ground

　　Choosing between the Xinghang XHT500 and XHT3000 is not about which machine is "better"—it's about which machine is right for the ground beneath it. The XHT500 is the undisputed champion of tight-access, soft-terrain work, protecting your client's property while moving material efficiently. The XHT3000 is the king of high-volume, high-speed transport on prepared surfaces, drastically cutting cycle times on large projects.

　　By understanding the physics of ground pressure and the realities of your job site, you can invest in the machine—or the combination of machines—that will deliver the best return on investment and keep your projects moving forward.
