Few pieces of equipment offer as much "bang for the buck" on small job sites as a skid steer loader—especially when it is compact enough to fit through a garden gate, a barn door, or a narrow urban alley. Unlike larger agricultural loaders, a mini skid steer (also called compact skid steer or walk-behind/ride-on skid loader) uses differential steering: left and right side drives operated independently, allowing zero-radius pivot turns. This makes it exceptionally maneuverable in confined spaces where a conventional articulated loader would need multiple backing-up attempts.
Jining Xinghang Machinery's skid steer family—models XHS380A, XHS380, XHS430, XHS800, XHS25—and the articulated four-wheel-drive telescopic loader XHS30—are engineered for exactly these scenarios. With engine options meeting EPA, CARB, and Euro V emission standards, universal quick-attach plates, and a wide range of hydraulic attachments, they serve farmers, landscapers, rental yards, and remodeling contractors worldwide.
This article details the design philosophy, technical highlights, attachment ecosystem, and selection criteria for Xinghang skid steer and compact telescopic loaders.
Skid Steer Loader Basics and Why Compact Size Matters
A skid steer loader has a rigid chassis, four wheels or tracks, and turns by speeding up one side and slowing or reversing the other. Benefits:
True zero-radius turn: spin in place.
Typically narrower than articulated loaders of similar lift capacity.
Lower transport weight; fits in pickup-bed trailers or small flatbed trucks.
Downsides compared to articulated loaders:
Slightly higher tire scrub on paved surfaces (tracks mitigate this).
Operator must manage "skidding" feel, though ride-on models are intuitive.
Xinghang's smallest ride-on units are 1000 mm (XHS800) to 1200 mm (XHS380/XHS430) wide—narrow enough for most standard doorways, greenhouse aisles, and elevator cabs in high-rise renovations.
Xinghang Skid Steer Model Lineup
XHS380A – Entry-Level Gasoline Mini Skid Steer
Engine: Briggs & Stratton 25T2 13.5 HP gasoline, air-cooled.
Rated load: 380 kg, bucket 0.15 m3, max breakout force 450 kg.
Dimensions: 2500 mm L (bucket) × 1200 mm W × 1350 mm H.
Tires: 18×8.5–8 or rubber track 180/60–46.
Applications: home garden, small farm, light demolition cleanup.
Emission: EPA certified.
XHS380 – Upgraded 26 HP Version
Engine: Rato 739 26 HP or Honda GX690/B&S 3864 optional.
Rated load 380 kg, breakout 550 kg, hydraulic flow 44 L/min.
Better for frequent auger, breaker, or brush cutter use where more auxiliary flow helps.
XHS430 – Mid-Size Compact Skid Steer
Same engine options as XHS380 but with 430 kg rated operating capacity, 0.17 m3 bucket, higher hydraulic pressure (25 MPa), slightly wider track stance for stability.
Popular with landscape contractors doing sod laying, tree ball moving with grapple.
XHS800 – Extra Narrow Ride-On Skid Steer
Width only 1000 mm, length 2680 mm with bucket, height 1350 mm.
Briggs 25T2 13.5 HP standard; optional Kubota/Kohler.
Rated load 300 kg, bucket 0.15 m3.
Unique selling point: fits inside passenger elevators—enables high-rise interior demolition where no ramp exists.
XHS25 – Premium Diesel Skid Steer (Kubota/Perkins)
Engine: Kubota D1105 25 HP diesel or Perkins 403J11, Tier 4 / Euro V compliant.
Rated load 500 kg, bucket 0.25 m3, lift height 2400 mm pin height, dump 1890 mm.
Hydraulic flow 33 L/min standard, high flow optional.
Enclosed ROPS cab optional. Targeted at professional rental fleets and municipal users needing diesel durability and higher lift.

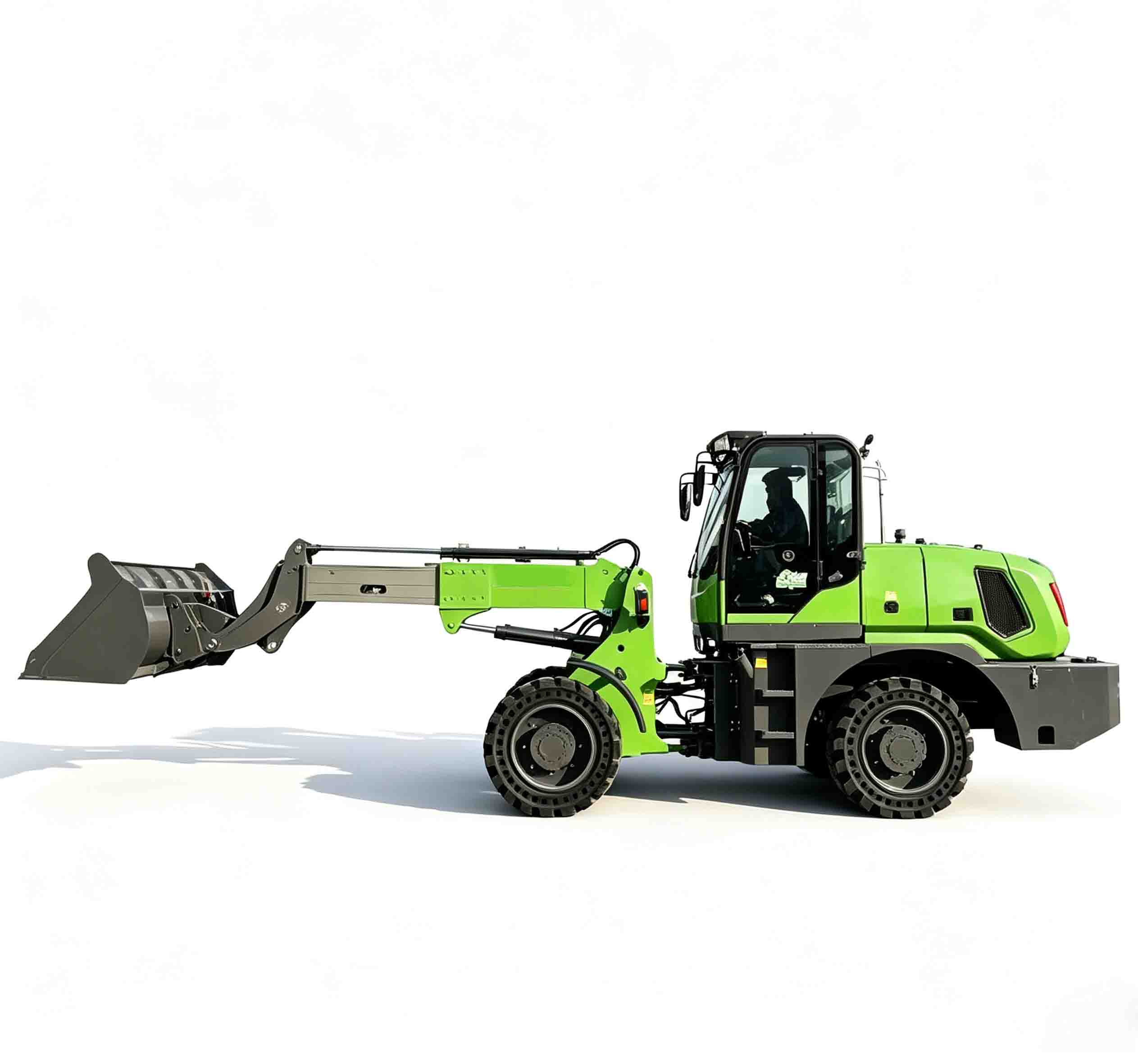

XHS30 Four-Wheel-Drive Telescopic Loader – The In-Between Machine
Not a skid steer but an articulated mini loader with telescopic boom:
Deutz-type 26 HP gasoline/diesel engine options (Rato, Kohler, Kubota D1105).
Rated load 500 kg, bucket 0.3 m3, max lift height 3350 mm (boom extended), dump height ~2000 mm.
Articulated steering (not skid) → less turf damage.
Telescopic boom reaches over short walls or into truck beds.
Used in nurseries for stacking potted plants, small construction sites for loading elevated conveyors.
Attachment System and Quick-Coupler Standard
All Xinghang skid steers use the industry-common universal mounting plate with hydraulic quick-disconnects. Available attachments include:
General purpose bucket (minganese steel, serrated edge optional)
Forks / pallet forks (adjustable tine width)
Hydraulic breaker / hammer (for concrete demo)
Auger drive with various bit diameters (for fence post, tree planting)
Grapple bucket / root grapple (brush, logs, scrap)
Angle broom / sweeper (street sweeping, barn aisle cleaning)
Snow blade / snow pusher
Lawn aerator, dethatcher, tiller (landscape prep)
Trencher (narrow trench for irrigation pipe)
Switching attachments takes less than one minute once the operator is familiar with the latch.
Engine Emission Compliance for Export Markets
EPA Phase III/IV certification for US-bound gasoline units.
EU Stage V / Euro V for diesel models (Kubota/Perkins options).
CARB compliant versions available on request for California.
Documentation provided: certificate copy, engine serial number record, conformity declaration.
Operator Comfort and Safety Features
Dual hand-lever pilot control: left lever = drive (forward/ reverse/ turn), right lever = boom lift + bucket curl. Intuitive layout shortens learning curve.
ROPS/FOPS canopy standard; fold-down ROPS for low-clearance entry then locked upright for work.
Emergency stop button accessible from operator station.
Lap bar or seat belt on ride-on models.
Optional enclosed cab with wiper, heater for cold-climate work (XHS25).
Common Applications by Industry
Agriculture & Livestock:Bedding spread, manure pile management, hay bale moving (with fork), feed mixing (with specialized bucket), cleaning stalls.
Landscaping & Nursery:Soil/mulch loading, tree ball transport with grapple, trenching for irrigation, sod pallet handling.
Residential Construction & Renovation:Indoor demo debris removal (track version protects finished floors), drywall mud/materials transport, subfloor prep material handling.
Municipal & Park Maintenance:Sweeping leaves, snow removal on sidewalks, minor grading.
Equipment Rental:Compact size + multi-attachment = high utilization rate; ease of transport increases rental appeal.
