XHT3000 Ride On Dump Truck by Jining Xinghang Machinery

The XHT3000 ride on dump truck manufactured by Jining Xinghang Machinery represents a significant advancement in compact material handling and short distance transport solutions for construction agriculture and municipal projects. Designed with a maximum loading capacity of 3000 kilograms the XHT3000 combines robust structural engineering with operator centric design to deliver efficiency in demanding environments. This article provides a comprehensive overview of the XHT3000 covering its technical specifications structural advantages control systems operator comfort safety features and application scenarios based on verified product data and industry standards.

At the core of the XHT3000 is its powerful and reliable drivetrain. The machine is equipped with a Kubota D1105 three cylinder water cooled diesel engine producing 25 horsepower at 2800 revolutions per minute. This engine is renowned globally for its fuel efficiency durability and compliance with various emission standards including National Stage II National Stage IV EPA and Euro 5 depending on regional requirements. For markets with different regulatory needs the XHT3000 also offers optional configurations with Changchai 390 or Changchai 3M78 engines providing flexible power solutions without compromising performance. The diesel powertrain ensures consistent torque delivery enabling the XHT3000 to handle steep inclines with a climbing ability of up to 30 degrees and maintain a walking speed of 12 kilometers per hour even under full load. The fuel tank capacity is 35 liters which supports extended operation throughout a standard work shift without frequent refueling interruptions.

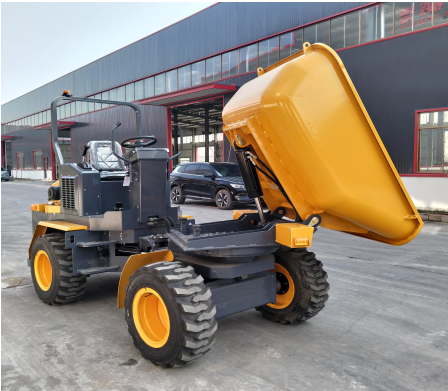

The dimensional design of the XHT3000 balances compactness with high volume capacity. The overall machine size is 3760 millimeters in length 1500 millimeters in width and 2450 millimeters in height. With a wheelbase of 1930 millimeters and a turning radius of 5000 millimeters the machine remains maneuverable in confined spaces such as construction sites narrow farm lanes and urban maintenance areas. Despite its relatively slim 1500 millimeter width the dump truck boasts a hopper capacity of 1.28 cubic meters with internal dimensions of 1730 by 1280 by 600 millimeters. The hopper can be tilted to a 90 degree angle for efficient unloading and features an optional 180 degree rotation function allowing material to be discharged to the side as well as the rear. This rotational capability significantly enhances jobsite flexibility especially when working near walls foundations or other obstacles where rear only dumping is impractical. The unloading height is 750 millimeters and the tipping clearance is 610 millimeters making it compatible with standard collection bins and low level discharge points.

Structural integrity is a cornerstone of the XHT3000 design. All major structural components are fabricated from national standard steel which offers high tensile strength and excellent toughness. This material selection ensures that welding quality is maintained under stress preventing cracks and deformations during long term heavy duty use. The frame and load bearing assemblies undergo rigorous quality inspections to guarantee stability and safety. A critical component in the undercarriage is the slewing support which is constructed from alloy steel. This material provides superior toughness and higher density compared to ordinary steel making it ideal for high load and high speed rotational movements associated with the optional rotating hopper mechanism. The enhanced durability of the slewing ring reduces maintenance frequency and extends the service life of the machine in continuous operation scenarios.

The XHT3000 rides on heavy duty engineering tires sized 12 dash 16.5 which are designed for high load carrying capacity. These tires ensure stable movement across uneven terrain such as gravel mud and rough construction grades while improving operational safety by maintaining better ground contact and traction. The undercarriage provides a ground clearance of 290 millimeters protecting vital components such as the engine sump hydraulic reservoirs and transmission from impact damage on rugged surfaces. The hydraulic system utilizes 46 grade hydraulic oil with a tank capacity of 35 liters ensuring smooth and responsive actuation of the dumping mechanism and any auxiliary hydraulic functions. The integration of a reliable hydraulic dumping system reduces physical labor and accelerates material discharge cycles compared to manual or mechanical lever assisted alternatives.

Operator control and ergonomics are prioritized in the XHT3000 cabin layout. The machine features a multi function control handle that delivers high sensitivity and precise signal response. This allows the operator to accurately manage the travel direction speed lifting lowering and tilting actions of the dumper with minimal effort and reduced risk of misoperation. The intuitive placement of controls shortens the learning curve for new operators and enhances overall jobsite productivity. Visibility is another key safety aspect. The driving position is elevated providing a wide panoramic view of the surrounding environment. This elevated sightline enables the driver to clearly observe ground conditions nearby obstacles and co workers reducing the potential for accidents and improving spatial awareness during reversing and loading operations.

To mitigate operator fatigue during long shifts the XHT3000 is equipped with an adjustable suspension leather seat. This seat is designed for comfort and durability absorbing vibrations transmitted from the chassis and uneven terrain. The adjustability accommodates operators of different statures ensuring proper posture and control reach which collectively contribute to sustained concentration and reduced physical strain over extended working hours. The combination of a cushioned seat ergonomic controls and good visibility aligns with modern occupational health standards on worksites.

The net machine weight of the XHT3000 is approximately 2150 kilograms providing a stable platform that resists tipping when loaded yet remains within manageable transport weights for trailering between job sites. The overall design philosophy integrates the robustness required for harsh conditions with the refined operator interfaces expected in contemporary machinery. Applications for the XHT3000 span multiple industries. In construction it is used for transporting sand gravel concrete debris and excavated soil. In agriculture it moves feed fertilizer harvest residues and landscaping materials across fields and orchards. Municipal works include road maintenance snow removal and park upkeep where narrow access and controlled dumping are necessary. The availability of engine options and emission compliant powerplants makes it suitable for both domestic Chinese markets and international export regions with strict environmental regulations.

Jining Xinghang Machinery headquartered in Yanzhou District Jining City Shandong Province benefits from the region status as one of Chinas six major engineering machinery industrial bases. The company leverages a mature supply chain advanced manufacturing equipment and stringent quality control processes to produce reliable small scale construction machinery. The XHT3000 reflects this commitment to quality through its material selection component sourcing and factory testing protocols. Each unit undergoes performance verification before delivery to ensure hydraulic integrity engine reliability and structural soundness.

From an operational cost perspective the XHT3000 offers favorable economics through its fuel efficient engine choices durable wear resistant components and reduced downtime due to accessible maintenance points. The use of standardized high quality steels and proven hydraulic elements minimizes unexpected failures. Furthermore the multifunctional nature of the dumper particularly with the rotating hopper option reduces the need for additional material positioning equipment thereby lowering overall project equipment costs.

In summary the XHT3000 ride on dump truck by Jining Xinghang Machinery is a purpose built transport solution that merges a 3000 kilogram payload capacity with compact dimensions agile maneuverability and operator focused design. Its alloy steel slewing support national standard steel structure high sensitivity controls heavy duty tires adjustable suspension seating and elevated visibility collectively address the core demands of modern construction agricultural and municipal operators. Powered by reputable engine options including Kubota and Changchai units and supported by a comprehensive hydraulic system the XHT3000 stands as a versatile durable and efficient choice in the small to medium dumper category. Whether navigating tight farm rows traversing uneven construction grades or performing precision side dumping in urban settings the XHT3000 delivers consistent performance backed by the manufacturing expertise of Jining Xinghang Machinery in Chinas leading engineering machinery cluster.
