The Multi-Tool Chassis: Converting XHT Dumpers into Mobile Cranes, Augers, and Winches

Introduction: The "Jack of All Trades" Myth

In the world of construction equipment, there is a persistent myth: "A machine designed to do everything does nothing well." This skepticism has kept many contractors tied to single-purpose tools—a dumper for hauling, a crane for lifting, an auger for drilling, and a winch for pulling. The result? A bloated fleet, high capital expenditure, and a constant logistical headache trying to move multiple machines to a single job site.

However, in the realm of compact equipment, physics favors the Multi-Tool Chassis. When a machine is built on a robust, heavy-duty tracked frame with a high-torque powertrain, it becomes a stable, mobile platform capable of powering a variety of attachments. The key is not just having a hitch; it is having the hydraulic flow, structural integrity, and intelligent control systems to handle diverse tasks safely.

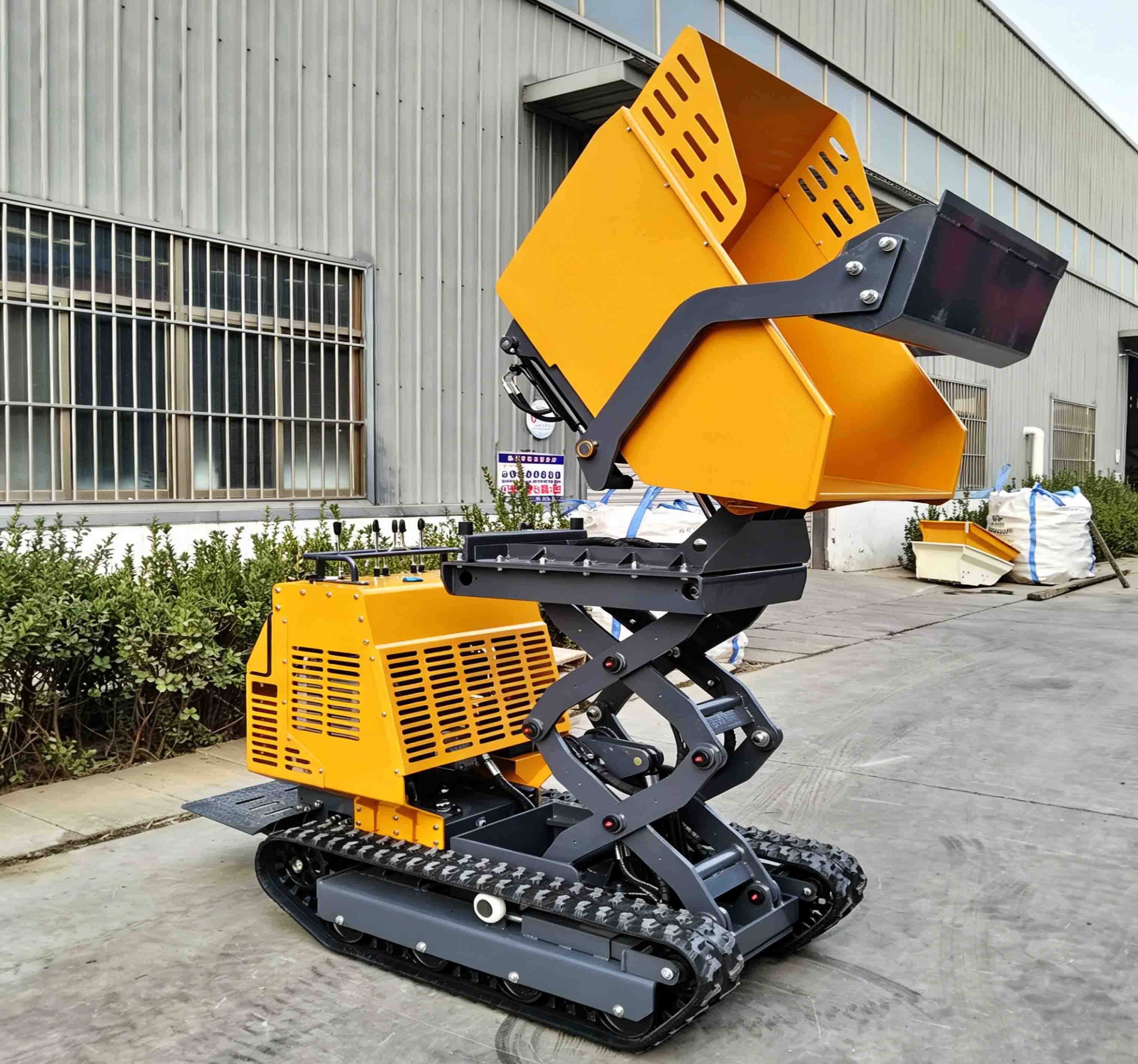

The Xinghang XHT Series, particularly the XHT1200 Rotary Dumper, is engineered around this philosophy. With its 180° hydraulic swivel skip, 1,200 kg payload, and 5 km/h tracked drive, it is not just a dumper. It is a Utility Deployment Platform. This article explores how the XHT chassis, combined with PTO (Power Take-Off) attachments, evolves from a simple transporter into a mobile crane, a ground drill, and a recovery winch—saving you money, time, and yard space.

1. The XHT1200: The Ultimate Multi-Tool Base

Before discussing attachments, we must understand why the XHT1200 is the ideal host.

• Stability: With a 850mm chassis width and 180mm rubber tracks, the ground pressure is exceptionally low. When the skip is rotated 90° to the side, the wide track stance prevents tipping.

• The 180° Swivel: Unlike standard dumpers that only tip backward, the XHT1200’s skip rotates hydraulically left or right. This allows for precision placement of materials or the positioning of lifting arms without moving the chassis.

• Hydraulic Power: The XHT1200 features a robust hydraulic system (driven by a 13.5HP gasoline engine) that provides the necessary flow (P=18–20 MPa) to run demanding attachments like augers or winches.

• Payload: At 1,200 kg, it can handle the reaction forces generated by heavy lifting or drilling without the chassis buckling.

2. Transformation 1: The Mobile Crane

The Need: Lifting heavy objects (generators, transformers, feed bunkers) into place in a backyard or a narrow courtyard where a truck crane cannot reach.

The Solution: Dumper-Mounted Crane Attachment.

• Mechanism: A articulated crane arm (often a 1-ton or 2-ton capacity knuckle boom) is mounted to the rear chassis of the XHT1200.

• Operation: The operator rotates the skip 90° to the side (or removes it). The crane unfolds. The 180° swivel capability of the chassis allows the operator to lift an object from the front and place it to the side, or vice versa, without "crab-walking" the machine.

• Case Study: A fencing contractor needs to install a 500kg concrete gatepost in a backyard. A truck crane cannot get past the fence. The XHT1200 drives through the gate, rotates the crane into position, lifts the post, and sets it perfectly in the hole. Total time: 15 minutes. Cost: Fraction of a crane rental.

3. Transformation 2: The Mobile Auger (Earth Drill)

The Need: Drilling post holes for fences, decks, or solar panel foundations. Traditionally done with a handheld auger (back-breaking) or a large tractor (too wide).

The Solution: Hydraulic Auger Drive.

• Mechanism: A hydraulic auger drive motor is connected to the XHT1200’s auxiliary hydraulic circuit. A flighted auger bit (100mm–600mm diameter) is attached.

• Operation: The tracked chassis provides downward pressure and stability. Unlike a handheld auger that tries to twist the operator, the XHT1200 anchors itself. It drills straight, consistent holes quickly.

• Efficiency: An operator can drill 50–100 post holes in a day. The 180° rotation allows drilling along a fence line without constantly repositioning the machine.

• Application: Solar farm installation (ground screws), vineyard trellis posts, and property fencing.

4. Transformation 3: The Mobile Recovery Winch

The Need: Pulling stuck vehicles, moving fallen logs, or tensioning cables in utility work.

The Solution: Hydraulic Winch Attachment.

• Mechanism: A hydraulic winch (pulling capacity 1.5 to 3 tons) is mounted to the front or rear of the chassis.

• Operation: The XHT1200 acts as an anchor. Its weight and tracked grip prevent it from sliding backward during a pull. The operator controls the winch speed and direction via a remote or the main control panel.

• Case Study: A farmer’s pickup truck is stuck in a muddy field. The XHT1200, with its low ground pressure, drives across the same mud without sinking. It spools out the winch cable, hooks to the truck, and pulls it free in minutes.

• Safety: Using a machine as an anchor is vastly safer than using a tree (which can snap) or another vehicle (which can get pulled in).

5. Transformation 4: The Mobile Work Platform (Basket)

The Need: Reaching lights on a high wall, trimming tall hedges, or accessing roof gutters in a narrow side yard.

The Solution: Dumper-Mounted Work Basket.

• Mechanism: The standard skip is replaced with a certified personnel basket.

• Operation: The XHT1200’s hydraulic lift raises the worker safely. The 180° rotation allows the worker to access different spots along a wall without the machine moving.

• Advantage: Far more compact than a 40-foot self-propelled boom lift. Can access backyards through a standard gate.

6. The Economics of Multi-Tasking

Let’s compare the cost of owning four separate machines vs. one multi-tool chassis.

The ROI: The XHT1200 Multi-Tool Chassis pays for itself in the first year by eliminating rental fees and reducing labor hours.

7. Technical Requirements for Safe Attachment Use

To ensure safety and longevity, the XHT1200 must be properly equipped:

• Hydraulic Flow: Ensure the auxiliary circuit provides adequate flow (GPM/LPM) for the attachment.

• Mounting Plates: Use reinforced mounting plates designed for the XHT chassis. Never weld directly to the frame unless specified.

• Counterbalance: When lifting, ensure the load is within the "Safe Working Load" envelope, considering the 180° rotation. The XHT1200’s low center of gravity is key here.

• Operator Training: Even with intuitive controls, operators must be trained on the specific load charts and stability limits of the attachments.

8. Beyond the XHT1200: The XHT750 as a Mixer/Transporter

While the XHT1200 is the "King of Attachments," the XHT750 also plays a multi-tool role.

• Mixing: It is a concrete batch plant on tracks.

• Transporting: It moves the mixed concrete to the pour site.

• Spreading: By adjusting the drum rotation speed, it can spread gravel or topsoil evenly.

  This "Two-in-One" functionality saves the cost of a separate concrete mixer and a dumper.

Conclusion: One Chassis, Infinite Possibilities

The era of single-purpose machinery is fading. In a competitive market, versatility is profitability. The Xinghang XHT1200 Rotary Dumper proves that a compact, tracked chassis can be the Swiss Army knife of the job site.

By investing in the base machine and a suite of targeted attachments, you are not just buying a dumper. You are acquiring a Mobile Utility Solution. You are prepared for the fence post hole in the morning, the stuck truck at noon, and the generator lift in the afternoon.

Stop paying for machines that sit idle. Start investing in a chassis that works as hard as you do.

?? Contact Xinghang Machinery today for the XHT1200 specification sheet, compatible attachment catalogs, and FOB quotations. Unlock the full potential of your fleet.

Small Machine, Giant Power — The Multi-Tool Revolution.
