Introduction: Finding the "Goldilocks Zone" Between Micro and Compact
A distinct gap has long existed in the small equipment market: 0.5-ton electric loaders offer agility but often lack the muscle for wet clay, gravel, or high-sided trucks. Conversely, 1-ton+ machines bring power but at a high cost, with bulky frames and complex maintenance. For international contractors seeking the perfect balance, the choice has been difficult—until now.

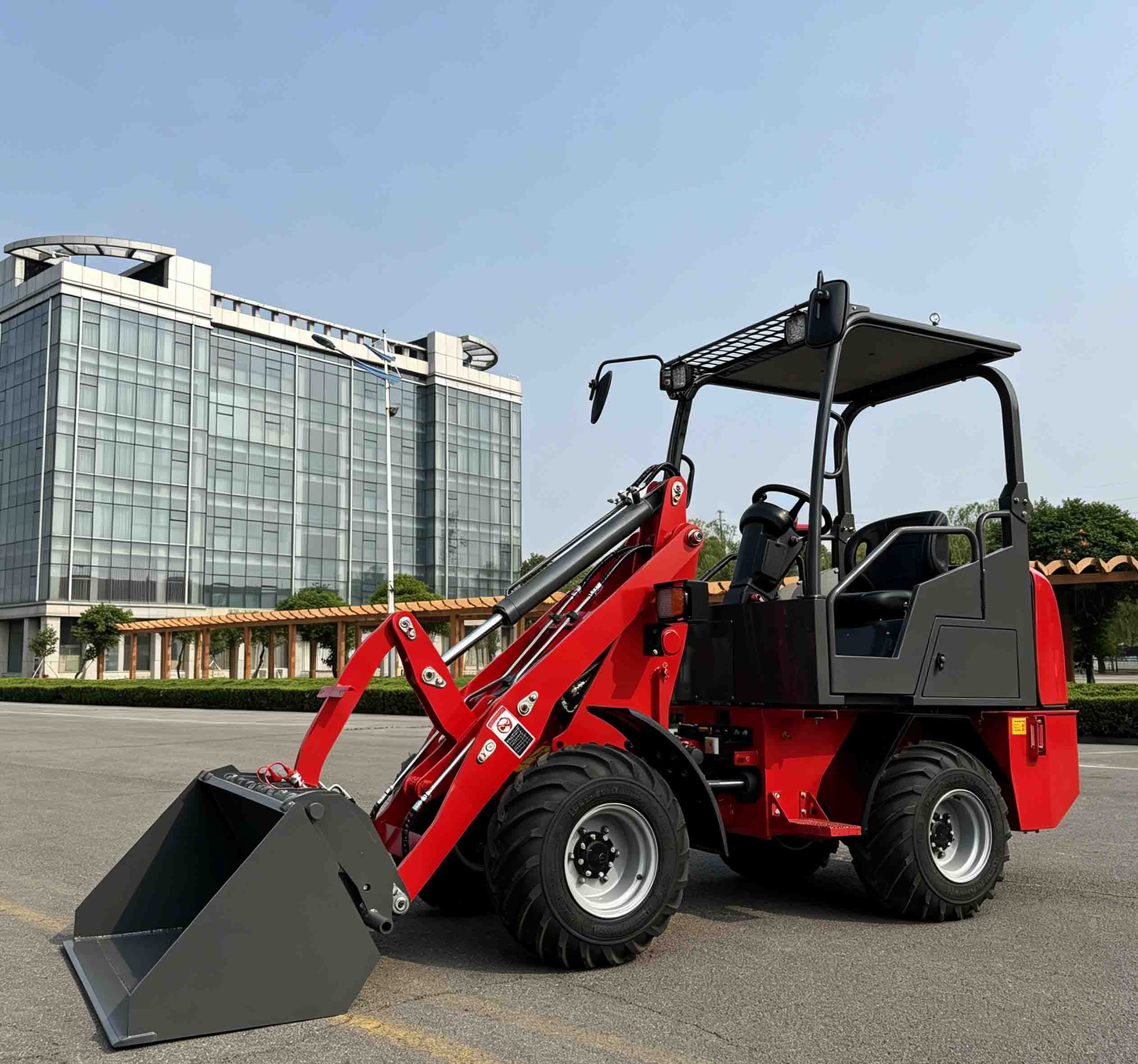

Jining Xinghang Machinery introduces the XHD08/XHDL08 0.8T Electric Wheel Loader, engineered to bridge this divide. This is more than just a higher horsepower version; it represents a systemic upgrade built on a robust 72V platform. With a 30° gradeability, a 3140mm max lift height, and 1000kg breakout force, the XHD08 is redefining productivity in confined yet demanding workspaces. This review dissects the technical prowess that makes this machine a standout.
The 72V High-Voltage Architecture: Efficiency in Power Delivery
The defining evolution of the XHD08 is its leap from standard 60V/64V systems to a 72V high-voltage architecture. This isn't just about adding volts; it's about optimizing physics.
Technical specs confirm a 72V/200Ah (6-EVF-203A) battery pack. In electrical systems, higher voltage allows for lower current to achieve the same power output. Lower current means less resistive heat loss in cables and more efficient power delivery to the motors. For machinery with long hydraulic lines and high draw demands, the 72V system ensures the motor receives consistent, potent energy. This results in superior torque linearity, providing the "never-flat" throttle response required for heavy startups and steep inclines where lower voltage systems tend to bog down.
Vertical Reach: The 3140mm Advantage
If power is the heart, reach is the arms. The XHD08 boasts a significant vertical leap over its predecessors.
With a maximum lift height of 3140mm and a dump height of 1780mm, the XHD08 outperforms typical 0.5T models (which average 2600mm lift / 1600mm dump). While 180mm may seem minor on paper, it is the difference between clearing a high-sided agricultural trailer or a feed mixer and failing to do so. For contractors in agriculture, landscaping, or construction, this extra height eliminates the need for ramps or double-handling of materials. It transforms a two-step process into a single, fluid motion, drastically increasing hourly production rates.
Powertrain: The Brute Force of 5KW Dual Motors
"Sharpen your tools before the job." The XHD08 features a formidable electric powertrain.
Hydraulic System: It boasts a 5000W (5KW) high-power hydraulic motor. This is a substantial increase over the 3KW motors found in 0.5T loaders. This extra muscle translates to a 1000kg breakout force and an 800kg lifting capacity. This allows the XHD08 to dig into compacted soil, scoop dense wet sand, or move gravel—tasks that would overwork a standard mini-loader.
Drive System: The powerful drive motor, coupled with the 72V platform, ensures that even at full 800kg capacity, the machine maintains excellent acceleration and climbing capability.
Stability & Traction: Conquering Rough Terrain
A true workhorse must be stable. The XHD08’s chassis is engineered for the worst job sites.
30° Gradeability: This specification places it at the top of its class. Whether navigating orchard rows on a hill or climbing onto a pile of debris, the XHD08 maintains traction and momentum.
7° Rear Axle Oscillation: This is a critical feature for safety and comfort. When traversing uneven terrain, the rear axle pivots up to 7 degrees independently of the front. This ensures that three wheels remain in contact with the ground at all times, preventing dangerous side-slips or tip-overs. It also reduces torsional stress on the chassis and improves operator comfort over bumpy surfaces.
Durability: Big Tires, Big Strength
To support its 0.8T capacity, the hardware has been significantly upgraded.
26 * 1200-12 Large Tires: Compared to the 23 * 8.5-12 tires on 0.5T models, the XHD08 offers a larger footprint. This lowers ground pressure, preventing the machine from sinking in mud or sand and protecting sensitive surfaces like turf or pavers.
Reinforced Frame & Manganese Steel Bucket: Constructed with high-strength manganese steel, the XHD08 weighs in at 1980kg—60% heavier than a 0.5T model. This mass acts as a built-in counterweight and provides immense torsional rigidity, ensuring the frame does not flex under heavy loads.
Conclusion: The Strategic Sweet Spot
The Xinghang XHD08 0.8T Electric Loader successfully fills the market void between micro and compact equipment. With its 72V platform, 3140mm lift height, 30° climbing ability, and 7° oscillation, it is purpose-built for users constrained by space but demanding power. It is not merely scaled-up; it is strategically enhanced. For those who need more than a mini but less than a full-size, the XHD08 offers the highest return on investment and the widest range of application.
