Introduction: Solving the Last-Mile Concrete Challenge
Concrete delivery is the lifeblood of construction, yet it remains one of the most logistically complex materials to manage. While ready-mix trucks serve large-scale pours efficiently, they falter at the "last mile"—the final transit into narrow alleys, interior rooms, or remote backyard foundations. In these scenarios, contractors often resort to a cumbersome relay: a mixer truck dumps into a holding pit, which is then manually shoveled into wheelbarrows, and finally hand-pushed to the pour site. This method is fraught with problems: premature curing during the delay, segregation of aggregates, inconsistent water-cement ratios, and immense physical strain on laborers.

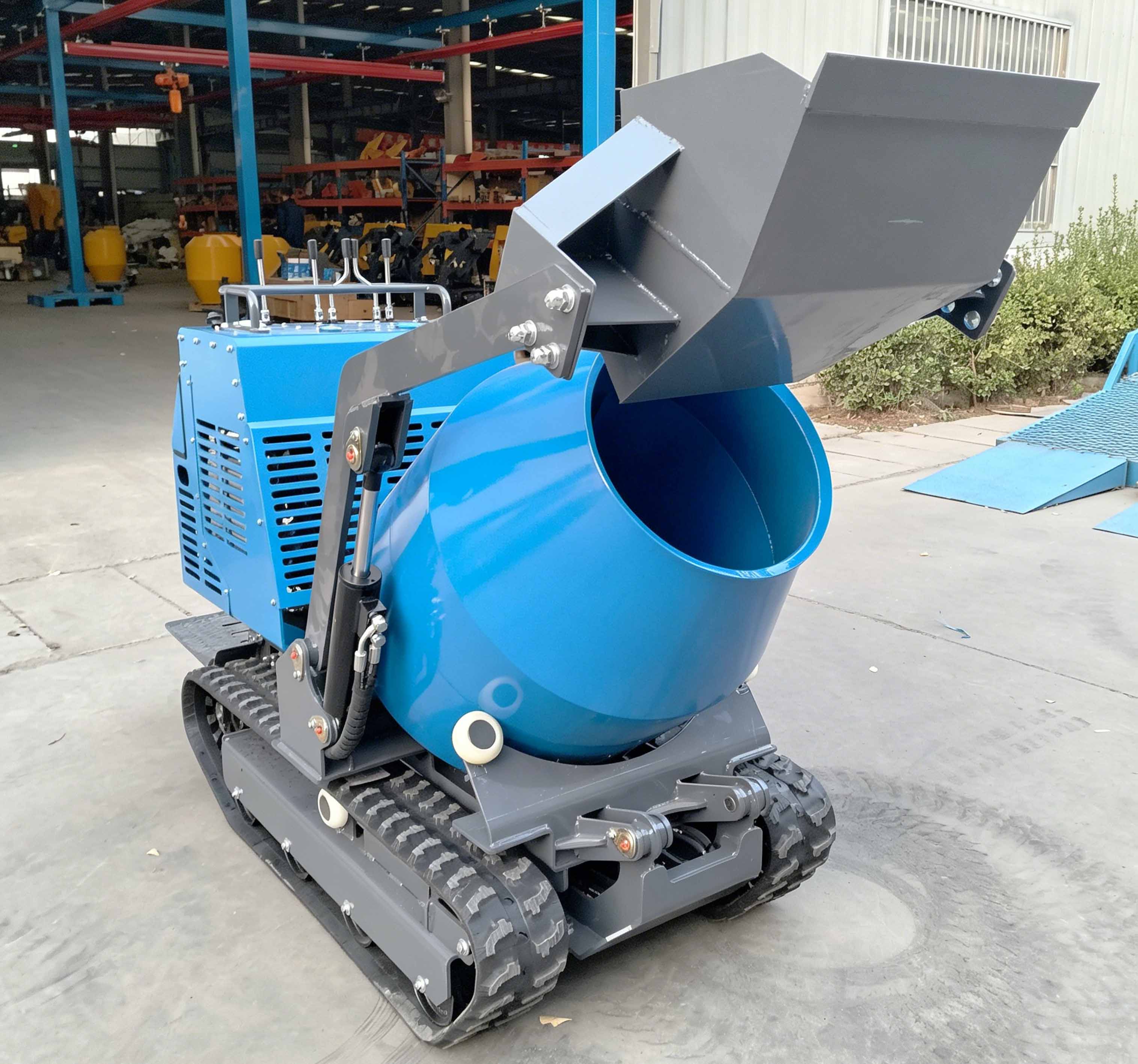

The Xinghang XHT750 Mixing Tank Dumper is engineered to eliminate this inefficiency. It is not merely a dumper with a bucket; it is a fully integrated mobile batching plant on tracks. By combining a high-capacity mixing drum with a narrow, low-ground-pressure chassis, the XHT750 brings the concrete plant directly to the point of use. It ensures that the concrete is mixed en route and discharged fresh, homogenous, and at the precise location required, transforming how small-to-medium volume pours are executed in confined spaces.
System Architecture: The Integration of Mixing and Hauling
The core innovation of the XHT750 lies in its seamless integration of two distinct functions. Traditionally, contractors needed a mixer to blend materials and a dumper to transport them. The XHT750 consolidates these into a single, cohesive unit. The mixing drum boasts a substantial 300L feeding capacity and a 240L discharging capacity, striking the perfect balance between maximizing payload and maintaining the maneuverability required for narrow access. This capacity is ideal for footings, fence posts, small slab pours, and repair work where ordering a full ready-mix truck is economically unviable.
Powering this operation is the robust 13HP Yanmar diesel engine. Unlike gasoline engines, the Yanmar diesel powerplant is specifically chosen for its high torque output at low RPMs—a critical requirement for driving a heavy rotating drum under load. The drivetrain utilizes a hydraulic transmission system, which provides superior control over both the machine’s movement and the drum’s rotation speed. This allows the operator to adjust the mixing speed based on the concrete slump and travel conditions, ensuring optimal consistency upon arrival. The hydraulic system also powers the 90° tipping mechanism, which ensures the drum empties completely, leaving no waste behind.
Mobility and Site Protection: The Tracked Advantage
Transporting heavy, liquid loads across sensitive or uneven terrain is a challenge that wheeled mixers cannot meet. The XHT750’s tracked undercarriage is its greatest asset in navigating difficult sites. With a chassis width of 850mm, it fits through standard gates while maintaining stability. The 180mm wide rubber tracks distribute the significant weight of the machine plus a half-ton of concrete over a large surface area, resulting in minimal ground pressure. This is vital for protecting finished surfaces like interlocking pavers or indoor epoxy floors from cracking or indentation.
Furthermore, the 110mm ground clearance allows the XHT750 to traverse rough terrain, including gravel paths, muddy backyards, and debris-filled construction sites, without the undercarriage becoming lodged. The 900mm track ground contact length ensures exceptional traction, preventing slippage even when climbing mild inclines with a heavy, shifting load of wet concrete. This capability allows contractors to pour foundations in backyards previously deemed inaccessible to machinery, opening up new project possibilities and saving countless hours of manual labor.
Operational Efficiency: From Raw Materials to Perfect Pour
The operational workflow of the XHT750 is designed for maximum efficiency. At the batching plant or material stockpile, the operator loads the drum with aggregate, sand, and cement. Water is added either at the start or via a onboard water tank during transit. As the XHT750 travels to the pour site, the drum rotates continuously, mixing the components into a uniform slurry. This "mix-on-the-move" capability ensures the concrete reaches the site at peak plasticity, ready for placement.
Upon arrival, the operator positions the machine with pinpoint accuracy. The hydraulic tipping system raises the drum to the optimal angle, and the fresh concrete flows directly into the formwork. This eliminates the need for intermediate handling, which is the primary cause of segregation (where heavier aggregates separate from the mortar). For contractors specializing in high-end residential work, such as installing custom patios or pool decks, this precision prevents damage to surrounding landscaping and hardscaping. Moreover, the elimination of wheelbarrows reduces labor requirements by up to 60%, significantly lowering project costs and accelerating completion timelines.
Versatility in Application: Beyond Basic Concrete
While its primary role is concrete mixing and transport, the XHT750’s design lends itself to several other high-value applications. In mortar mixing for masonry work, it delivers consistent batches of mortar directly to bricklayers on multi-story scaffolds or in confined courtyards. In agricultural settings, it can be used to mix and distribute feed slurries or to transport liquid fertilizers without compacting soil. For municipal maintenance crews, it serves as a mobile solution for mixing grout for pothole repairs or setting new utility poles in remote locations.
The economic argument for the XHT750 is compelling. It removes the dependency on unreliable manual mixing, which often results in subpar concrete strength due to inconsistent ratios. By providing a mechanized, repeatable process, it guarantees structural integrity for every pour. For rental houses, the XHT750 fills a niche market segment, attracting not just construction companies but also specialized contractors in landscaping, agriculture, and municipal services. It is more than a machine; it is a profit center that pays for itself through saved labor, reduced material waste, and expanded job capabilities.
