Introduction: The "Height Ceiling" of Normal Dumpers

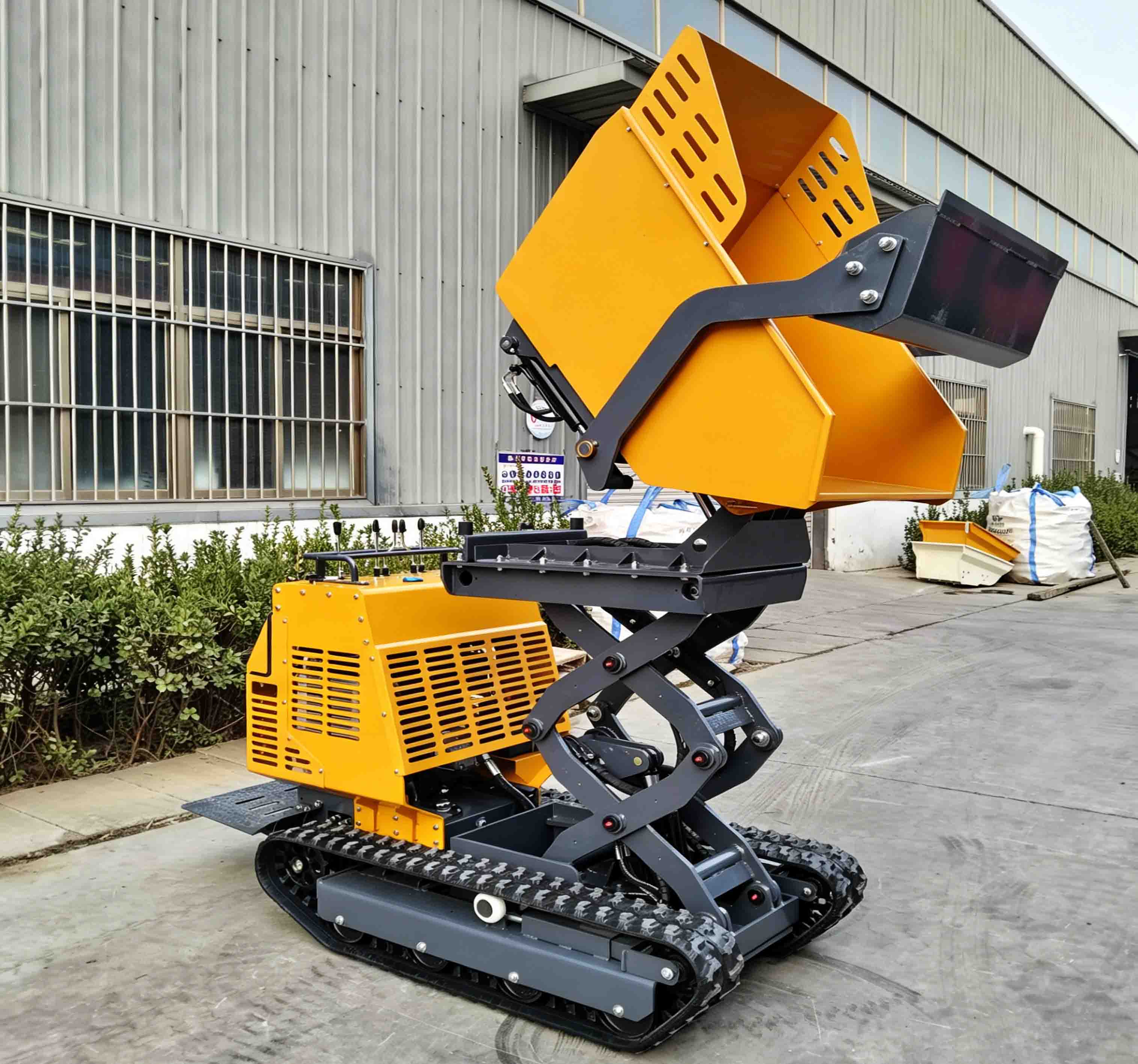

Standard crawler dumpers discharge at 260-300mm—only to ground. For high-sided trucks (≥1300mm) or mixer hoppers, manual shoveling remains. XHT1000 breaks the ceiling with hydraulic lift: max lift 1500mm, discharge height 1300mm, directly meeting EU truck tailgates.
XHT1000 Spec Anchors (Catalog)
Load: 1000kg; Bin: 450dm3; Chassis: 850mm; Track: 180mm
Max lift: 1500mm; Dump height: 1300mm; Tilt 90°
Power: Briggs 25T2 (420CC, 13.5HP), opt GX390/Koppa192/Runtong420
Speed 5km/h; Grade 20°; Net 880kg
Overall 2500×900×1560mm; Crate 2100×1090×1580mm
Core Selling Point – Lift+Dump Dual Action
Single-action dumpers fix discharge point. XHT1000 raises to target height then tips—"high-precision pour". Three client types need this:
Municipal: meet 1300mm side-load garbage truck;
Building material: feed 1.2m batching hopper;
Farm: load 1.5m hay platform.
Case – Bangkok Narrow-Alley Renovation
Old town lane 1.6m, trucks excluded. XHT1000 loads debris in lane, lifts to 1300mm into waiting light truck (tailgate 1.3m). Daily haul 3m3→9m3. Gasoline suits heat/humidity, no diesel fume complaints.
Case – French Vineyard Organic Fertilizer
Vineyard row 1.4m, XHT1000 (850mm) allows two-way passing. Spring fertilizer: lift and pour into inter-row spreader hopper, no ground drop re-shovel.
XHT1000 vs XHT500S (Common Confusion)
XHT500S: lift 1200mm, 500kg, 700mm chassis → gardening/livestock
XHT1000: lift 1500mm, 1000kg, 850mm chassis → municipal/building/agri-bulk
Wrong choice = "can't reach height" or "can't enter". Xinghang tech sends pre-sales questionnaire.
Compliance Notes
Gasoline version pairs with EPA/Euro-V optional engines (GX390, 25T2 certified). EU export needs CE DoC + EN ISO 3744 noise report. Lithium version in dev; gasoline recommended to simplify customs.
ROI for Rental Fleet
Assume XX EUR unit price, €45/day rent, 200 days/yr = €9,000; 50% resale in 3y. Payback <1y. vs manual loading €80/day, clients prefer renting.
