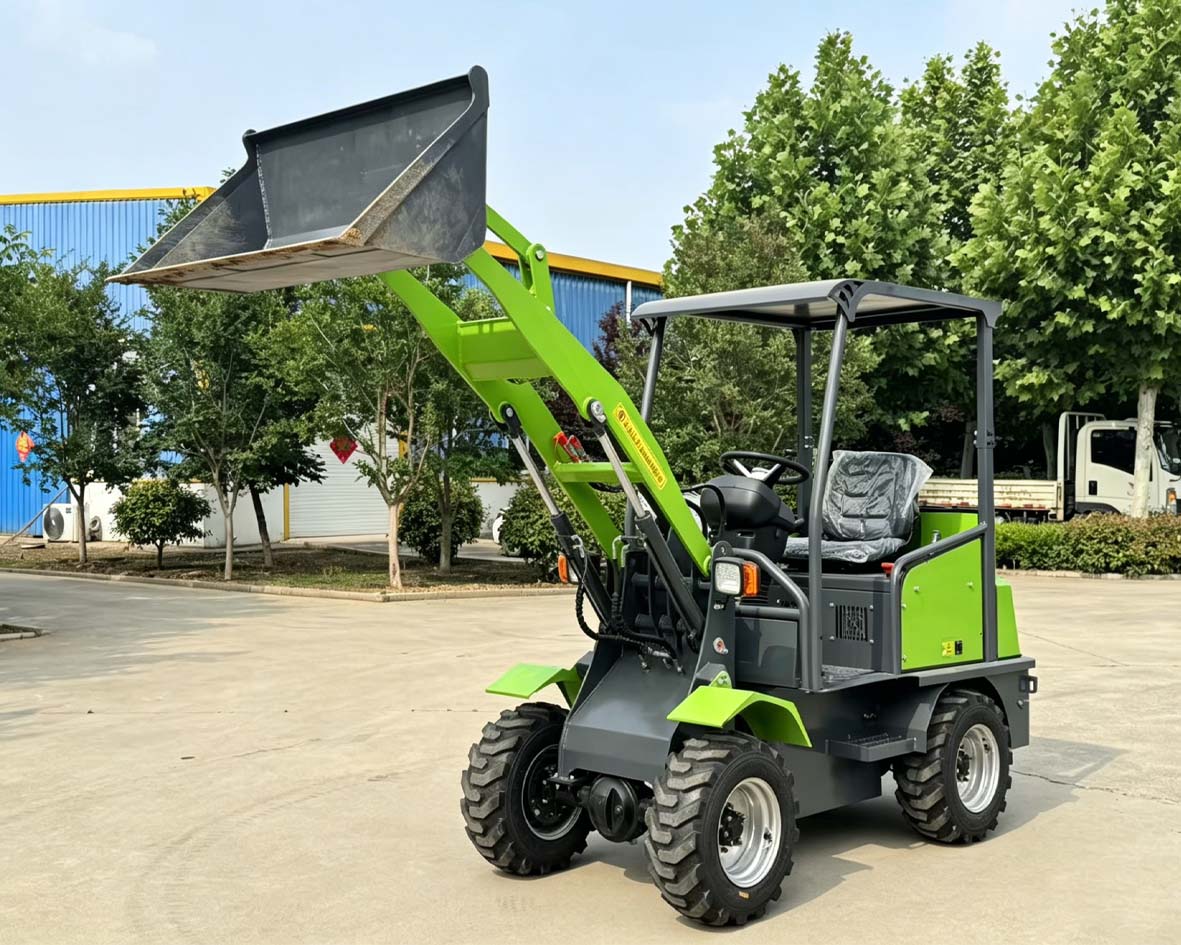

High-Efficiency Mini Electric Wheel Loader Powered by Flat-Wire Motor Technology

The XHD500A Mini Electric Wheel Loader takes exactly this approach. At its core lies a high-performance flat-wire motor system paired with an intelligent electronic control unit (ECU). Together, these technologies enable the XHD500A to deliver stronger torque, faster response, lower energy consumption, and longer service life compared to conventional electric loaders.

　　Why Motor Technology Matters

　　In electric machinery, the motor is not just a component—it is the heart of the machine. Traditional round-wire motors have inherent limitations in slot fill rate, thermal management, and power density. These constraints affect acceleration, hill-climbing ability, and sustained workload capacity.

　　Flat-wire motor technology fundamentally changes this dynamic. By using rectangular cross-section copper wire instead of round wire, manufacturers can increase the slot fill rate from around 40% in conventional designs to over 60%. More copper in the same physical space means higher electromagnetic efficiency, less resistance, and reduced heat generation.

　　Flat-Wire Motor Advantages in the XHD500A

　　The XHD500A’s flat-wire motor delivers several measurable benefits:

　　1.Higher Power Density – More torque is generated without increasing motor size, supporting heavy lifting and steep incline operation.

　　2.Superior Thermal Management – Reduced internal resistance minimizes heat buildup, allowing continuous operation under demanding loads without derating.

　　3.Compact and Lightweight – Smaller motor dimensions contribute to the loader’s overall lightweight design, improving maneuverability and transport efficiency.

　　4.Lower Noise Output – Smoother electromagnetic performance reduces audible noise, benefiting both operators and surrounding environments.

　　5.Extended Service Life – Lower operating temperatures and optimized winding geometry reduce wear on insulation and bearings.


　　Intelligent Electronic Control System

　　Motor performance is only as good as the system controlling it. The XHD500A integrates a sophisticated ECU that manages power delivery, monitors system health, and protects against abnormal conditions.

　　Key ECU functions include:

　　·Automatic Temperature Control – Cooling fans activate precisely when needed, avoiding unnecessary energy drain.

　　·Instantaneous Overload Protection – Prevents motor damage during sudden high-load events such as bucket impact or steep climbing.

　　·Regenerative Braking Logic – Captures kinetic energy during deceleration and feeds it back into the battery, extending runtime.

　　·Smooth Acceleration Profiles – Eliminates jerky starts, improving operator confidence and reducing mechanical stress.

　　CAN Bus Communication and Diagnostics

　　Modern machinery must communicate effectively with operators and service technicians. The XHD500A employs a CAN bus network linking the motor controller, battery management system (BMS), and digital dashboard.

　　This integration enables:

　　·Real-time monitoring of voltage, current, battery level, and motor temperature.

　　·Instant fault code reporting for rapid troubleshooting.

　　·Data logging for predictive maintenance planning.

　　Battery Synergy

　　Flat-wire motor efficiency is maximized when paired with high-quality battery systems. The XHD500A supports multiple configurations:

　　·64V/150Ah LFP Battery – Balanced runtime and weight.

　　·64V/180Ah LFP Battery – Extended operating hours for heavy-duty cycles.

　　·60V/160Ah Lead-Acid Battery – Economical choice for light-duty applications.

　　Lithium iron phosphate chemistry ensures thermal stability, long cycle life, and safe operation under high-current discharge conditions.

　　Operational Impact

　　From an operator’s perspective, the combined effect of flat-wire motor technology and intelligent control is immediately noticeable:

　　·Faster cycle times when loading and unloading materials.

　　·Consistent performance throughout the work shift, without power fade.

　　·Reduced fatigue thanks to smoother, quieter operation.

　　·Lower total cost of ownership due to reduced energy consumption and maintenance needs.

　　Competitive Differentiation

　　In international markets, many electric loaders appear similar on specification sheets but differ greatly in real-world performance. Buyers evaluating the XHD500A often highlight:

　　·Stronger hill-climbing ability compared to round-wire competitors.

　　·Ability to sustain peak output without overheating.

　　·Quieter operation, which is critical for indoor and urban projects.

　　These differentiators translate into higher resale value, stronger rental fleet appeal, and better end-user satisfaction.

　　Application Scenarios

　　The XHD500A’s powertrain excels in:

　　·Urban construction sites with strict emission and noise limits.

　　·Agricultural operations requiring reliable performance in dusty, humid environments.

　　·Industrial facilities needing clean, quiet material handling.

　　·Rental fleets serving diverse customer profiles.

　　Maintenance and Serviceability

　　Advanced technology does not mean complex servicing. The XHD500A is designed for straightforward maintenance:

　　·Accessible motor and controller compartments.

　　·Standardized connectors and wiring layouts.

　　·Clear fault codes displayed on the dashboard.

　　This reduces downtime, lowers service costs, and simplifies technician training.

　　Sustainability Benefits

　　By combining high-efficiency motors with zero-emission operation, the XHD500A helps contractors meet sustainability targets and comply with environmental regulations. Lower energy consumption per work cycle reduces the machine’s carbon footprint even further.

　　Conclusion

　　The XHD500A Mini Electric Wheel Loader demonstrates that electrification is not just about replacing diesel with batteries—it is about rethinking the entire drivetrain. Flat-wire motor technology, intelligent electronic control, and optimized battery integration work together to deliver a machine that is powerful, efficient, durable, and operator-friendly.

　　For contractors, rental companies, and distributors seeking a competitive edge in the rapidly evolving construction equipment market, the XHD500A represents a proven, future-ready solution.
