The Complete Guide to Tracked Carriers for Orchards, Vineyards and Rough Terrain

Introduction: The Hidden Limits of Traditional Material Handling

　　If you've ever tried to move soil, feed, firewood, or building materials across a wet paddock, through a vineyard row, or up a wooded slope, you already know the frustration:

　　? Wheelbarrows are back-breaking and slow.

　　? Pickup trucks / ATVs get stuck in mud, damage turf with their weight, and are too wide for standard crop rows.

　　? Standard 4-wheel dump carts lack the traction and ground clearance for rough terrain.

　　Enter the Mini Crawler Dumper (Tracked Carrier)—a compact, rubber-tracked utility vehicle designed to carry 500kg to 1,200kg loads across soft ground, narrow paths, and steep gradients without tearing up the surface.

　　In this guide, we'll explain why tracked mini dumpers are replacing traditional methods, review the Xinghang Machinery mini dumper lineup (XHT500 / XHT500S / XHT750 / XHT1000 / XHT1200 / XHT3000), and help you choose the right model for your operation.

　　________________________________________

　　1. What Is a Mini Crawler Dumper?

　　A mini crawler dumper is a compact transport machine featuring:

　　? Rubber crawler tracks (typically 180mm wide) for low ground pressure

　　? A hydraulic self-dumping cargo bed

　　? A small, reliable air-cooled gasoline or diesel engine (Briggs & Stratton, Kohler, Loncin, Changfa, etc.)

　　? A narrow chassis (usually 700–850mm wide) that fits through gates, barn doors, and orchard aisles

　　Unlike a wheeled vehicle, the tracked undercarriage distributes the machine's weight over a large surface area, allowing it to "float" on soft ground rather than sink.

　　________________________________________

　　2. Key Advantages Over Pickup Trucks & Wheelbarrows

　　2.1 Low Ground Pressure → No Lawn / Crop Damage

　　A typical pickup truck exerts 15–25 psi on turf. A mini crawler dumper with 180mm rubber tracks exerts ≈3–5 psi.

　　? Result: You can drive over established lawns, golf course roughs, vineyard aisles, and horse pastures without leaving ruts or killing grass roots.

　　2.2 Superior Slope & Mud Traction

　　Mini dumpers commonly climb 20°–30° slopes (some models rated to 30°). The chevron-pattern rubber track grips mud, snow, and wet leaves where wheels spin helplessly.

　　2.3 Narrow Width = Access Where Others Can't

　　With widths starting at 700mm (XHT500), these machines pass through:

　　? Standard garden gates (usually 800–900mm)

　　? Greenhouse / nursery rows

　　? Historic building doorways for interior renovation material delivery

　　2.4 Hydraulic Self-Unloading = Less Labor

　　No lifting. A simple lever actuates the hydraulic cylinder to tilt the bed 90°, or on models like the XHT500S / XHT1000, raise it to 1.2–1.5m to dump into a skip or trailer.

　　The XHT1200 adds 180° hydraulic rotation, letting you side-discharge next to a wall or into a trench—something no fixed-bed dumper can do.

　　2.5 Multi-Function Options (Mixing, Lifting, Rotating)

　　? XHT750: Integrates a concrete/feed mixing drum (300L)—mix and pour on-site.

　　? XHT500S / XHT1000: Offer lift-and-dump to match high-side dumpsters.

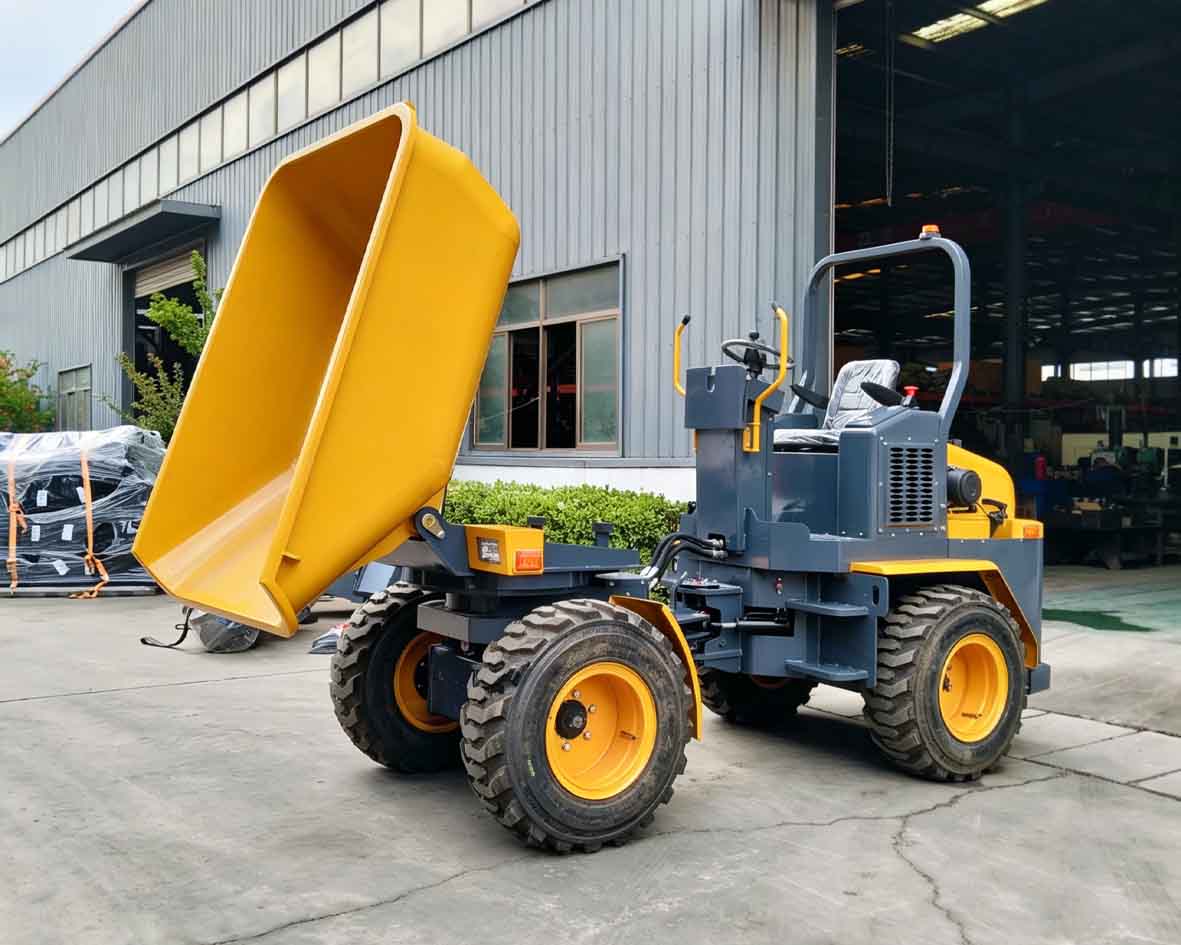

　　? XHT3000 (Ride-On): Kubota D1105 diesel, 3,000kg capacity, articulated steering—for serious estate or small construction logistics.

　　________________________________________

　　3. Xinghang Mini Crawler Dumper Lineup Overview

4. Application Scenarios by Industry

　　 Vineyards & Orchards

　　Move harvested fruit bins, fertilizer, trellis posts

　　Spray lines & irrigation parts transport

　　Pruning debris removal

　　→ XHT500 / XHT500S (narrow, low psi, won't crush drip lines)

　　 Equestrian / Stud Farms

　　Muck out stables → dump muck heap (XHT500/XHT1200)

　　Deliver hay bales & bedding

　　No rutting on turnout paddocks

　　→ Rubber tracks protect arena footing and pasture

　　 Remote / Mountain / Island Builds

　　Transport bricks, blocks, sand where trucks can't reach

　　Mix & pour small batches of concrete (XHT750)

　　Rotate and side-dump along foundation walls (XHT1200)

　　→ Saves 4–6 man-hours per day vs wheelbarrow

　　 Landscaping & Grounds Maintenance

　　Carry topsoil, bark mulch, paving stones

　　Remove excavated spoil from tight backyard jobs

　　→ Fits through side gates (700mm models)

　　5. How to Choose the Right Model

　　Ask yourself:

　　What's the max load you typically move? → Match payload (500kg / 750kg / 1000kg / 1200kg / 3000kg)

　　Do you need to dump into a high skip (>1m)? → Choose XHT500S (1.2m) or XHT1000 (1.5m)

　　Do you need to side-dump next to a wall or trench? → Choose XHT1200 (180° rotate)

　　Do you need on-site concrete/feed mixing? → Choose XHT750

　　Is the access extremely narrow (<750mm)? → XHT500 series is your best bet

　　Large estate / commercial landscaping? → Consider ride-on XHT3000 for operator comfort and 3T capacity

　　6. Key Specifications Highlight (XHT500 / XHT1200 Sample)

　　XHT500 (Entry-Level Walk-Behind)

　　Payload: 500kg | Bed: 1050×730×730mm (200L)

　　Track: 180×60×46 Rubber Crawler

　　Ground Clearance: 110mm

　　Gradeability: 20°

　　Engine: Briggs & Stratton 6.5HP / 203cc (also Loncin/Koop diesel option)

　　Package: Fumigation-free wooden crate / steel frame

　　XHT1200 (Premium Rotating Dumper)

　　Payload: 1200kg | Bed: 1300×800×600mm (≈600L)

　　Rotation: Hydraulic 180° left/right

　　Track: 180×60×46 (heavy-duty)

　　Gradeability: 20°–30°

　　Engine: Briggs & Stratton 13.5HP / Honda GX390 equivalent

　　Dump Height: 260mm (fixed) + rotational positioning

　　7. Maintenance & Longevity Tips

　　Track Tension: Check every 50 hours; adjust if sag exceeds spec. Over-tightening wears bearings.

　　Hydraulic Oil: Use 46# anti-wear hydraulic oil; change per manual (usually every 500h or annually).

　　Engine Care: Follow engine OEM schedule (Briggs / Honda / Changfa). Clean air filter frequently in dusty conditions.

　　Grease Points: Weekly lubrication of pivot pins extends service life significantly.

　　Winter Storage: Drain fuel or add stabilizer; store under cover.

　　8. Frequently Asked Questions (FAQ)

　　Q: Will the tracks damage my lawn?

　　A: On properly inflated/adjusted rubber tracks—no. The low ground pressure (3–5 psi) is gentler than a person walking. Avoid sharp pivots on delicate turf when fully loaded.

　　Q: Can it go up stairs?

　　A: Not standard stairs. Some customers use them on gravel rampsor boarded access, but they are designed for soil, grass, gravel, and paved flat surfaces—not vertical steps.

　　Q: How is it shipped?

　　A: Typically in a fumigation-free wooden crate or steel frame. An XHT500 fits in a 20GP with several units; XHT3000 usually ships 4–6 units per 40HQ depending on crate method.

　　Q: Are spare parts available?

　　A: Yes. Tracks, hydraulic cylinders, engines, and filters are standard/common-spec and available from Xinghang's spare parts department with global shipping support.

　　Conclusion: Small Track, Big Difference

　　If your work takes you off the pavement—into orchards, vineyards, wooded lots, or tight urban backyards—a mini crawler dumper isn't a luxury; it's a necessity for efficiency and surface protection.

　　Xinghang Machinery's range covers everything from the ultra-narrow XHT500 for garden gates to the heavy-lifting XHT3000 ride-on dumper, with unique options like rotating dump (XHT1200) and integrated mixing drum (XHT750) you won't find in generic machines.

　　?? Contact Xinghang today for model recommendations based on your terrain, payload needs, and budget—plus EXW/FOB quotations and container load plans.

　　Small Machine, Giant Power — Conquering the Ground Others Can't.
