Choosing between a double drum and pneumatic tire roller is critical for asphalt quality. This guide compares steel drum vs rubber tire compaction, explains when to use a tandem roller (like the Xinghang XHRS1200T), and helps contractors pick the right machine for pothole patching and road maintenance. CE Certified.
1. Understanding the Two Types of Asphalt Compaction
Asphalt paving requires two distinct types of force to achieve longevity:
1.1 Steel Drum Rollers (Vibratory/Kneading)
These machines use a heavy steel drum, often combined with vibration (frequency 60–70Hz) and impact force (30–50kN).
?Function: They provide static weight and dynamic impact. The vibration shakes the aggregate particles, forcing them to settle into a dense matrix.
?Best for: Initial compaction (Breakdown). They crush the larger aggregates and eliminate large air voids.
?Xinghang Example: The XHRS1200 (3-ton Double Drum) or XHRS1400 (4-ton Double Drum) are ideal for this stage.
1.2 Pneumatic (Rubber Tire) Rollers
These machines use multiple rows of closely spaced rubber tires.
?Function: They provide kneading action. Unlike the rigid steel drum, rubber tires flex and conform to the asphalt surface. This squeezes the mix laterally and vertically, sealing the surface and eliminating tiny micro-voids.
?Best for: Finish compaction (Sealing). They prevent water penetration and improve the "ride quality."
?Xinghang Example: The XHRST1200 (3-ton Double Pneumatic Roller) is built specifically for this final sealing pass.
2. The Problem with "Steel Only" or "Rubber Only" Approaches
Many small contractors try to save money by using only one type of roller. This leads to problems:
?Steel Only: If you only use a double drum roller, the surface may look compacted, but it lacks the "kneading" seal. Water can seep into micro-cracks, causing potholes to reappear quickly.
?Rubber Only: Using only a pneumatic roller might not provide enough initial impact force to settle the deep base layers of a fresh patch, leading to settling and depressions.
The Industry Standard Solution: A Tandem Roller—combining a steel drum at the front and pneumatic tires at the rear.

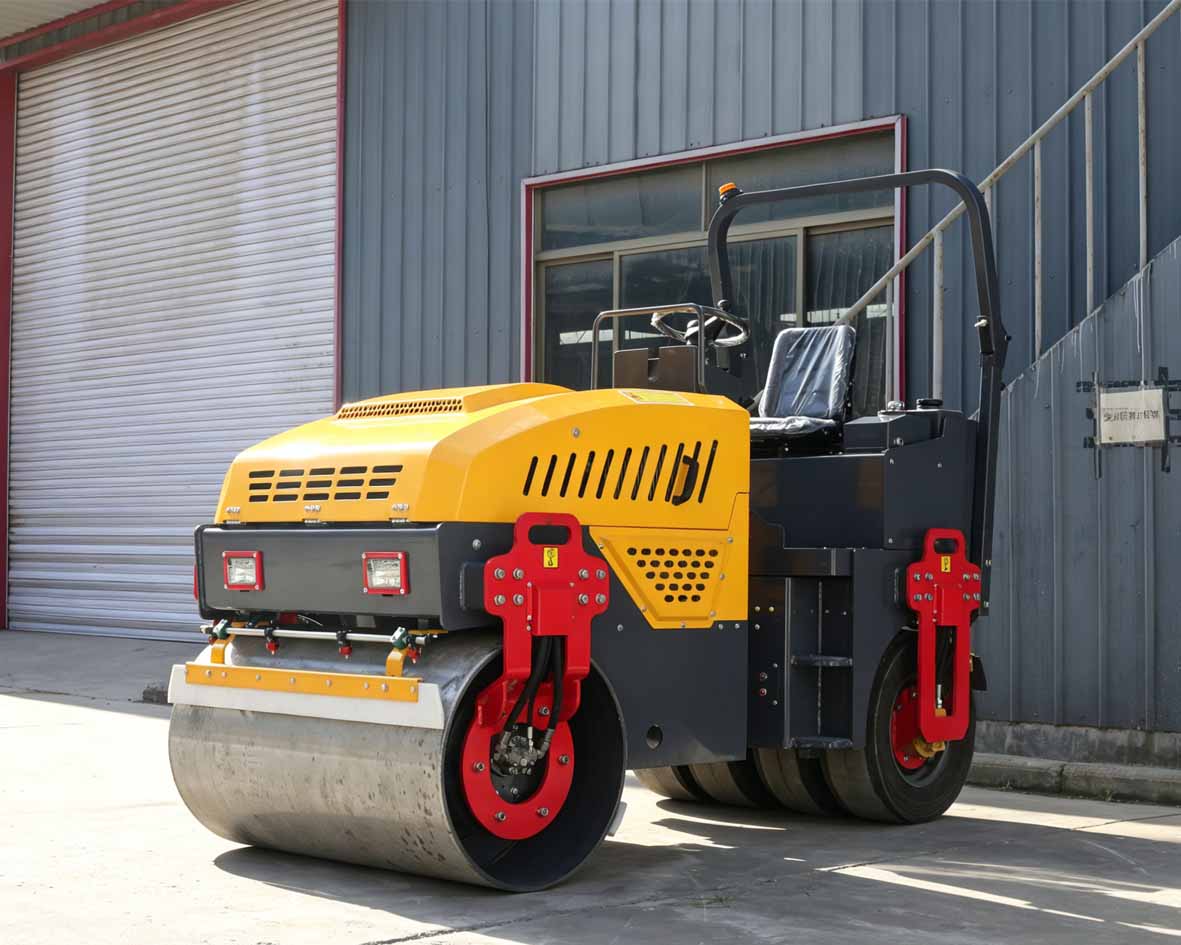

3. Introducing the Xinghang XHRS1200T: The Perfect Municipal Tool
The Xinghang XHRS1200T is a 3-ton tandem roller designed to solve the "two-machine dilemma" for small-to-medium municipal jobs. It combines the best of both worlds in a single, affordable chassis.
Key Features of the XHRS1200T:
?Front: 1200mm Steel Drum: Provides the necessary 70Hz vibration frequency and 45kN exciting force to crush and settle the fresh asphalt patch.
?Rear: 4 Pneumatic Tires: Deliver the kneading and sealing action. The rubber conforms to the surface, providing a "massaging" effect that closes pores and improves density.
?Dual Spray Systems: Equipped with a 180L large-capacity polyethylene water tank. It supports both water spraying (for the steel drum) and oil spraying (for the rubber tires) to prevent asphalt sticking.
?Articulated Steering: The front and rear frames are connected by a central articulation joint. This reduces the turning radius and prevents scuffing of the fresh asphalt during turns.
?Constant Power Engine: Powered by a Changchai 390 diesel engine (39HP), ensuring consistent performance even under heavy vibration loads.
Why it’s perfect for Pothole Repair:
1.Single Pass Efficiency: You can perform the breakdown and finish pass in one go.
2.Reduced Logistics: No need to transport two separate machines to a small repair site.
3.Superior Finish: Leaves a smooth, sealed surface that matches the surrounding road texture.
4. Technical Deep Dive: Why "Static Line Load" Matters
When evaluating rollers, experienced buyers look at Static Line Load (N/cm).
?XHRS1200T Specs:
?Front (Steel): 125 N/cm
?Rear (Pneumatic): 87 N/cm
This balance ensures that the front drum provides enough pressure to seat the aggregate, while the rear tires provide enough contact area to seal the surface without over-compacting or damaging the mat.
5. Application Scenarios for the Xinghang Tandem Roller Series
Scenario | Recommended Model | Reason |
|---|---|---|
Urban Pothole Patching | XHRS1200T (Front Steel / Rear Rubber) | Combines breakdown and finish in one pass; minimizes traffic disruption. |
Secondary Road Resurfacing | XHRS1400T (4-ton Tandem) | Higher line load for thicker asphalt layers; excellent for county roads. |
Highway Shoulder Maintenance | XHRST1200 (Double Pneumatic) | Prevents "raveling" (loss of aggregate) on the edges; superior sealing. |
Parking Lot Overlays | XHRS1200 (Double Drum) | Fast, efficient compaction for flat, open surfaces. |
Utility Cuts (Trenches) | XHRS700 / XHRS800 (1-1.5T Small Rollers) | Narrow width fits inside utility trenches; high maneuverability. |
6. Maintenance Tips for Asphalt Rollers (Extending Machine Life)
To ensure your Xinghang roller remains a profitable asset for your rental fleet or contracting business, follow these tips:
1.Daily Spray Nozzle Check: Ensure nozzles are not clogged. A dry drum will pick up hot asphalt, ruining the drum and the job.
2.Tire Pressure (Pneumatic Models): Maintain correct and equal pressure in all tires to ensure uniform compaction.
3.Vibration Bearing Greasing: Although equipped with NSK bearings, regular greasing (as per manual) prevents premature failure.
4.Scraper Bar Adjustment: Keep the drum scrapers clean and properly adjusted to prevent asphalt buildup on the drum edges.
7. Frequently Asked Questions (FAQ)
Q: Can the XHRS1200T vibrate both the front drum and the rear tires?
A: Typically, the vibration function is applied to the steel drum(s). The rear pneumatic tires provide static kneading force. However, Xinghang models like the XHRS1200 feature dual-drum vibration capability, while the XHRS1200T focuses the vibration on the front steel drum for optimal breakdown before the rear tires seal the surface.
Q: Is the XHRS1200T suitable for subgrade (dirt/gravel) compaction?
A: Yes, it performs well on granular soils and gravel. However, for thick lifts of soil, a heavier padfoot or single drum roller (like the XHR4000 or XHR6000) is recommended.
Q: What is the water consumption rate?
A: With a 180L tank, the XHRS1200T can operate for approximately 2-3 hours of continuous rolling before needing a refill, depending on ambient temperature and spray settings.
Q: Are spare parts readily available?
A: Yes. Xinghang uses standardized components (Changchai engines, NSK bearings, standard hydraulic pumps). We provide a full parts list and support for global shipping.
Conclusion: Invest in Quality, Not Just Price
When it comes to asphalt maintenance, the roller is the final gatekeeper of quality. Choosing a versatile machine like the Xinghang XHRS1200T Tandem Roller ensures that your patches last longer, your clients are happier, and your reputation for quality work grows.
Don't let a cheap roller ruin an expensive asphalt job. Invest in a machine that offers both the impact of steel and the seal of rubber.
?? Contact Xinghang Machinery today for a detailed quotation, CE documentation, and shipping options for the XHRS1200T or any other model in our 0.7T to 6T roller series.
Small Machine, Giant Power — Compacting the Future of Infrastructure.
