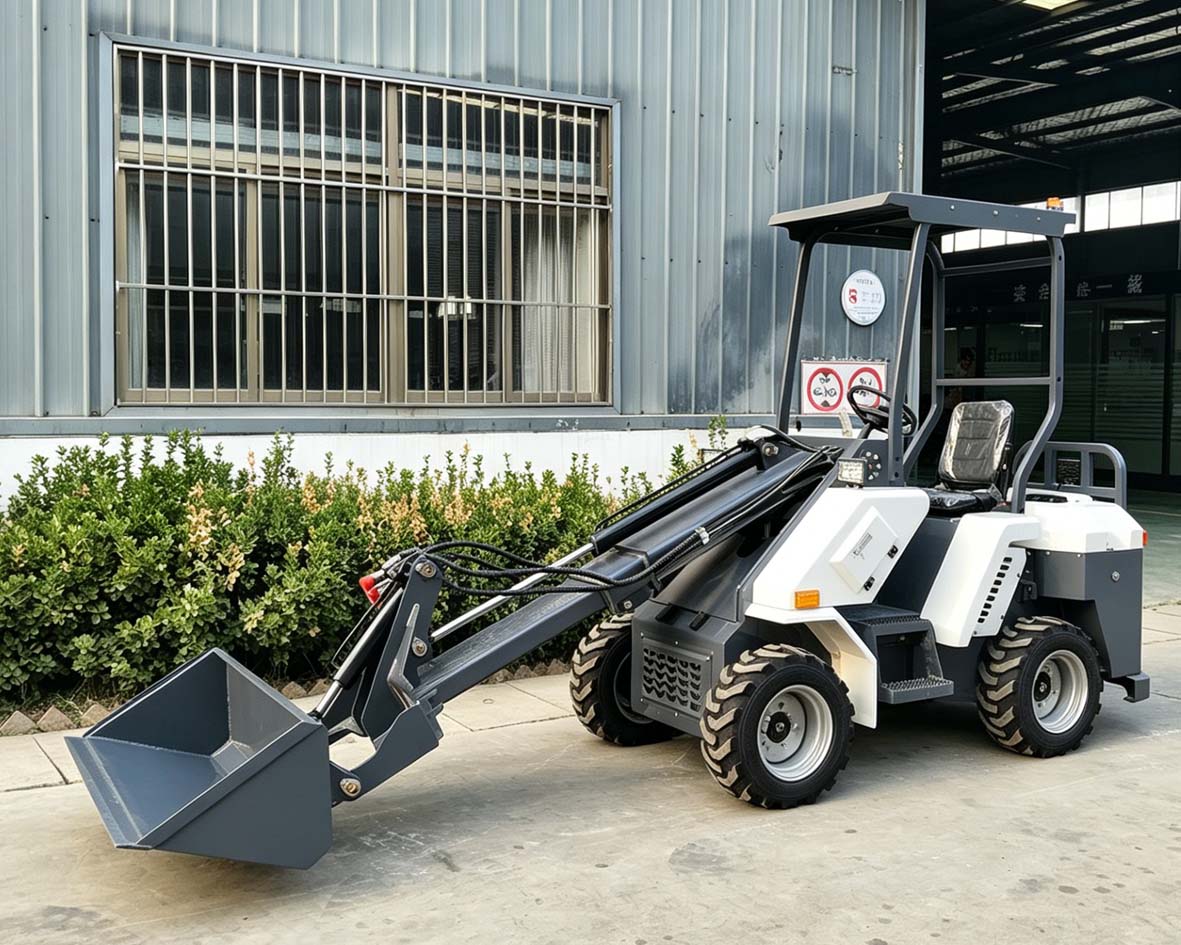

Introducing the XHS30 Telescopic Boom Mini Loader from Xinghang Machinery
The XHS30 telescopic boom mini loader manufactured by Jining Xinghang Machinery is a compact yet powerful solution designed for jobs that demand both agility in tight spaces and extended reach for material handling. Unlike standard small wheel loaders which have a fixed lift arm, the XHS30 is equipped with a retractable secondary boom that extends forward up to approximately 570 mm, allowing operators to place loads farther away without constantly repositioning the machine. This feature alone makes it a preferred choice for construction sites, farms, warehouses, and municipal works where space is limited but reach and lifting height matter.
The XHS30 is built on an articulated chassis with a total width of 1240 mm and a turning radius of 2600 mm, meaning it can navigate narrow aisles, barn passages, basement entries, and congested job sites with ease. Its overall length with bucket on ground and arm retracted is 3380 mm, standing 2250 mm tall, making it suitable for indoor operation as well. The machine is powered by a 26 HP (3600 rpm) Runtong 739 engine as standard, with optional engines available including Kubota D1105, Honda GX690, Briggs & Stratton 386, and Kohler 292 to meet EPA, Euro V or China Stage II emission requirements for global markets.
Key Product Features of the XHS30 Telescopic Loader
One of the standout characteristics of the XHS30 is its telescopic arm design. The extendable dipper arm enables the loader to perform loading, unloading, stacking, and placing tasks at greater distances. When the arm is extended, the dump height can reach up to 2300 mm at 45 degrees tipping angle—significantly higher than most fixed-arm compact loaders in the same class—making it ideal for feeding material into high-sided trucks, mixers, or hoppers.
The hydraulic system operates at 25 MPa with a rated flow of 33 L/min, delivering smooth and precise control over lifting, tilting, and boom extension functions. Pilot-controlled joysticks reduce operator fatigue and improve placement accuracy, especially during repetitive tasks such as pallet fork loading or bucket leveling. The XHS30 also supports a quick-attach coupling system compatible with multiple attachments including general purpose buckets, forks, grapple buckets, augers, breakers, and sweepers, turning one machine into a multi-purpose workhorse for different industries.
Additional specifications include a 0.3 m3 standard bucket capacity, 500 kg rated operating load with arm retracted, maximum travel speed of 9 km/h, 4-wheel drive, hydrostatic or gear-type transmission options depending on configuration, and a curb weight of approximately 1450 kg. The machine is shipped in a fumigation-free wooden crate measuring 3100 × 1350 × 1770 mm, ready for export container loading.
Why Choose a Telescopic Arm Over a Fixed Arm in This Class
Many customers comparing the XHS30 with a conventional mini wheel loader ask why they should choose a telescopic model. The answer lies in flexibility. A fixed arm loader must drive close to the target to dump or stack, which is not always possible near walls, into deep bins, or beside tall vehicles. The XHS30's extending arm bridges that gap. Furthermore, the increased dump height achievable with the arm extended allows the same machine to service medium-height delivery trucks without requiring a larger, more expensive loader.
That said, users must understand load chart limitations. When the telescopic arm is fully extended and raised, the safe working load decreases—typically to around 300–500 kg depending on boom angle and tire condition—compared to 800 kg static load with arm retracted and lowered. Observing the load chart and avoiding sudden steering with a raised extended load are essential safety practices covered in the operator manualsupplied with every XHS30 unit.
Summary of XHS30 Core Specifications
To recap, the XHS30 telescopic boom mini loader offers: Model XHS30; Engine options 26 HP Runtong 739 standard / Kubota D1105 / Honda GX690 / Kohler / Briggs; Operating load 500 kg (arm retracted), reduced when extended; Max lift height 3350 mm, max pin height 2680 mm, extended dump height approx. 2300 mm; Boom extension 570 mm; Travel speed 9 km/h; 4WD articulated steering; Hydraulic pressure 25 MPa; Bucket 0.3 m3; Machine weight 1450 kg; Tire size 23×8.5-12. These specifications are subject to minor revision according to final production batch and optional configurations selected at order.
