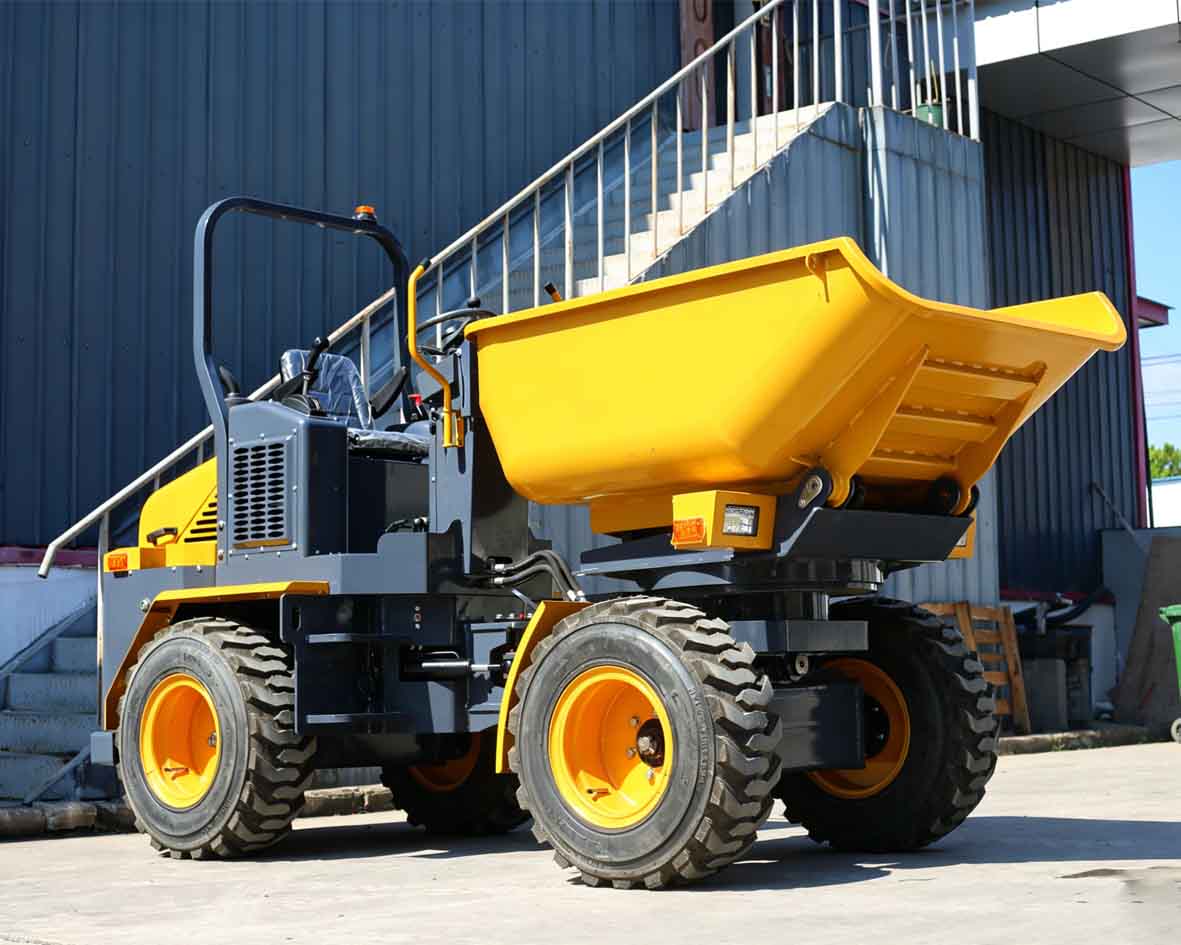

The Xinghang XHT3000 is a heavy duty 3 ton swivel skip site dumper engineered for demanding construction civil engineering and earthmoving projects. Manufactured by Jining Xinghang Machinery Manufacturing Co Ltd in Shandong China one of Chinas six major engineering machinery industry bases the XHT3000 combines compact dimensions with robust load carrying capacity and a hydraulically operated 180 degree power swivel skip. This machine is designed to transport soil aggregates rubble and construction waste across uneven terrain while offering precise side discharge capability in confined spaces. The following sections provide a detailed analysis of its performance characteristics key components and technical advantages that set it apart from conventional forward tipping dumpers.
Engine Performance and Powertrain
The XHT3000 is powered by a reliable Kubota D1105 three cylinder water cooled diesel engine producing 25 HP at 2800 rpm. The Kubota D1105 is globally recognized for its fuel efficiency low noise levels and compliance with various emission standards including EPA Tier 4 and EU Stage V depending on regional configuration. An optional Changchai 390 or Changchai 3M78 diesel engine is also available for different market requirements. The engine drives a mechanical transmission with a maximum travel speed of 12 km per hour and delivers sufficient torque to handle a 30 percent grade even when the machine is fully loaded to its 3000 kg rated payload. The 35 liter fuel tank provides extended working time between refueling which is particularly valuable on remote job sites.
Heavy Duty Slewing Ring Bearing System
One of the defining performance features of the XHT3000 is its hydraulic 180 degree rotating skip which is supported by an alloy steel slewing ring bearing also known as a rotary support. The alloy steel material offers higher density and superior toughness compared to standard carbon steel bearings. This enables the slewing ring to withstand both high radial and axial loads generated during high load rotation and continuous dumping cycles. The hardened raceways and precision rolled elements inside the bearing ensure smooth rotation minimal backlash and long service life even under the harsh vibration and shock loading typical of construction sites. The skip itself tips to 90 degrees for front discharge and rotates 180 degrees left or right for side discharge giving operators exceptional flexibility in material placement.
Precision Hydraulic Control and Multi Function Joystick
The dump and rotate functions are controlled via a highly sensitive multi function control lever that translates operator input into proportional hydraulic signals. This design allows for fine modulation of skip lift speed and rotation angle reducing the risk of over tipping or misplacing loads near trenches walls or delicate structures. The hydraulic system operates with ISO 46 grade hydraulic oil stored in a 35 liter tank and features a relief valve to protect against pressure spikes. The combination of responsive hydraulics and ergonomic joystick control significantly reduces operator learning curve and minimizes accidental damage to the machine or surrounding work area.
Structural Frame and National Standard Steel Construction
All main structural components of the XHT3000 including the chassis dump body mounting brackets and ROPS compatible seat base are fabricated from Chinese National Standard GB steel which is equivalent to international structural steel grades such as S235 and S355. The steel plates are cut formed and fully welded using certified welding procedures that ensure consistent penetration and minimal distortion. This results in a rigid frame that resists twisting on uneven ground and maintains alignment of the axle suspension and slewing ring over years of heavy use. The skip is reinforced at high stress points to prevent cracking when handling sharp edged demolition debris or heavy wet aggregate.
Chassis Undercarriage and High Load Capacity Tires
The XHT3000 rides on 12 dash 16.5 industrial pneumatic tires mounted on a 1930 mm wheelbase chassis. These engineering grade tires are designed for high load carrying capacity and improved traction on mixed surfaces including gravel mud and compacted soil. The tire tread pattern balances flotation to reduce ground compaction with aggressive lug design for grip on slopes. With a ground clearance of 290 mm the machine can traverse small obstacles ruts and uneven site grading without underbody damage. The overall machine width of 1500 mm allows access through standard doorway openings and narrow alleyways that would be impossible for larger articulated dump trucks.
Operator Comfort Visibility and Ergonomics
Operator productivity is closely tied to comfort and the XHT3000 addresses this with an adjustable suspension leather covered seat that dampens vibration from rough terrain. The seat is mounted on a raised platform which together with a well positioned steering column gives the operator an elevated vantage point and clear sightlines to the front sides and especially to the skip area during rotation and tipping. The dashboard includes essential gauges for engine temperature oil pressure fuel level and hour meter presented in an intuitive layout. Optional ROPS FOPS canopy or enclosed cab can be specified for added protection in overhead hazard environments. The high seating position combined with the open design of the chassis greatly reduces blind spots which is critical when working around foot traffic on active construction sites.
Dimensions Weight and Transport Considerations
The XHT3000 measures 3760 mm in length 1500 mm in width and 2450 mm in height with an operating weight of approximately 2150 kg. The dump body has internal dimensions of 1730 by 1280 by 600 mm and a heaped capacity of 1.28 cubic meters. These dimensions allow the machine to be loaded onto a standard flatbed trailer or into a shipping container for easy transport between job sites or for export. The recovery bracket integrated into the rear frame simplifies winching during loading or if the machine becomes stuck in soft ground.
Durability Maintenance and Long Term Reliability
Daily maintenance points including dipstick filler caps drain plugs and grease nipples are grouped for easy access. The engine bay is enclosed by hinged lockable doors that swing open wide to expose the radiator air filter and fuel system components. The hydraulic reservoir has a separate fill port with a breather and magnetic drain plug to help keep the system clean. Xinghang Machinery backs the XHT3000 with a comprehensive parts and after sales support network ensuring that wear items such as filters seals bearings and hydraulic hoses remain readily available. With proper maintenance the alloy steel slewing ring heavy gauge steel frame and proven Kubota powertrain deliver years of dependable service in rental fleets contractor owned fleets and specialized subcontractor applications.
Summary of Product Performance
In summary the Xinghang XHT3000 delivers class leading performance through its combination of a 3000 kg payload 180 degree hydraulic swivel skip alloy steel slewing ring national standard steel fabrication precision hydraulic controls high flotation tires and operator focused ergonomics. It is built to withstand the rigors of daily site use while providing the maneuverability and discharge versatility required in space constrained environments. For contractors seeking a durable compact alternative to larger dump trucks the XHT3000 represents a well engineered solution backed by an established Chinese manufacturer with global export experience.
