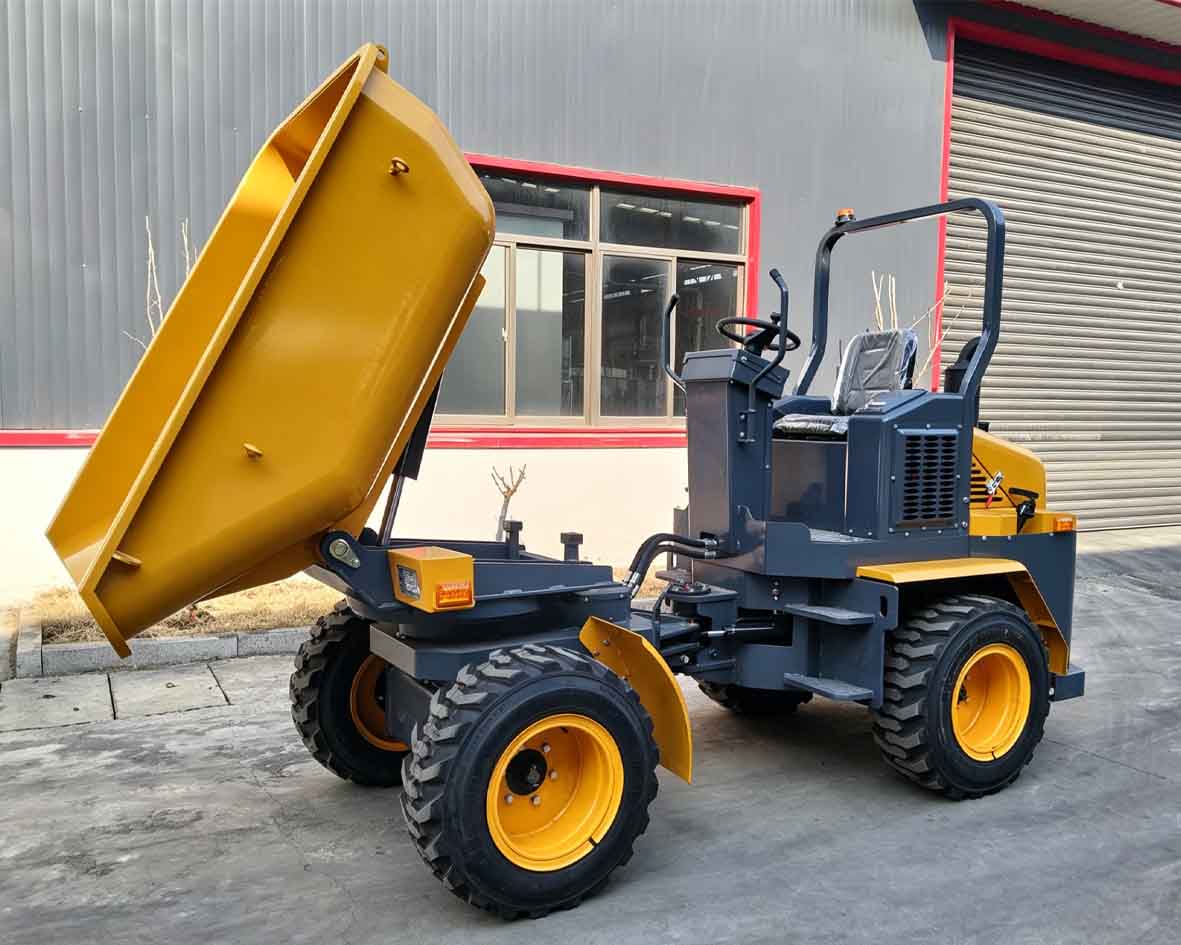

Selecting the right material handling equipment can dramatically influence project timelines labor costs and site safety. The Xinghang XHT3000 3 Ton Swivel Skip Site Dumper is purpose built for short haul material transport and precise placement in locations where full size dump trucks cannot operate efficiently. Its 1500 mm overall width 180 degree rotating skip and 3000 kg load rating make it particularly valuable in urban renewal projects utility installations landscaping assignments tunnel and mine auxiliary works and agricultural or estate maintenance. This article explores the specific scenarios in which the XHT3000 excels and explains the operational advantages it brings to each type of job site.
Urban Renovation Narrow Access Streets and Alleyway Projects
City center refurbishments often involve working in streets barely wider than a passenger car with parked vehicles scaffolding and pedestrians occupying the remaining space. A conventional rear dump truck would need to perform multi point turns or reverse long distances to orient itself for unloading which creates safety hazards and wastes time. The XHT3000 can drive straight into a narrow lane receive excavated spoil from a mini excavator and then rotate its skip to discharge material to either side of the machine without repositioning the chassis. This side tipping ability eliminates the need for three point turns in dead end alleys and allows the operator to unload directly into a waiting skip or stockpile positioned beside the roadway. The elevated driving position gives clear visibility of curbs pedestrians and overhead obstructions which enhances safety in busy urban environments.
Utility Trenching Drainage Installation and Backfilling Work
When laying water gas or fiber optic lines crews must frequently move bedding sand granular backfill or removed spoil along a trench line. The XHT3000 can travel parallel to the trench and use its swivel skip to place material precisely into the trench or onto the opposite side of the excavation depending on site layout. Because the skip rotation is hydraulically controlled the operator can tip small measured amounts rather than dumping the entire load at once reducing rework and the need for manual spreading. On jobs where the trench runs alongside a fence wall or existing structure the ability to side discharge away from the obstruction is a significant productivity advantage over fixed front tip dumpers.
Landscaping Garden Design Estate Maintenance and Golf Course Work
Landscape contractors often face the dual challenge of moving bulk materials such as topsoil mulch gravel or bark while avoiding damage to established lawns planting beds and hardscape features. The XHT3000 with its 12 dash 16.5 pneumatic tires distributes weight reasonably well for a wheeled machine and when operated with care causes less compaction than heavier tandem axle trucks. The swivel skip lets the operator deposit material exactly where it is needed such as behind a retaining wall on a terraced slope or beside a newly planted tree line. For golf course greenkeeping and estate grounds maintenance the machines compact footprint allows access through standard gates and along cart paths enabling efficient delivery of sand for bunker renovation or soil for turf repair without disrupting play or damaging sensitive turf areas.
Tunneling Underground Mine Auxiliary Haulage and Confined Space Operations
In tunnel heading operations or underground mine drift development where overhead clearance is limited and turning space is minimal the XHT3000s 2450 mm height and 5000 mm turning radius are within acceptable limits for many adit sizes. Muck from a road header or drill and blast cycle can be loaded into the dumper which then exits the tunnel or discharges to a side conveyor or larger haul truck stationed outside the portal. The 180 degree skip rotation means the unit can tip to the left or right even when sandwiched between formwork ventilation ducting and temporary shoring which would prevent a forward tipping vehicle from safely emptying its load. The rugged steel construction and sealed lubrication points help the machine endure dusty high humidity underground conditions.
Agricultural Farm and Rural Property Material Handling
On farms and large rural properties the XHT3000 serves multiple roles including moving manure compost feed grain or construction materials for barn repairs silo bases and fencing projects. The machines diesel engine starts reliably in cold weather when properly winterized and the simple mechanical drivetrain requires less specialized training than hydrostatic alternatives though hydrostatic options can be specified on some regional variants. The ability to rotate the skip makes it easy to unload feed into bunkers spread gravel on farm lanes or deposit spoil from ditch cleaning onto adjacent fields. Because the XHT3000 is significantly smaller and more affordable than a full size articulated dump truck it is an attractive option for owner operators and small contracting businesses serving the agricultural sector.
Demolition Site Clearance and Debris Removal
During selective demolition or interior strip out work debris such as broken concrete bricks wood and plaster must be removed quickly to keep the work face clear. The XHT3000 can be driven into a building through a double doorway or loading dock receive loads from a skid steer loader or breaker and exit to a central debris pile or roll off container. The reinforced skip withstands impact from heavy dense rubble and the slewing ring is protected by guards against falling debris. The option of side discharge is particularly useful when the only available disposal container is positioned alongside the travel path rather than directly ahead which again saves time compared to jockeying a non swiveling dumper into position.
Key Operational Advantages Over Conventional Site Dumpers
The primary advantage of the XHT3000 is its 180 degree power swivel skip which decouples load placement direction from machine travel direction. Additional benefits include reduced cycle times because no repositioning is needed for side tipping improved site safety due to better operator visibility from the raised seat fewer reversing maneuvers and less need for ground personnel to guide the machine and enhanced versatility across multiple industries from civil works to agriculture. The alloy steel slewing ring ensures that this core function remains reliable under repeated heavy load rotation. The national standard steel frame provides structural integrity that inspires confidence when hauling maximum payload on uneven ground. The adjustable suspension seat and logically arranged controls lower operator fatigue during full day shifts which in turn reduces the likelihood of errors or accidents caused by discomfort or distraction.
Comparison With Non Swivel and Larger Capacity Alternatives
Compared to a standard forward tip site dumper of similar size the XHT3000 offers greater placement flexibility at the cost of slightly higher initial investment which is typically recovered through time savings on confined sites. Compared to a 6 ton or 9 ton articulated dump truck the XHT3000 requires less space to operate costs less to purchase maintain and transport and places less weight on temporary site access roads that may not be engineered for heavy axle loads. For projects that involve frequent short hauls in restricted access areas the swivel dumper is often the most economical choice despite its smaller payload because total daily moved volume is determined by cycle time as much as by per trip capacity.
Safety Considerations and Operator Training
While the XHT3000 is designed with stability in mind operators should receive formal training on safe loading practices maximum payload limits and the correct use of the swivel and tip functions. The machine should never be overloaded nor should the skip be rotated with the dump arms fully raised unless specified by the manufacturer procedure for certain models. Observing the 30 percent maximum grade recommendation and engaging the parking brake before dismounting are essential habits. When working near open excavations the operator should be aware of the machines stability envelope especially when the skip is extended to the side. Xinghang Machinery recommends periodic inspection of the slewing ring bolt torque hydraulic hose condition and tire pressure as part of a planned maintenance program to sustain safe operation.
Conclusion and Purchasing Consideration
The Xinghang XHT3000 Swivel Skip Site Dumper fills an important niche in the modern equipment fleet bridging the gap between wheelbarrows and mini loaders on one end and large dump trucks on the other. Its application range spans urban construction utilities landscaping tunnelling agriculture and demolition support. The combination of a 3000 kg payload 180 degree rotating skip alloy steel slewing ring national standard fabricated frame precision hydraulic controls and operator friendly ergonomics delivers measurable jobsite advantages in cycle time reduction access capability and placement accuracy. Contractors rental houses and municipal works departments looking for a versatile compact hauler that can go where bigger machines cannot and still discharge exactly where it is needed will find the XHT3000 to be a cost effective and durable addition to their equipment lineup.
