Product Introduction
Advantages and Features of Electric Loaders:

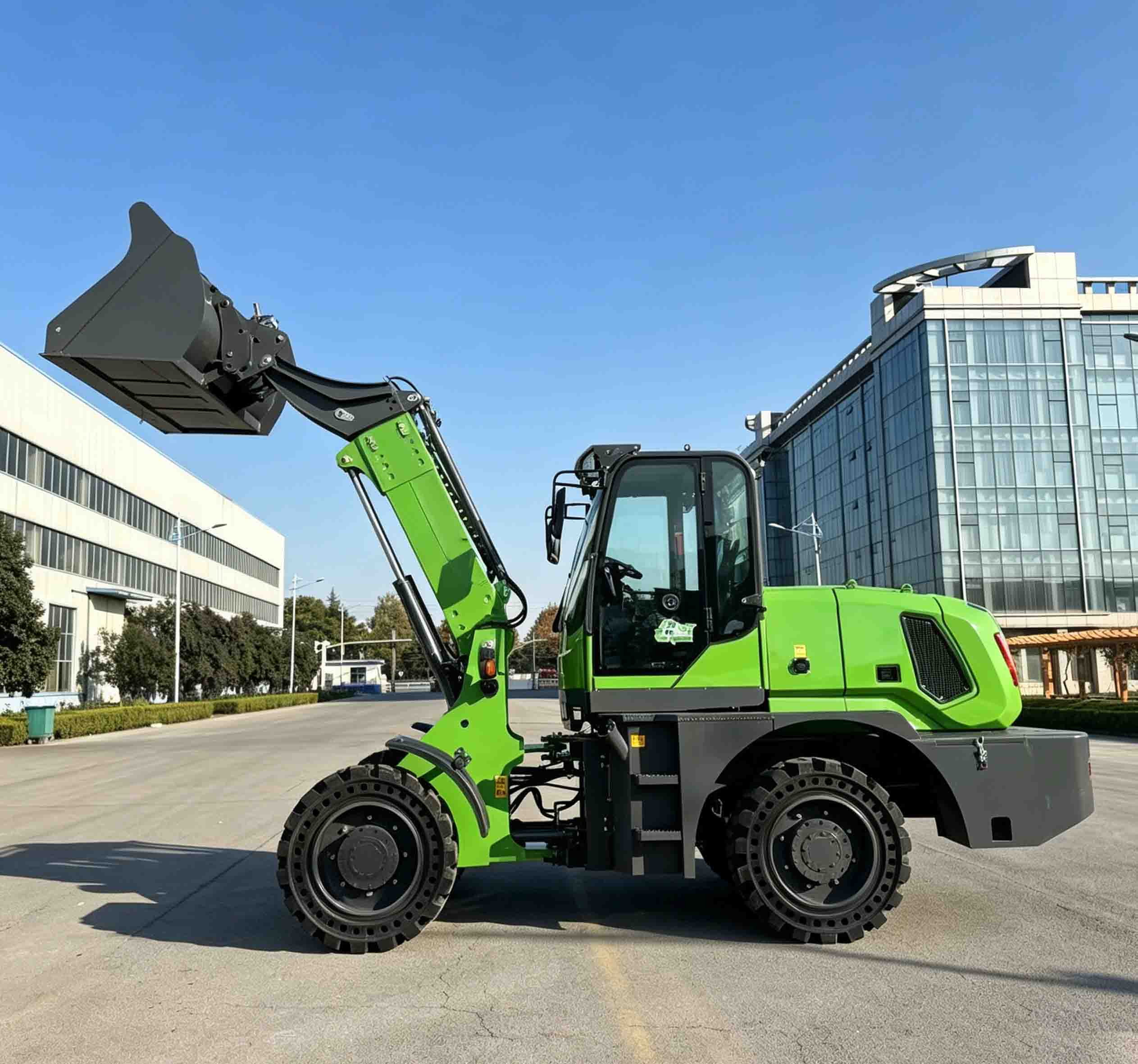

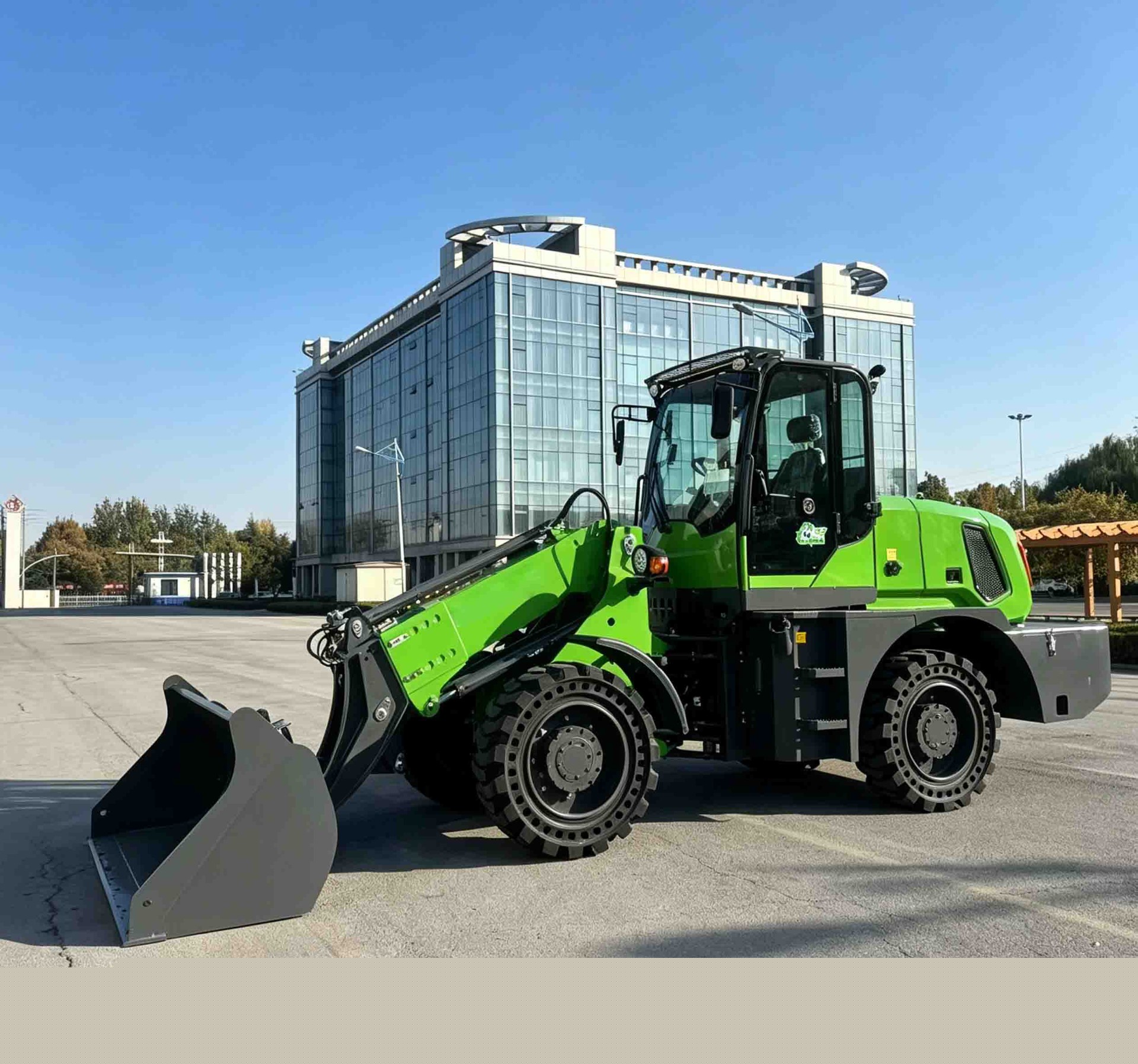

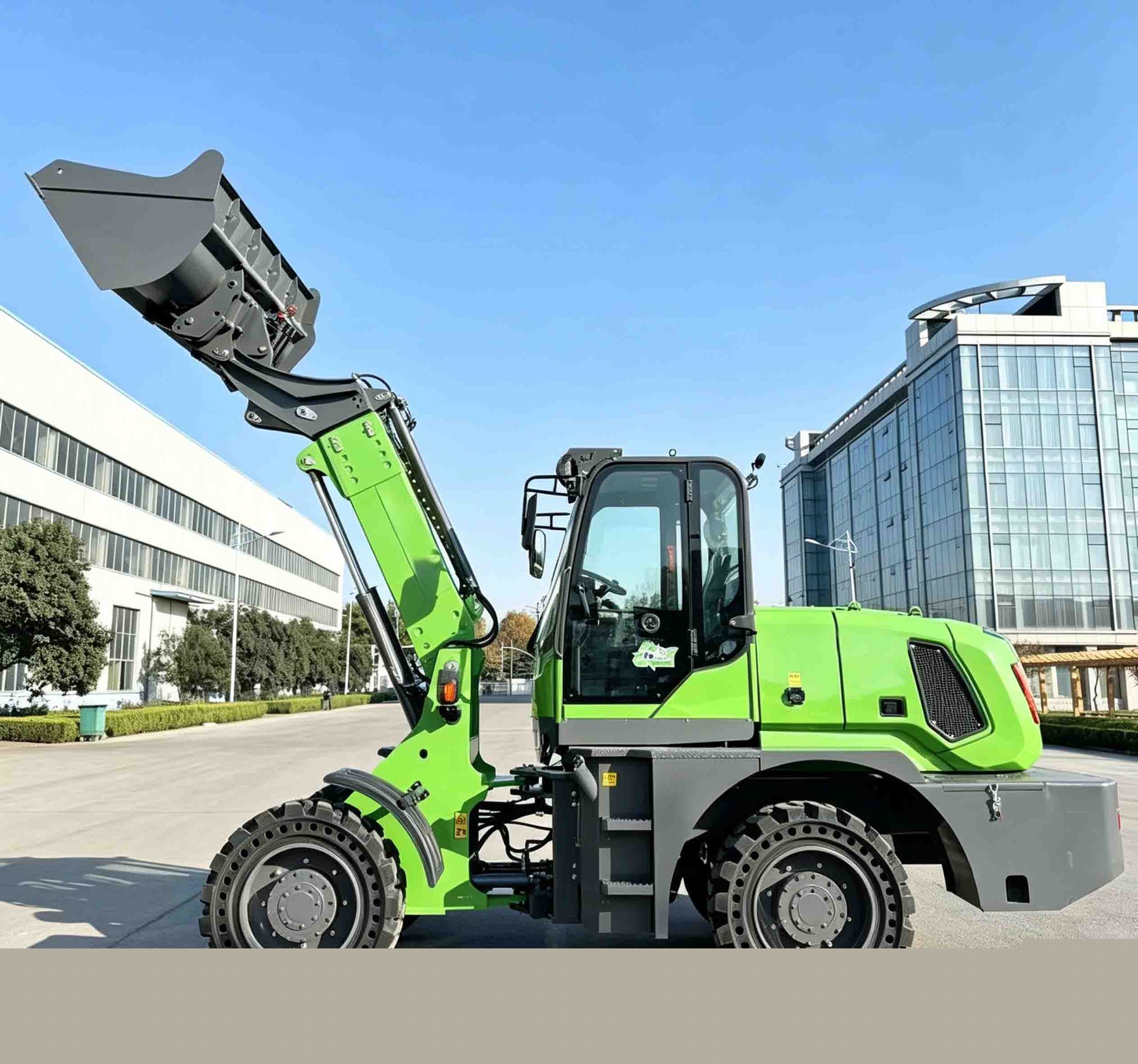

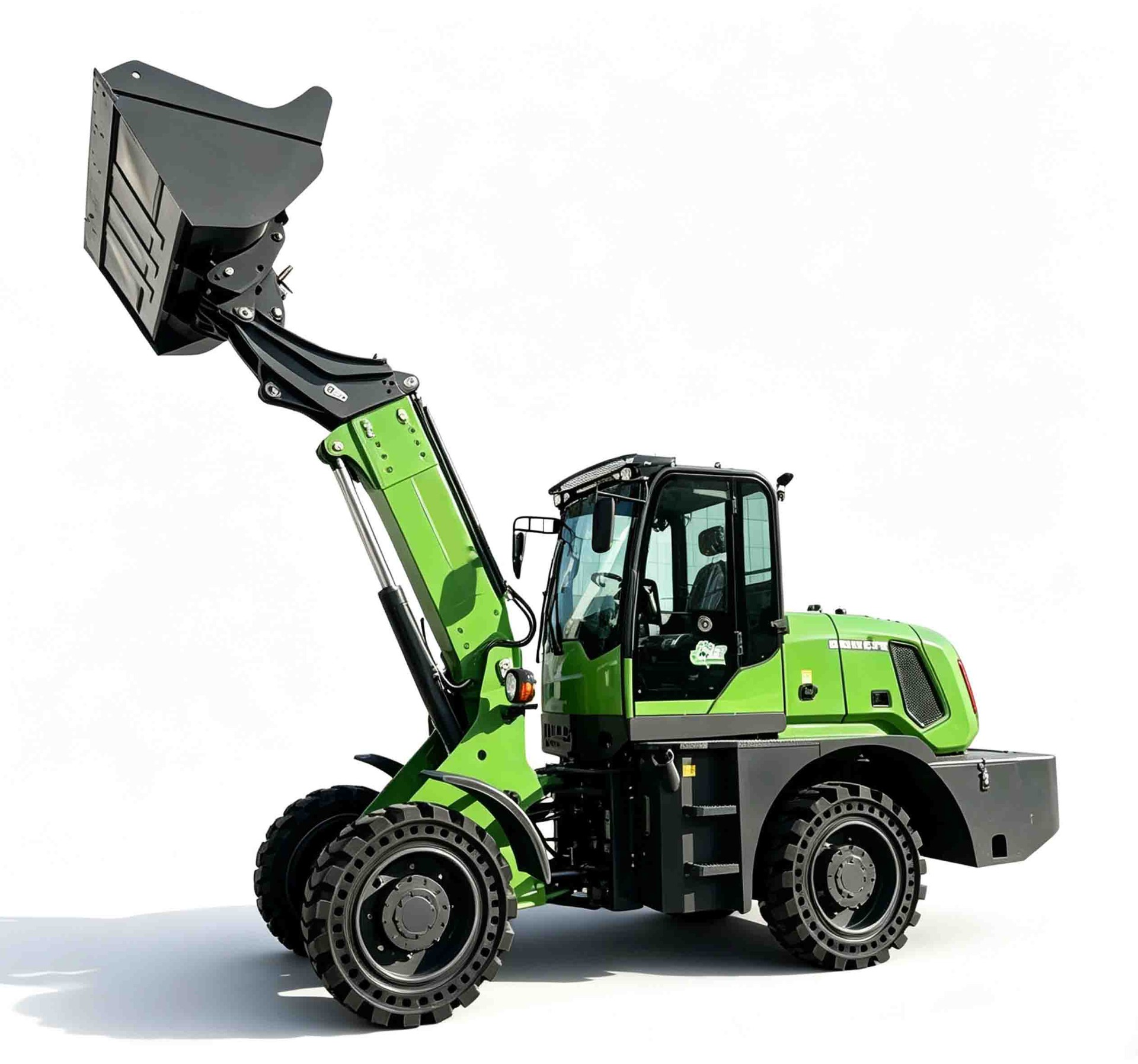

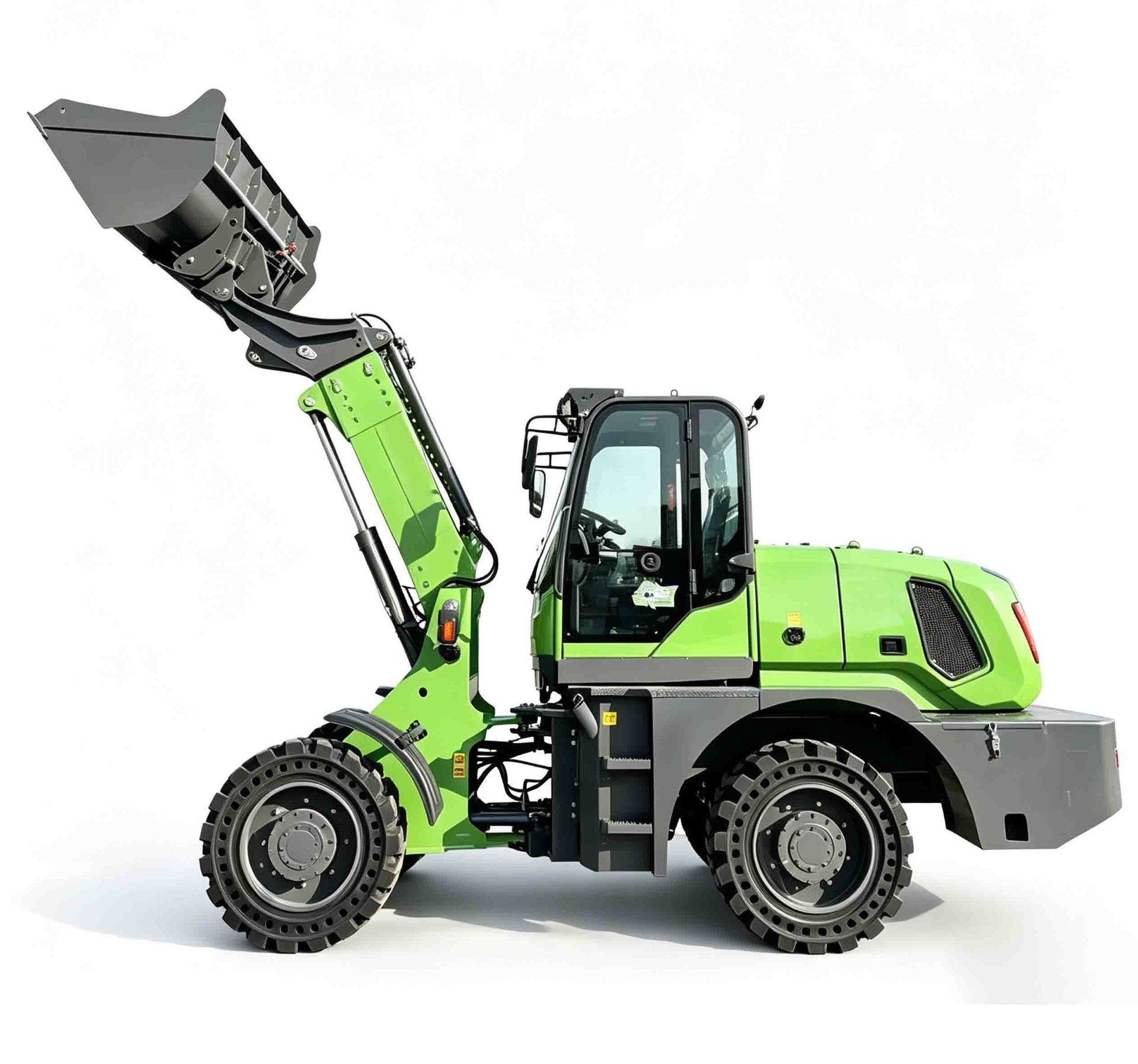

The XHD25 is a 2.5-ton mini telescopic electric loader designed specifically for urban construction, warehouse logistics, agricultural operations, and working in confined spaces. Combining electric propulsion, full hydraulic steering, a compact body, and powerful performance, it redefines efficiency and sustainability in small-scale engineering equipment.
Core Advantages (Electric Loader Highlights)
1.Zero Emissions · Green Power · Low Operating Costs
Battery Specs: 153.6V / 460Ah / 70kW
Equipped with a high-energy density lithium battery system, delivering robust power output to meet all-day operational demands.
Zero Emissions & Low Noise: Ideal for indoor warehouses, hospitals, schools, and residential areas with strict environmental requirements.
Easy Charging & Low Maintenance: Compared to traditional diesel equipment, it eliminates costs for fuel, engine oil, and filter replacements, saving up to 40% on long-term operating costs.
2. Compact Design · Superior Maneuverability · High Adaptability
Minimum Turning Radius of only 5600mm, allowing easy navigation through narrow construction sites, warehouse aisles, and orchard rows.
Compact Dimensions: 5800mm (L) x 2100mm (W) x 2850mm (H), making it significantly smaller than traditional loaders for space-restricted environments.
Ground Clearance of 350mm ensures good passability over slightly rugged terrain.
3. Full Hydraulic Steering · Precise Control · Effortless Operation
Full Hydraulic Steering System with a steering angle of 30°±1° and a System Working Pressure of 16MPa ensures light, precise, and zero-dead-zone steering.
Operators experience less physical strain, reducing fatigue and enhancing both efficiency and safety.
4.Telescopic Boom · Extended Reach · Multi-Functional
Max. Dumping Height: 3800mm (Boom Extended) / 2800mm (Standard)
Rated Load: 2200kg (Retracted) / 1000kg (Stabilizers Extended)
Dumping Distance: 1150mm | Dumping Angle: 33.5°, suitable for high-stacking, deep-bin loading, and truck docking.
Bucket Capacity: 1.3m3 (Dimensions: 2000×580×1000mm), compatible with various materials such as sand, soil, feed, and waste.
5. Intelligent Configuration · Safety & Stability · Easy Maintenance
Theoretical Gradeability: 15°, capable of handling mild slopes.
Travel Speed: 30km/h (Max) / 8km/h (Min), balancing efficiency and safety.
Wheelbase: 2600mm provides structural stability and smooth travel.
Optimized lubrication systems (Hydraulic Oil: 68.5L, Axle Oil: 14L, Gear Oil: 24L) extend the machine's service life.
XHD25T/XHDL25T telescopic loader performance parameter comparison | ||||
Parameters of the whole machine | Parameters of the whole machine | |||
project | parameter | project | parameter | |
最小转弯半径（mm） | 5600 | Body length（MM) | 5800 | |
理论爬坡角度（°） | 15 | Body width（MM) | 2100 | |
最大行驶速度（mm） | 30 | Vehicle height（MM) | 2850 | |
最小行驶速度（mm） | 8 | Minimum ground clearance（MM） | 350 | |
Arm unloading height（MM） | 2800 | tread（MM) | 1685 | |
Reach arm unloading height（MM) | 3800 | The weight of the whole machine（KG) | 5900 | |
The maximum load mass of the retracted arm（KG） | 2200 | The bucket is long, deep and high(MM) | 2000/580/1000 | |
Maximum load mass of outrigger（KG) | 1000 | Bucket capacity（m3） | 1.3 | |
轴距（mm） | 2600 | |||
卸料距离（mm） | 1150 | |||
卸料角度（°） | 33.5 | |||
Work parameters | Rotate the system parameters | |||
Walk motor | 35KW | version | DE20 high and low speed | |
Working motor (dual motor) | 25KWX2 | Shifting gears | The first 2 and the last 2 | |
Walking Controller | 450A | Brake form | Hydraulic braking | |
Work controller | 350AX2 | Axles | Electric dedicated large wheel hub | |
12V converter | 500A | Tire model | 16/70-20 | |
Gear pump flow rate | 32mL*2 | Front wheel pressure（Map） | 0.33 | |
Hydraulic Oil Cooler | YES | Rear wheel pressure（Map） | 0.3 | |
Battery charger | 153.6V\100A | |||
Charging speed: From 20% to 100% | 4 hours and 50 minutes | |||
Steeringsystem | Batterycapacityandhydrauliccapacity | |||
project | parameter | project | parameter | |
version | Fully hydraulic steering | Battery | 153.6V/460AH/70 kilowatts | |
Steering angle（°） | 30±1 | Theoretical volume of hydraulic oil (L) | 68.5 | |
（Mpa）System operating pressure | 16 | Bridge single（L) | 14 | |
Transmission gear oil（L） | 24 | |||
