XHDL400 mini LI-ion Electric Wheeled Loader

　　XHDL400 Mini Electric Loader: Compact Power, Versatile Performance

　　Meta Description: Discover the XHDL400 Mini Electric Loader, engineered for confined spaces. With a 400kg payload, 2580mm lifting height, and lithium battery power, it offers zero emissions, low noise, and exceptional maneuverability for warehousing, agriculture, and municipal work.

　　1. Product Overview

　　The XHDL400 Mini Electric Loader is a highly efficient, compact material handling solution designed to tackle tasks in narrow and sensitive environments. With a total weight of just 1090kg, it effortlessly navigates through doorways, aisles, and tight job sites where traditional loaders cannot go. Powered by a 60V/150Ah or 60V/180Ah lithium battery, it delivers clean, quiet, and cost-effective operation, making it ideal for indoor warehouses, greenhouses, residential areas, and eco-friendly construction zones.

　　2. Key Specifications & Advantages

　　Compact Dimensions, Maximum Maneuverability

　　Overall Size: 3350 × 1060 × 1500 mm — slender profile fits through standard doorways and narrow passages.

　　Wheelbase: 1450mm — short turning radius with fluid-link steering ensures agile handling in tight corners.

　　Articulated Design: Enhances stability and reduces the need for wide swing space during turns.

　　Load Capacity & Lifting Performance

　　Rated Load: 400kg — handles moderate material loads with ease.

　　Lifting Height: 2580mm — reaches standard pallet racks and loading docks.

　　Discharge Height: 1900mm — optimal for unloading into trucks or hoppers.

　　Bucket Size: 1050 × 680mm — manganese steel construction for durability and wear resistance.

　　Power & Endurance (Lithium Battery)

　　Battery Type: Lithium Battery (60V / 150Ah or 60V / 180Ah) — faster charging, longer cycle life, and lighter weight than lead-acid alternatives.

　　Continuous Operating Duration: 4–6 hours — sufficient for a full workday with breaks.

　　Charging Interval: 8 hours — full recharge overnight for next-day readiness.

　　Drive Motor: 4kW — efficient all-wheel-drive propulsion.

　　Hydraulic Motor: 3kW — smooth and powerful lifting/tilting performance.

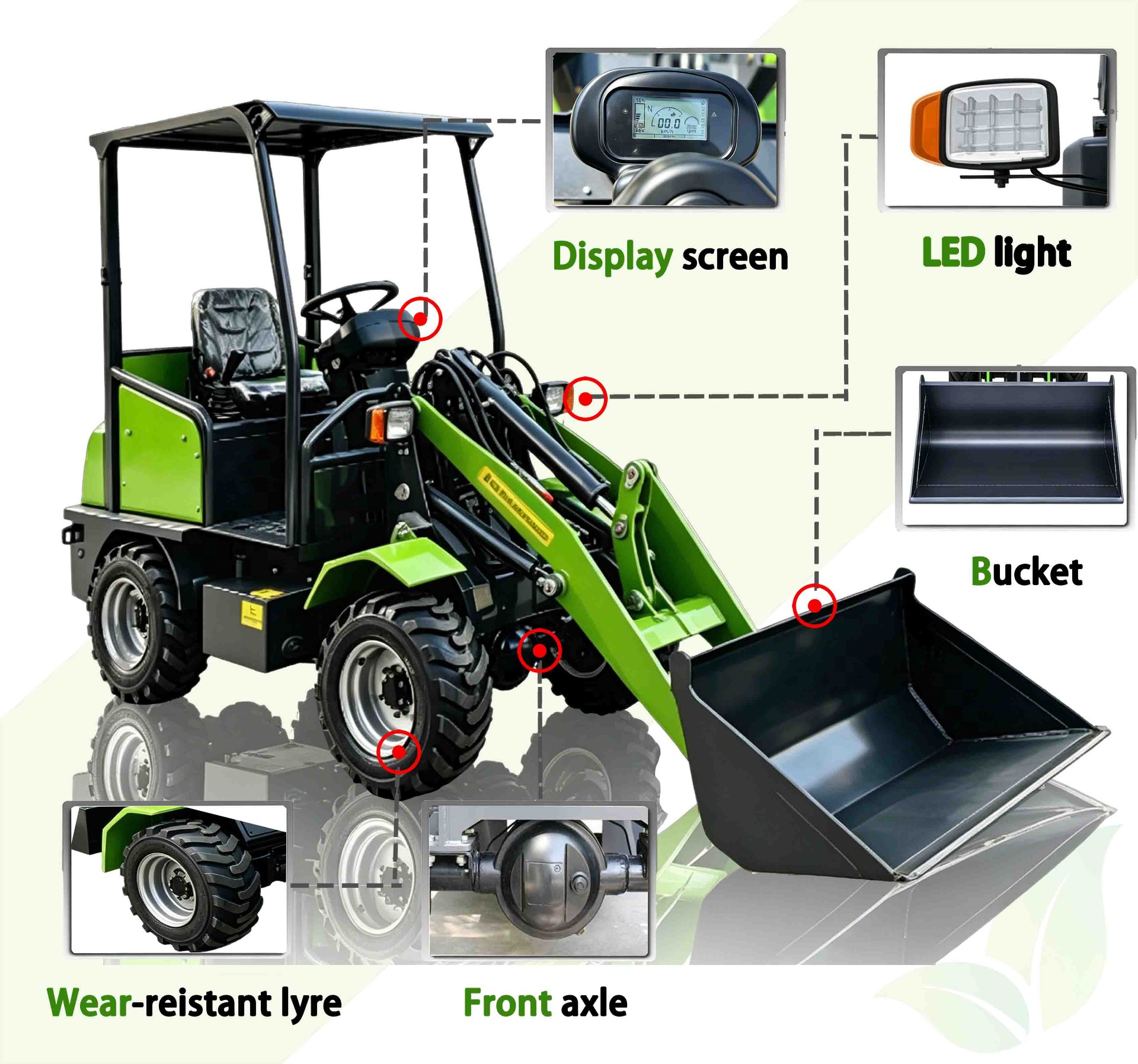

　　Intelligent Control & Comfort

　　Electronically Controlled Integrated Handlebar: Combines direction, speed, and lift/tilt controls into one intuitive lever — reduces operator fatigue and speeds up workflow.

　　Integrated Liquid Crystal Display: Real-time monitoring of voltage, speed, and system status with fault alerts for proactive maintenance.

　　Dual-Speed Transmission:

　　High Speed: 0–14.5 km/h

　　Low Speed: 0–8 km/h

　　— switch between efficiency and torque as needed.

　　All-Wheel Drive (AWD): Superior traction on uneven or slippery surfaces.

　　Built to Last

　　Main Materials: Manganese Steel — used in chassis, bucket, and key structural components for high impact and wear resistance.

　　Tire Type: 23×8.5-12 — heavy-duty pneumatic tires for stability and shock absorption.

　　Appearance: Streamlined, integrated design with protective casings for hydraulic and electrical systems.

　　3. Ideal Applications

　　Indoor Warehousing & Logistics (pallet handling, stacking)

　　Greenhouse & Agricultural Operations (soil, feed, produce transport)

　　Municipal & Property Maintenance (cleaning, snow removal, landscaping)

　　Light Construction & Renovation (material delivery in tight spaces)

　　Eco-Zones & Sensitive Environments (zero emissions, low noise)

　　4. Why Choose XHDL400?

　　Zero Emissions, Low Noise — compliant with strict urban and indoor regulations.

　　Low Operating Cost — electric power + lithium battery = minimal fuel and maintenance expenses.

　　Easy to Operate — one-hand control, intuitive dashboard, minimal training required.

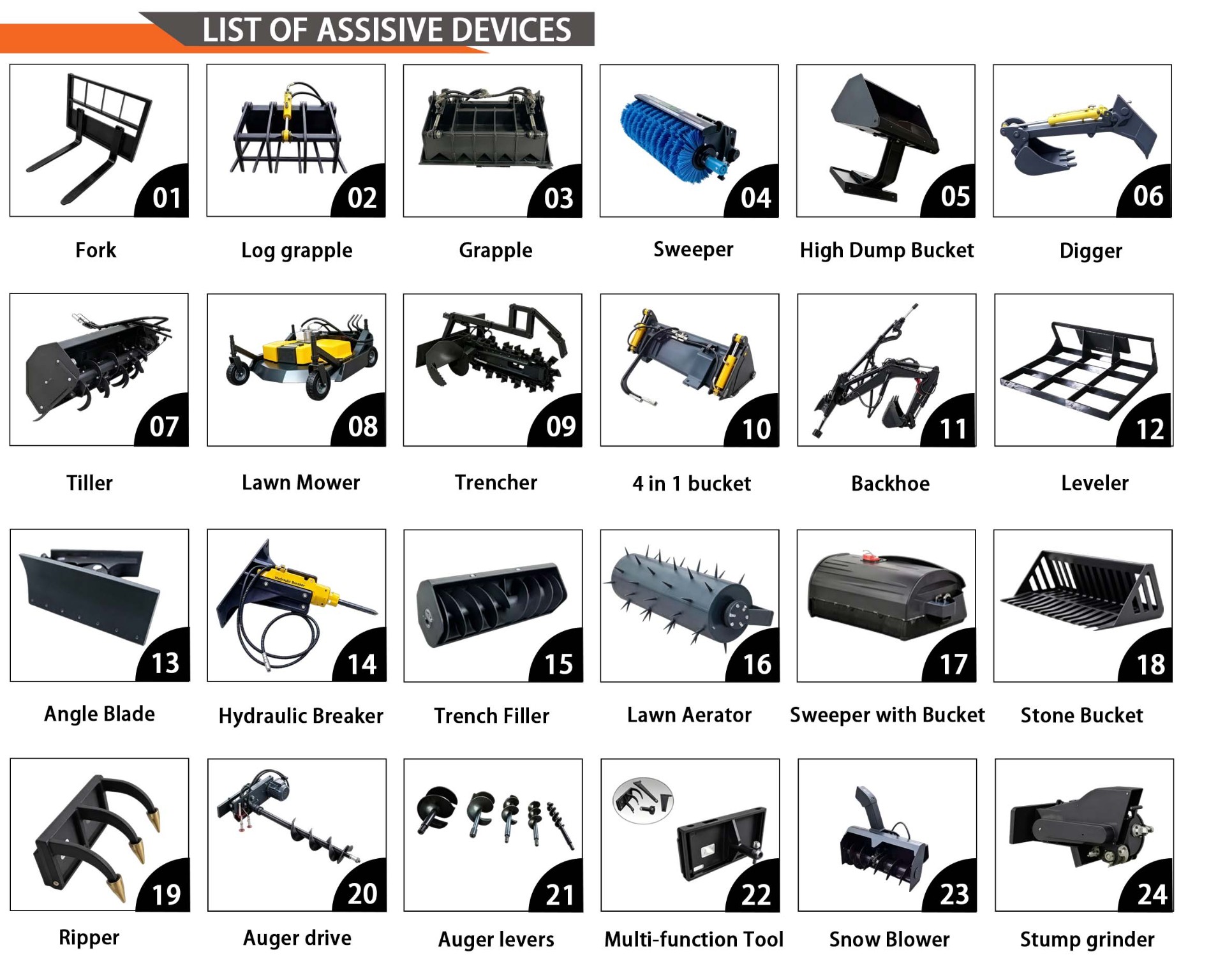

　　Highly Adaptable — compatible with various attachments (forks, grabs, etc.) for multi-task versatility.

　　Safe & Stable — AWD + low center of gravity + reinforced frame = confidence under load.

Technical Parameters (Lithium Battery)
