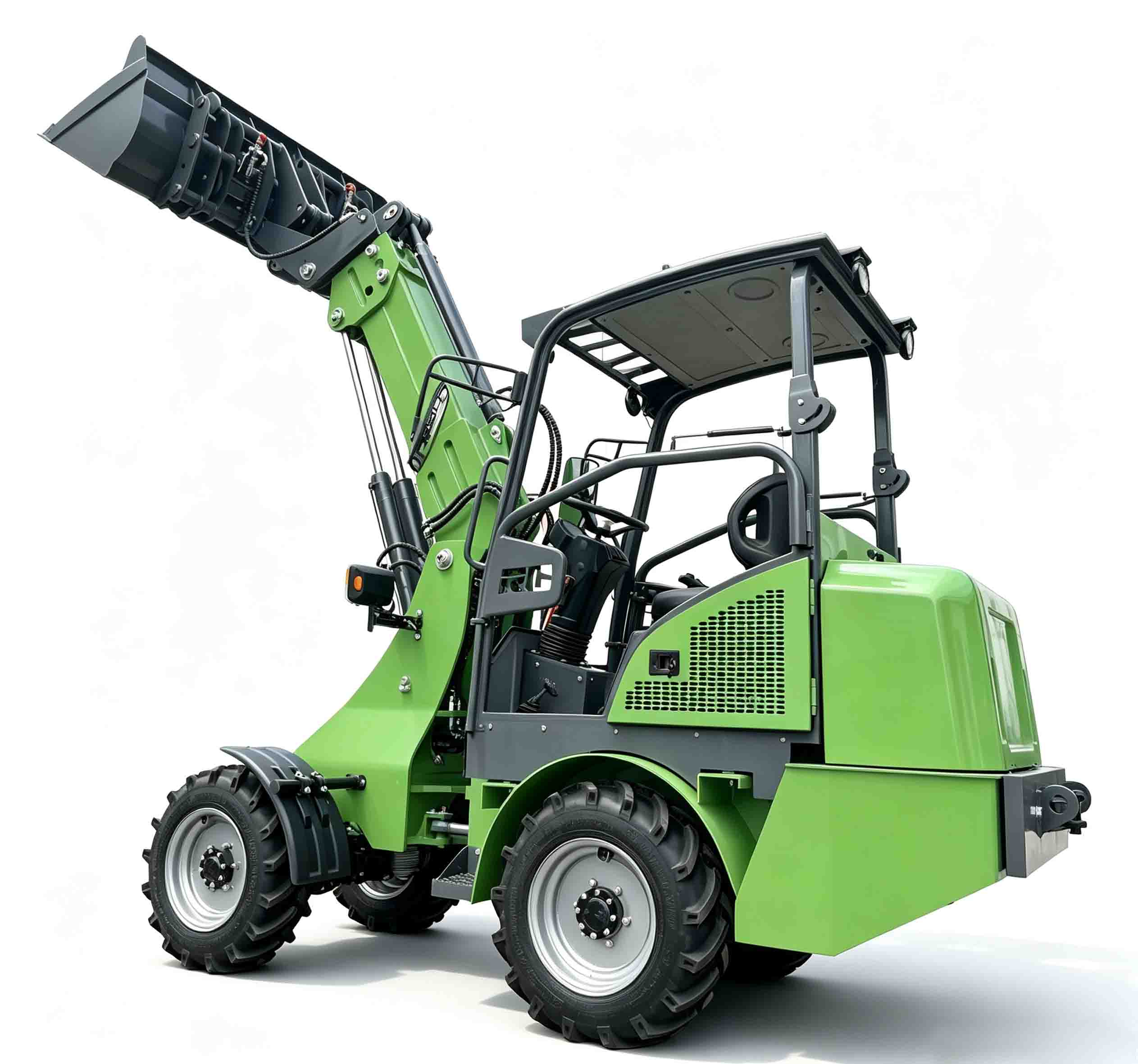

The global construction and agriculture industries are rapidly shifting toward sustainable electrification to meet stringent emission regulations and reduce operational noise in sensitive environments. Within this landscape, the XHD400 and XHDL400 0.4T electric wheel loaders manufactured by Jining Xinghang Machinery Manufacturing Co Ltd represent a pivotal advancement in compact heavy-duty equipment. These machines are engineered specifically for scenarios where traditional diesel loaders cannot operate due to space constraints or air quality concerns. With a rated loading capacity of 400 kg and a compact body width of merely 1050 mm, the XHD400 series offers unparalleled maneuverability in indoor warehouses, underground tunnels, greenhouse aisles, and urban municipal projects. This article provides a deep dive into the structural integrity, powertrain efficiency, and operational advantages of these models based on verified factory specifications.
The chassis of the XHD400 and XHDL400 is constructed entirely from high-strength manganese steel, ensuring resistance to deformation even under the maximum 400 kg load or during impact with hard materials like gravel and compacted soil. Unlike lighter aluminum alloys or standard steel frames, manganese steel provides superior tensile strength and longevity, which is critical for equipment expected to operate in rough terrain. The overall dimensions of 3260 mm in length, 1050 mm in width, and 2130 mm in height allow the machine to pass through standard single doorways and narrow building corridors. This ultra-narrow design is complemented by a wheelbase of 1450 mm, which stabilizes the center of gravity during lifting operations up to the maximum unloading height of 1600 mm.
A standout feature of the XHD400 series is the integration of flat wire motor technology in both the drive and hydraulic systems. The drive motor utilizes a 4 KW flat wire design, while the lifting system is powered by a 3 KW flat wire motor coupled with a low-noise gear pump. Traditional round wire motors often suffer from lower slot fill rates, leading to higher resistance and heat generation. In contrast, the flat copper wire winding in the XHD400 increases the slot fill rate significantly, resulting in improved energy efficiency, superior heat dissipation, and a more compact motor size that contributes to the overall lightweight design of the vehicle. This technology ensures that the loader maintains consistent torque output even during prolonged high-load operations such as continuous material lifting or ramp climbing. The controller includes an automatic temperature control cooling function, preventing thermal throttling in ambient temperatures that would typically degrade performance.
Battery versatility is another core advantage of the XHD400 and XHDL400 models. Operators can select between 64V 150Ah or 180Ah Lithium Iron Phosphate batteries for extended lifecycle and faster charging, or a 60V 160Ah lead-acid option for lower upfront investment. The Lithium configuration offers a continuous working time of 6 to 8 hours, while the lead-acid variant provides 4 to 6 hours, with a full recharge cycle completed in approximately 8 hours. This flexibility allows fleet managers to balance capital expenditure against daily operational demands. The electrical architecture employs a CAN bus communication protocol displayed on a digital LCD instrument panel. This interface provides real-time telemetry including voltage, battery level, travel speed, and hydraulic pump RPM. Furthermore, it features error operation prompts and diagnostic fault codes, enabling operators or maintenance personnel to identify issues without dismantling components, thereby reducing downtime.
The hydraulic steering system paired with an integrated electronic control handle consolidates forward reverse movement, high low speed switching, boom lifting, and bucket tilting into a single ergonomic unit. This reduces operator fatigue and shortens the learning curve for new users. Travel speeds are bifurcated into low gear 0 to 8 km/h for precision tasks such as grading or loading delicate materials, and high gear 0 to 14.5 km/h for rapid site translocation. The full-time four-wheel-drive system ensures traction on slippery surfaces like mud or loose sand, supported by 23x8.5-12 heavy-duty tires. The axles utilize a full-suspension weighted design to absorb shocks from uneven ground, enhancing both operator comfort and component lifespan.
In terms of application, the XHD400 and XHDL400 excel in environments where zero emissions and low decibel levels are mandatory. Indoor demolition projects in occupied buildings, livestock barn cleaning, and food processing plant maintenance benefit immensely from the absence of exhaust fumes and the minimized acoustic footprint. Additionally, the front-end mounting plate is compatible with over twenty attachments including forks, augers, breakers, and grapples, transforming the loader from a simple material mover into a multi-functional utility platform. This adaptability reduces the need for multiple single-purpose machines on a job site, lowering overall equipment acquisition costs.
From a durability standpoint, the 1050 mm by 680 mm manganese steel bucket is welded as a single unit to resist cracking under stress. The lifting cycle is optimized at 7 seconds for elevation and 3 seconds for dumping, creating a rapid operational loop that maximizes productivity per shift. The net weight of the machine is 1240 kg, providing enough mass to counterbalance loads without exceeding floor load limits in indoor settings. For businesses operating in Europe, the machines meet CE certification and Euro V emission compliance standards, alongside ISO 9001 quality management manufacturing protocols, ensuring global market acceptance.
Jining Xinghang Machinery backs these models with a 24-hour technical support system and a robust spare parts supply chain, which is crucial for international buyers concerned about after-sales service. The combination of innovative flat wire motor efficiency, configurable battery economics, and a truly narrow profile positions the XHD400 and XHDL400 as industry-leading solutions for the evolving demands of modern compact construction and agriculture. As urbanization increases and workspaces become more constrained, the reliance on sub-1-meter width electric loaders will only grow, and these models are architected precisely to fill that niche with reliability and performance.
