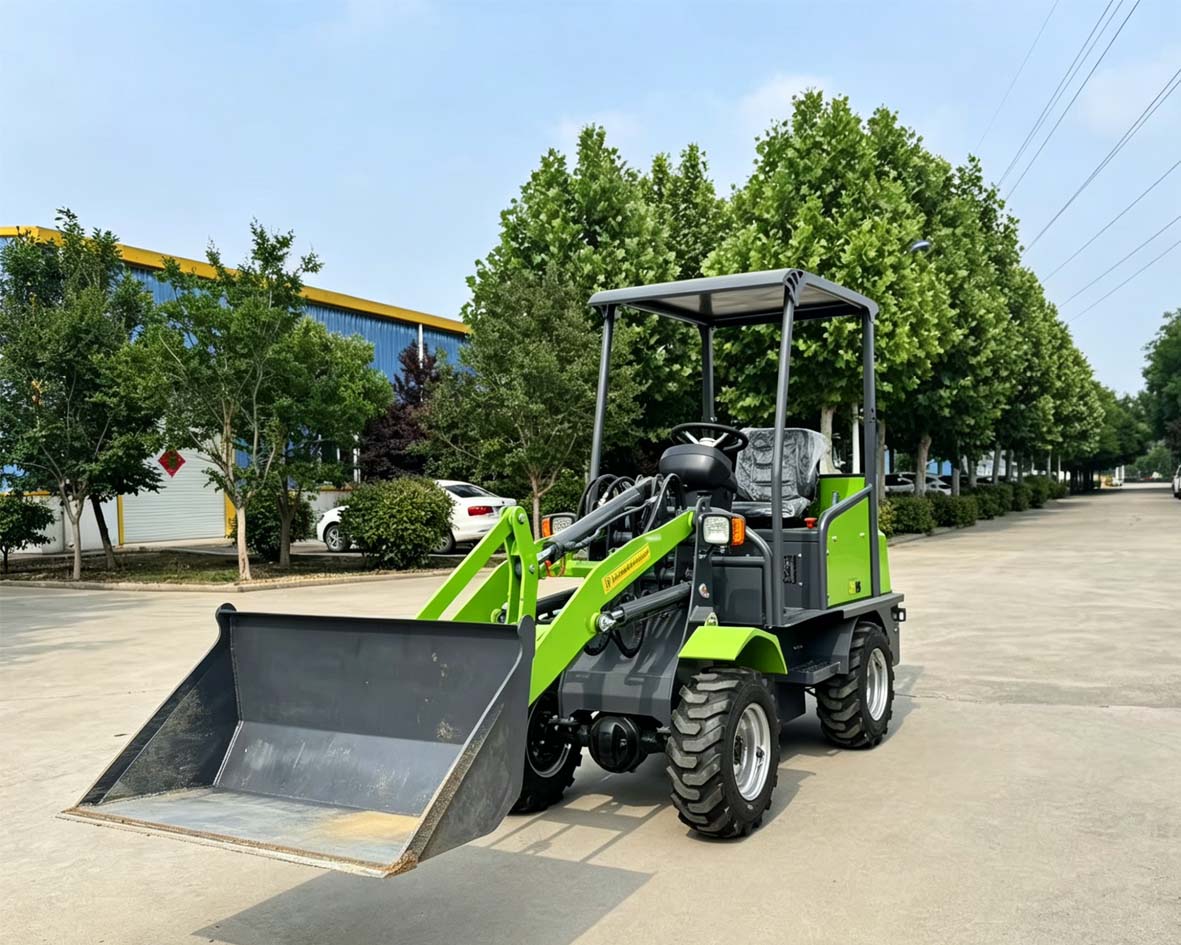

XHD500A: 1050mm Narrow Electric Loader for Tight Spaces

I. The Ultimate Physical Compression: The "Golden Width" of 1050mm

In the world of construction equipment, dimensions often dictate a machine's viability. The core specification of the XHD500A is not its 500kg payload, but its ultra-narrow body width of 1050mm (1.05 meters). This figure is not arbitrary; it is the "golden width" derived from deep research into global building codes and operational scenarios.

Why 1050mm?

In Europe, whether in British Victorian terraced houses or traditional Dutch row houses, side passages typically range from 1000mm to 1200mm. Standard garden gates are usually between 900mm and 1100mm. Conventional wheel loaders, even the most compact models, often exceed 1400mm in width, making them physically incapable of entering these areas. The XHD500A’s 1050mm width allows it to glide through private gardens, narrow barn aisles, and even fit into old-service elevators for vertical transport. With overall dimensions of 3260mm (L) x 1050mm (W) x 2130mm (H) and a 1450mm wheelbase, it balances stability with an extremely tight turning radius, making it perfect for navigating the complex, maze-like urban fabric.

Competitive Comparison:

Some so-called "narrow-body" electric loaders on the market achieve their width by compromising tire size or removing counterweights, leading to poor stability and a high risk of tipping during lifting operations. In contrast, the XHD500A features a manganese steel welded integral frame with an operating weight of 1240kg. Its low center of gravity, combined with a wide track (using 23 * 8.5-12 tires), ensures lateral stability even when turning sharply with a full 500kg load. This design philosophy of "narrow envelope, stable chassis" is a core competitive advantage distinguishing Xinghang from low-cost assemblers.

II. Generational Difference in Powertrain: Dual 2.5KW Motors vs. Single 4KW Motor

Astute buyers browsing Xinghang’s catalog will notice a significant difference between the XHD500 and the XHD500A within the 0.5-ton class. The XHD500 utilizes a single 4KW drive motor, whereas the XHD500A employs a 2.5KW x 2 dual-motor drive system. This distinction defines their respective applications.

Control Logic: Single vs. Dual Motor:

A single motor (XHD500) typically drives both wheels via chains or half-shafts, causing tire scrub during turns, rapid tire wear, and potential fishtailing on wet surfaces.

The XHD500A achieves true "electronic differential." Independent 2.5KW motors drive the left and right wheels, with the controller algorithm automatically adjusting rotational speeds during turns. This yields three advantages:

1. Precision Control: Dual motors offer instantaneous response with no mechanical lag, ideal for high-precision tasks like indoor renovation waste removal where frequent forward/reverse movements occur in tight spaces.

2. Superior Traction: If one wheel slips, the other maintains driving force. Coupled with full-time 4WD, its anti-slip capability surpasses single-motor variants.

3. Reduced Maintenance: Elimination of complex differentials and half-shafts reduces failure points. Even if one motor fails, the other can drive the machine to safety, avoiding total immobilization.

Robust Hydraulic Support:

Beyond propulsion, the XHD500A features a dedicated 3KW flat-wire hydraulic motor. This motor drives the hydraulic pump independently for lifting and tipping. With a lift time of just 7 seconds and a dump time of 3 seconds, this "split-circuit" design ensures that hydraulic functions do not sap power from the drive motors—avoiding the common pitfall of cheaper electric loaders losing traction while lifting.

III. The Energy Revolution: Coexistence of Lead-Acid Pragmatism and Lithium-Ion Futurism

Another highlight of the XHD500A is its flexible power configuration, catering to diverse budgets and operational needs across different regions.

1. Lead-Acid Version (60V/160Ah): The Pragmatic Entry Point

For budget-conscious clients or those with shorter daily operations (under 4-6 hours), such as small farms or occasional-rental companies, the lead-acid version is ideal. While energy density is lower than lithium, the technology is mature, upfront costs are lower, and service networks are ubiquitous globally. For users familiar with electric forklifts or golf carts, maintaining lead-acid batteries (watering, equalizing charges) is second nature. With an 8-hour recharge time, it fits perfectly into a "work by day, charge by night" single-shift schedule.

2. LiFePO4 Version (64V/150Ah or 180Ah): The Efficient, Eco-Friendly Upgrade

For markets like the EU and North America with strict carbon mandates, or for operations requiring 6-8 hours of continuous work, the 64V Lithium Iron Phosphate (LiFePO4) version is the logical choice. LiFePO4 offers three core advantages:

• Extended Runtime: The 180Ah variant reliably operates for 6-8 hours, covering a full workday without mid-shift charging.

• Longevity: Cycle life exceeds 2000 charges—3 to 5 times that of lead-acid—resulting in a lower Total Cost of Ownership (TCO).

• Zero Maintenance: No watering, no acid fumes, making it perfect for indoor environmental compliance.

• Intelligent Management: An integrated BMS (Battery Management System) monitors voltage, current, and temperature to prevent over-charge/discharge, extending battery life and relaying data via the CAN bus to the dashboard.

IV. Industrial Aesthetics and Ergonomics: More Than Just Cold Steel

The design team behind the XHD500A clearly prioritized Human-Machine Interaction (HMI). Unlike traditionally rough agricultural machinery, the XHD500A exudes modern industrial refinement.

Integrated Electro-Hydraulic Joystick:

Traditional machinery is often cluttered with levers and switches. The XHD500A features an integrated electro-hydraulic multifunction joystick. The operator's right hand never leaves the grip while controlling direction (forward/reverse), speed (high/low), boom lift/lower, and bucket tilt. This "one-hand command" design drastically reduces operator fatigue, enabling even female operators or older workers to master the machine quickly. This isn't just about convenience; it's a safety feature—operators won't panic searching for the right lever in emergencies.

Intelligent LCD Instrument Cluster:

Front and center is a large LCD digital display utilizing CAN-bus communication.

• Real-Time Data: Precisely displays voltage, State of Charge (SOC), speed, and hydraulic pump RPM.

• Diagnostics: Detects anomalies (e.g., motor overheating, brake faults) and displays fault codes with bilingual (CN/EN) prompts for rapid troubleshooting.

• Safety Alerts: Audible alarms warn of incorrect operations, such as attempting to drive with the parking brake engaged, preventing mechanical damage.

Full Hydraulic Steering System:

Despite its compact size, the XHD500A boasts a full hydraulic steering system. Unlike mechanical linkages, hydraulic steering is feather-light. Even during pivot turns or under heavy loads, the steering wheel remains easy to turn, significantly reducing operator fatigue—a critical advantage when jockeying for position in confined spaces.

V. Versatility: Evolution from Bucket to "Universal Hand"

The standard configuration includes a 1050mm wide, 680mm deep manganese steel bucket. However, this is merely the starting point. Thanks to its robust hydraulic system and sturdy chassis, the XHD500A easily adapts to various attachments, transforming into a multi-functional workhorse.

Common Attachments:

• Fork Attachment: Swap the bucket for forks, and it becomes a nimble electric forklift. Its narrow profile allows it to navigate tight warehouse aisles, handling palletized goods where standard wide forklifts cannot go.

• Grapple / Grass Fork: For farms and ranches, a grapple attachment easily handles hay bales, branches, sugarcane, and other irregular materials, streamlining yard cleanup.

• Sweeper / Snow Blower: In municipal services, a sweeper attachment clears leaves from sidewalks, while a snow blade or brush handles winter snow removal. Its zero-emission operation allows for safe use in indoor parking garages or stadiums without carbon monoxide poisoning risks.

This versatility expands the XHD500A's utility far beyond "earthmoving," turning it into a logistics handler and agricultural assistant, further amortizing the owner's capital expenditure.

VI. Compliance Certifications: Passport to the Global Market

For international buyers, impressive specs are useless without regulatory compliance. Jining Xinghang Machinery, an ISO9001 certified enterprise and recipient of the "Top 10 Chinese Small Construction Machinery Brands" award, understands this well.

The XHD500A is manufactured to international standards, holding CE Certification and complying with EU Stage V Emission Standards (electric vehicles inherently comply). This ensures smooth customs clearance and adherence to environmental regulations in key markets like Europe, Australia, and North America. Furthermore, the company's AAA Credit Enterprise rating provides financial security and after-sales credibility for overseas partners.

VII. Conclusion: Who Should Buy the XHD500A?

In summary, the XHD500A is not designed to replace heavy loaders; it exists to solve problems where "large equipment won't fit, manual labor is too taxing, and diesel is prohibited."

Ideal User Profiles:

1. Municipal Maintenance Departments: Requiring quiet, fume-free operation for road repairs or waste removal in residential areas during early mornings or late evenings.

2. Landscaping Companies: Needing to transport soil and trees within parks or estates with pristine lawns, without causing surface damage.

3. Livestock Farms: Cleaning manure in narrow poultry houses or barns where diesel exhaust causes respiratory issues in animals.

4. Indoor Demolition & Renovation Firms: Operating in shopping malls, basements, or factories with poor ventilation.

5. Equipment Rental Companies: Seeking a high-turnover, low-maintenance "hero" machine with broad market appeal.
