Introduction: Why the Right Compact Skid Steer Changes Your Job Site Efficiency
In the world of modern construction, landscaping, and agricultural operations, bigger isn't always better. Many high-value jobs—such as interior demolition, working inside barns, navigating narrow city sidewalks, or trenching along foundation walls—simply cannot accommodate a full-size skid steer or wheel loader.

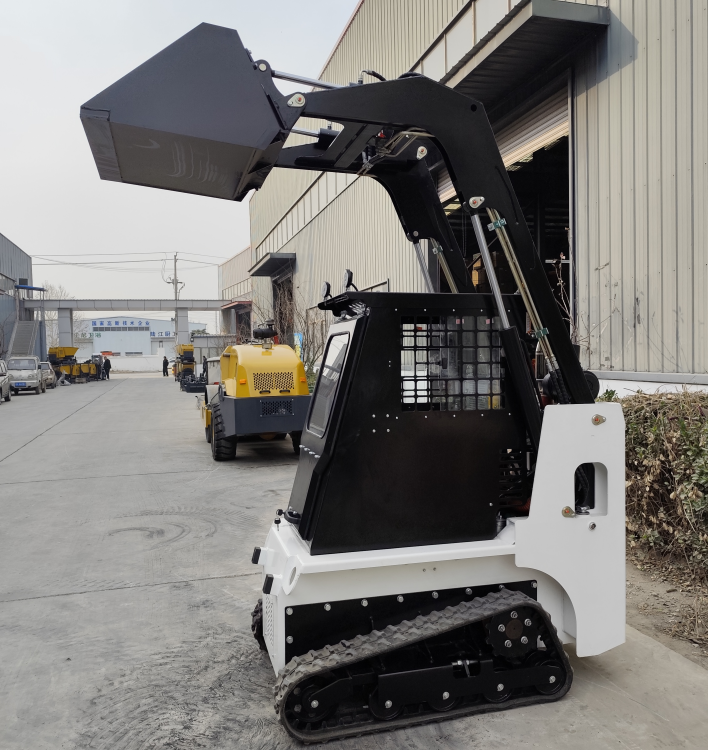

This is where the Xinghang XHS25 Compact Skid Steer Loader (Mini Skid Steer) proves its worth. Engineered with a machine width of just 1000mm (39.4"), powered by a reliable Kubota D1105 or Perkins 403J11 25HP diesel engine, and delivering a 500kg (1,100 lbs) rated operating capacity, the XHS25 brings big-machine hydraulic performance into spaces where traditional equipment can't go.
In this article, we'll walk through the XHS25's specifications, design advantages, multi-attachment versatility, typical applications, and why it's becoming a top choice for equipment importers, rental houses, and contractors across Europe, North America, Australia, and Southeast Asia.
1. XHS25 Model Overview & Key Specifications
The Xinghang XHS25 belongs to the new generation of compact walk-behind / ride-on style mini skid steers built for global markets. It complies with CE certification and EPA / Euro V emission standards.
Specification | XHS25 Compact Skid Steer Loader |
|---|---|
Engine Option | Kubota D1105 / Perkins 403J11 (25HP @ 3000rpm) |
Emission Standard | EPA Tier 4 / Euro V Compliant |
Rated Operating Capacity (ROC) | 500 kg (1,100 lbs) |
Bucket Capacity (Standard) | 0.25 m3 |
Machine Width | 1000 mm (with standard bucket: 900 mm bucket width) |
Machine Length (w/ bucket) | 2650 mm |
Machine Height (to top of ROPS) | 1950 mm |
Max. Lifting Height (Pivot Pin) | 2400 mm |
Dump Height (at 45°) | 1890 mm |
Hydraulic System Pressure | 25 MPa |
Standard Flow / Aux Flow | 33 L/min / 75 L/min (optional high flow) |
Travel Speed | 0–9 km/h |
Turning Radius (inside) | Zero – True Skid Steer Turning |
Operating Weight | Approx. 1550 kg (wheel version) / 1640 kg (track version) |
Tires / Tracks | 23×8.5-15 pneumatic or rubber track option |
Quick Coupler | Universal skid steer plate (Bobcat? style compatible) |
Certification | CE, ISO 9001 |
2. Why Choose the XHS25? – Competitive Advantages Explained
2.1 Japanese Kubota / UK Perkins Premium Powertrain
The heart of the XHS25 is its industrial-grade diesel engine. The Kubota D1105 is globally recognized for:
? Low fuel consumption & stable idling
? Easy global parts availability
? Proven durability in compact construction machinery
For EU customers requiring Euro V compliance, the Perkins 403J11 option provides identical performance with certified low-emission operation.
? This engine choice directly addresses overseas buyers' #1 concern: "Will I be able to service it locally?"
2.2 Ultra-Compact 1000mm Width – Go Where Others Can't
At only 1 meter wide, the XHS25 easily passes through:
? Standard doorways & freight elevators
? Greenhouse rows & livestock barn aisles
? Narrow urban alleyways & basement ramps
Despite its small footprint, the 500kg ROC and 2400mm hinge pin height allow it to load standard dump trucks and high-sided hoppers—something most mini loaders in this size class struggle with.
2.3 True Zero-Turn Skid Steer Maneuverability
Unlike articulated mini loaders, the XHS25 uses independent left/right hydraulic drive motors, enabling:
? Pivot turn on its own axis (zero turning radius)
? Precise positioning when backfilling trenches or working next to walls
? Superior control in confined spaces
2.4 Heavy-Duty Hydraulic System for Attachments
Equipped with a 25MPa hydraulic system, 33L/min standard auxiliary flow (high flow optional), the XHS25 powers a wide range of hydraulic tools:
? Hydraulic breaker / hammer
? Auger (earth drill)
? Trencher
? Brush cutter / flail mower
? Pallet forks
? Grapple bucket / 4-in-1 bucket
The universal quick-attach coupler (Bobcat? style) means you can use locally sourced attachments—critical for rental fleets and independent contractors.
2.5 Operator-Friendly Ergonomics
? ROPS/FOPS canopy (optional enclosed cab)
? Intuitive pilot-control joysticks
? Clear visibility to bucket edges and tires
? Easy-open rear hood for daily checks (battery, radiator, hydraulic sight glass)
3. Multi-Attachment Versatility – One Machine, Dozens of Jobs
A skid steer's value is multiplied by its ability to switch tasks. The XHS25 accepts 20+ common skid steer attachments:
Attachment | Typical Use Case |
|---|---|
General Purpose Bucket (0.25m3) | Snow removal, loose material loading |
Pallet Forks (1000–1200mm tines) | Lumber yard, block handling, warehouse |
Hydraulic Breaker (Hammer) | Concrete demolition, rock breaking |
Auger (100–600mm bits) | Fence post holes, tree planting, sign installation |
Trencher (standard/high-flow) | Irrigation lines, electrical conduit burying |
4-in-1 Bucket / Clamshell Bucket | Grabbing brush, scraping, dumping |
Rubber Track Undercarriage (optional swap) | Soft lawn protection, muddy site |
4. Typical Application Scenarios
Construction & Demolition
? Interior strip-out (drywall, tile removal) – zero exhaust fumes with proper ventilation, narrow access OK
? Loading debris into skip bins in tight urban lots
? Trench backing-fill with precision
?? Landscaping & Grounds Maintenance
? Auger-drilling for fence posts, trees, retaining wall anchors
? Hauling mulch, soil, pavers with forks
? Trenching for irrigation/sprinkler systems
Agriculture & Equine
? Cleaning stalls / barn alleys (low profile, non-intrusive)
? Moving hay bales with fork or bale spear (optional)
? Feed mixing / minor grading
Municipal / Public Works
? Park pathway repair (rubber tracks protect pavement)
? Snow removal in pedestrian zones (narrow walkways)
5. Comparison: XHS25 vs Generic Chinese Mini Skid Steers
Feature | Xinghang XHS25 | Typical Budget Mini Skid |
|---|---|---|
Engine | Kubota / Perkins (brand-name, EPA/Euro V) | Unknown clone engine, often no cert |
Hydraulic Pump | Brand-name gear/vane pump, 25MPa rated | Lower pressure, cheaper pump |
Width | True 1000mm compact | Often wider or poorly balanced |
Attachment Plate | Universal Bobcat-style | Proprietary / non-standard |
QC & Export Packing | Steel frame + foam + strap / fumigation-free crate | Basic wooden box |
After-Sales Support | Spare parts list, video guidance, 1-year warranty | Unclear / none |
6. Export Readiness & Dealer Support
Xinghang Machinery exports to 30+ countries. For XHS25 distributors and importers we provide:
? ? CE Certificate & Conformity Declaration
? ? Detailed English Operation & Parts Manual
? ? Container Load Calculation: Typically 8–12 units per 20GP (depending on packaging method)
? ? Spare parts package recommendation (filters, seals, hoses)
? ? Customized branding / OEM badge support (MOQ applies)
? ? WhatsApp / email technical response within 24h
________________________________________
7. Frequently Asked Questions (FAQ)
Q: Is the XHS25 available with rubber tracks?
A: Yes. Both wheeled and tracked versions are available. Tracks are ideal for turf protection and soft ground.
Q: What is the lead time? A: Normally 15–25 working days after deposit confirmation, subject to engine brand stock status.
Q: Can I use my existing Bobcat? buckets and attachments?
A: Yes. The XHS25 uses a standard universal quick-attach plate compatible with most North American and European skid steer attachments.
Q: How is it shipped?
A: Usually in steel frame packing or fumigation-free wooden crate, well protected for ocean freight.
________________________________________
Conclusion – Compact Power, Global Reliability
The Xinghang XHS25 Compact Skid Steer Loader fills the gap between walk-behind mini loaders and full-size skid steers. With trusted Kubota / Perkins power, 500kg lifting ability, 1-meter width, and universal attachment compatibility, it's engineered for contractors who need to do more in less space.
Whether you're an equipment importer looking to expand your compact lineup, a rental house seeking a high-utilization machine, or a contractor upgrading your fleet—XHS25 delivers proven performance with export-backed support.
?? Contact Xinghang Machinery today for the latest EXW/FOB price, specification PDF, and container load plan.
Small Machine, Giant Power — Built for the World's Tightest Worksites.
