As global construction, agriculture, and municipal regulations tighten around non-road mobile machinery emissions, contractors are rapidly replacing small diesel loaders with battery-powered compact electric loaders. In greenhouses, livestock barns, underground passages, warehouses, and urban job sites, the drawbacks of diesel—exhaust fumes, high noise reaching 85–95 dB, and rising fuel and maintenance costs—have become deal-breakers.

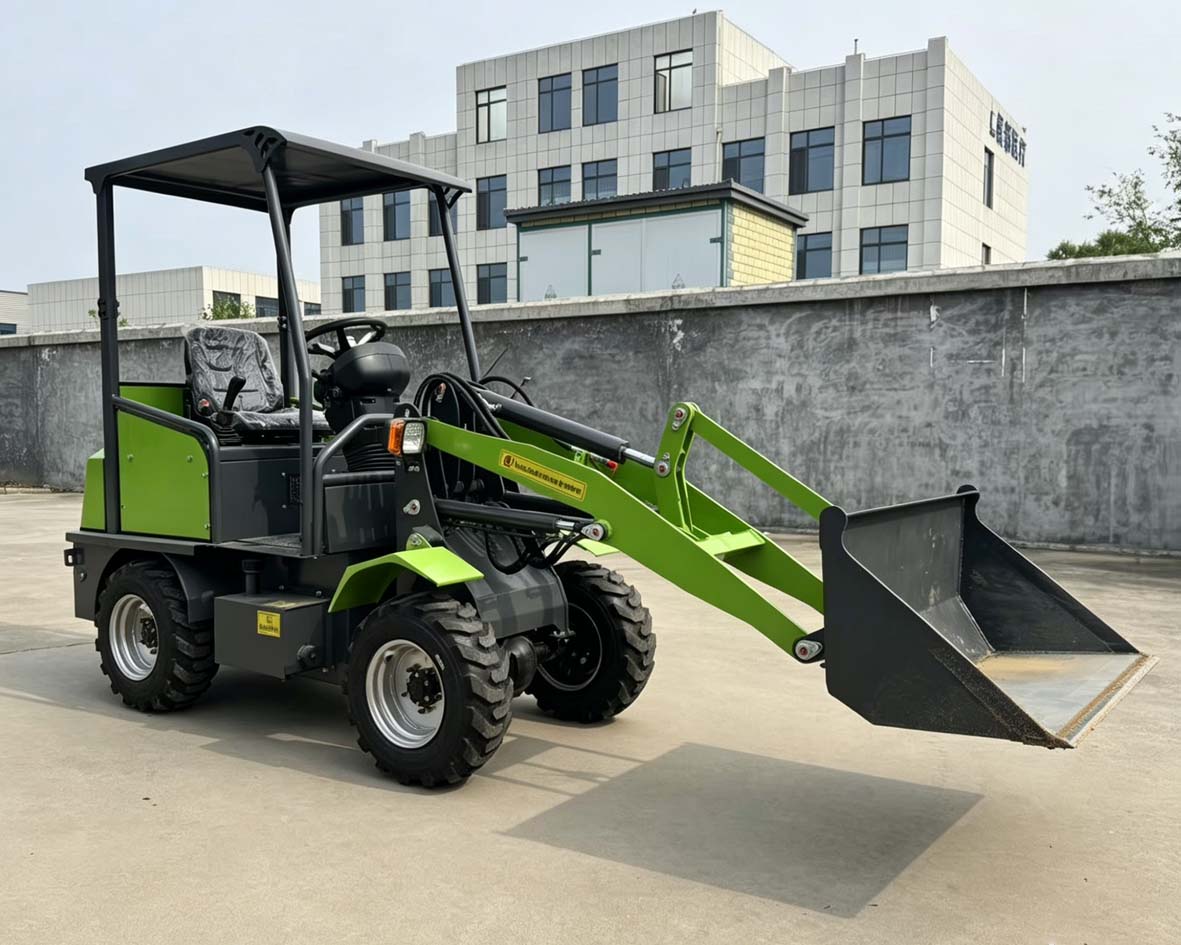

Jining Xinghang Machinery Manufacturing Co., Ltd. answers this shift with the XHD500A (Lead-Acid) and XHDL500A (Lithium-Ion) Mini Electric Wheel Loader. This 500kg-rated, 1.05m-wide, zero-emission articulated loader is built from high-strength manganese steel, equipped with dual-drive electric motors, a quick-attach interface, and an optional LiFePO4 battery pack for all-day runtime.
This guide provides a complete technical breakdown, specification comparison, feature analysis, and application overview to help international dealers, rental fleets, and end-users evaluate this machine confidently.
Chapter 1: Product Overview: XHD500A vs. XHDL500A
Both models share the same robust chassis, articulation geometry, hydraulic system, and control layout. The key difference lies in the energy storage system.
Item | XHD500A (Economy) | XHDL500A (Premium / Export) |
|---|---|---|
Battery Type | 60V 160Ah Lead-Acid | 60V 160Ah / 60V 180Ah LiFePO4 |
Runtime (continuous) | 4–6 hours | 4–6h (160Ah) / 8–10h (280Ah) |
Charge Time | ~8 h (standard charger) | ~8.5h (280Ah single charge) / 4.5h dual-charger opt. |
Cycle Life | ~500 cycles | 2000–3000+ cycles |
Maintenance | Requires periodic watering | Maintenance-free, BMS-protected |
Best For | Light seasonal use, budget entry | Daily pro use, export markets, ESG-compliant fleets |
Recommendation: For commercial operations, rental fleets, or EU/NA municipal contracts, choose the XHDL500A with 64V/280Ah LiFePO4 for the lowest cost-per-hour and zero daily maintenance.
Chapter 2: Complete Technical Specifications
2.1 Dimension & Performance Parameters
The XHD500A/XHDL500A is engineered for narrow spaces where larger machines cannot operate.
Parameter | Value |
|---|---|
Model | XHD500A / XHDL500A |
Rated Load (Bucket) | 500 kg |
Operating Weight | 1090 kg |
Overall Dimensions (L×W×H) | 3350 × 1050 × 1500 mm |
Wheelbase | 1320 mm |
Bucket Width | 1200 mm (Std. Manganese Steel Bucket) |
Bucket Inner Size | 1100 × 620 mm |
Max. Lifting Height (Pivot Pin) | 2580 mm |
Dump Height (at 45° discharge) | 1900 mm |
Raise Time (Full Load) | ≈5.5 s |
Lower / Dump Time | ≈3 s |
Min. Ground Clearance | ≈180–200 mm |
Turning Mode | Articulated Frame Steering |
Key Advantage: At only 1.05 meters wide, this loader passes through standard barn doors, greenhouse aisles, elevator lobbies, and basement passages with ease.
2.2 Powertrain & Electrical System
The electrical architecture is designed for efficiency and reliability, separating power for movement and hydraulics.
Item | Specification |
|---|---|
Drive System | 4WD – Dual Independent Drive Motors (Rear Axles) |
Drive Motor Power | 2 × 2.5 kW = 5.0 kW Total (Brushless/PMSM) |
Hydraulic Pump Motor | 3 kW (Separate circuit for lift/tilt) |
Battery Options | 60V 160Ah Lead-Acid / 60V 160Ah / 64V 280Ah LiFePO4 |
Top Speed – Low Range | 0–9 km/h (Precision Mode) |
Top Speed – High Range | 0–17 km/h (Transport Mode) |
Tires | 23 × 8.5 – 12 (Non-marking optional) |
Controller | Intelligent MOSFET/IGBT with full protection |
Why Dual 2.5kW Drive Motors?
Each rear wheel is independently driven by its own motor through a reduction gearbox. This delivers true 4WD traction without a complex differential, providing better hill-climbing, superior muddy-surface grip, and a simpler mechanical layout that results in fewer breakdowns compared to diesel transmissions.
2.3 Operator Interface & Controls
Operator comfort and ease of use are prioritized with intuitive controls and clear instrumentation.
Feature | Description |
|---|---|
Control Handle | Electro-hydraulic integrated joystick for F/R direction, speed, boom, and bucket |
Instrument Panel | Digital LCD dashboard (CAN-bus) displaying SOC, voltage, speed, and fault codes |
Steering | Full hydraulic articulated steering for low effort and tight turns |
Lighting | LED working lights optional for night operation |
Parking Brake | Mechanical drum / parking lock |
Chapter 3: Key Product Advantages
3.1 Zero Emissions & Low Noise
The loader produces zero tailpipe emissions, making it safe for enclosed environments like livestock barns and food processing plants. Operating at approximately 65 dB, it is quiet enough for night work near hospitals, schools, and residential zones.
3.2 High-Strength Manganese Steel Chassis
The frame, lift arms, and bucket are fabricated from high-tensile manganese steel. This offers superior resistance to impact and fatigue, ensuring a long service life under abrasive loads such as sand, gravel, and demolition debris.
3.3 Dedicated Drive & Hydraulic Motors
Unlike cheaper systems that share power, the Xinghang loader uses separate motors for driving and hydraulics. This ensures consistent hydraulic speed and power regardless of ground speed, which is critical for production loading.
3.4 Quick-Coupler & Multi-Function Implements
The standard 1200mm bucket can be swapped in under a minute using the hydraulic quick-hitch. Optional attachments include pallet forks, grapple buckets, 4-in-1 multi-purpose buckets, snow blades, rotary sweepers, augers, trenchers, and lawn mowers. This transforms the loader into a versatile utility platform.
3.5 Lower Total Cost of Ownership (TCO)
While the initial investment is higher than a basic diesel model, the operational savings are significant. Electricity costs are roughly one-third to one-fifth of diesel fuel. Maintenance is reduced to greasing and brake checks, eliminating oil changes, fuel filters, and injector services. Most users recover the price premium within 18 to 24 months of regular use.
Chapter 4: Ideal Application Scenarios
Sector | Why It Excels |
|---|---|
Dairy / Poultry / Swine Farms | No exhaust fumes in barns; low noise reduces animal stress; handles feed and manure efficiently. |
Greenhouses & Nurseries | 1.05m width fits narrow aisles; no fumes protects plants; precise control avoids crop damage. |
Warehouses & Indoor Sites | Safe air quality; non-marking tires protect finished floors; maneuverable in tight racking aisles. |
Municipal & Parks Departments | Quiet operation allows for night or weekend work; zero emissions in pedestrian zones. |
Interior Renovation / Basements | Moves debris and materials without introducing diesel odors into occupied buildings. |
Chapter 5: Export Readiness & Support
Jining Xinghang Machinery serves customers across Europe, North America, South America, Southeast Asia, the Middle East, and Oceania.
We provide export-grade anti-rust painting, multi-language manuals (English, Spanish, French, Russian, Arabic), spare parts kits, container loading optimization (20GP/40HQ), and OEM customization for colors and logos. Each machine undergoes pre-shipment inspection with photos and videos provided.
Chapter 6: Frequently Asked Questions (FAQ)
Q: Can it handle wet sand or gravel loading?
A: Yes. With a 500kg rated load and 1090kg operating weight, it provides adequate counterbalance for typical landscaping and farm material handling. It is designed as a compact loader for its class.
Q: How cold can the LiFePO4 version operate?
A: With a quality Battery Management System (BMS), the LiFePO4 battery operates reliably down to approximately -20°C. For charging below 0°C, battery warm-up functions or indoor charging are recommended to preserve cell longevity.
Q: Is the lead-acid version a good choice?
A: For very light, seasonal use, such as a farm using the loader a few hours per week in warm months, the lead-acid version offers a lower upfront cost. For daily commercial use, the LiFePO4 version provides a much better return on investment.
Q: Does it arrive fully assembled?
A: To optimize shipping, the bucket is usually removed and the battery disconnected. Reassembly is straightforward with the provided illustrated guide and typically takes 30 to 60 minutes.
Conclusion: Compact, Clean, and Capable
The Xinghang XHD500A/XHDL500A Mini Electric Wheel Loader combines a rugged manganese-steel chassis, true dual-motor 4WD, dedicated hydraulic power, and a choice of battery systems. It is a zero-emission, low-TCO alternative to small diesel loaders, backed by an experienced manufacturer with global export capabilities.
Whether you need a reliable machine for a dairy farm, a municipal works yard, or a rental fleet, the XHDL500A delivers the performance and cleanliness required for modern operations.
