XHD50 Mini Electric Wheel Loader Details

Product Introduction

　　I: Features of the Micro Electric Loader:

　　1: Zero emissions and low noise.

　　2: Compact body design, ideal for operation in confined spaces.

　　3: The entire vehicle chassis is constructed from high-strength manganese steel and paired with a 4kW flat-wire motor; it features full-time four-wheel drive, delivering powerful, efficient, and reliable performance.

　　4: The lifting system utilizes a 3kW flat-wire motor and a low-noise gear pump.

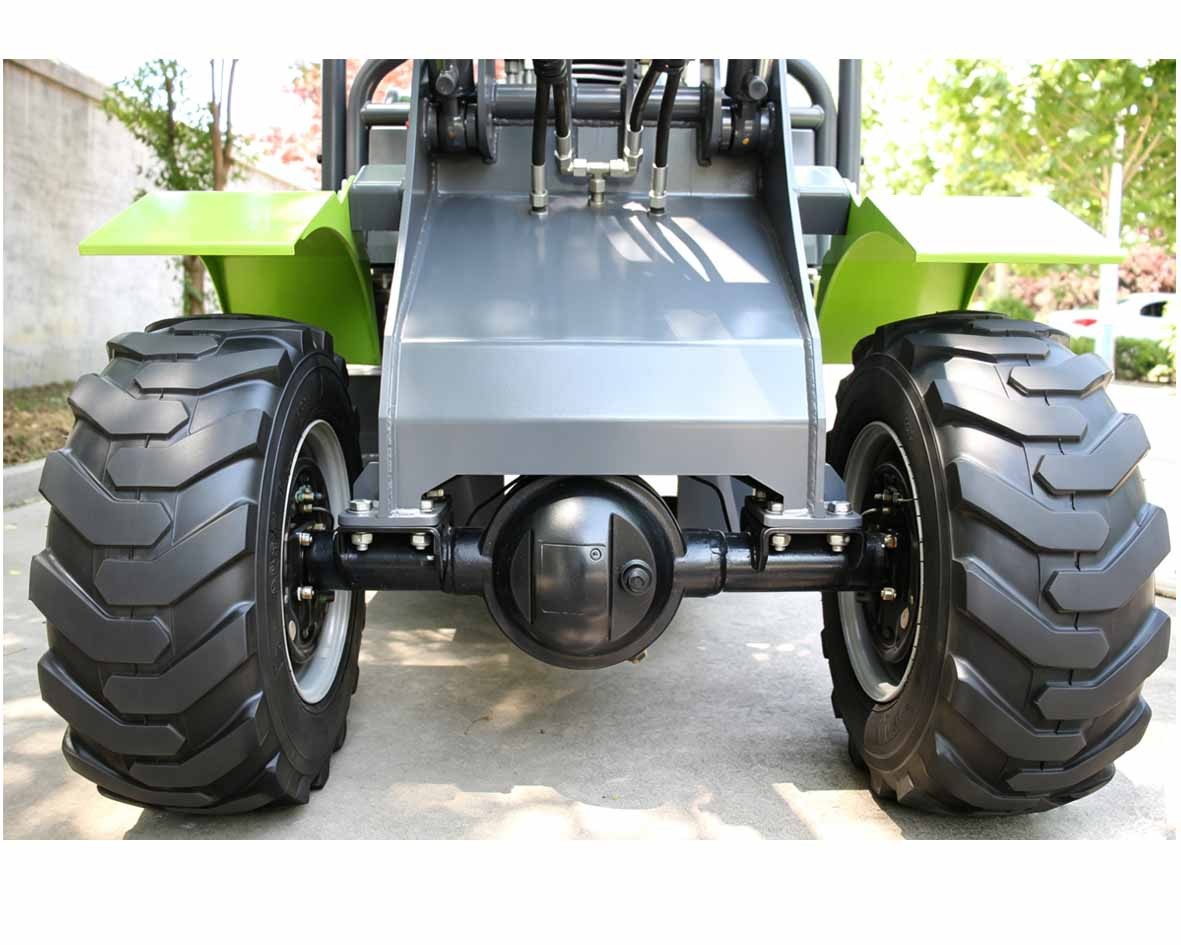

　　5: The axles feature a fully suspended, heavy-duty design, ensuring high operator comfort and exceptional load-bearing capacity.

　II: Advantages of the Flat-Wire Motor:

　　1: Employs flat copper wire winding technology, resulting in a higher slot fill factor and a significant improvement in power efficiency.

　　2: Offers excellent heat dissipation and low temperature rise, effectively resolving motor overheating issues under high-load operating conditions.

　　3: Compact in size and lightweight, supporting the overall lightweight design of the vehicle.

　　4: Generates lower noise levels and delivers reliable performance.

　　5: Features a long service life and low maintenance costs.

　 III: The controller is equipped with an automatic temperature control and heat dissipation function.

　　IV: Battery: 60V/160AH lead-acid battery; continuous operating time on a full charge: 4–6 hours.

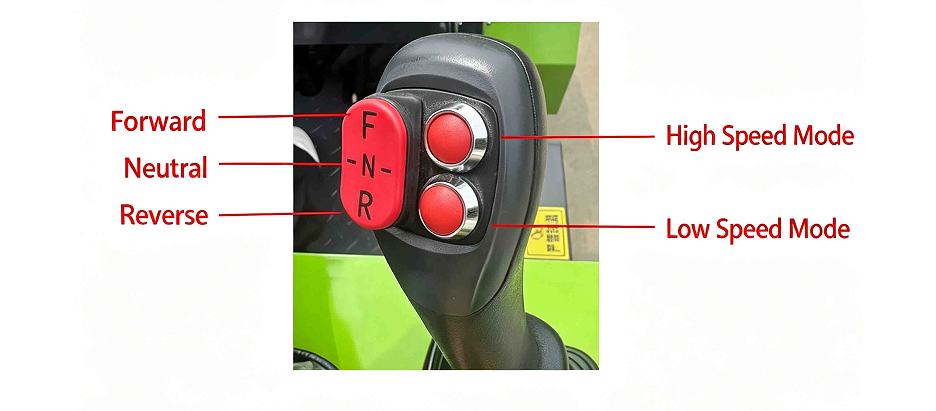

　　V: The control handle features an integrated electronic design, combining forward/reverse shifting, high/low-speed switching, and lifting/bucket operations into a single unit; this ensures convenient and intuitive operation, significantly boosting work efficiency.

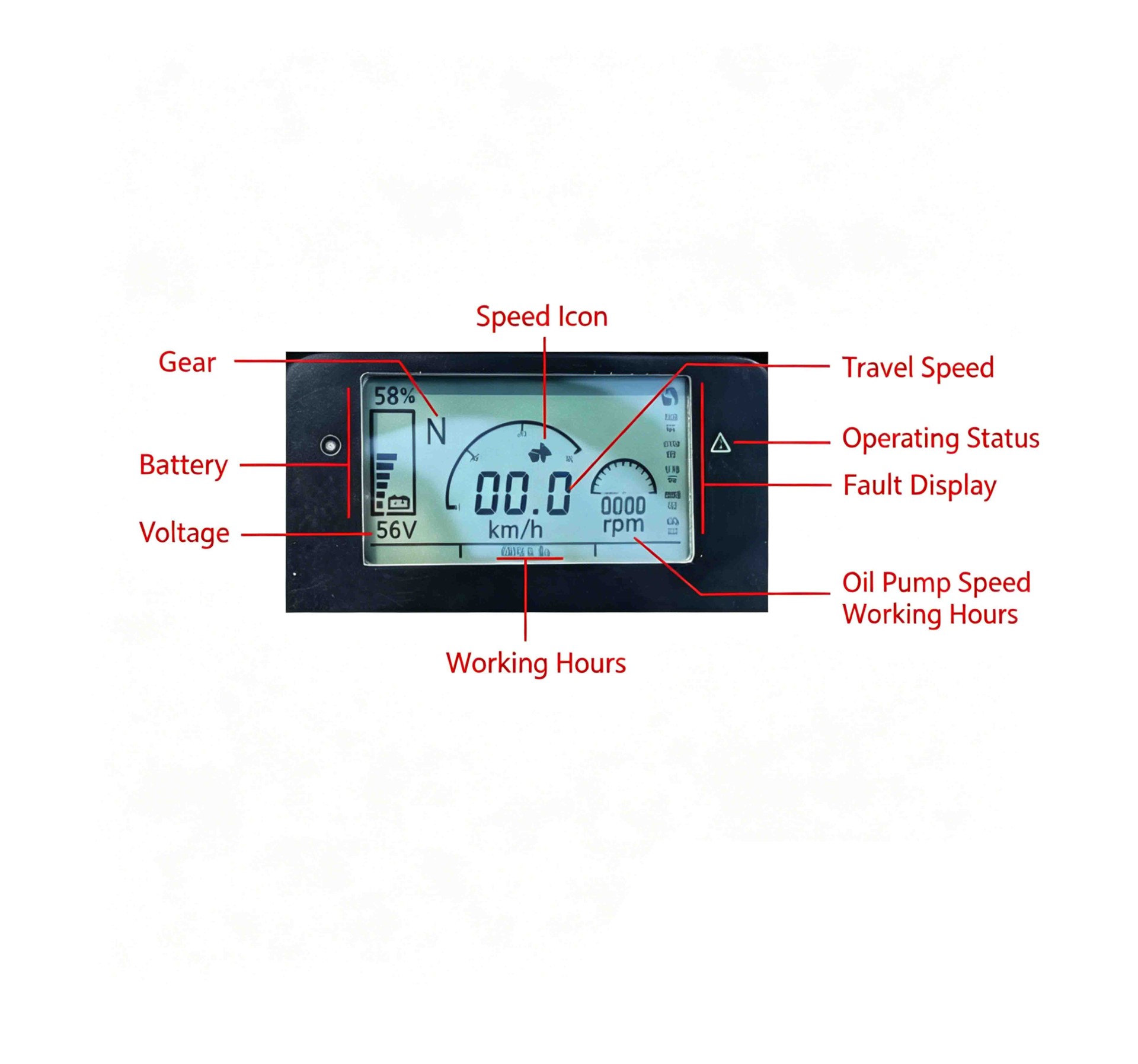

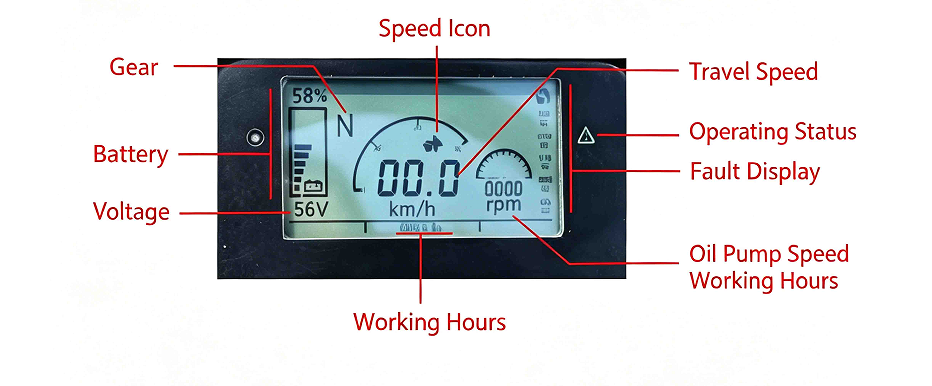

　　VI: LCD Instrument Display:

　　1: The vehicle utilizes CAN bus communication and a digital instrument cluster to provide real-time, precise readouts of voltage, battery level, travel speed, hydraulic pump speed, and other key parameters.

　　2: Includes warning prompts for operational errors and displays diagnostic fault codes.

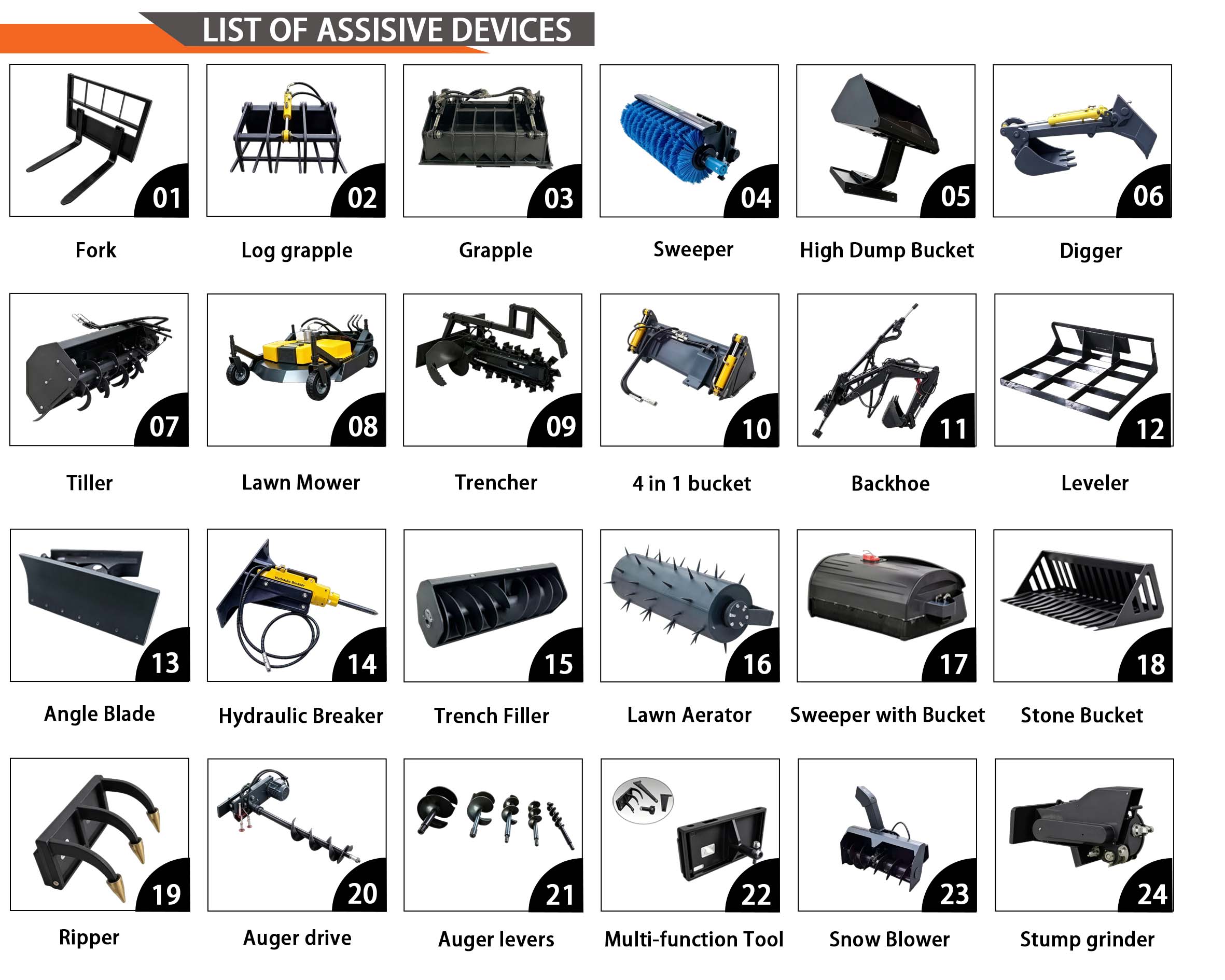

　　VII: Supports the interchangeability of various multifunctional attachments, enabling a single machine to serve multiple purposes and adapt to diverse operating scenarios. Optional attachments—such as grapples, forks, and more—can be selected to suit specific job requirements.

Product Parameter

　　Technical Parameters (Lead-Acid)
