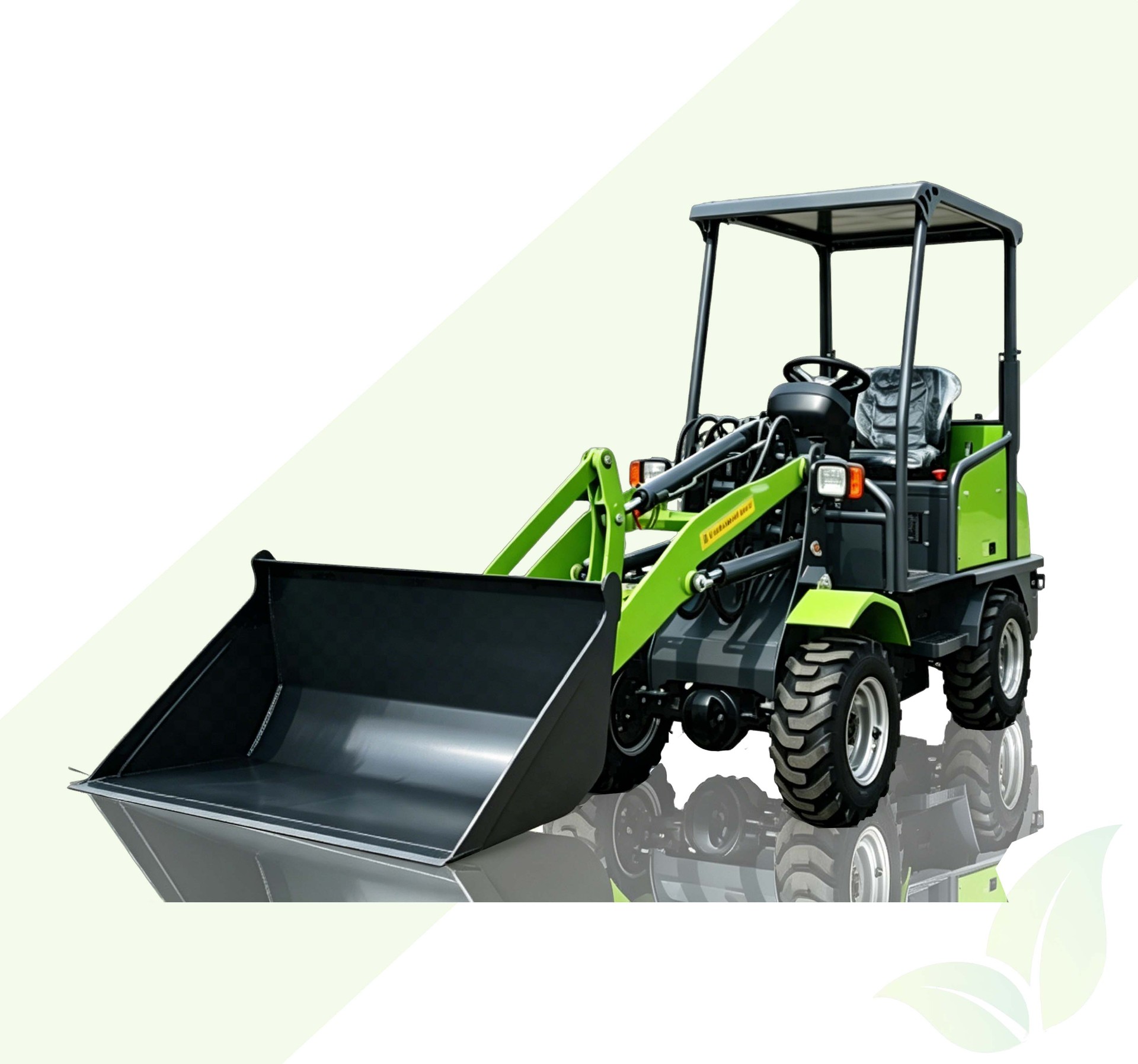

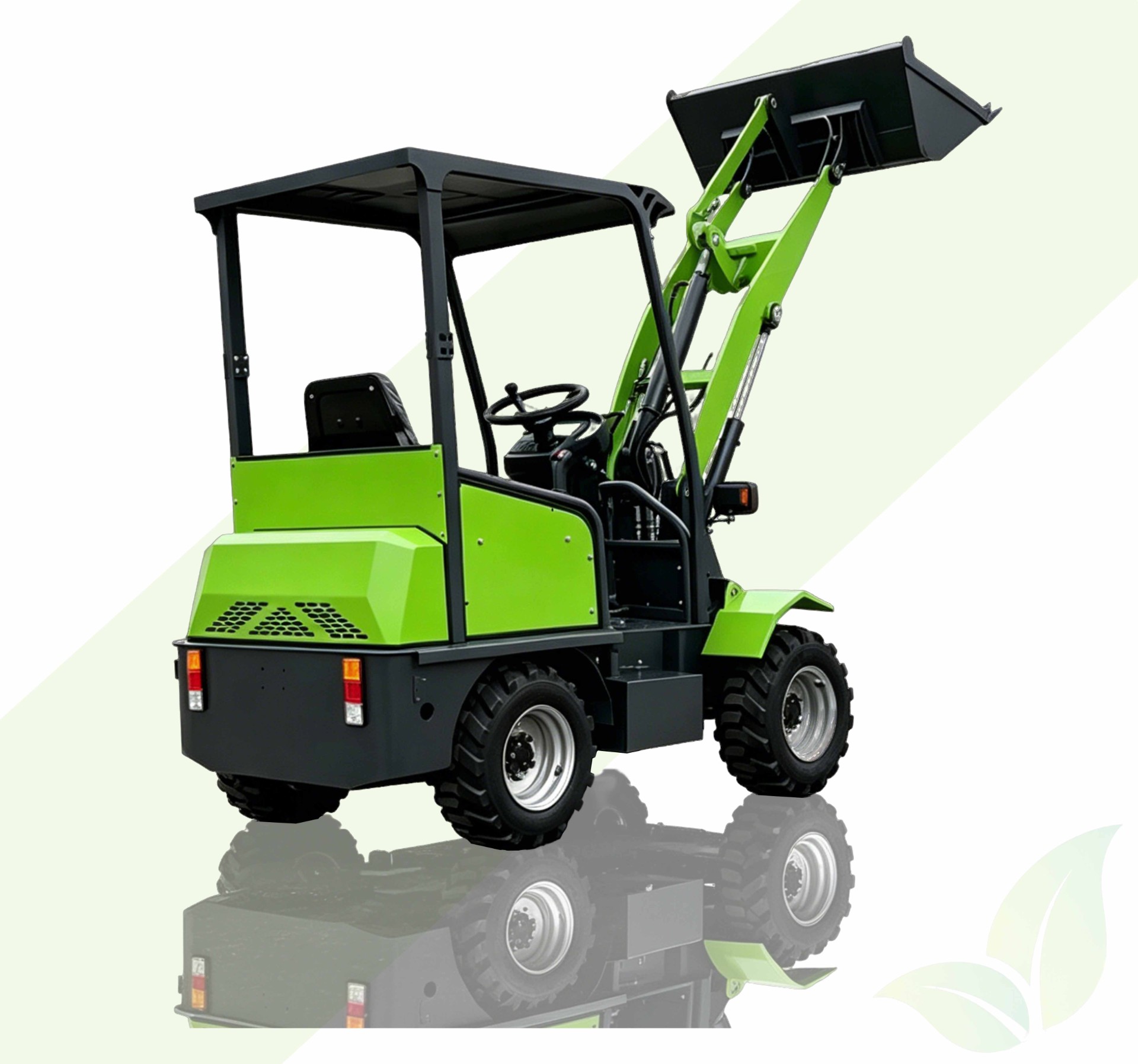

XHD50A Small Electric Wheel Loader

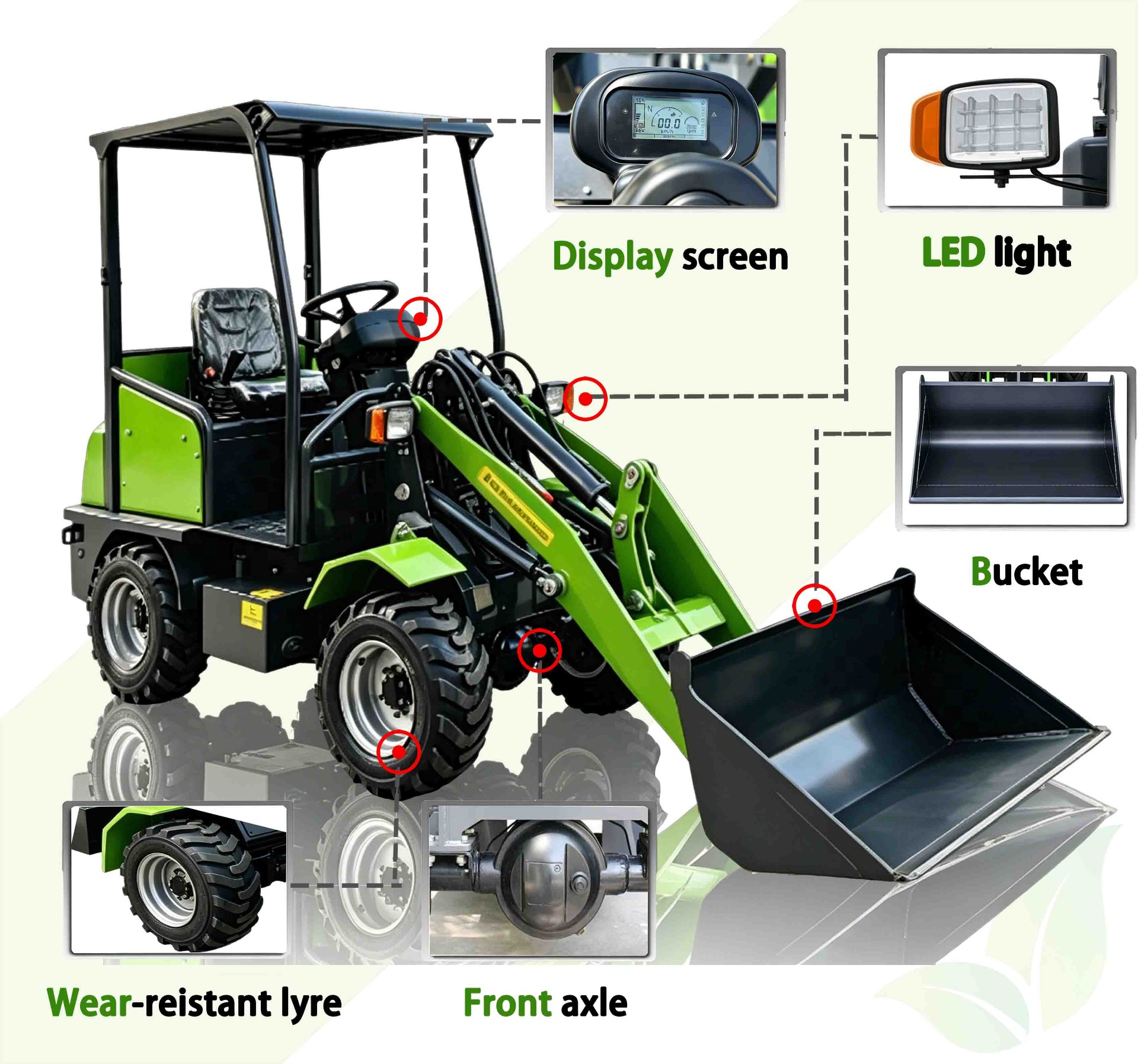

1. Product Overview

　　The XHDL50A mini electric loader is specifically designed for efficient operation within confined spaces. This model combines a robust, high-strength manganese steel frame with advanced flat-wire motor technology, delivering not only powerful performance but also zero-emission and low-noise operation. It serves as an ideal solution for a wide range of applications, including indoor construction, municipal maintenance, landscaping, and logistics handling.

2. Key Features of the XHDL50A

　　Feature Description

　　Eco-friendly Operation | Zero emissions and low noise levels make it particularly suitable for enclosed environments and areas with strict environmental regulations.

　　Compact Design | Features a small footprint, allowing for easy access to and egress from narrow job sites, elevators, and tight passageways.

　　Robust Structure | Constructed from high-strength manganese steel, ensuring exceptional durability and resilience even under harsh working conditions.

　　Powerful Drive System | Equipped with two 3kW flat-wire motors and a full-time four-wheel-drive system, providing superior traction and reliability.

　　Efficient Lifting System | A 3kW flat-wire lifting motor paired with a low-noise gear pump ensures smooth and steady operation during lifting tasks.

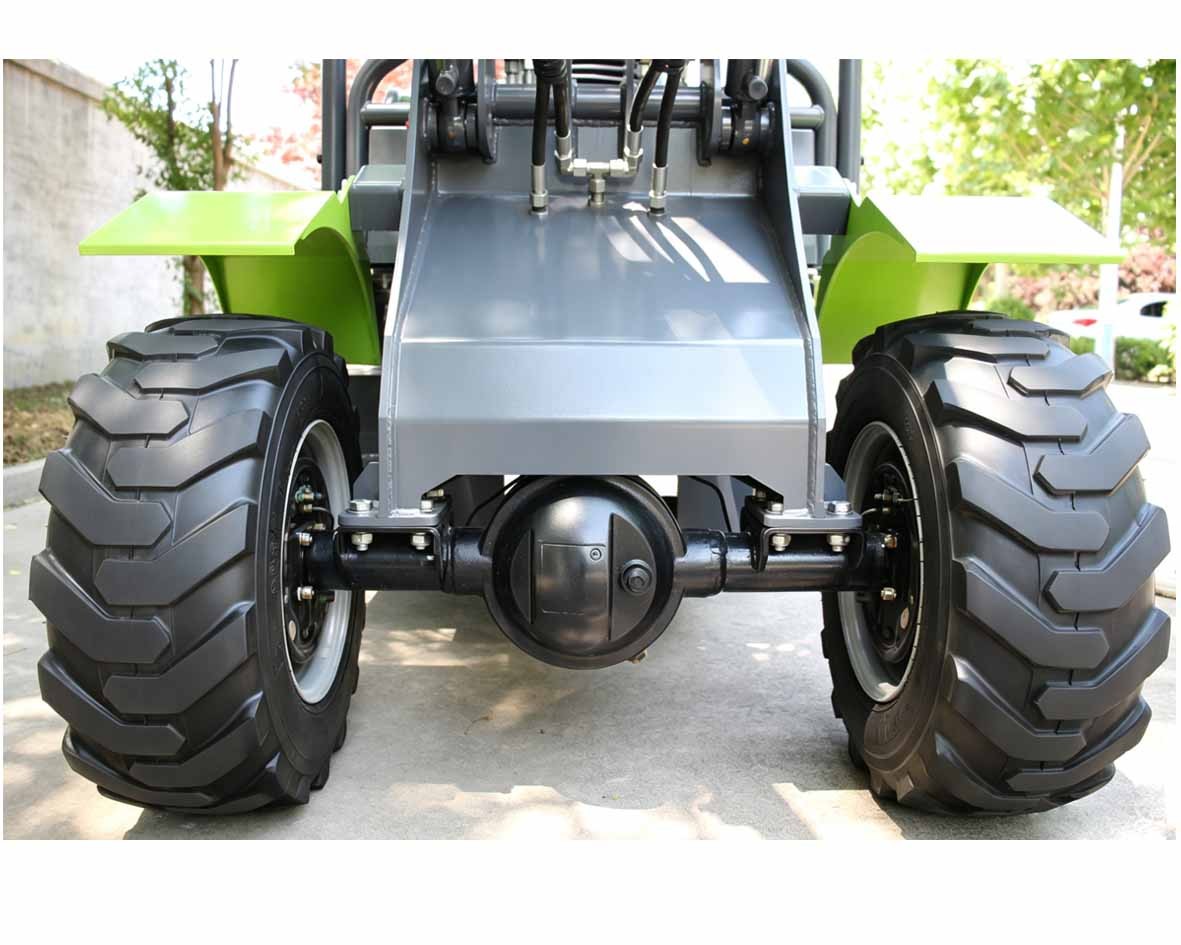

　　Comfort & Load Capacity | Features a fully suspended, reinforced axle system that not only offers outstanding load-bearing capacity but also significantly enhances operator ride comfort.

3. Advantages of Flat-Wire Motor Technology

　　1. Higher Efficiency — Flat copper wire windings increase the slot fill factor, thereby significantly boosting power output and energy utilization efficiency.

　　2. Superior Heat Dissipation — Excellent thermal management effectively minimizes temperature rise, ensuring stable performance even under heavy-load working conditions.

　　3. Compact & Lightweight — Smaller physical dimensions facilitate a lightweight vehicle design without compromising structural integrity or strength.

　　4. Low Noise — Operates quietly and without disturbance, enhancing operator comfort while meeting strict noise emission regulatory requirements.

　　5. Durable & Economical — Offers a long service life and requires minimal maintenance, effectively reducing the equipment's overall total cost of ownership throughout its lifecycle.

4. Intelligent Control and Instrumentation System

　　Intelligent Controller — Integrates automatic temperature control and cooling functions to ensure the equipment consistently operates at its optimal state.

　　Battery: 60V / 160V Lead-Acid Battery, providing 4–6 hours of continuous operation.

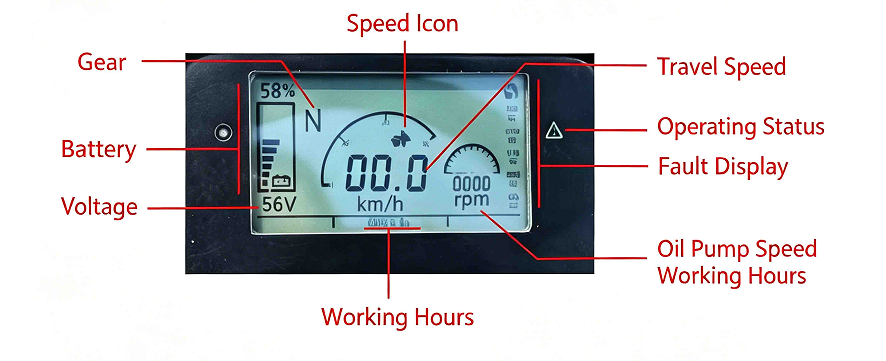

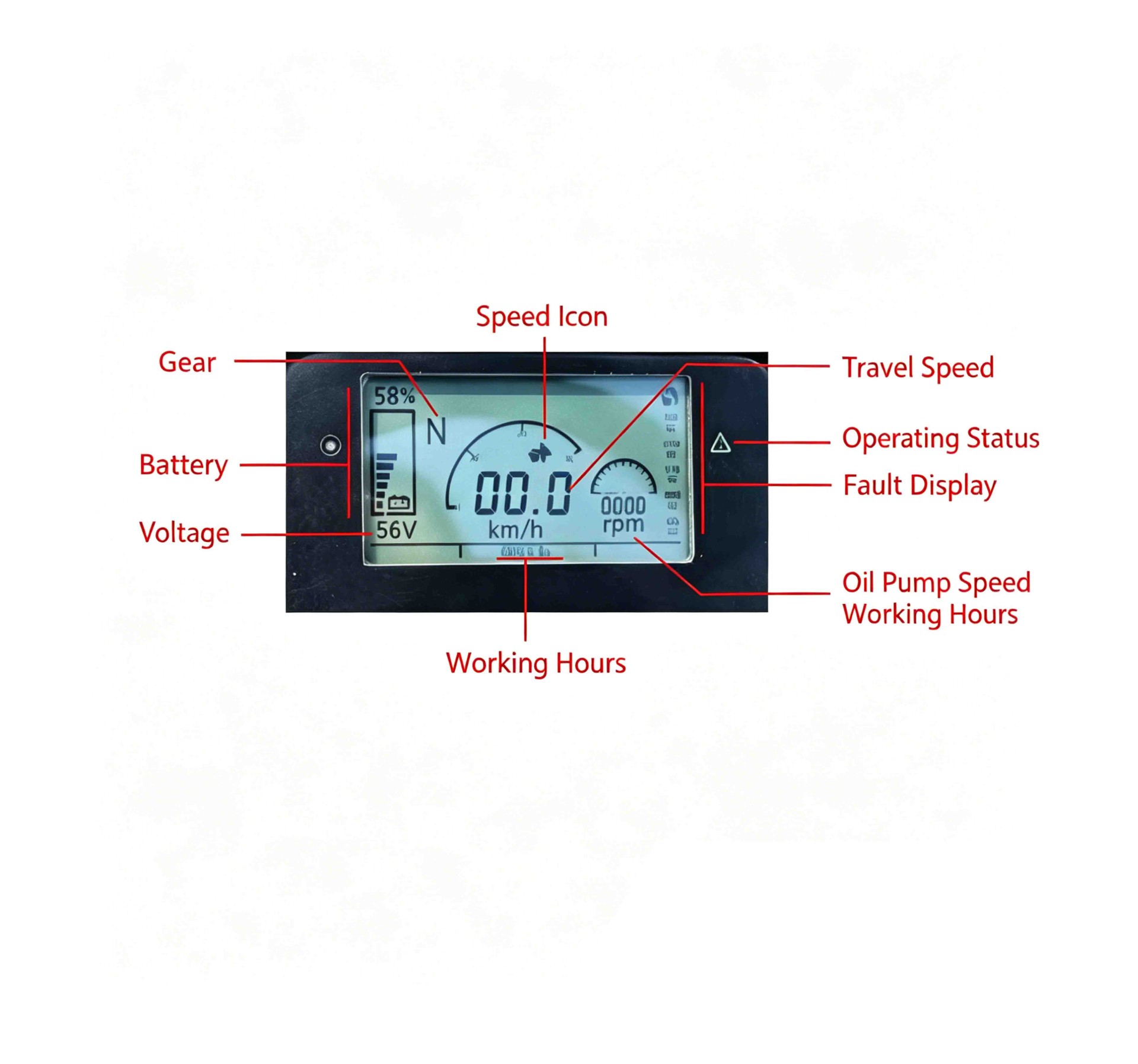

　　LCD Dashboard — Utilizes CAN bus communication technology to display key data in real-time, including voltage, battery level, travel speed, and hydraulic pump RPM.

　　Safety & Diagnostics — Includes alerts for operational errors and displays fault codes to facilitate rapid troubleshooting.

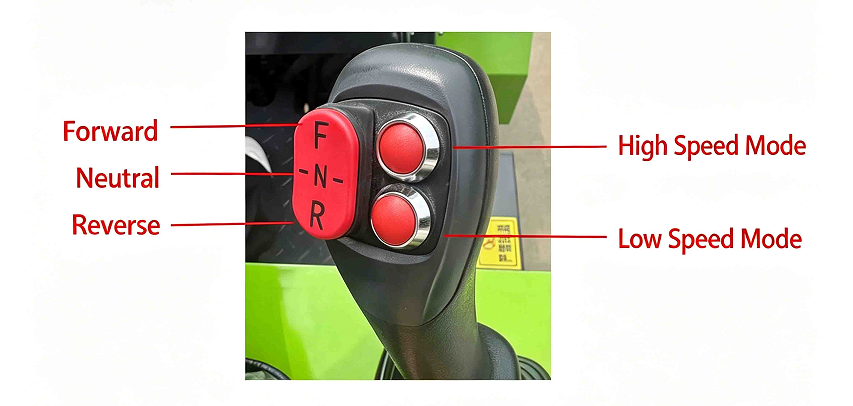

5. Ergonomic Control Handle

　　The integrated electronic control handle consolidates the following functions:

　　Forward / Reverse Travel Control

　　High-Speed / Low-Speed Switching

　　Boom Lift Control

　　Bucket Tilt Operation

　　This intuitive design simplifies the operation process and reduces operator fatigue, thereby effectively boosting work efficiency.

6. Versatile Multi-Functional Operation

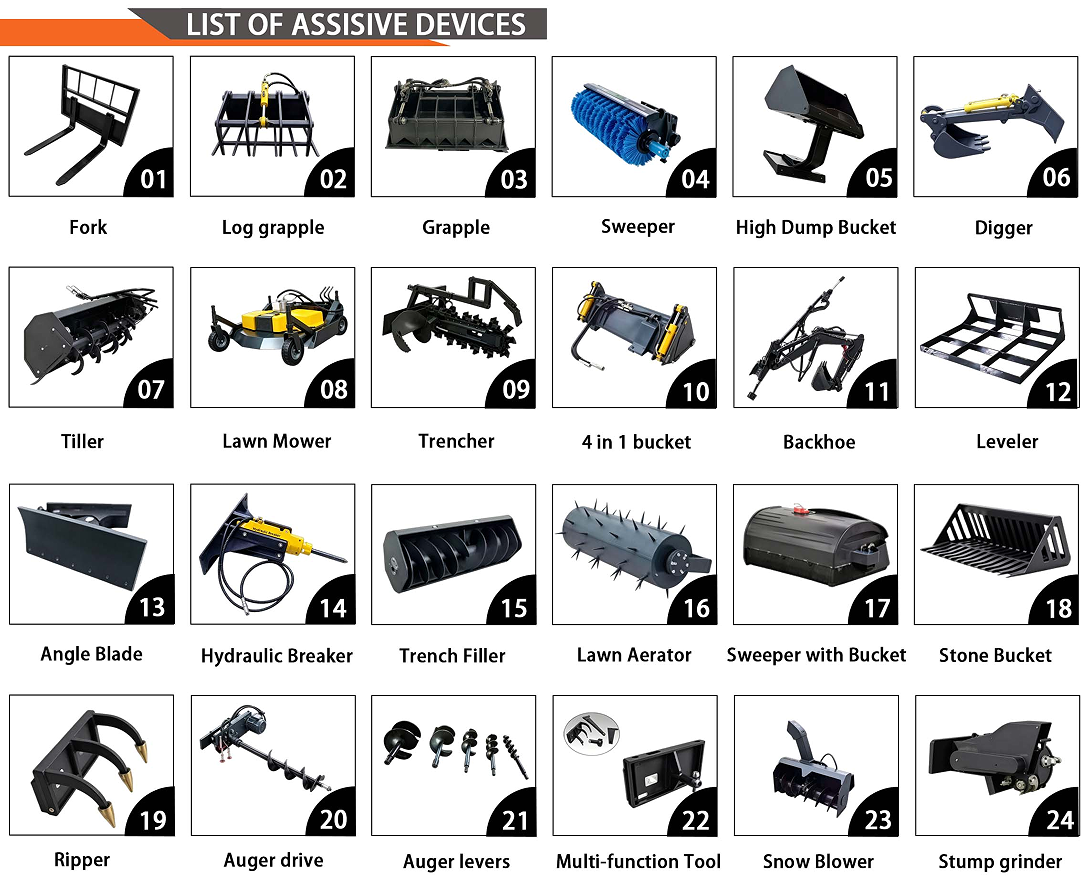

　　The quick-hitch system supports the attachment of various implements, including:

　　Log Grapple — Used for gripping and transporting logs, branches, or loose materials.

　　Pallet Forks — Used for handling palletized goods and for warehousing/logistics operations.

　　Custom Tools — Specialized solutions tailored to specific tasks.

　　One Machine, Infinite Possibilities — Widely applicable across a diverse range of operational scenarios, including construction, agriculture, landscaping, and industrial facilities.

7.Product Parameter

Technical Parameters (Lead-Acid)
