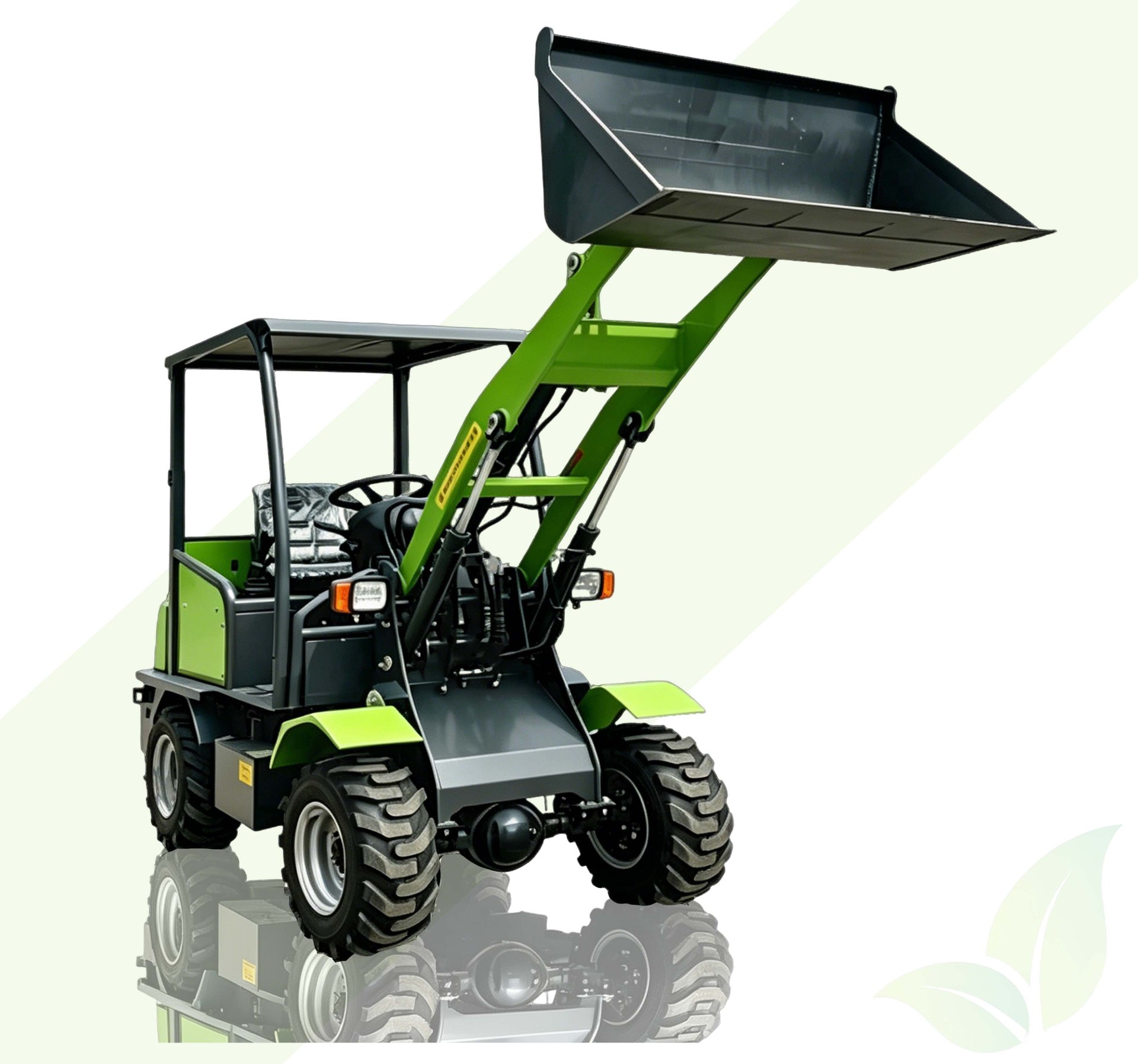

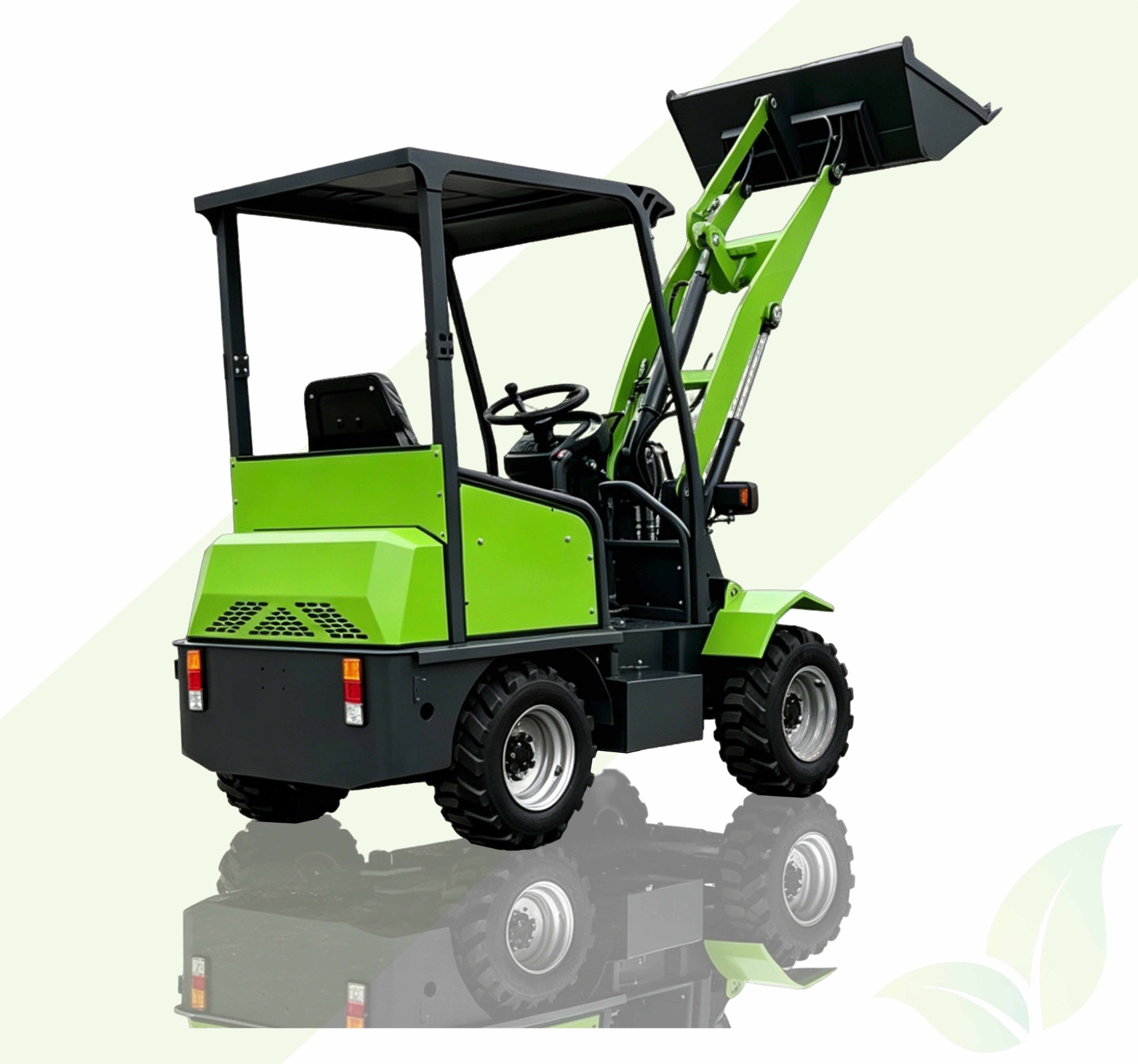

XHDL50A Mini Lithium-ion Loader

1. Product Overview

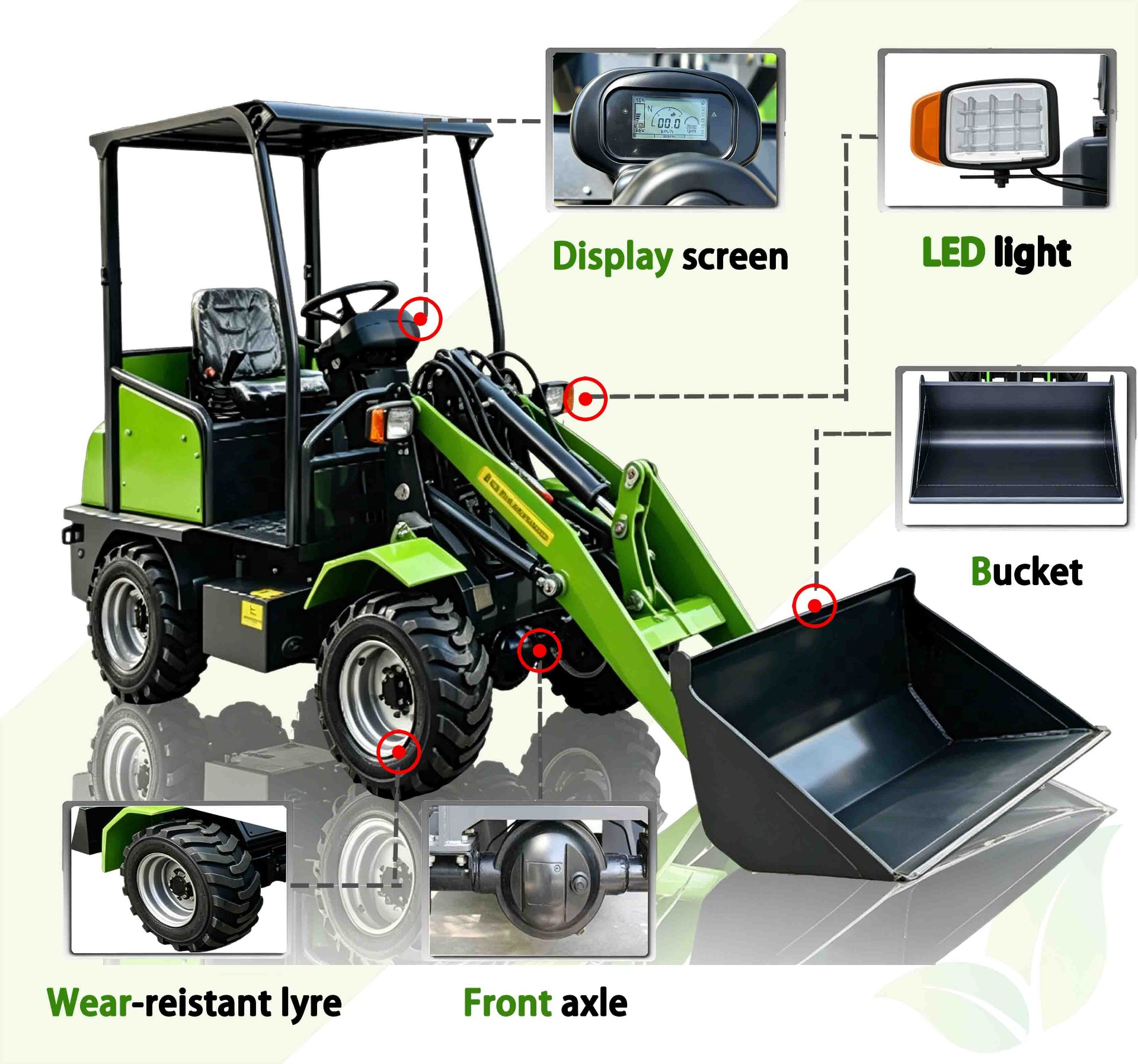

　　The XHDL50A Mini Electric Loader is specifically designed for efficient operation within confined spaces. The machine features a high-strength manganese steel frame and utilizes advanced flat-wire motor technology, ensuring robust power output while achieving zero emissions and low-noise operation. It serves as an ideal solution for applications such as interior renovation, municipal maintenance, landscaping, and warehouse logistics.

2. Key Features

　　Feature | Detailed Description

　　Eco-friendly Operation| Zero exhaust emissions and low-noise operation make it perfectly suited for enclosed environments and areas with strict environmental regulations.

　　Narrow-Body Design| An ultra-compact body allows for easy access to and egress from narrow passageways, standard elevators, and indoor workspaces.

　　Robust Durability| The main structural components are constructed from high-strength manganese steel, offering exceptional impact resistance and adaptability to harsh working conditions.

　　Powerful Drive| Equipped with two 3kW drive motors and a 3kW lift motor, coupled with a full-time four-wheel-drive system, it delivers superior traction.

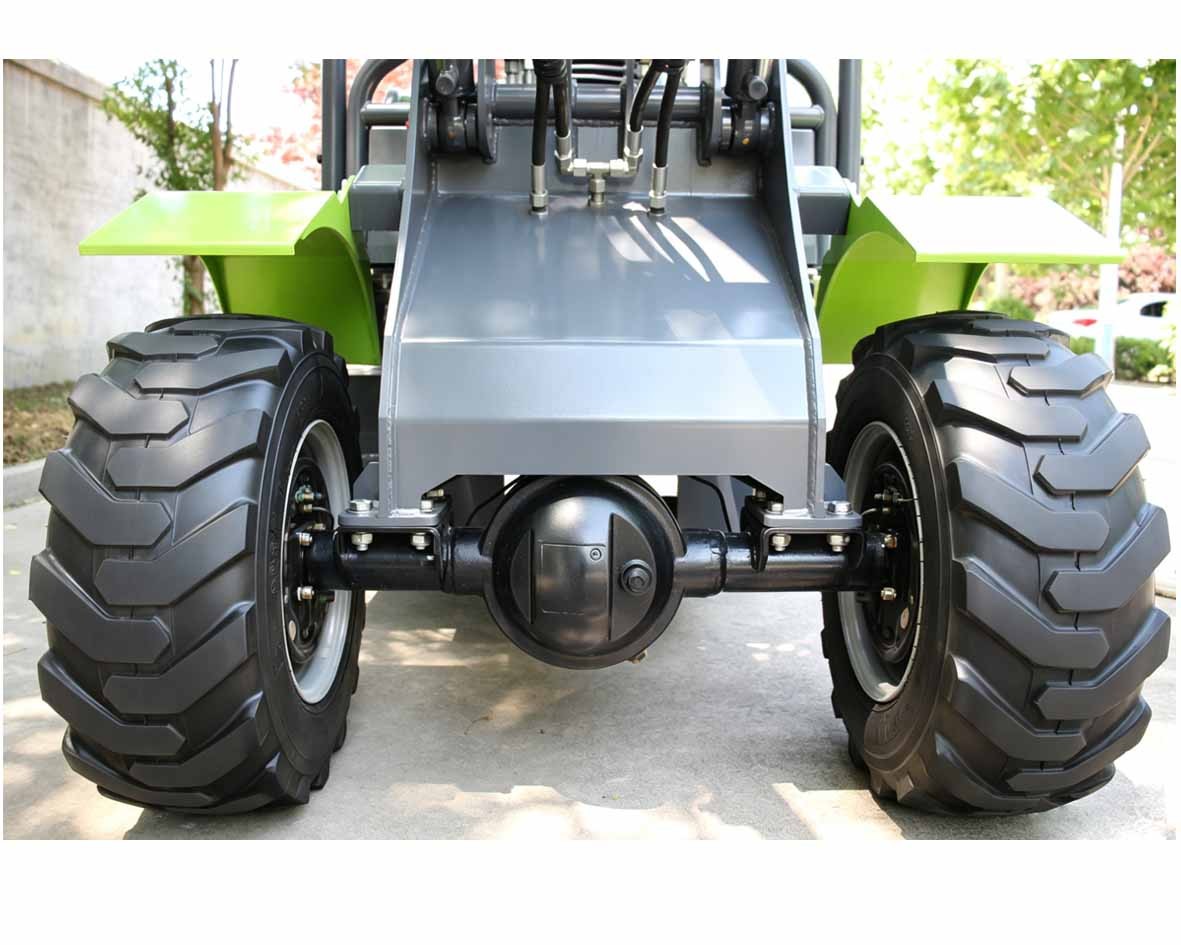

　　Comfortable Load-Bearing| Features a fully suspended, reinforced axle system that balances heavy-load carrying capacity with driving comfort over uneven terrain.

3. Advantages of Flat-Wire Motor Technology

　　Compared to traditional motors, flat-wire technology represents a qualitative leap forward:

　　High Efficiency:Flat copper wire windings significantly increase slot fill factor, resulting in stronger power output and lower energy consumption.

　　Superior Heat Dissipation:Excellent thermal management performance effectively controls temperature rise, preventing motor overheating and shutdowns under heavy loads.

　　Lightweight Design:A compact structure and small footprint contribute to the vehicle's overall lightweight design, enhancing agility and maneuverability.

　　Low-Noise Operation:Significantly reduces operational noise, improving the operator's working environment and meeting stringent regulatory requirements.

　　Extended Lifespan:Highly durable with low maintenance requirements, significantly reducing the Total Cost of Ownership (TCO) over the equipment's entire lifecycle.

4. Intelligent Control and Energy System

　　Intelligent Controller:Features a built-in automatic temperature-controlled cooling fan to ensure the controller consistently operates within its optimal temperature range.

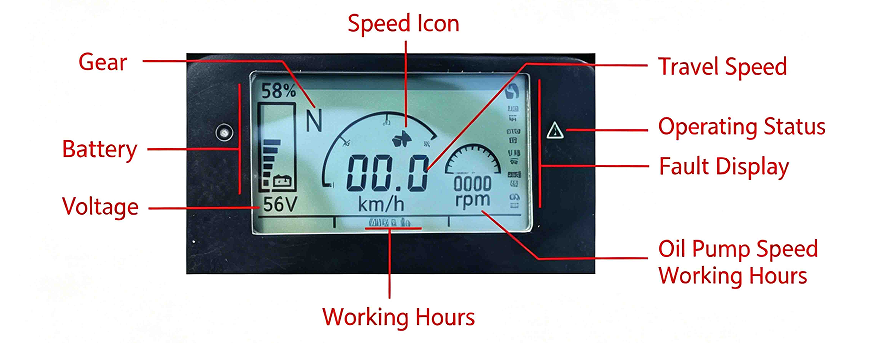

　　Battery Options:(Please verify voltage specifications) Available with optional high-performance Lithium Iron Phosphate (LiFePO4) batteries, offering long-lasting endurance (approx. 4–6 hours) and supporting fast-charging capabilities. LCD Digital Instrument Panel: Utilizing CAN bus communication, it provides real-time, precise displays of voltage, battery charge level, vehicle speed, and hydraulic pump RPM.

　　Fault Diagnostics:Features alarms for operational errors and displays diagnostic fault codes, making maintenance and troubleshooting more convenient.

5. User-Friendly Controls

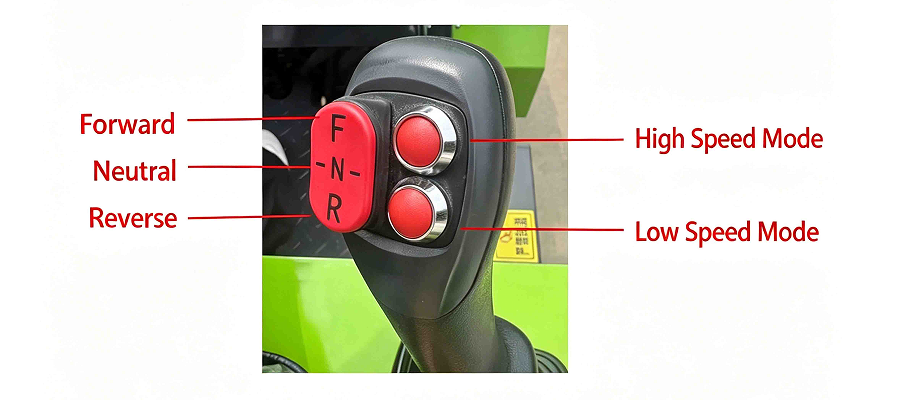

　　Integrated Multi-Function Joystick: Consolidates travel direction (F/R), high/low-speed shifting, boom lifting/lowering, and bucket curling/dumping functions into a single unit.

　　Value: Offers intuitive operational logic, enabling complex multi-axis movements to be executed with just one hand—significantly reducing operator fatigue and boosting work efficiency.

6. Multi-Purpose Versatility

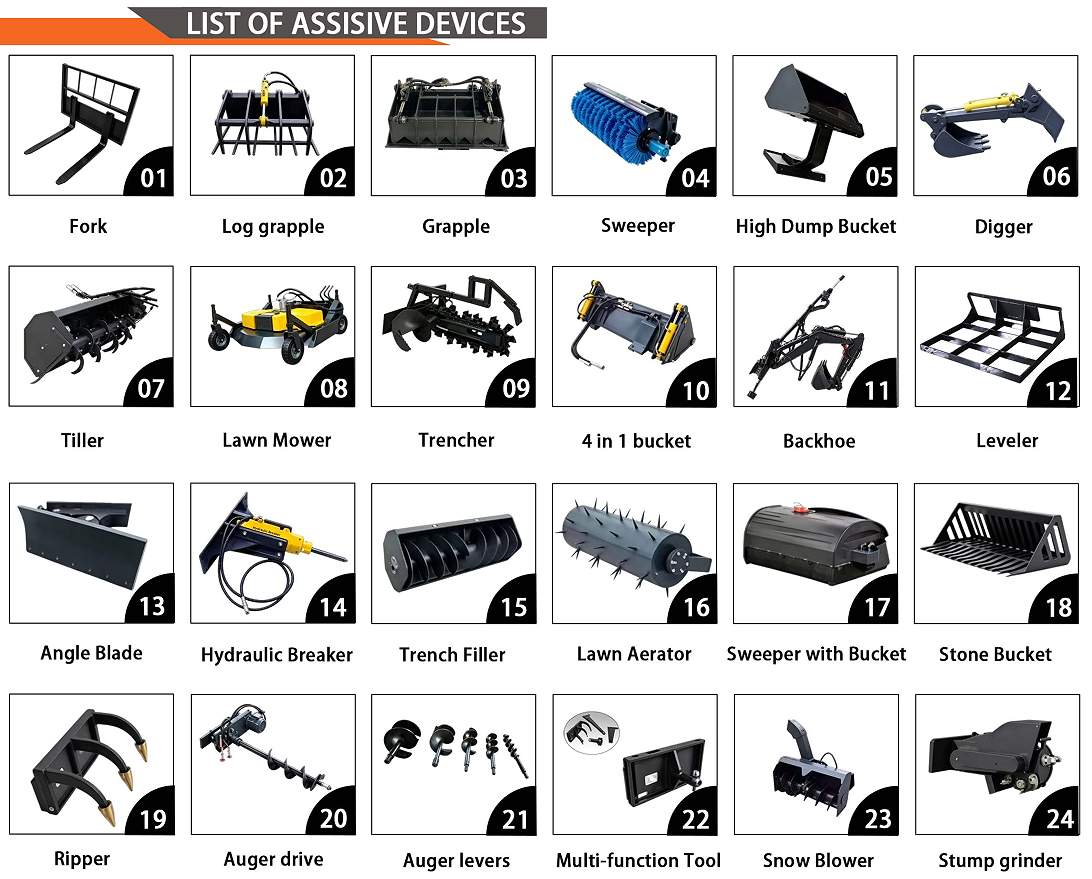

　　Quick-Change Coupler Design: Allows for attachment switching within one minute, adapting the machine to a wide variety of working conditions:

　　Log Grapple: Landscaping, tree felling, brush clearing, and pipe handling.

　　Pallet Forks: Warehouse loading/unloading, pallet transport, and factory logistics.

　　Bucket: Earthmoving, waste cleanup, and bulk material handling.

　　Custom Attachments: Specialized tools can be custom-engineered to meet the specific requirements of unique operating environments.

7.Product Parameter

Technical Parameters (Lithium Battery)
