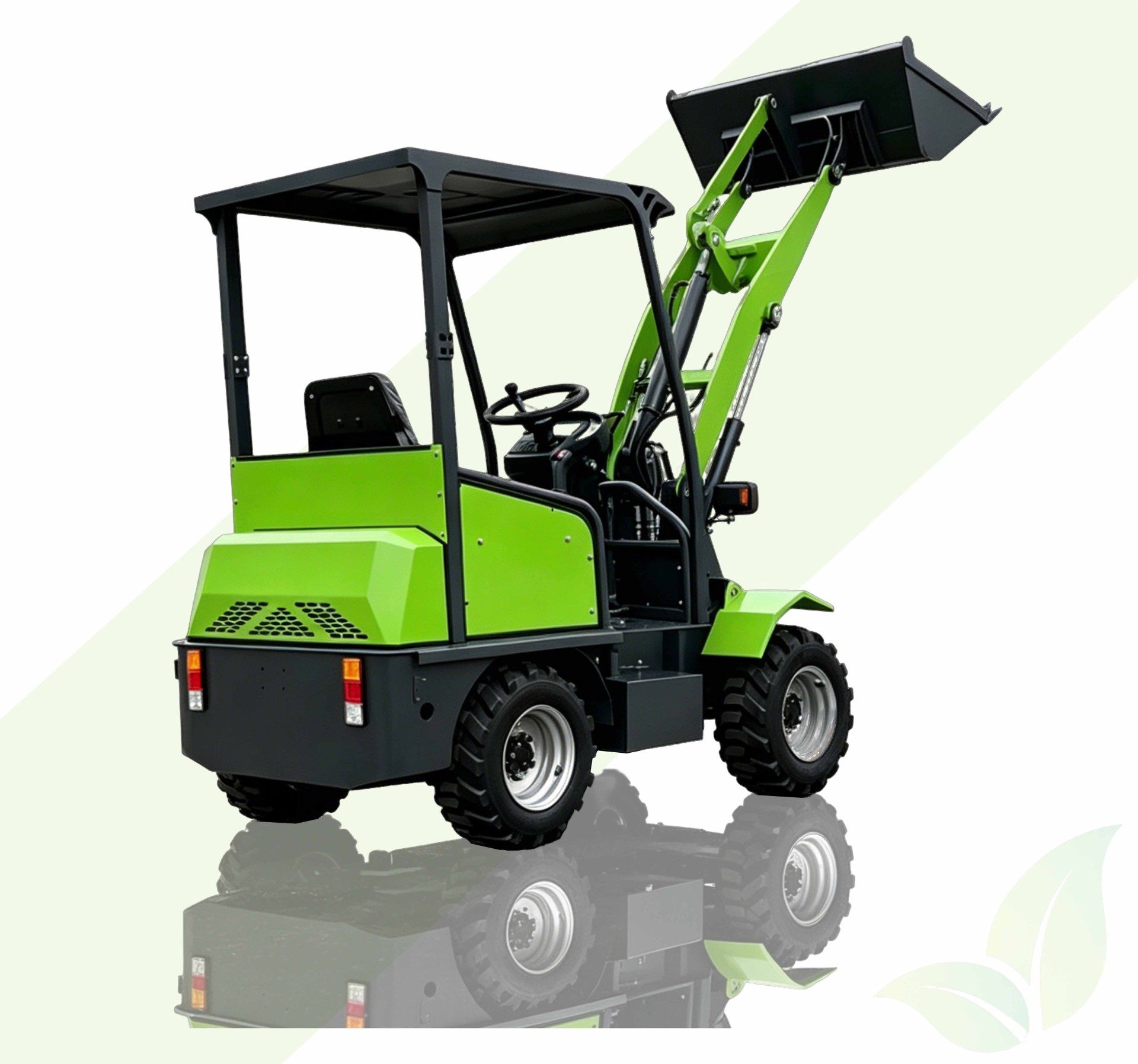

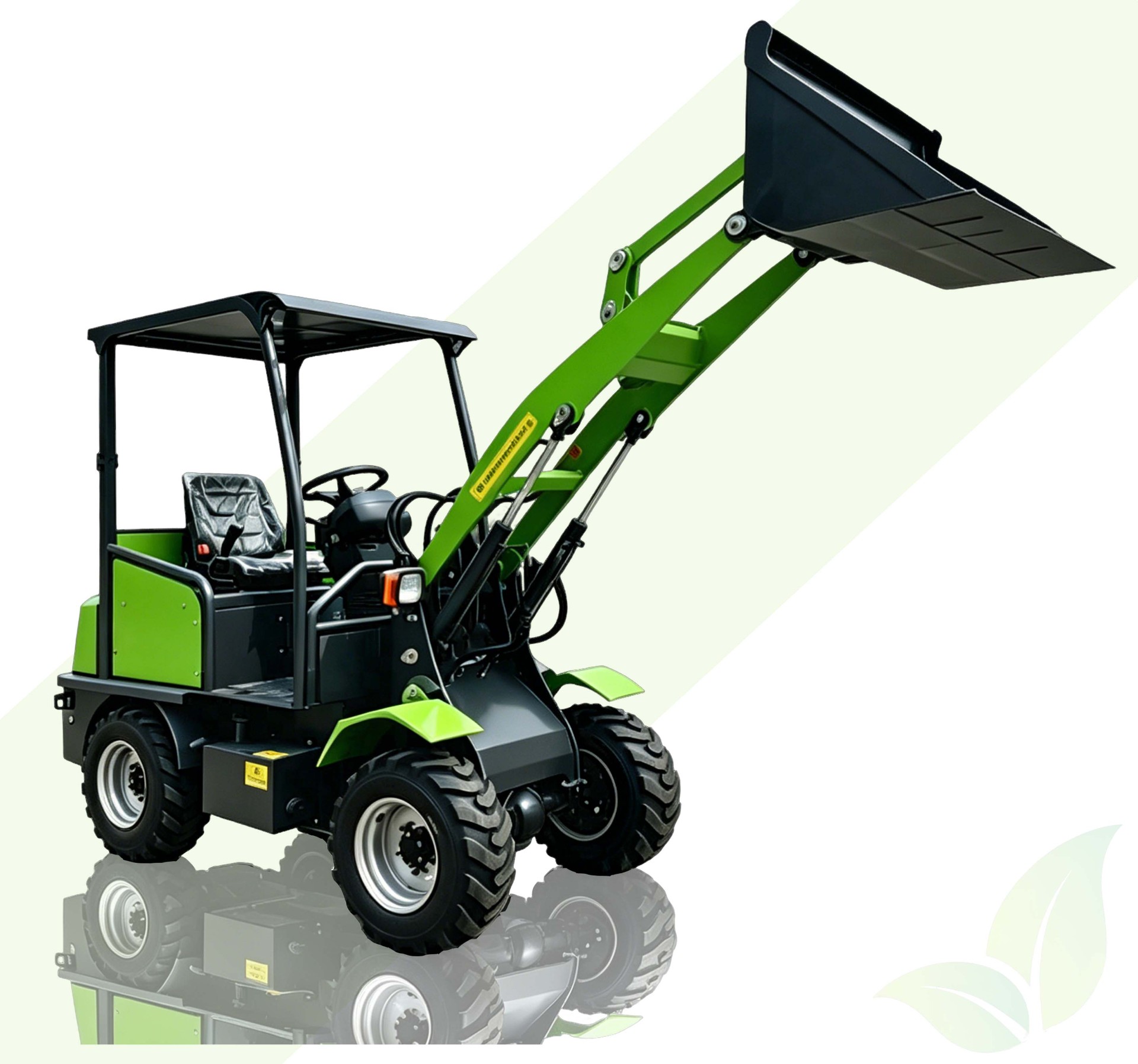

XHDL50A Lithum-Powered Loadel

XHDL50A Mini Electric Loader: Product Introduction

I. Product Overview

　　The XHDL50A is a mini electric loader specifically designed for operation in confined spaces and environmentally sensitive conditions. Characterized by zero emissions, low noise levels, a compact body, and powerful performance, it is widely applicable across various operational scenarios, including greenhouses, warehouses, basements, livestock farms, and municipal maintenance sites.

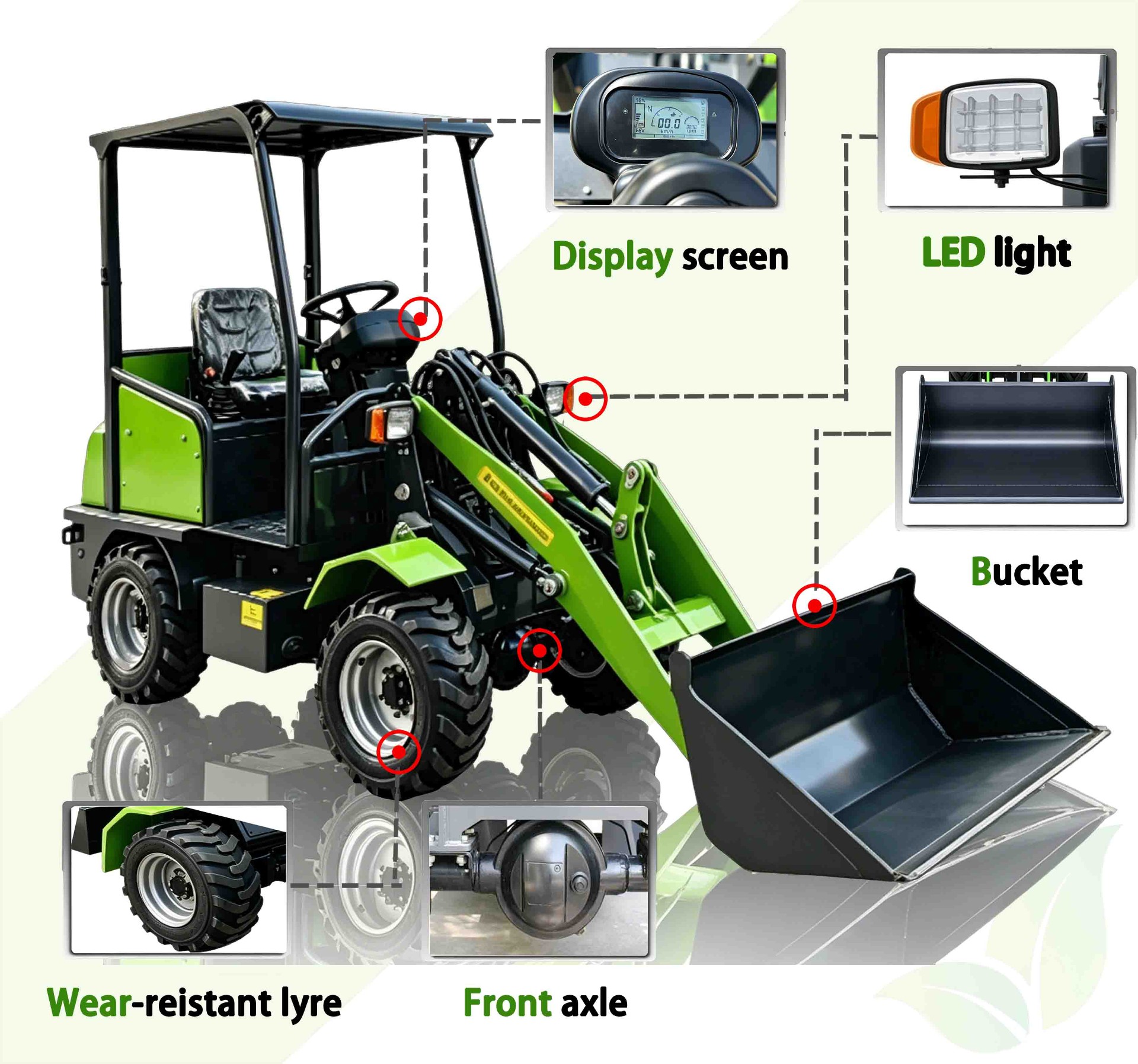

II. Features of the Mini Electric Loader

　　Zero Emissions · Low Noise: Powered entirely by electricity, it produces no exhaust pollution, making it ideal for operation in enclosed spaces and environmentally sensitive locations.

　　Compact Body Design: Small and agile, it can easily navigate in and out of narrow passageways and low-clearance areas.

　　High-Strength Manganese Steel Body + Full-Time 4WD: The entire vehicle features a high-strength manganese steel structure and is equipped with two 3kW flat-wire motors, enabling full-time four-wheel drive for powerful, efficient, and reliable performance.

　　High-Efficiency Lifting System: The lifting mechanism utilizes a 3kW flat-wire motor paired with a low-noise gear pump, ensuring smooth lifting operations with minimal noise.

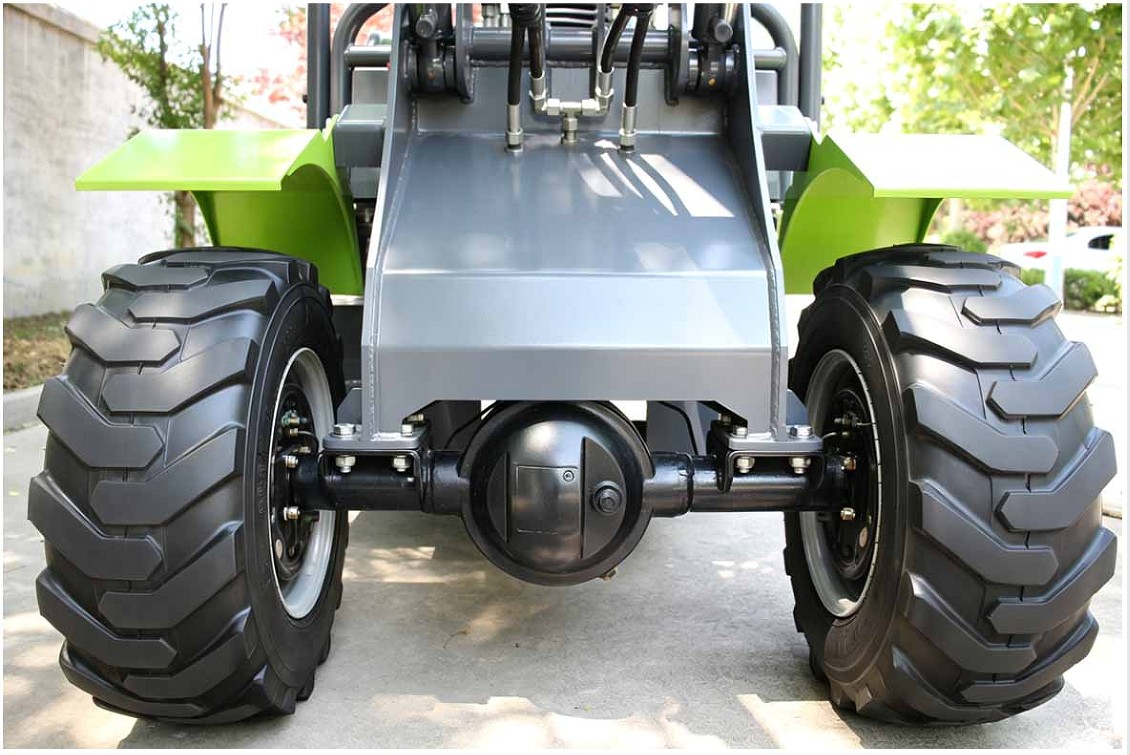

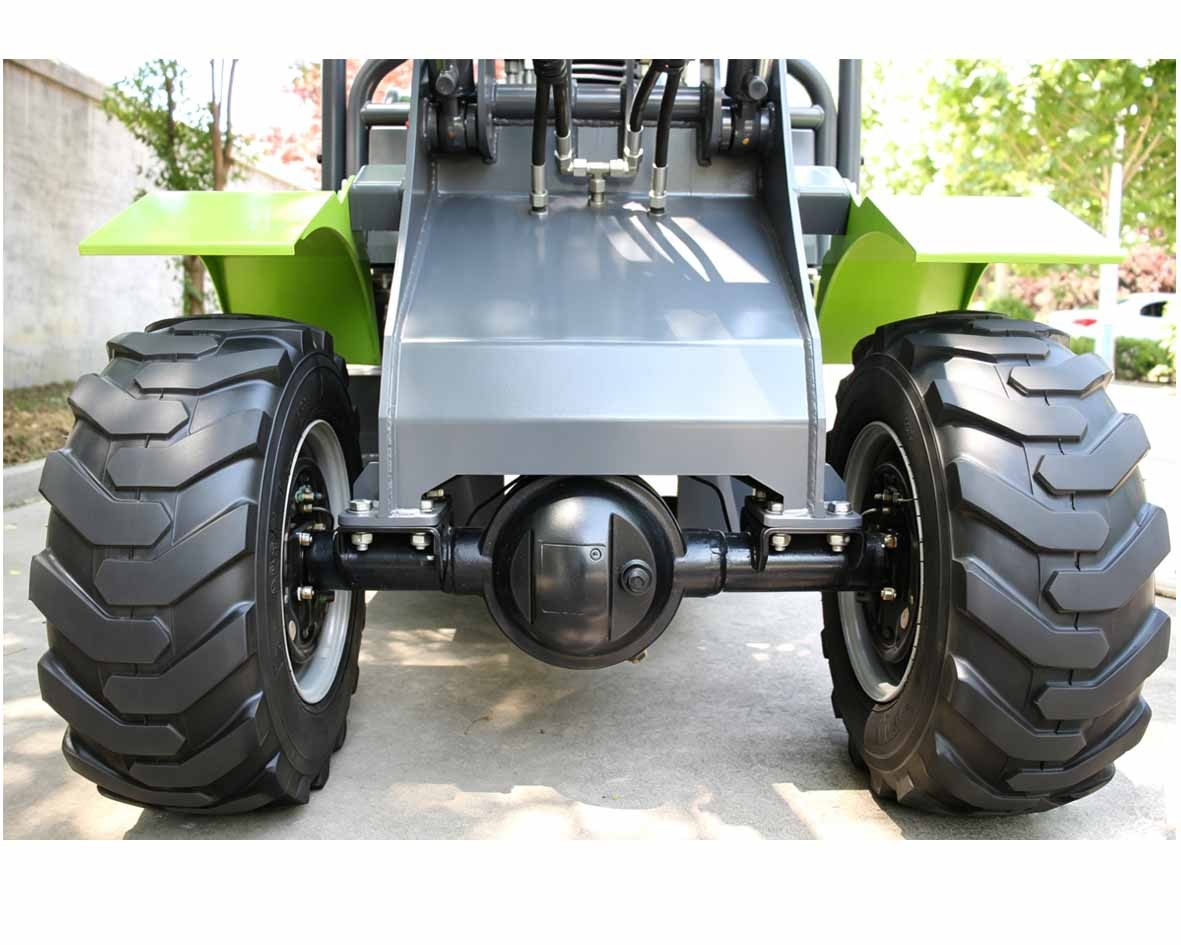

　　Reinforced Full-Suspension Axles: Designed with full suspension and reinforced axles, the vehicle offers a perfect balance between high operational comfort and robust load-bearing capacity.

III. Advantages of Flat-Wire Motors

　　Higher Slot Fill Factor: Employs flat copper wire winding technology to achieve a higher slot fill factor, significantly boosting power density and energy efficiency.

　　Superior Heat Dissipation · Low Temperature Rise: Features excellent heat dissipation capabilities, effectively preventing motor overheating under heavy load conditions.

　　Compact Size · Lightweight: Boasts a compact structural design that contributes to the overall lightweighting of the vehicle.

　　Low Noise · Stable Operation: Generates lower noise levels while delivering stable and reliable performance.

　　Long Lifespan · Low Maintenance: Highly durable, resulting in reduced long-term maintenance costs. IV. Controller

　　The controller features a built-in automatic temperature-controlled cooling function, ensuring stable operation during prolonged, high-load working conditions.

V. Battery Configuration

　　Battery Type: 64V / 280Ah Lithium Iron Phosphate (LiFePO4) Battery

　　Operating Duration: Approximately 6 to 8 hours of continuous operation on a full charge.

　　Offers high safety and a long cycle life, making it well-suited for high-frequency usage requirements.

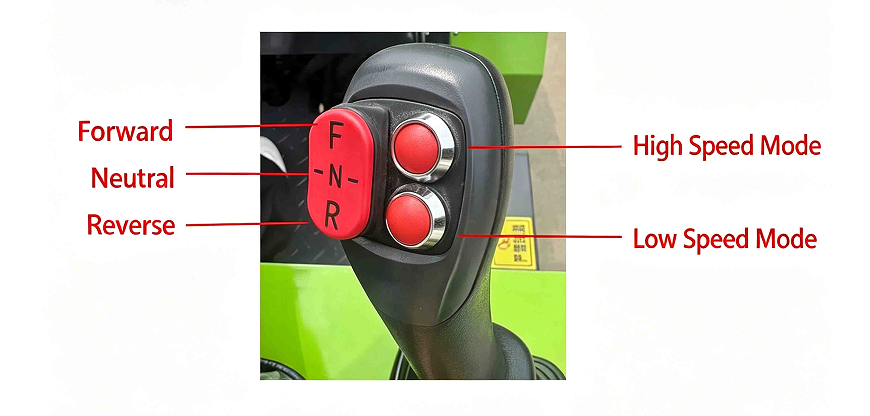

VI. Control System

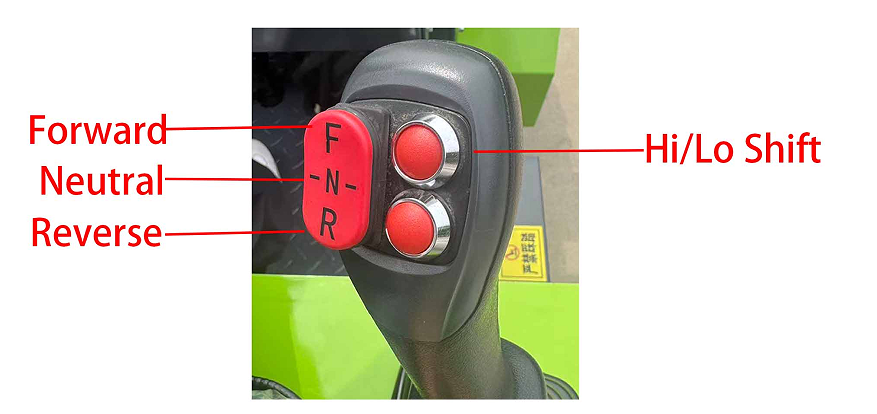

　　Integrated Control Lever: Forward/Reverse, High/Low-speed switching, lifting, and bucket operations are all integrated into a single lever, providing intuitive and convenient control that effectively boosts operational efficiency.

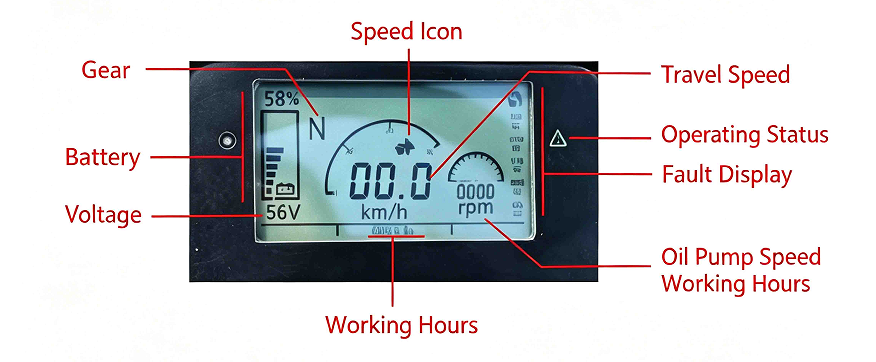

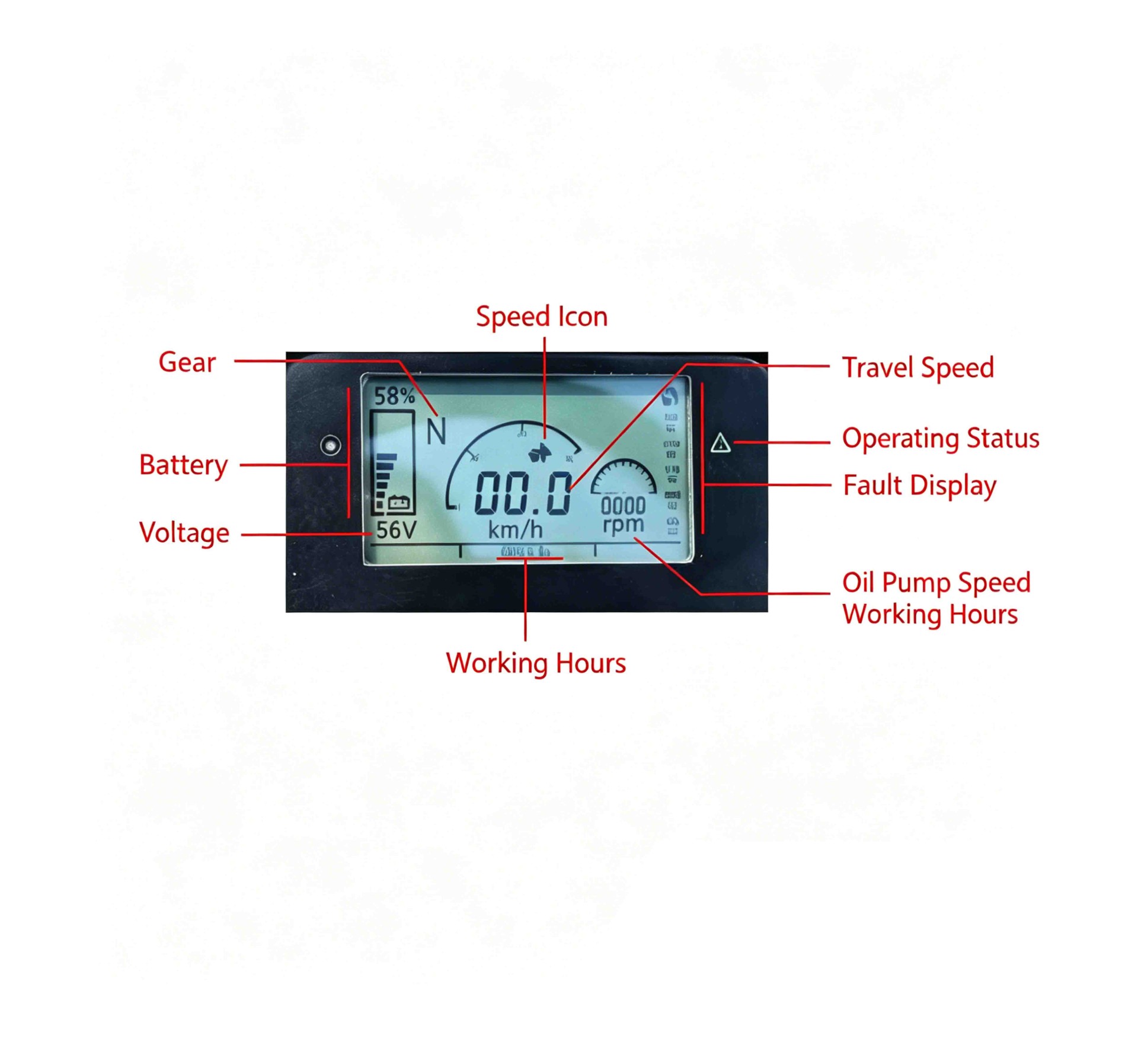

VII. LCD Instrument Panel (CAN Bus)

　　The vehicle utilizes CAN bus communication technology and is equipped with a digital LCD instrument panel capable of displaying the following data in real-time:

　　Voltage and State of Charge (SOC)

　　Travel Speed

　　Operating data such as hydraulic pump speed

　　Includes alerts for operational errors and displays fault codes, facilitating rapid troubleshooting.

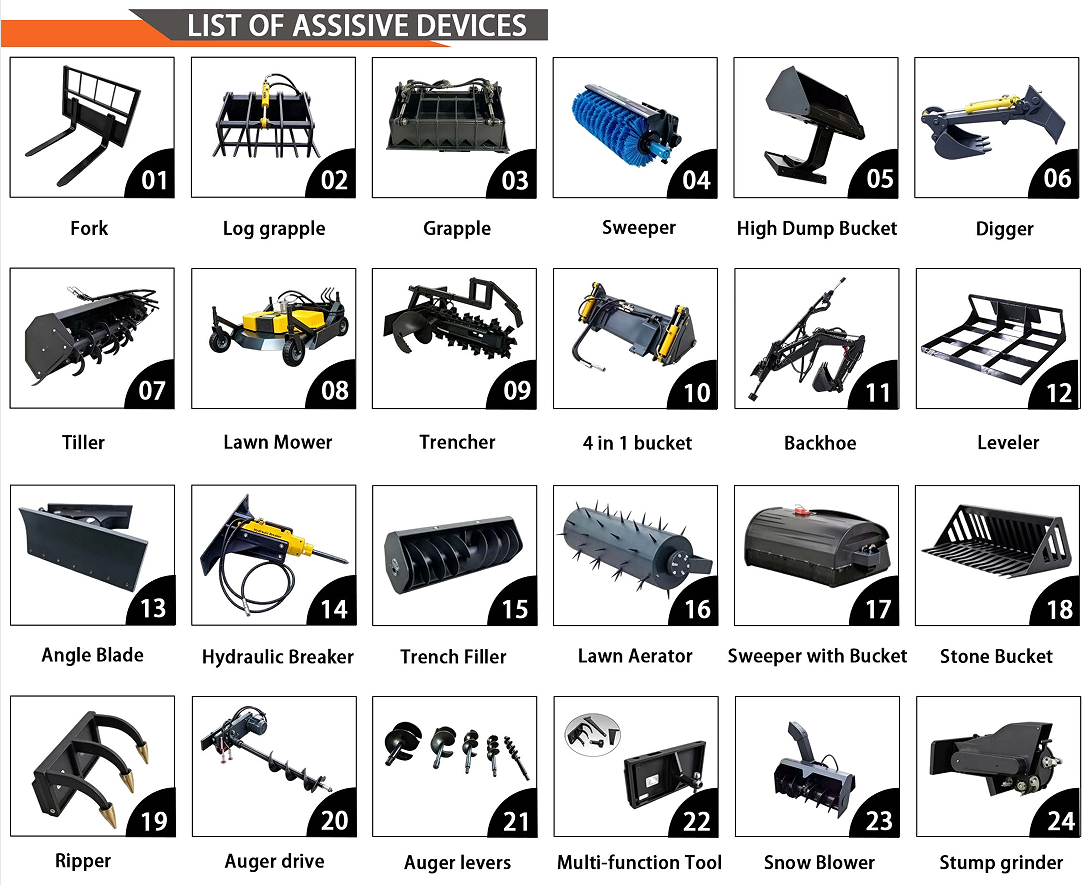

VIII. Multi-functional Attachment Quick-Switch System (Optional)

　　Supports the rapid switching of various attachments, truly enabling "one machine, multiple uses" (e.g., buckets, log grapples, pallet forks, etc.).

　　Different attachments can be selected based on specific working conditions to meet diverse operational requirements.

Ⅸ Product Parameter

Technical Parameters (Lithium Battery)
