When "Bigger" Means "Useless"
Every contractor knows the frustration. You get the call for a high-paying basement cleanup or a greenhouse resurfacing job. You arrive with your trusty skid steer—only to find the doorway is 900mm wide and your machine is 1200mm. You measure the temper of the building owner. You measure the width of the stairs. And you realize: your "compact" machine is useless here.
In the world of compact equipment, size isn't just a number—it's a gatekeeper. If your machine can't fit through the entrance, it might as well be a 20-ton excavator for all the good it does.

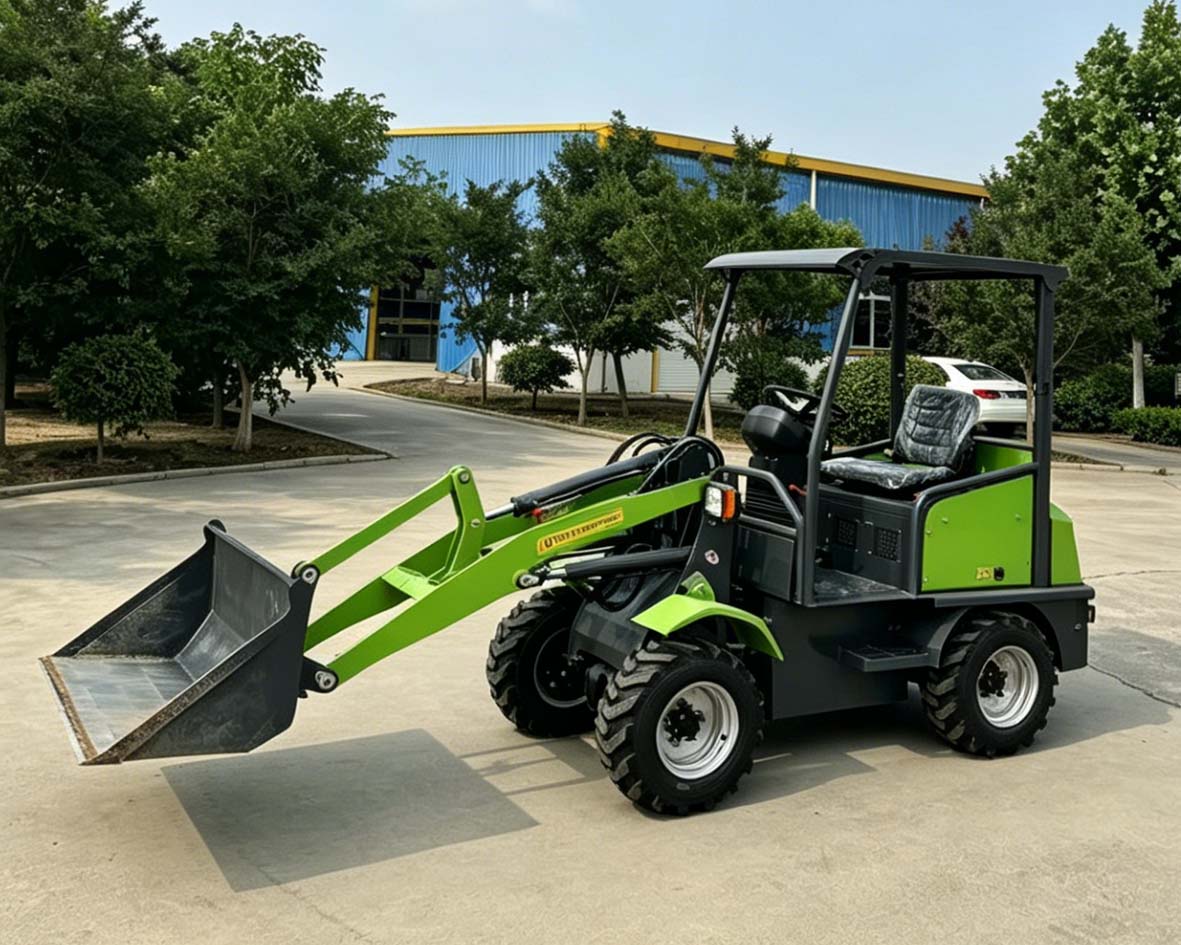

This is where the Xinghang XHD500A Articulated Mini Loader proves its worth. With an overall width of just 1,050 mm and a chassis that pivots in the middle, it does what a skid steer physically cannot: it passes through standard doorways, rides in freight elevators, glides between greenhouse benches, and rolls across finished lawns without leaving scars.
Today, we'll explore the physics of articulated vs. skid-steer steering, and why the XHD500A's narrow-body design opens doors—literally and figuratively—that remain closed to bulkier machines.
1. The Physics of Two Steering Systems
To understand why width and steering matter, you must understand how the two systems work.
1.1 Skid Steer: Drag to Turn
A skid steer turns by driving one side's wheels faster than the other, or even rotating them in opposite directions. This forces the machine to "skid" or drag the tires sideways across the ground surface.
The consequences are:
High Ground Pressure & Turf Damage: The tires scrub and slide, tearing up grass, scuffing polished concrete, and leaving deep ruts in soft soil.
Wide Turning Envelope: Because the rear end swings wide, you need significant clearance around the machine.
Fixed Width: The chassis width is the minimum passable width. If the machine is 1200mm wide, you need at least 1300mm of clear space.
1.2 Articulated Steering: Bend to Turn
The XHD500A uses a central pivot joint. The front and rear halves of the machine bend independently.
The benefits are:
True Tracking: The rear wheels follow the exact path of the front wheels. No scrubbing, no dragging.
Narrow Turning Radius: The machine folds into itself, requiring far less lateral space than a skid steer of the same length.
Smooth Rolling: All four tires rotate freely during a turn, preserving turf and finished floors.
2. The 1050mm Advantage: Real-World Access
Let's put the XHD500A's 1,050 mm overall width to the test in five common scenarios:
2.1 Standard Doorways (900–1000mm clear)
Most interior doorways in commercial and residential buildings are 900mm to 1000mm clear width. A 1200mm skid steer cannot pass without removing the bucket—and even then, it's a tight, risky squeeze.
The XHD500A's 1050mm width, combined with its articulated chassis (which is often narrower at the pivot), allows it to pass through a standard 1000mm doorway with the bucket on. No disassembly. No risk of scraping door frames. The foldable ROPS canopy (standard, meeting ISO 3471) can be lowered for low door headers.
2.2 Freight Elevators
Basement or multi-story interior demolitions require getting the machine to the work level. Stairs are impossible; ramps are rare.
Most commercial freight elevators have a door width of 1000mm to 1200mm. The XHD500A slides in comfortably. Its 1090kg operating weight is well within the load capacity of standard elevators, and the 23×8.5?12 pneumatic tires (non-marking optional) protect the elevator floor from damage.
Imagine the efficiency: instead of hand-carrying demolition debris up several flights of stairs, you drive the XHD500A into the elevator, ascend to the work floor, and begin clearing immediately.
2.3 Greenhouse & Nursery Aisles
Modern greenhouses typically have bench rows spaced 1000mm to 1200mm apart. Aisle width is often 1000mm to 1100mm.
The XHD500A's 1050mm width hits the "sweet spot." It can navigate standard 1.2m aisles with careful operation. The zero-emission electric powertrain means no exhaust fumes to harm plants or pollinators. The smooth-rolling tires won't compact the soil between rows.
Operators use the XHD500A for:
Moving pallets of potted plants with the fork attachment.
Delivering soil or mulch directly to the point of use.
Cleaning algae or debris from aisles with a brush attachment.
2.4 Finished Lawns & Turf
Skid steers are notorious for tearing up lawns. The XHD500A, with its articulated steering and even weight distribution across four pneumatic tires, rolls smoothly through turns without scuffing or rutting. This makes it ideal for:
Backyard patio installations.
Landscape renovations around existing gardens.
Golf course maintenance (moving materials without damaging turf).
2.5 Narrow Garden Gates & Side Yards
Many residential jobs require passing through a 1000mm garden gate or between a house and a fence. The XHD500A's 1050mm width, combined with its 3350mm length and articulated pivot, allows it to negotiate 90-degree turns from a narrow pathway into a yard—something a rigid-frame machine of similar width cannot do.
3. Stability: Low Center of Gravity
A common concern with narrow machines is tipping. The XHD500A addresses this through intelligent design:
Low-Mounted Battery Pack: The 64V 180Ah LiFePO? (or 60V 160Ah lead-acid) battery is integrated into the chassis as a structural component, sitting low and central. This drastically lowers the center of gravity.
Generous Wheelbase: At 1320mm, the wheelbase provides a stable platform, resisting forward/backward tipping during lifting operations.
Balanced Weight Distribution: The 1090kg operating weight is carefully distributed between the front and rear axles.
The result is a machine that feels planted, even when carrying a 500kg load on a mild side slope.
4. The Electric Advantage in Sensitive Environments
The XHD500A's steering advantages are amplified by its electric powertrain:
Zero Emissions: You can run the machine indoors, in basements, and in greenhouses without ventilation or CO alarms.
≤50 dB(A) Operation: The quiet electric motors and flat-wire design allow work in noise-restricted areas (hospitals, hotels, residential neighborhoods) without complaints.
No Oil Drips: The enclosed electric drivetrain won't leak oil onto finished floors or greenhouse pathways.
5. Control & Precision
The XHD500A's steering is pilot-assisted hydraulic, requiring minimal effort. The integrated electro-hydraulic joystick controls direction, speed range (0–9 km/h low / 0–17 km/h high), boom lift, and bucket tilt—all with one hand.
This "all-in-one" control scheme, combined with the machine's creep-speed capability, allows for millimeter-precise positioning next to walls, delicate installations, or in tight basement corridors. A skid steer's jerky, high-torque starts simply cannot match this level of finesse.
Don't Let Your Machine Be the Limiting Factor
Your skills as a contractor are valuable, but they are limited by the tools you use. If your loader can't fit through the door, it's not a tool—it's an obstacle.
The Xinghang XHD500A removes that obstacle. With its 1050mm width, articulated steering, 1090kg operating weight, and zero-emission powertrain, it goes where skid steers cannot: through doorways, into elevators, between greenhouse benches, and across finished lawns.
Whether you're a contractor specializing in interior demolition, a landscaper working in high-end gardens, a greenhouse operator, or a facility manager—the ability to access the workspace efficiently is the first step to profitability.
?? Contact Xinghang Machinery for the XHD500A specification sheet, FOB quote, and container-load plan. Find out how going narrow and articulated can expand your business horizons.
Small Machine, Giant Power — Fitting Where Skid Steers Fail.
